Color & Page: | MULTICOLOR | Condition: | New |
---|---|---|---|
Auto Counter: | Yes | Web Guide System: | Yes |
Precision: | +-0.1mm | Product: | Paper;Film;Alu Foil Ect |
Printing Speed: | 60m/m | Product Name: | RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

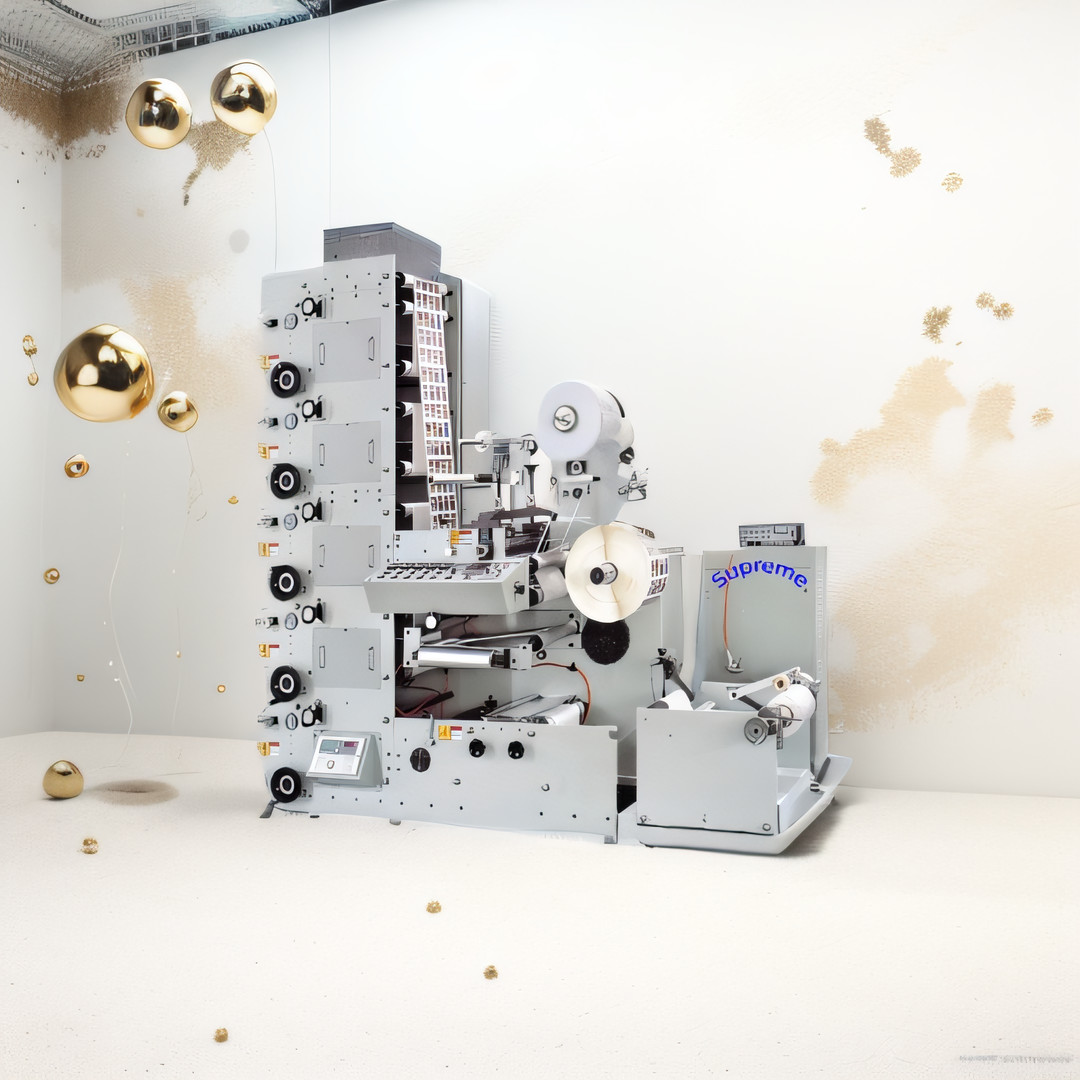

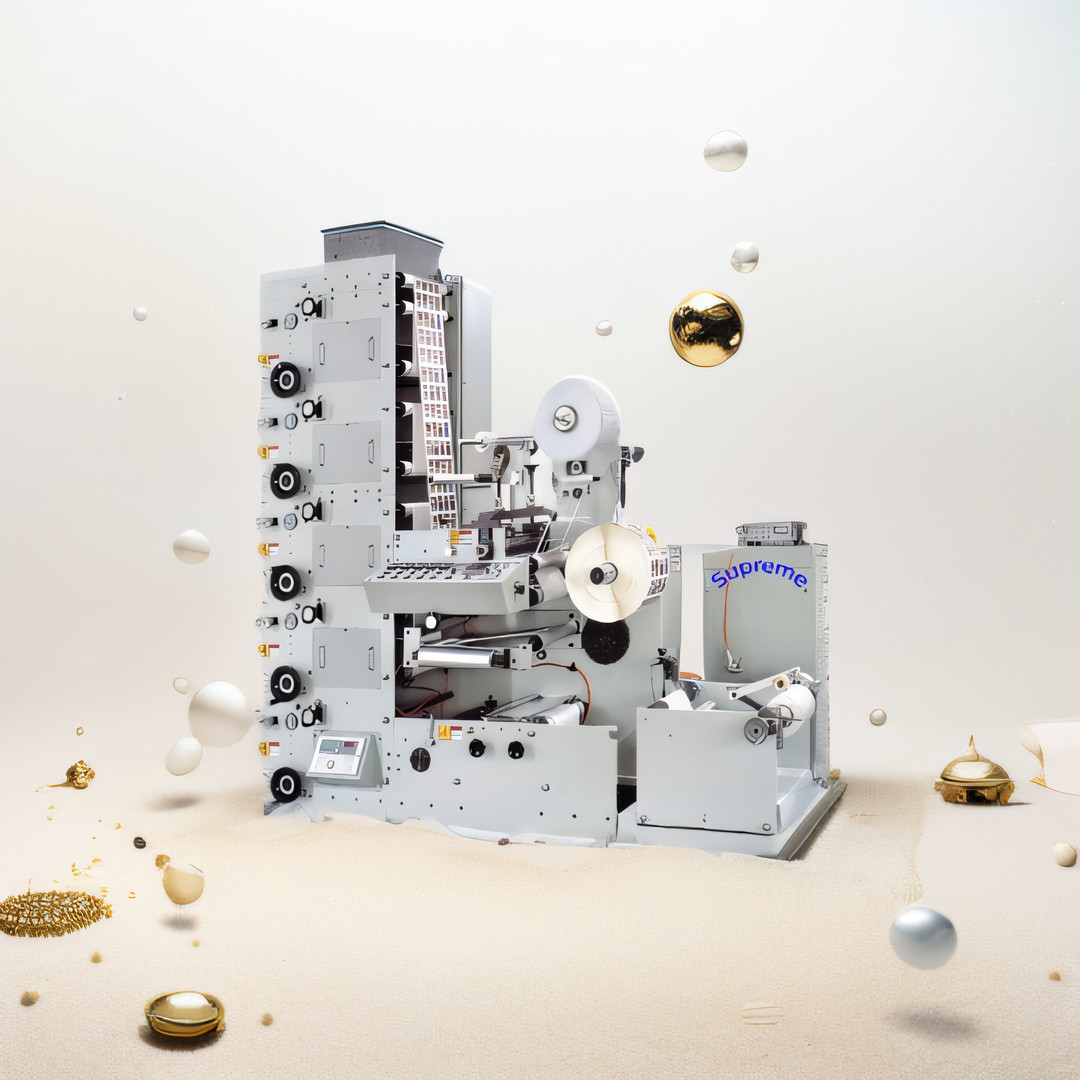

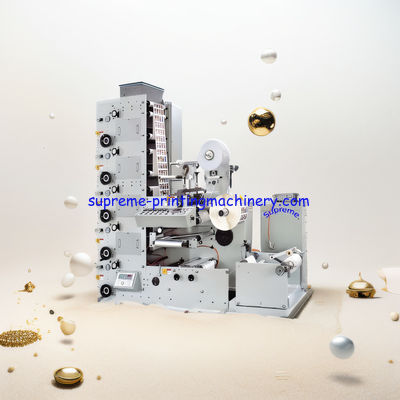

RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE
http://www.youtube.com/@labelturretrewindingmachinery
The machine can finish material-feeding, printing, varnish, solid color coating, IR or UV drying, laminating,rewinding and die-cutting even slitting ect in one process,it is an ideal machine for printing paper and top-grade adhesive label.
1. The flexo printing machine adopts the ceramic anilox rollers to spread ink. which is characterized by
wearable, harden treatment and long using life, etc. It can improve the printing efficiency and more pretty products.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch.Tension controller is automatic. .
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier(6 fans, customized for more efficient). UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while stop, and running at a low speed, in order to avoid ink being dried to damage the flexo resin plate.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft each 1 pc 3 inch, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive paper labels and other commercial label.
Machine Model | RY320 |
Printing speed | 60-80m/min |
Max. Web Width | 320mm |
Max. Unwinding/Rewind Diameter | 600mm |
Printing Length | 175-381mm |
Color Quantity | 1-10colors |
Dimensions | About:2900*1400*2200mm(L*W*H) |
Precision | +-0.1mm |
Voltage | 220V/380V(customized) |
Gear | Helical Gear |
Machine weight | About 3000 kgs(4 colors) |
We provide technical support and services for RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RY320-6 LOW PRICES 1 2 3 4 5 6 COLORS HIGH SPEED AUTOMATIC FLEXO LABEL PRINTING MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
