| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | MQ-320Z |
| Minimum Order Quantity: | 1 |
| Price: | Negotiated |
| Packaging Details: | Seaworthy package |
| Delivery Time: | 20-60 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20-40 sets/month |
| Max. Unwinding Diameter: | 550mm | Web Guide: | Yes |
|---|---|---|---|
| Color Track: | Yes | Material: | Blank Or Printed |
| Color: | Customized | Max Die Cutting Speed: | 300times/minutes |
| Voltage: | 380V | Name: | SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
| Product Name: | SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

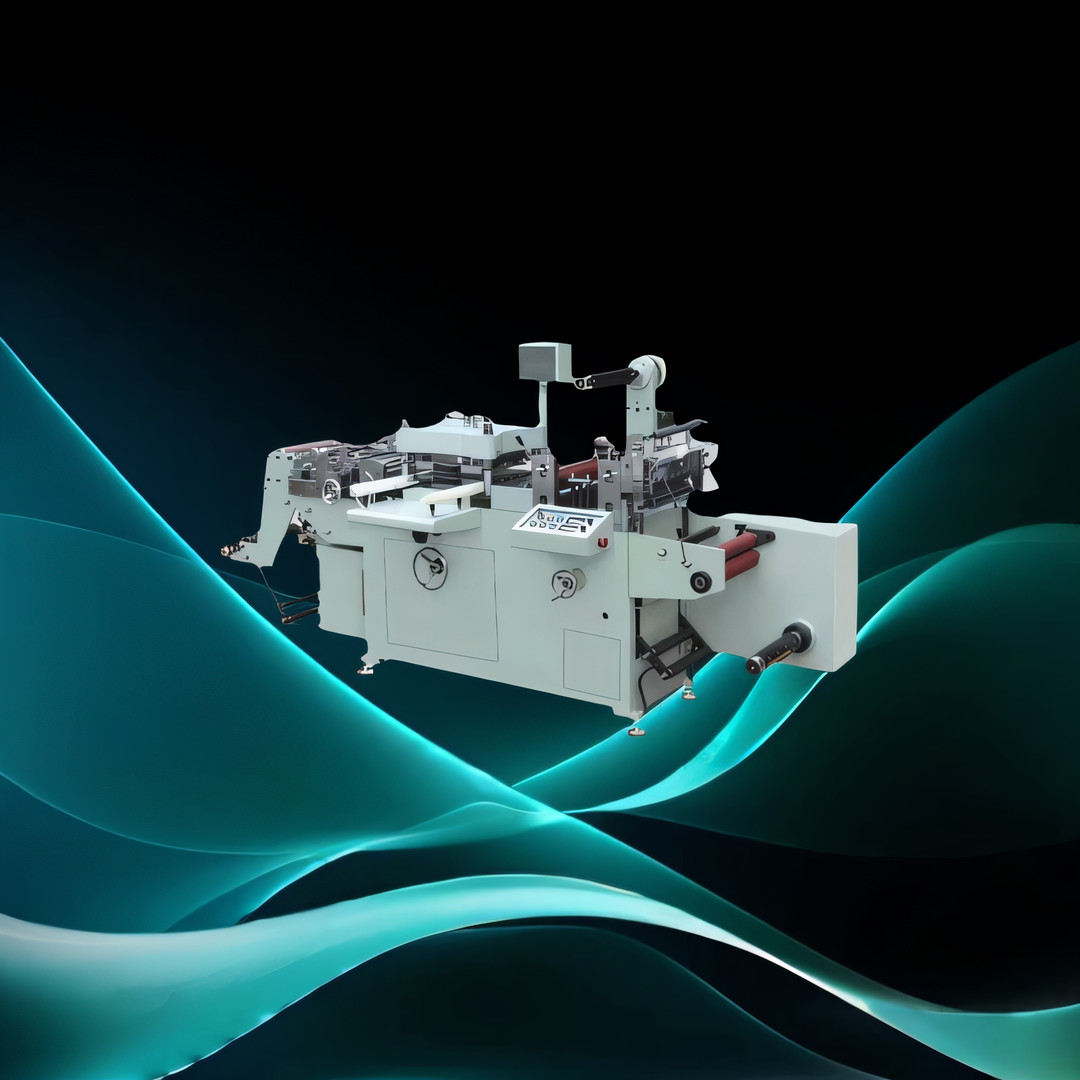

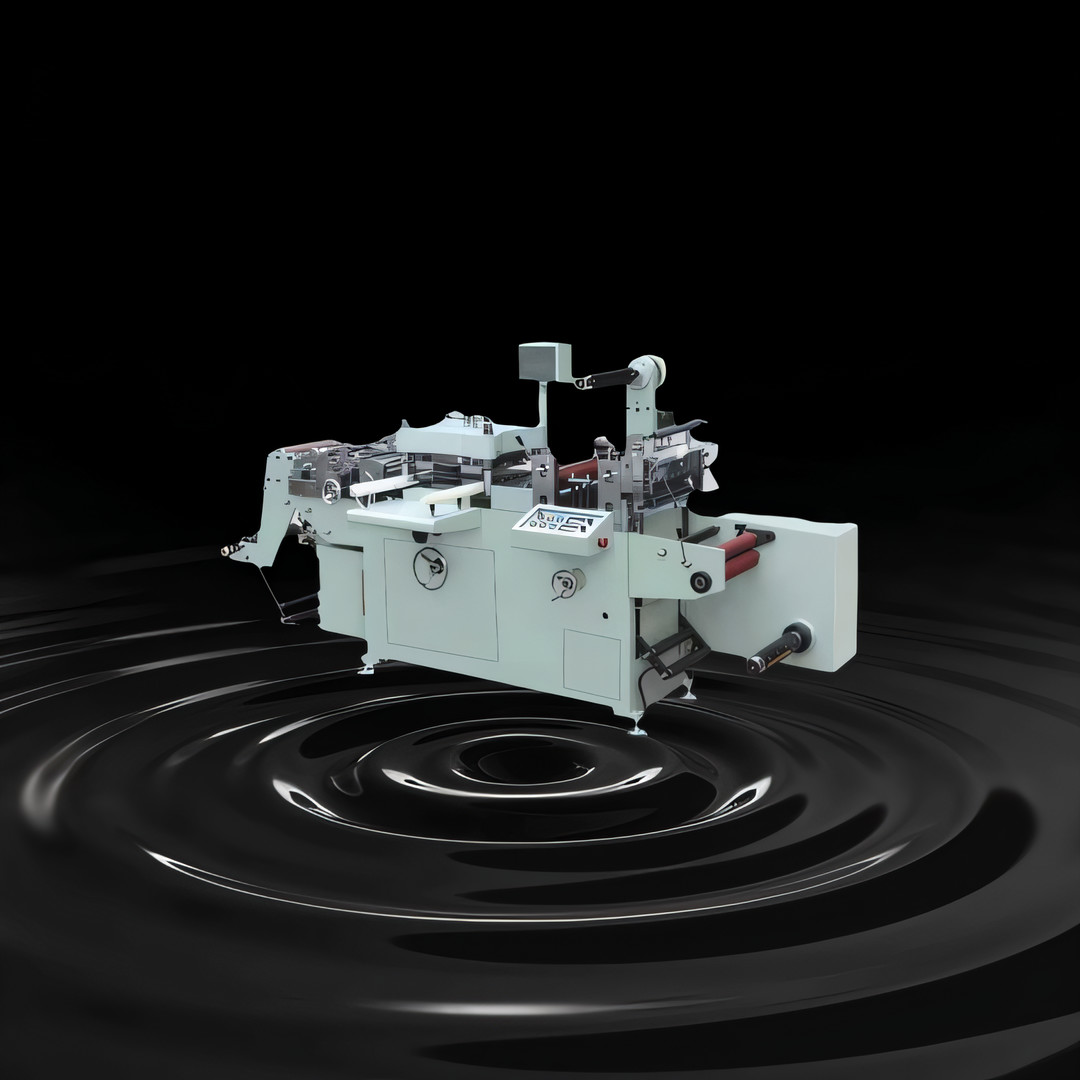

SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE
http://www.youtube.com/@labelturretrewindingmachinery
MQ-320Z is a kind of middle high speed flatbed die cutting machine upgraded from MQ-320A with more economical and high precision. The material going controlled by the servo motor Schneider France, more stable. Two web guide for right and left decide more precision for the +-0.1mm controlled. The photoelectric eyes by Germany Leuze track the colors work for both printed and unprinted materials. It is with the functions of material feeding-web guiding-color tracking-die cutting-laminating-hot stamping-hole punching-waste rewinding-material sheeting or rewinding in one process controlled by the touch screen with PLC automatic tension controller, it is best solution for the Post-press process of label. Example: Label paper, nylon membrane, and radium trademark security trademark ect for the electronic and adhesive products
Standard with the machine:
1. One Flatbed Die Cutting Station+sheet cutting function with collection.
2. With 1pc 3’’ Unwinding Air Shaft, 1pc 3” Rewinding Air Shaft
3. With Meter/Number counter.
4. With 2 Photoelectric Eyes---Web Guide System
5. With 1 piece Color Track Photocell Sensor
6. PLC, Touch Screen...Controller
7: with safety protection case
Specification:
| Machine Model | MQ-320Z | MQ-420Z | MQ-520Z |
| Max Die Cutting Speed | 300 times/min | 200 times/min | 140 times/min |
| Max. Web Width | 320mm | 420mm | 520mm |
| Max. Unwinding Diameter | 550mm | 550mm | 550mm |
| Max. Rewinding Diameter | 550mm | 550mm | 550mm |
| Max. Die Cutting Area | 300*350mm | 400*450mm | 510*550mm |
| Precision of next die cut | ±0.1mm | ±0.1mm | ±0.1mm |
| Total Power: | 5 kw | 6 kw | 10kw |
| Voltage | 380V | 380V | 380V |
| Dimensions | 2750x1250x1400mm | 2750x1350x1400mm | 2750x1450x1400mm |
| Machine weight | 1700 kgs | 2500 kgs | 3200 kgs |
We provide technical support and services for SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
SMALL ADHESIVE BLANK STICKER LABEL FLAT BED CREASING DIE CUTTING SLITTING MACHINE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
