Slitting Speed: | 120m/m | Max. Unwinding Diameter: | 500mm |
---|---|---|---|
Voltage: | 220/380V | Color: | Customized |
Web Guide: | Yes | Knife: | 8 Sets |
Air Shaft: | Yes | Name: | Paper Slitter Rewinding Machine Rewinder With 8 Sets Rotary Knife For Paper Label |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
Product Name: | Paper Slitter Rewinding Machine Rewinder With 8 Sets Rotary Knife For Paper Label | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

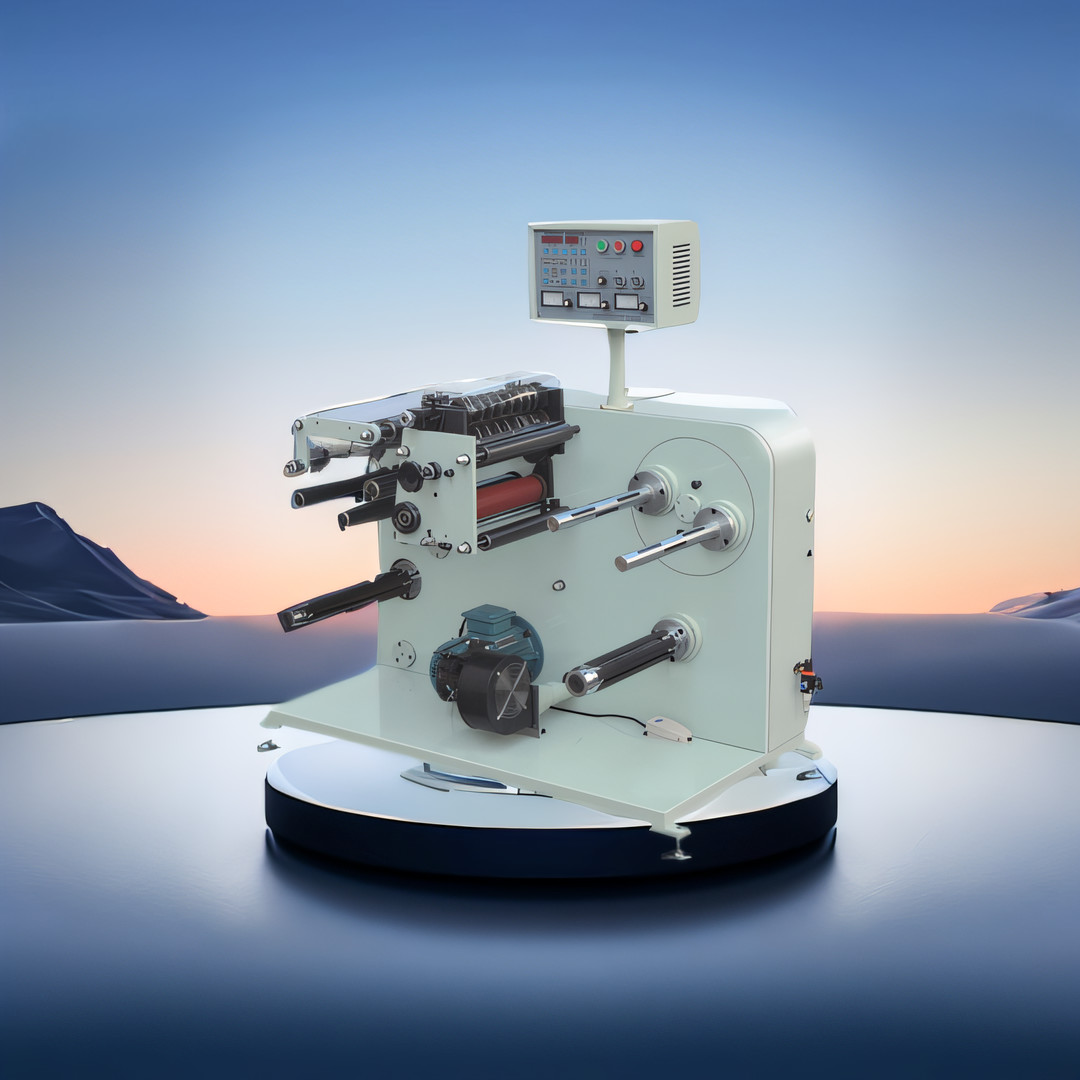

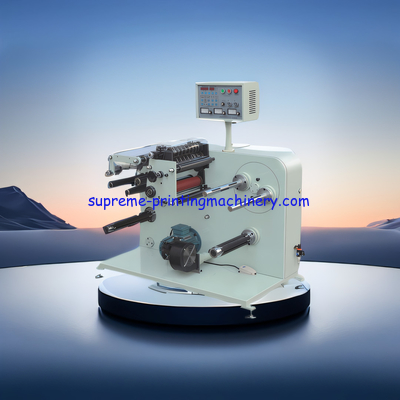

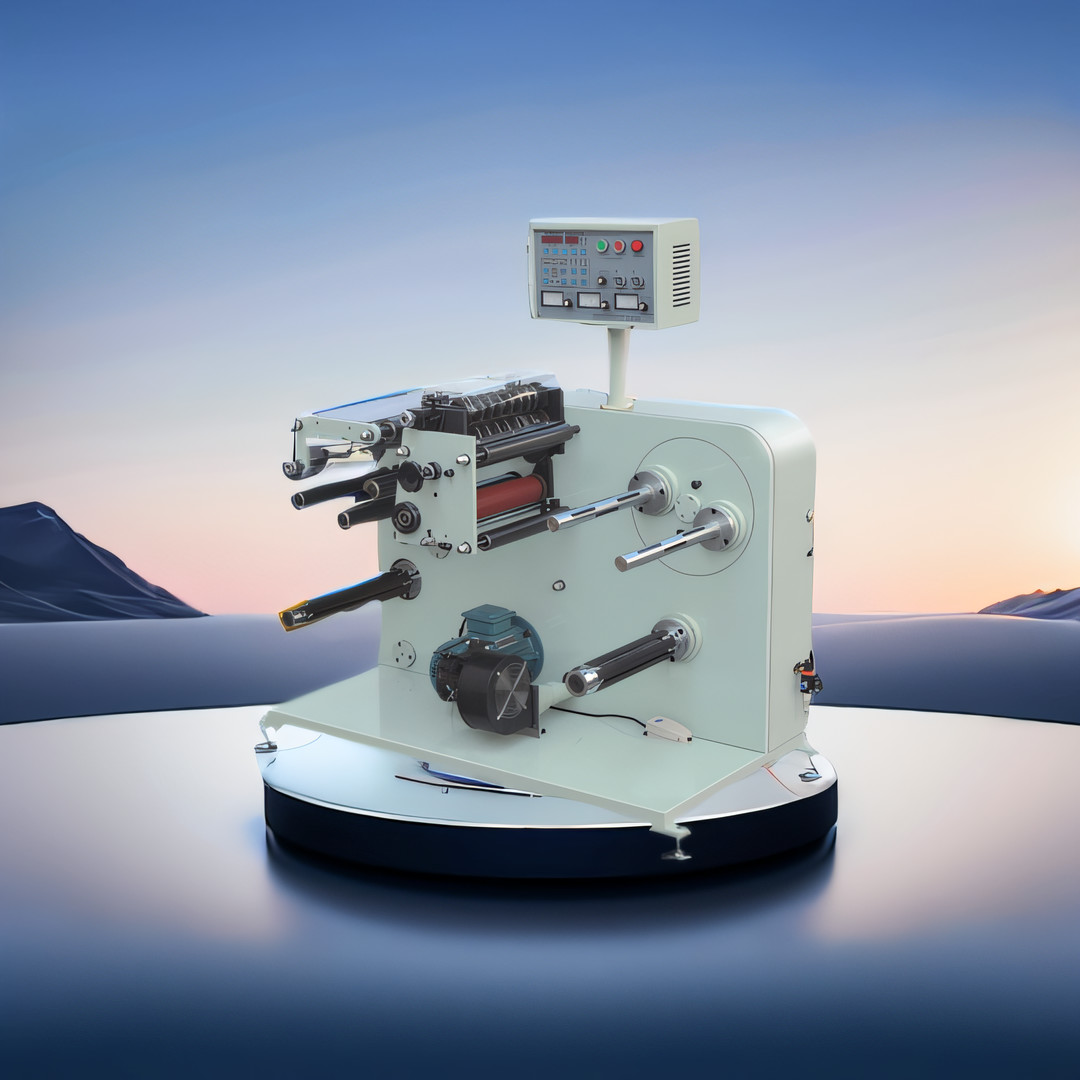

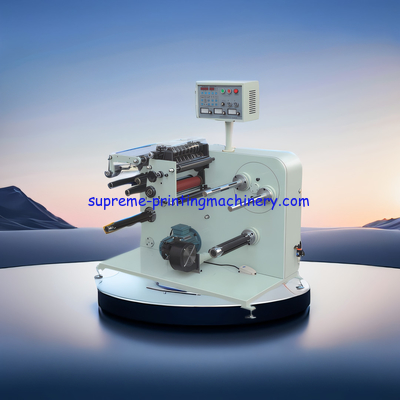

Paper Slitter Rewinding Machine Rewinder with 8 sets rotary knife for paper label
http://www.youtube.com/@labelturretrewindingmachinery
FQ320FII Slitting machine is one kind of automatic work for the narrow paper.
1: Automatic meter/number counting
2: Length setting
3: automatic stopping
4: Material shortage reminder
5: web guide for left and right 2pcs
6: 3 pcs 3 inch air shaft for the unwinding and rewinding.
7: record the number or meter real-time by display
8: compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc
features
Standard with machine:
1: 1 slitting station with 8 sets round knife
2: 3 pcs 3 inch unwinding and rewinding air shaft
3: meter/number counting by Imported
4: web guide 2 pcs right and left for material
5: fan blower for the waste blowing
6: low voltage Imported
Machine Model | FQ-320FII | FQ-420FII | FQ-520FII |
Slitting speed | 120m/min | 120m/min | 100m/min |
Max. Web Width | 320mm | 420mm | 540mm |
Max. Unwinding Diameter | 500mm | 500mm | 800mm |
Max. Rewinding Diameter | 500mm | 500mm | 500mm |
Max. Rewinding Diameter of Turret Rewind | 350mm | 350mm | |
Dimensions | 1100*800*1280mm | 1200*900*1280mm | 1800*1100*1280mm |
Main motor | 1.5 KW | 2.2 KW | 2.2kw |
Voltage | 220V/380V | 220V/380V | 380V |
Min. Slitting Width | 16mm | 16mm | 16mm |
Machine weight | 400kg | 500kg | 800kg |
About us:
Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.
Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!
We provide technical support and services for Paper Slitter Rewinding Machine Rewinder with 8 sets rotary knife for paper label. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for Paper Slitter Rewinding Machine Rewinder with 8 sets rotary knife for paper label. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for Paper Slitter Rewinding Machine Rewinder with 8 sets rotary knife for paper label. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
Paper Slitter Rewinding Machine Rewinder with 8 sets rotary knife for paper label is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
