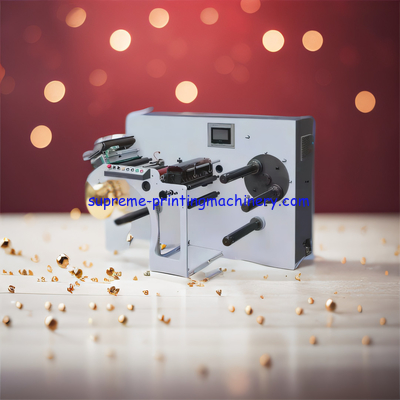

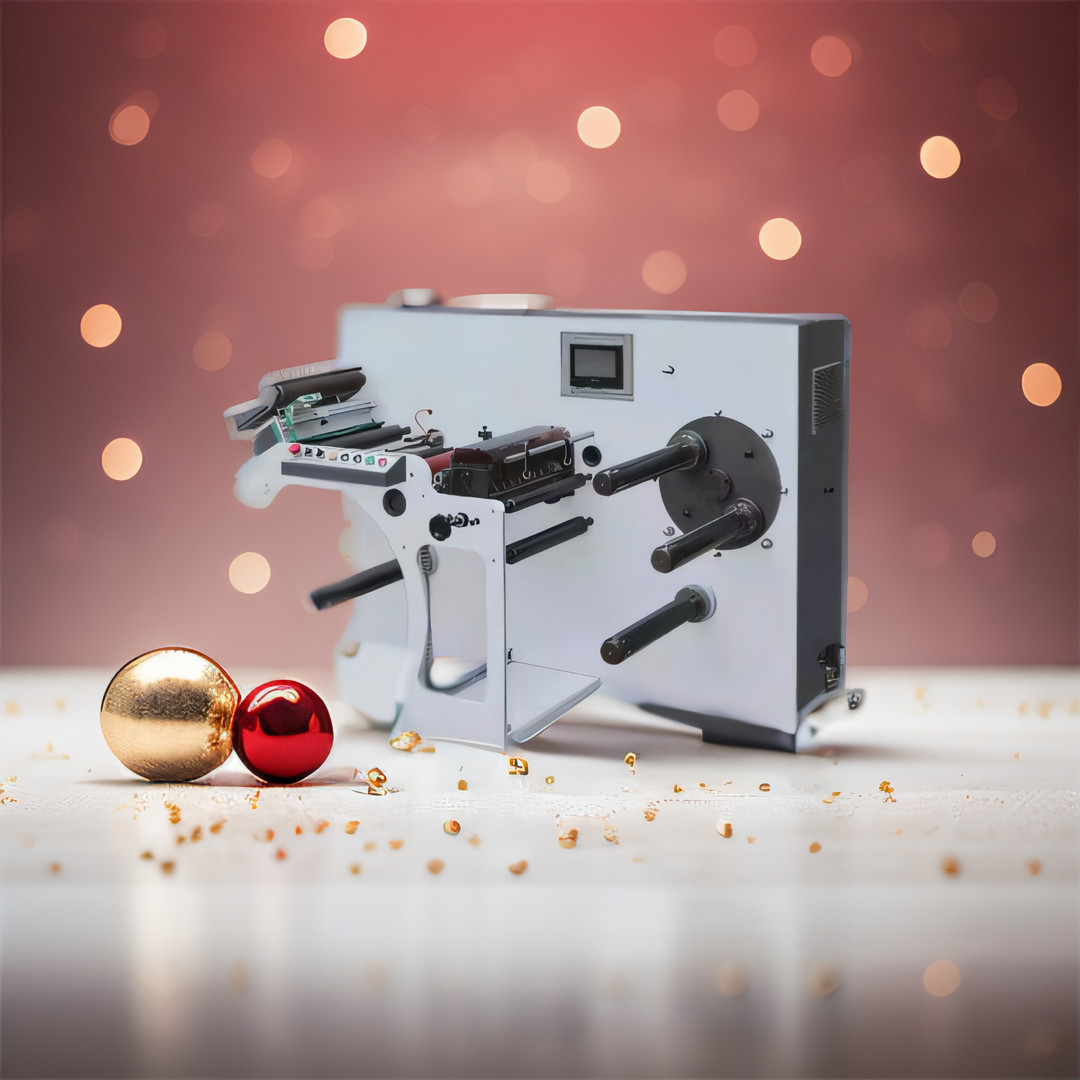

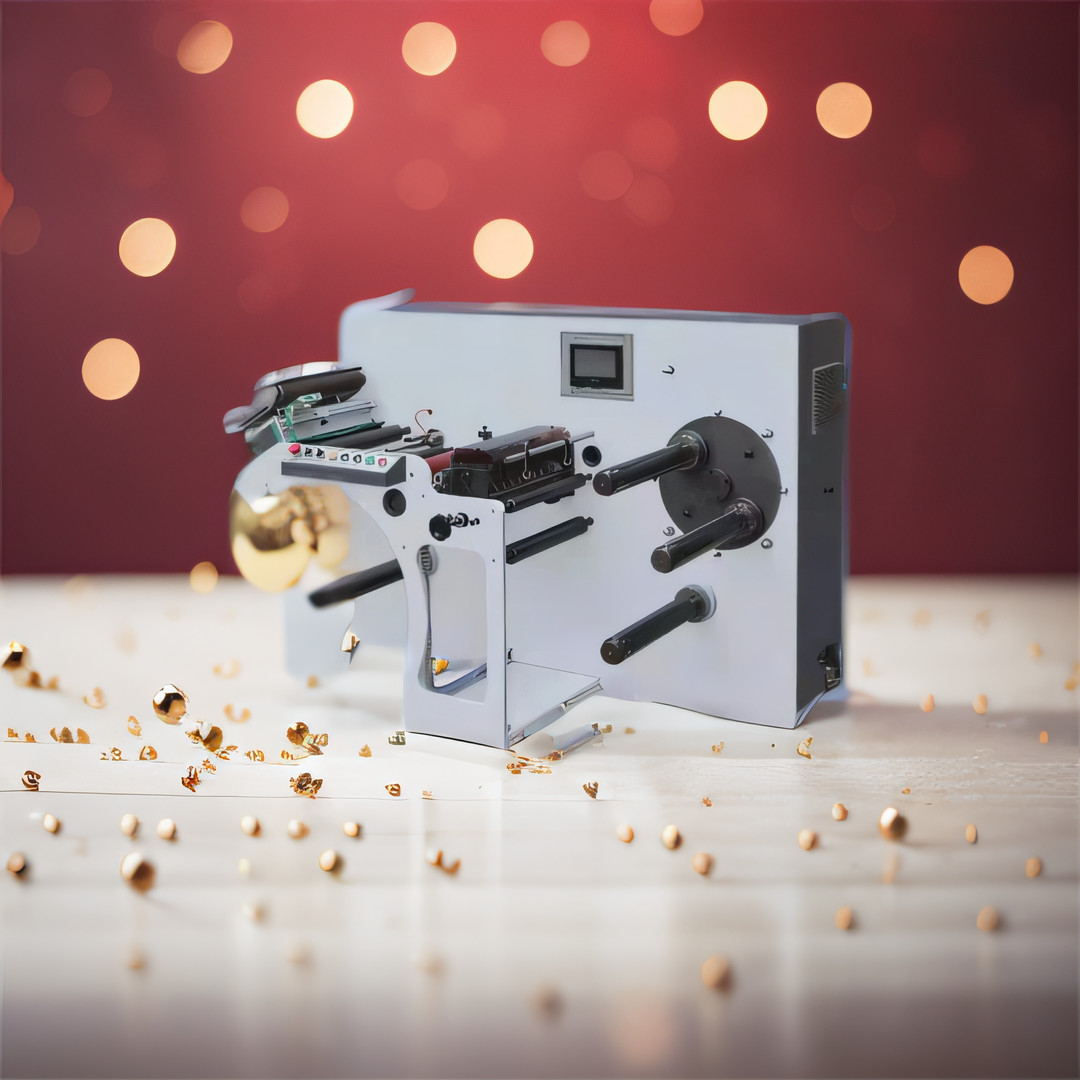

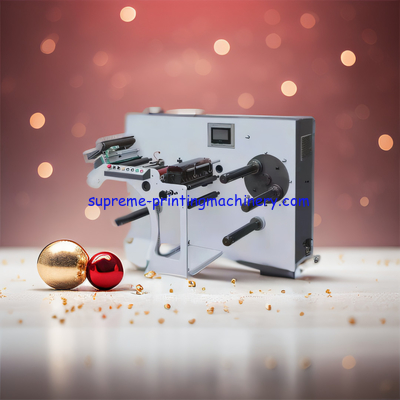

High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FQ-350GS
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 7-10working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: High Speed Slitting Machine Narrow Web Label Full Servo Well Known Web Guide Turret Type Productive Efficiencyrewinding Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding



Performance characteristics:

This machine is research and development by our company, mainly for narrow web label, full servo unwinding and rewinding tapper tension controller system, with well-known web guide, imported touch screen controlled panel, turret type rewinding, improve the productive efficiency, it can work for 1-6 inch air shaft, with function of meter counting, quantity counting, material storage stop ect



Technical Parameters

Model FQ-350GS FQ-450GS FQ-550GS
Max paper feeding 350mm 450mm 550mm
Max slitting Speed 350m/m 350m/m 350m/m
Max unwinding diameter 800mm 800mm 800mm
Max rewinding diameter(up) 450mm 450mm 450mm
Max rewinding diameter(down) 700mm 700mm 700mm
Mini slitting width 15mm 15mm 15mm
Razor knife optional optional optional
Voltage AC 380 50HZ 3Phase AC 380 50HZ 3Phase AC 380 50HZ 3Phase
Precision +-0.1mm +-0.1mm +-0.1mm
Weight 1300kg 1500kg 1800kg
Machine size 2200mm*1350mm*1350mm 2200mm*1460mm*1350mm 2200mm*1530mm*1350mm
Total power About 9kw About 12kw About 15kw



Machine parameters



1. Scope of application: Daily chemicals, medicines, and materials are mainly paper, and the thickness of film materials is not less than 40 microns.

2. Material width range:40-350mm

3. Max unwinding diameter:800mm

4. Max rewinding diameter(up):450mm

5. Max rewinding diameter(down):700mm

6: Unwinding and rewinding air shaft: 3inch(76mm) optional:6 inch

7. Unwinding tension range: 15-120N(precision+-5N)

8. Rewinding tension range:15-120N(precision+-5N)

10: Voltage: 380V/50HZ/3Phase

11: Total power: about 9KW

12: Machine weight; about 1300kg

       13: Machine size:2200mm*1350mm*1350mm(L*W*H)



Support and Services:

High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding Technical Support and Services

We provide technical support and services for High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding?
A: The Brand Name is Supreme.
Q: What is the Model Number of High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding?
A: The Model Number is FQ-GS.
Q: Where is the Place of Origin of High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding?
A: The Place of Origin is China.
Q: What is the Certification of High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of High speed slitting machine narrow web label full servo well known web guide turret type productive efficiencyrewinding?
A: The Minimum Order Quantity is 1.
