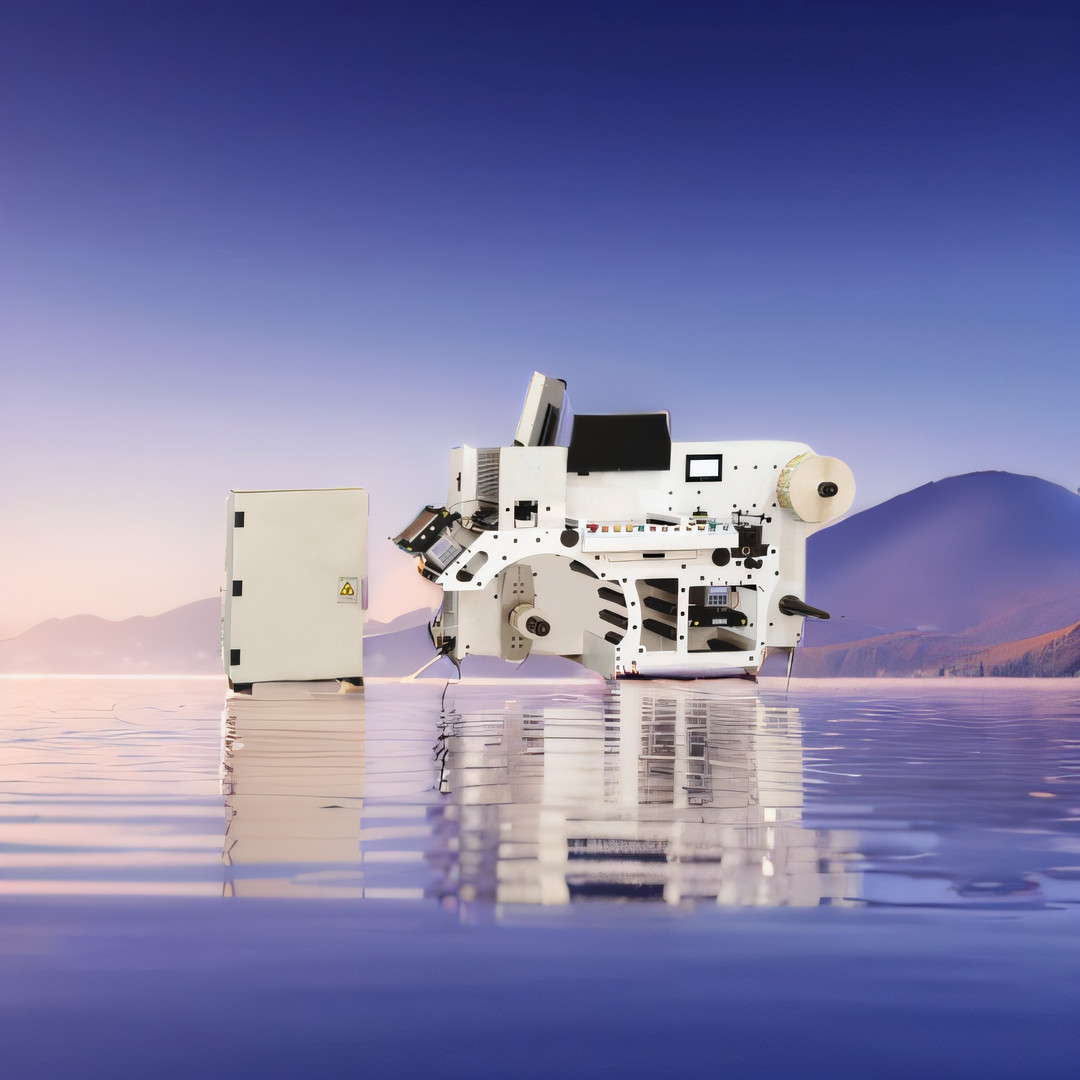

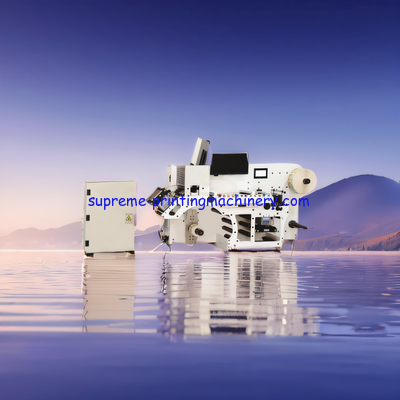

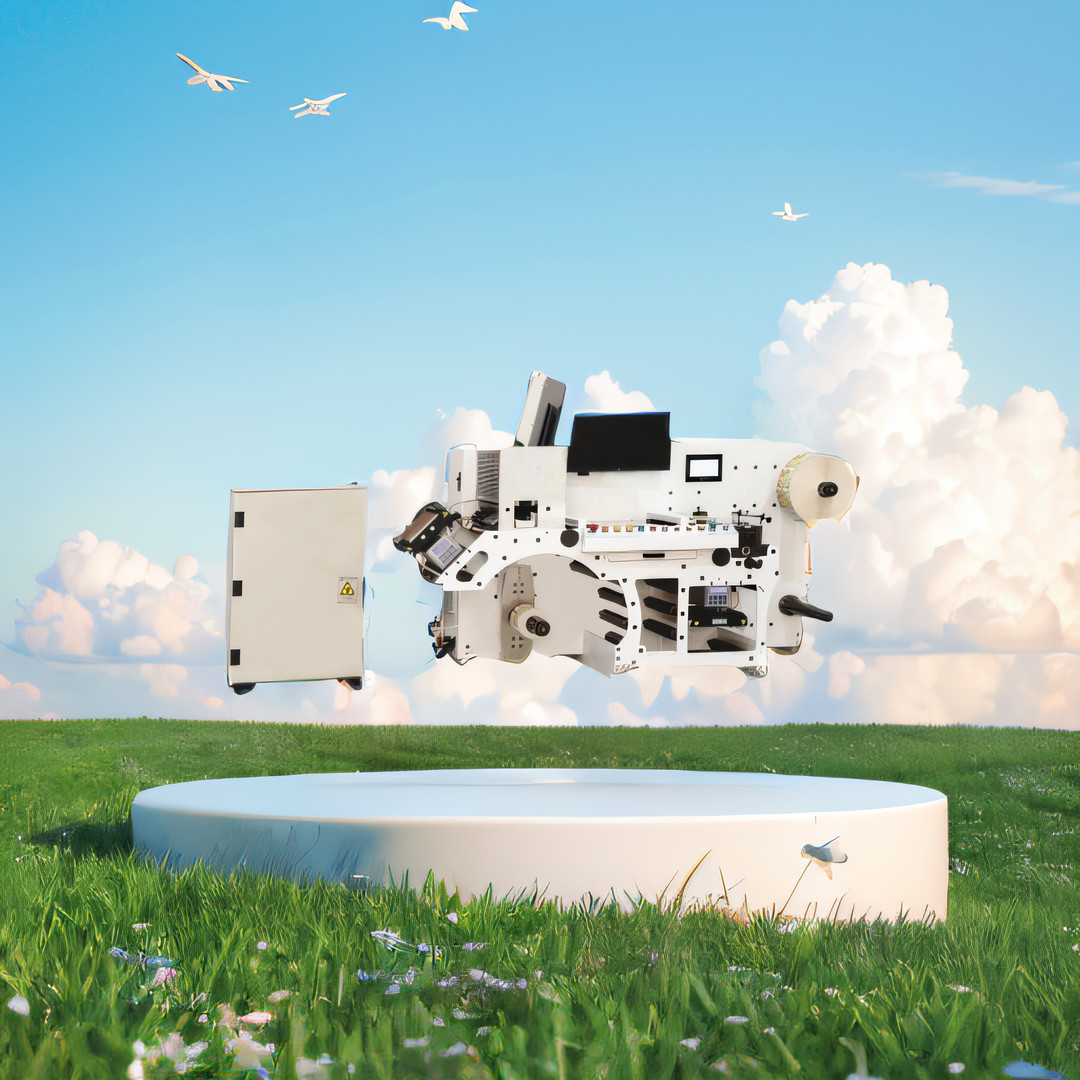

High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: PJFQ-350GS
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: High Speed Inspection And Slitting Machine High Efficiency Full Servo Adhesive Paper, Pvc/pe,pp Ect Materials Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials



Performance characteristics:

This machine is research and development by our company with high efficiency inspection and slitting station, full servo unwinding and rewinding tapper tension controller system, with well-known web guide, imported touch screen controlled panel, suit for adhesive paper, pvc/pe,pp ect materials



Technical Parameters

Model PJFQ-350GS PJFQ-450GS PJFQ-550GS
Max paper feeding 350mm 450mm 550mm
Max slitting Speed 300m/m 300m/m 300m/m
Max inspection width 320mm 420mm 520mm
Max unwinding diameter 700mm 700mm 700mm
Max rewinding diameter(up) 600mm 600mm 600mm
Max rewinding diameter(down) 700mm 700mm 700mm
Mini slitting width 15mm 15mm 15mm
Razor knife optional optional optional
Voltage AC 380 50HZ 3Phase AC 380 50HZ 3Phase AC 380 50HZ 3Phase
Air source 0.8mpa 0.8mpa 0.8mpa
Weight 1.8T 2T 2.2T
Machine size 2350mm*1250mm*1200mm 2350mm*1330mm*1200mm 2350mm*1400mm*1200mm
Total power About 8kw About 10kw About 12kw



Machine parameters



1. Scope of application: Daily chemicals, medicines, and materials are mainly paper, and the thickness of film materials is not less than 40 microns.

2. Material width range:40-350mm

3. Max unwinding diameter:700mm

4. Max rewinding diameter(up):600mm

5. Max rewinding diameter(down):700mm

6: Unwinding and rewinding air shaft: 3inch(76mm) optional:6 inch

6. Inspection speed:180m/min with the reback function: 120m/min

7. Unwinding tension range: 15-120N(precision+-5N)

8. Rewinding tension range:15-120N(precision+-5N)

9: Air source:0.4mpa-0.6mpa

10: Voltage: 380V/50HZ/3Phase/30A

11: Total power: about 9KW

12: Machine weight; about 2.2Ton

       13: Machine size:2340mm*1350mm*1200mm(L*W*H)

Support and Services:

High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials Technical Support and Services

We provide technical support and services for High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials?
A: The Brand Name is Supreme.
Q: What is the Model Number of High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials?
A: The Model Number is PJFQ-GS.
Q: Where is the Place of Origin of High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials?
A: The Place of Origin is China.
Q: What is the Certification of High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of High speed inspection and slitting machine high efficiency full servo adhesive paper, pvc/pe,pp ect materials?
A: The Minimum Order Quantity is 1.
