semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5sets/months
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: Semi-rotary Intermittent Die Cutting Machine Print Self Adhesive Paper Lable 4 Spindle Turret Slitter Glue Less Non Stop Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

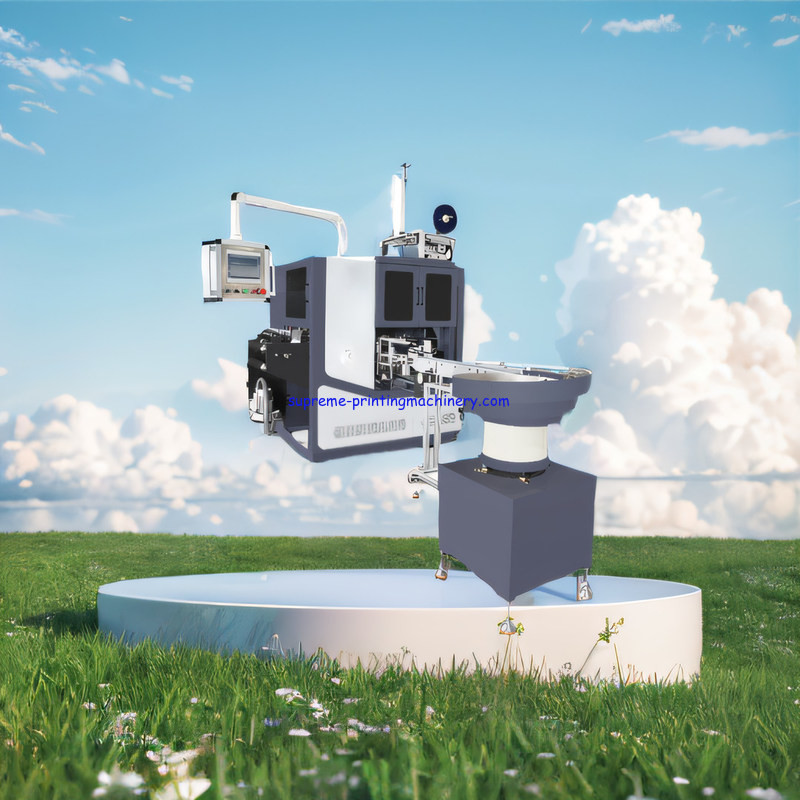

Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop



Automatic slitting and rewinding machine has automatic threading, automatic gluing(optional glue-free), automatic sealing or labeling and other functions, can realize online non-stop rewinding, can be connected to die cutting machine, slitting machine, flexographic printing press and other equipment. The rewinder is equipped with 1 inch, 1.5 inch, 40mm, 3 inch inflatable air shaft, and can be interchangeable, reduce labor, improve efficiency.



Machine features:

1. Fully automatic 4-shaft turret type non-stop rewinding machine, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of jog, speed increase, speed reduction, emergency, to realize the best condition of printing machine.



2. The turret type rewinding machine system adopts the chinese famous brand innovice, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a vibrating plate automatic paper-feeding tube mechanism, a discharge mechanism, to realize online non-stop rewinding.



3. The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a 1-inch 1.5-inch 2-inch quick release air-expansion shaft. The rewinding machine does not require manual mechanical adjustment when changing the size of different reels, its system automatically adjusts the size of the reel to reduce the labor force for intelligent production.



Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Support and Services:

semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop Technical Support and Services

We provide technical support and services for semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop?
A: The Brand Name is Supreme.
Q: What is the Model Number of semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop?
A: The Model Number is SZ.
Q: Where is the Place of Origin of semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop?
A: The Place of Origin is China.
Q: What is the Certification of semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop?
A: The Minimum Order Quantity is 1.
semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop 0semi-rotary Intermittent die cutting machine print self adhesive paper lable 4 spindle turret slitter glue less non stop 1
