| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | RY-L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | RY350 Glue Side Flexographic Printing Machine Relam Delam Mercury Led Lamp Corona Treatment Turn Bar Two Side Printed | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

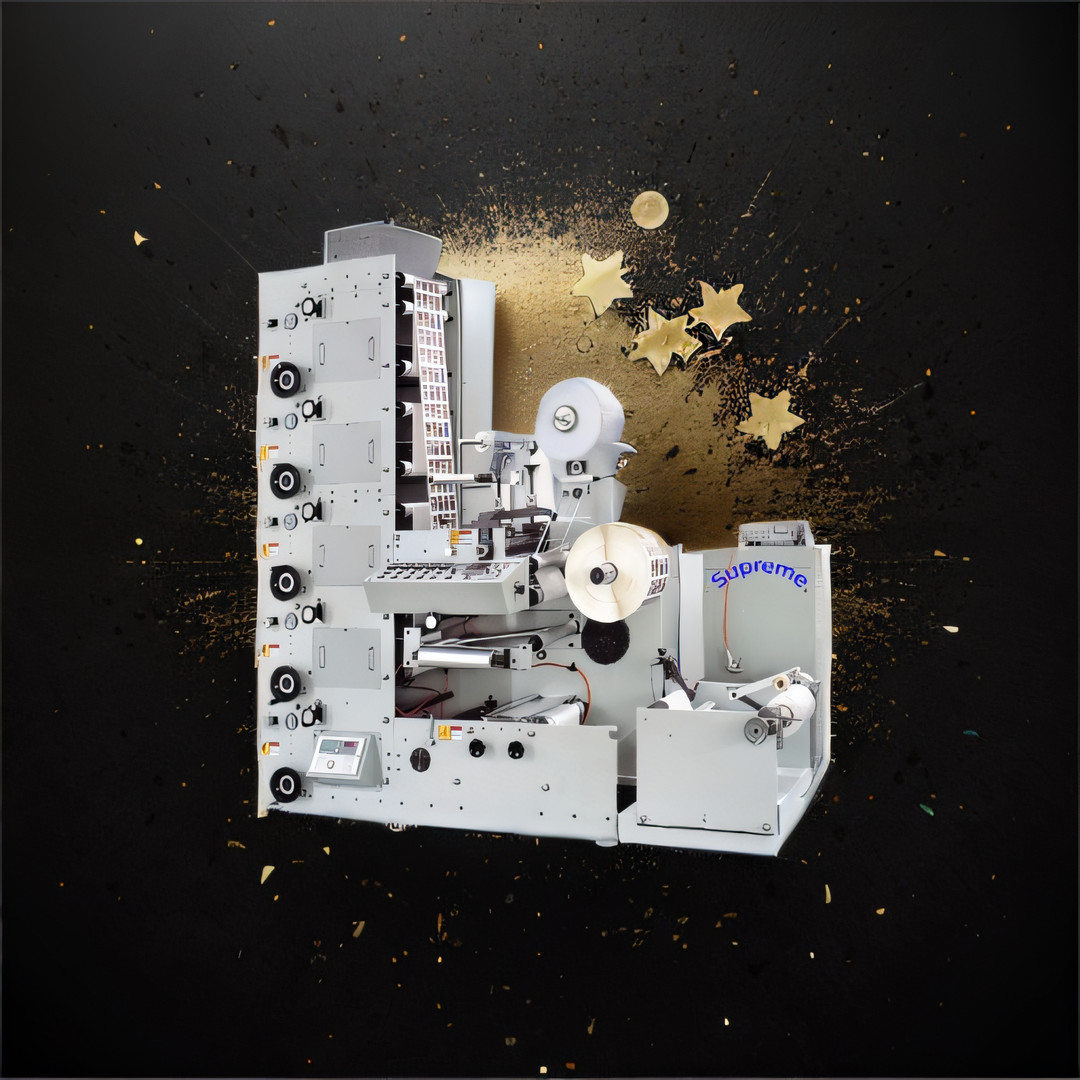

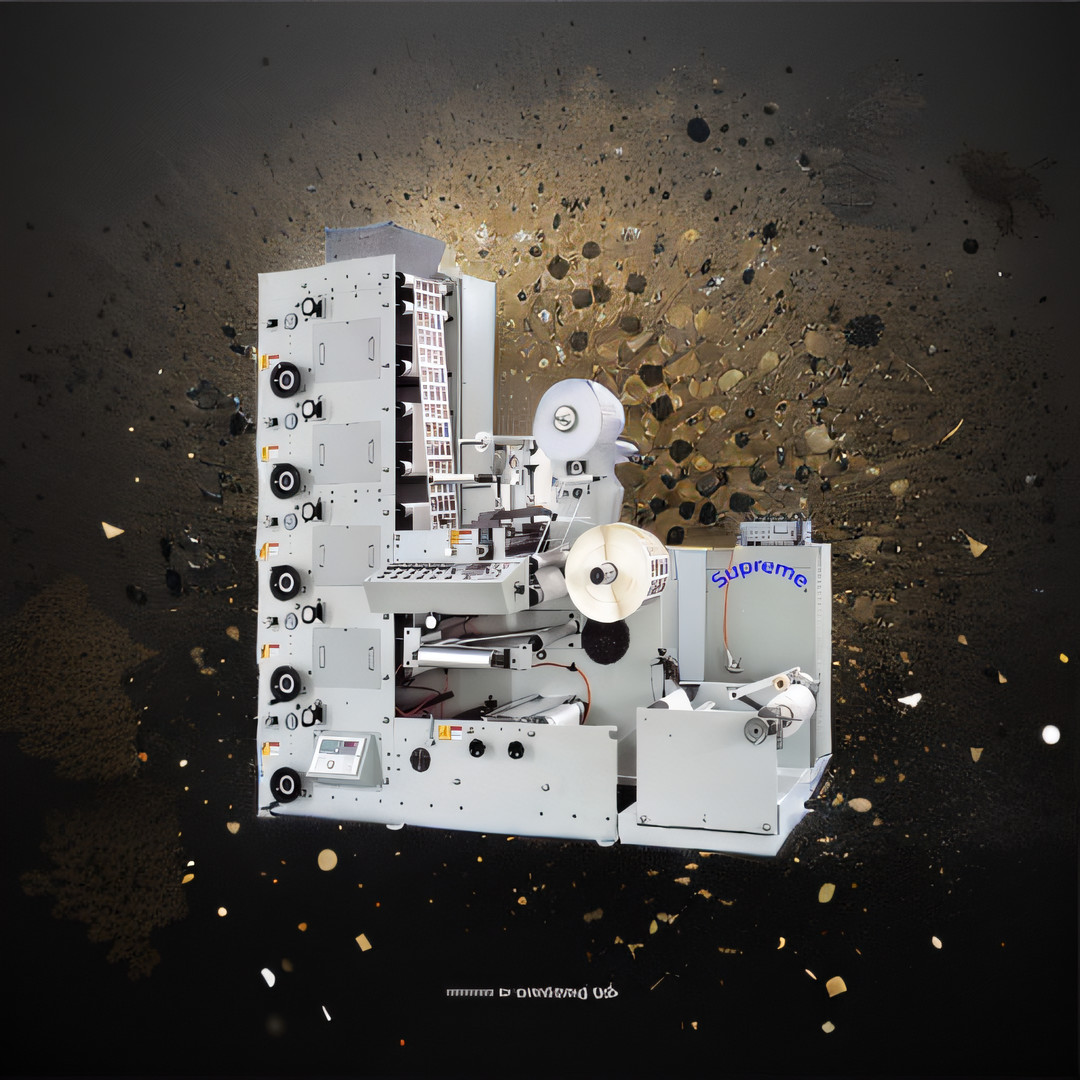

RY350 glue side flexographic printing machine Relam Delam mercury led lamp corona treatment turn bar two side printed
http://www.youtube.com/@labelturretrewindingmachinery
The machine can finish material-feeding, printing, varnish, solid color coating, IR or UV drying, laminating, rewinding and die-cutting even slitting(cold stamping, glue side printing, turn bar, corona treatment) ect in one process,it is an ideal machine for printing paper and top-grade adhesive label(customized with the function of glue side print, aluminum foil ect)
1. The flexo printing machine adopts the ceramic anilox rollers to spread ink. which is characterized by wearable, harden treatment and long using life, etc. It can improve the printing efficiency and more pretty products.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic. .
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier(6 fans, customized for more efficient). UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while stop, and running at a low speed, in order to avoid ink being dried to damage the flexo resin plate.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft each 1 pc 3 inch, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
| Technical data | |
| Model | RY350 |
| Max Printing speed | 60-80m/min |
| Printing color | 8 color |
| Max roll paper width | 350mm |
| Max priniting width | 320mm |
| Max unwinding diameter | 700mm |
| Max rewinding diameter | 600mm |
| Printing cir | 175-380mm |
| Corona treatment | Single side or double |
| Overprinting precision | +-0.1mm |
| Voltage | 380V |
| Machine size | About:7800*1400*2400mm(L*W*H) (320 model) |
| Machine weight | About 5200KG (320 model) |
We provide technical support and services for RY350 glue side flexographic printing machine Relam Delam mercury led lamp corona treatment turn bar two side printed. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RY350 glue side flexographic printing machine Relam Delam mercury led lamp corona treatment turn bar two side printed. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RY350 glue side flexographic printing machine Relam Delam mercury led lamp corona treatment turn bar two side printed. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RY350 glue side flexographic printing machine Relam Delam mercury led lamp corona treatment turn bar two side printed is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
