| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | ZWJ-185 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

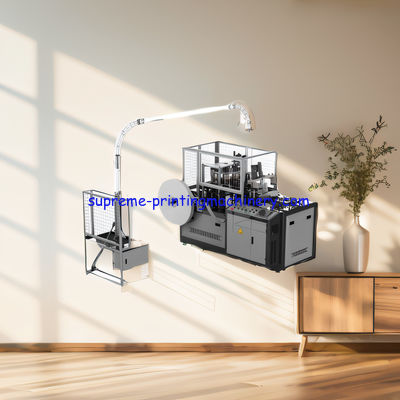

ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER
https://www.youtube.com/@labelturretrewindingmachinery
Speed: 60pc/m
Material: single double PE coated paper
paper weight:170~450gsm,
Size:30-80oz
bottom diameter: 110~170 mm
bowl height:H50-110MM
110-125mm should calculate according to bottom diameter, cup flip limited
mouth diameter:140~185 mm
bottom width :110-170mm
height : 160mm
Note: Height over than 110mm, mouth diameter over than 160mm, machine speed less 5-10pcs, bowl diameter=paper bottom width W-2 bowl bottom deep
Work energy consumption:11-14KWH,
Voltage: 三相380/ 3P 380
Machine weight : 3500KG/3200 KG
Machine size: 2750 x 1550 x 2100 mm
| Model | ZWJ-185 |
| Working air pressure: need to buy an air compressor |
air pressure:0.6Mpa; air capacity:0.6m³/minute |
Our advantage:
1:Delta PLC Control and touch screen, working data can be showed on the control panel, easier operation( optional)
2:8 molds or 10 molds
3:Quality OPEN CAM control main divide movement( instead of gear box), easier maintenance, stable and reliable, easy replace broken parts)
4:Main mechanism and moving parts are controlled by quality gears, which is more efficient and more stronger than chain and axis
5:Full Gear System Only One Small Chain in Machine
Normal design Chain system in machine
Machine different parts connected by Chains which only support for Lower speed (Stable running speed lower than 60 pcs each min) Also Chain with short span life(Span Life round 2 years)
About us:
Professionally research and development in paper cup flexographic printing machine, paper cup die cutting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of paper cup machinery.
Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of paper cup machines, and welcome all new and old customers and friends to visit!
We provide technical support and services for ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
ZWJ-185 OPEN CAM ULTRASONIC SOUP SALAD PAPER BIG BOWL MACHINE 30-80OZ 60PC/MIN 170~450GSM SINGLE DOUBLE PE COATED PAPER is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
