| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | MQC-B620 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 60-80working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5sets/months |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

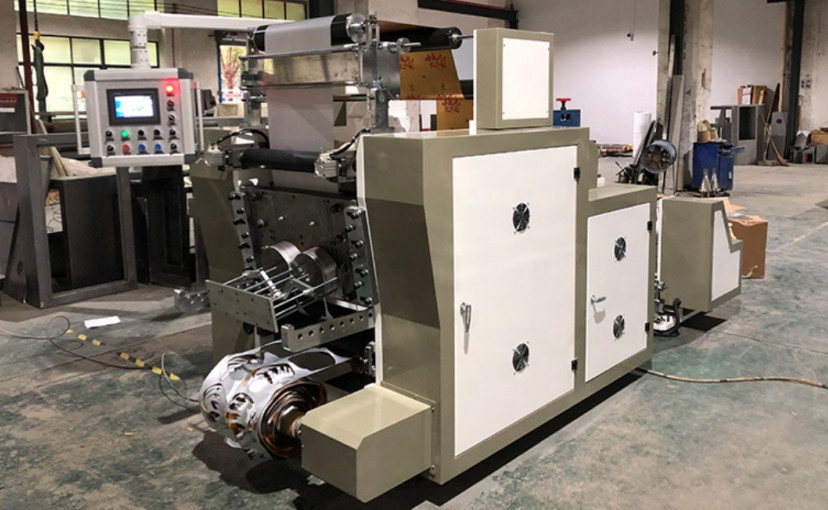

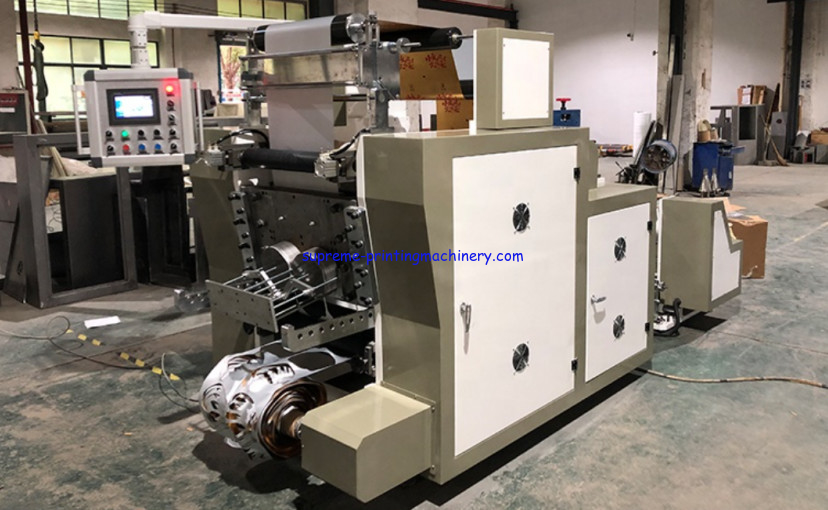

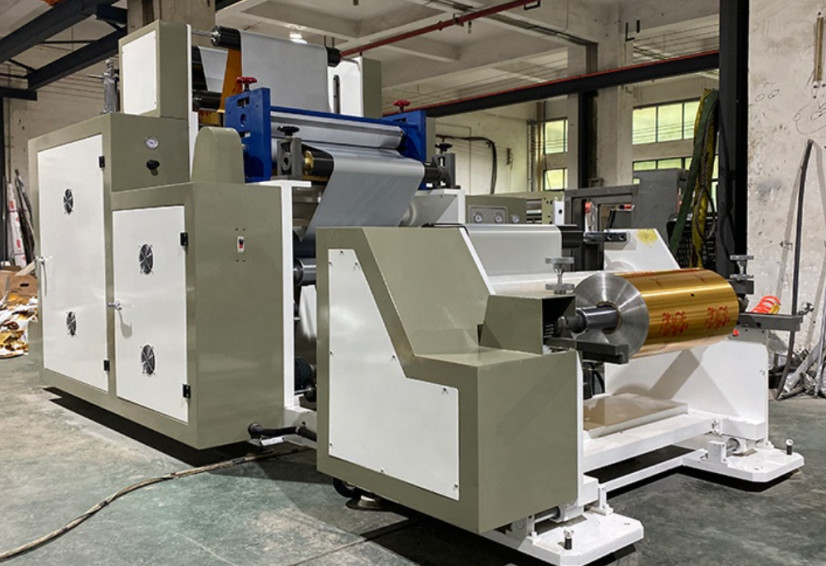

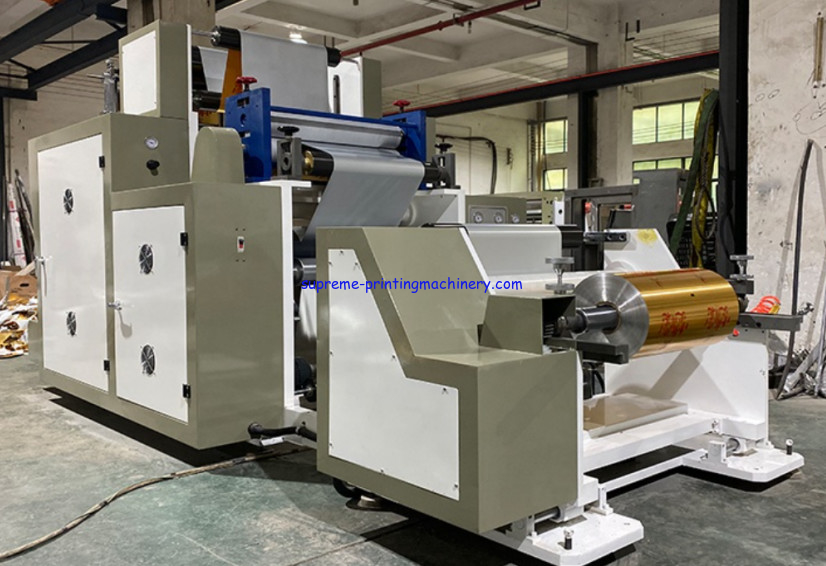

ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS
https://www.youtube.com/@labelturretrewindingmachinery
This punching machine can punch not only aluminum foil but also PE, PP, PET laminated aluminum foil. The punching mold is customized for minimizing the scrap and can be used for a long time.

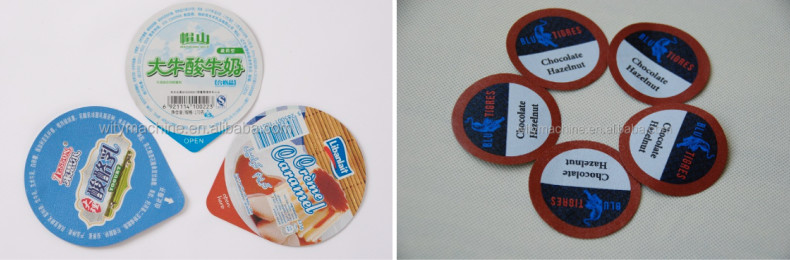

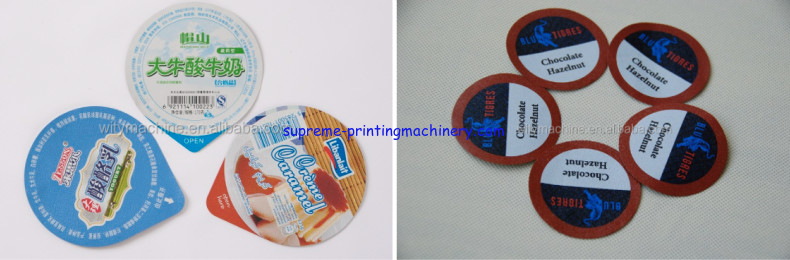

The products include yogurt caps, fruit jelly caps, seasoning caps, etc., which have the advantages of high automation, high production efficiency, high product accuracy, and no curling edges. It is a domestically advanced specialized equipment for die punching and embossing machine.
Specification
| Cutting material | Aluminium foil, plastic film,paper (0.035~0.2mm) |
| Cutting effective size | 580*320mm |
| Mechanical speed | 150times/min |
| Max speed | 130times/min |
| Unwinding diameter | ¢500mm (3 inch air shaft) |
| Traction motor | 0.75kw frequency convention motor |
| Mould driven motor | 2.2kw frequency convention motor |
| Length control motor | 2kw servo motor |
| Driven style | synchronous belt |
| Precision | ± 0.5mm |
| Web-guiding accuracy | ± 0.5mm 120mm |
| Guiding roller | ¢ 80x620mm hard AL alloy HV700 |
| Mechanical structure | 40mm thickness steel plate |
| Working power | 380V/3P/50Hz 5 wires |
| Total power | About 7kw |
| Machine weight | About 2000kg |
| Overall dimension | 1950X1800X1700mm |
2, Configuration:
1. Main control: Adopting PLC from Innovance Company and human-machine interface from Beijing MCGS Company, with die punching
The automatic marking function for the number of cuts is convenient for employees to operate.
2. Traction motor: Adopting 0.75KW independent motor with reducer, Innovance frequency converter and PLC joint control.
3. Mold drive motor: 3.7KW variable frequency motor with reducer, Innovance frequency converter and PLC joint control.
4. Fixed length pulling motor: Adopting a 2.9KW servo motor, controlled by Innovance PLC.
5. Unwinding: automatic tension controller using a 50N/M magnetic powder brake
6. Execution and locking: using pneumatic method
7. Traction: Using pneumatic combined pressure traction
8. Equipped with 1 set of molds (drawing provided by the customer)
9. Equipped with a set of embossing rollers (the pattern is marked with the milk cover pattern, if the customer has no special requirements)
10. 1 set of waste collection device, using a 0.75KW variable frequency motor
3, Main Configuration List
1:PLC:Innovance
2:Touch screen:Beijing MCGS
3:Module:Innovance
4:Frequency motor:China famous brand vector type
5:Inverter:Innovance vector type
6:Servo motor:Innovance
7:Pneumatic components:Airtac
8:Bearing:NSK
9:Magnetic powder brake 50NM:Shengda
10:Sync belt:China famous brand
We provide technical support and services for ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
ALUMINUM FOIL YOGURT FRUIT JELLY FLAVOUR LID PUNCHING MACHINE PE PP PET LAMINATED ALUMINUM FOIL 0.03MM-0.2MM THICKNESS is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
