| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | FQ-450FZ |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | Sick EPC WEB Medium Speed Slitting Machine 200m/min Slitting Narrow Roll Material PLC Tension Magnetic Clutch And Brake | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

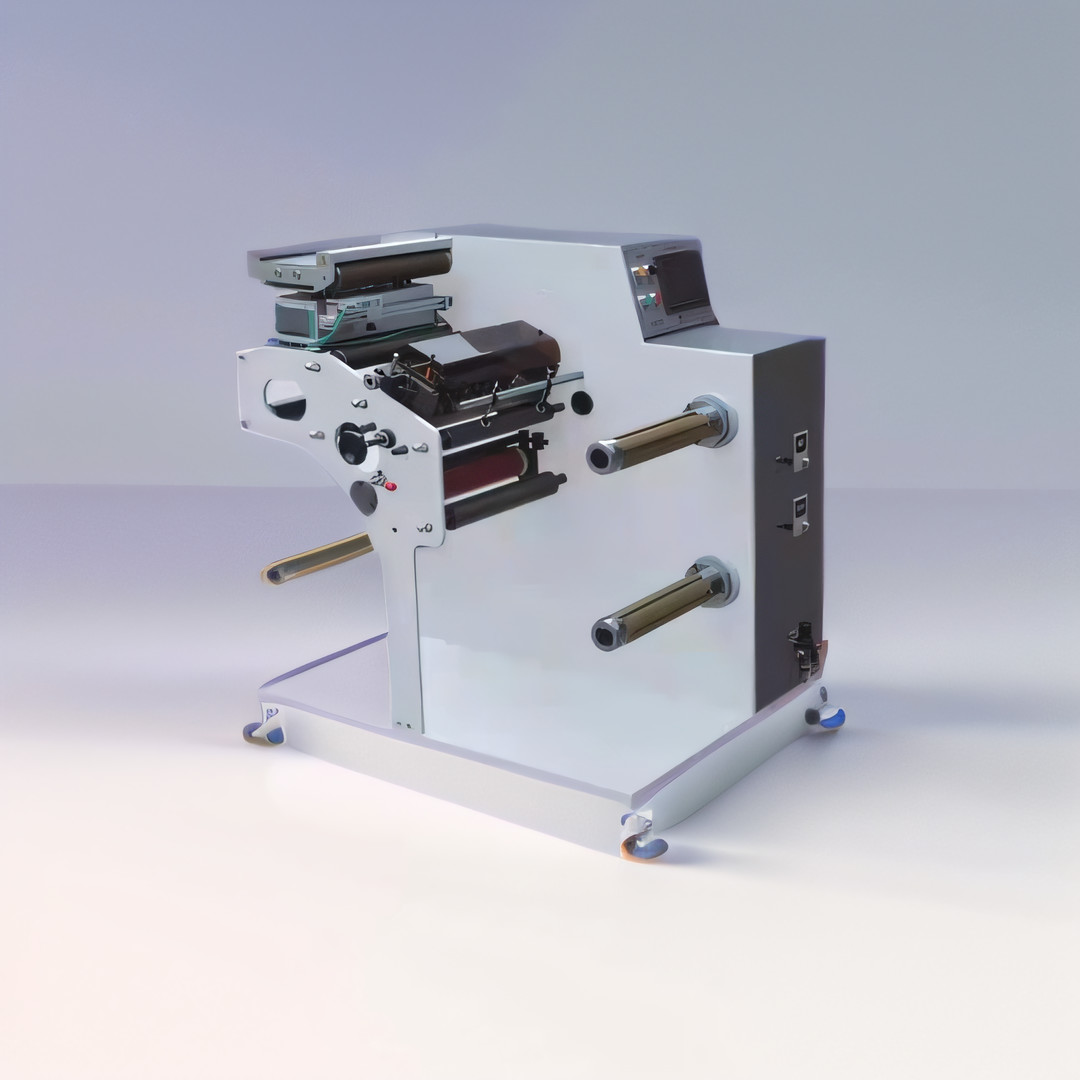

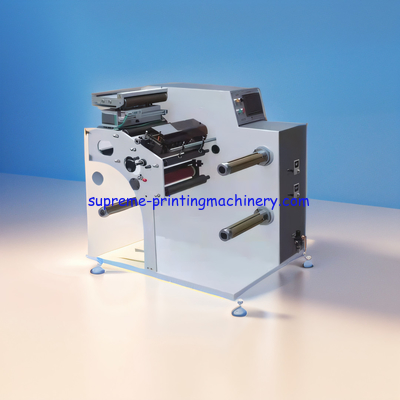

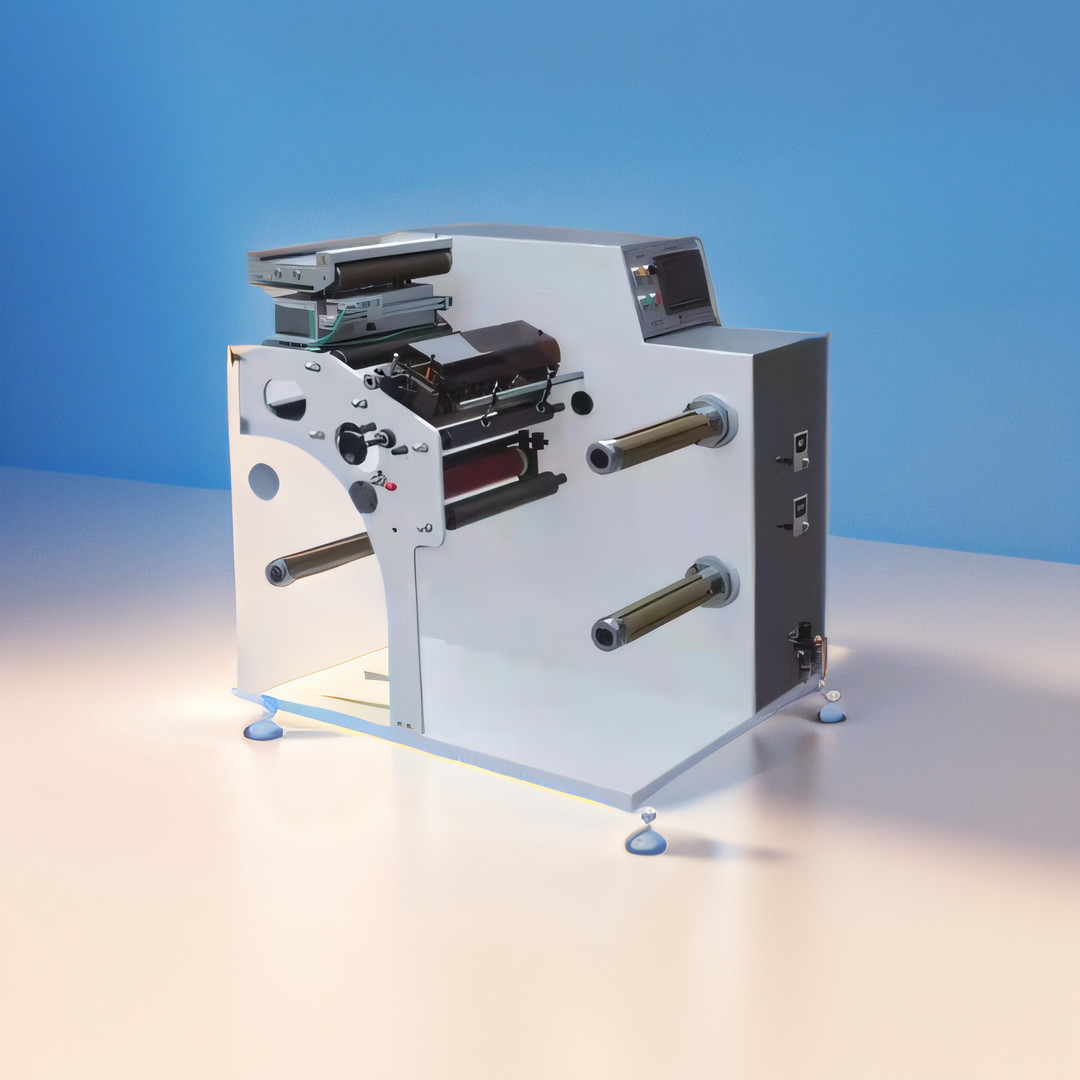

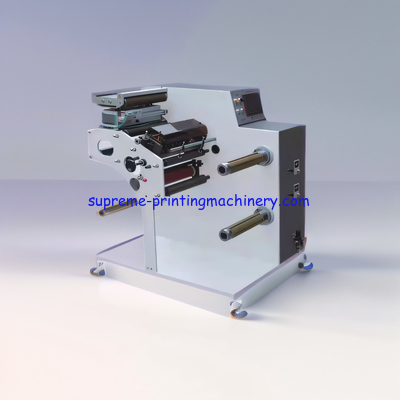

Sick EPC WEB Medium Speed Slitting Machine 200m/min slitting narrow roll material PLC tension magnetic clutch and brake
http://www.youtube.com/@labelturretrewindingmachinery
product introduction
This machine is a product independently researched and developed by our company. It is a narrow label medium speed slitting machine, a high-end fully servo unwinding and rewinding taper tension system, with imported famous brand web guide system, the turret rewinding air shaft fully automatic rotation and transposition device, and a preparatory air shaft preparation device that greatly improves production efficiency. It supports the exchange of multiple specifications of inflatable shafts, meter/number counting, static treatment, no material to reduce speed or stop function
Feature:
1:Unwinding+web guide: adopts an independent servo taper tension control system, with preset automatic no material speed reduced or stop. web guide adopts ultrasonic edge guidance
2:Slitting station: Portable circular knife cutting structure, quick disassembly and assembly, optional flat knife, with high-pressure vacuum waste suction system
3:Rewinding: Taper tension control system, rotating device greatly saves roll changing time, ensuring label alignment with paper core during roll changing
4:Counting: The counting system adopts a well-known German brand, ensuring a calculation accuracy of 1/10000. Transparent materials require the purchase of additional special sensors
Technical Data
| 型号 | model | FQ-350FZ | FQ-450FZ |
| 最快分切速度 | Max. Slitting speed | 200m/min | |
| 最大进纸宽度 | Max web width | 350mm | 450mm |
| 最小分切宽度 | Min. Slitting width | 16mm | |
| 剪切刀具数量 | Cutter installed | 8sets | |
| 最大放卷直径 | Max. Unwinding Dia | 600mm | |
| 最大收卷直径 | Max. Rewinding Dia | 600mm | |
| 气压要求 | Air supply | 0.8mpa | |
| 重量 | weight | 500kg/600kg | |
| 外形尺寸 | Dimension(L*W*H) | 1100*1000*1200mm/1100*1100*1200mm | |
We provide technical support and services for Sick EPC WEB Medium Speed Slitting Machine 200m/min slitting narrow roll material PLC tension magnetic clutch and brake. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for Sick EPC WEB Medium Speed Slitting Machine 200m/min slitting narrow roll material PLC tension magnetic clutch and brake. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for Sick EPC WEB Medium Speed Slitting Machine 200m/min slitting narrow roll material PLC tension magnetic clutch and brake. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
Sick EPC WEB Medium Speed Slitting Machine 200m/min slitting narrow roll material PLC tension magnetic clutch and brake is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
