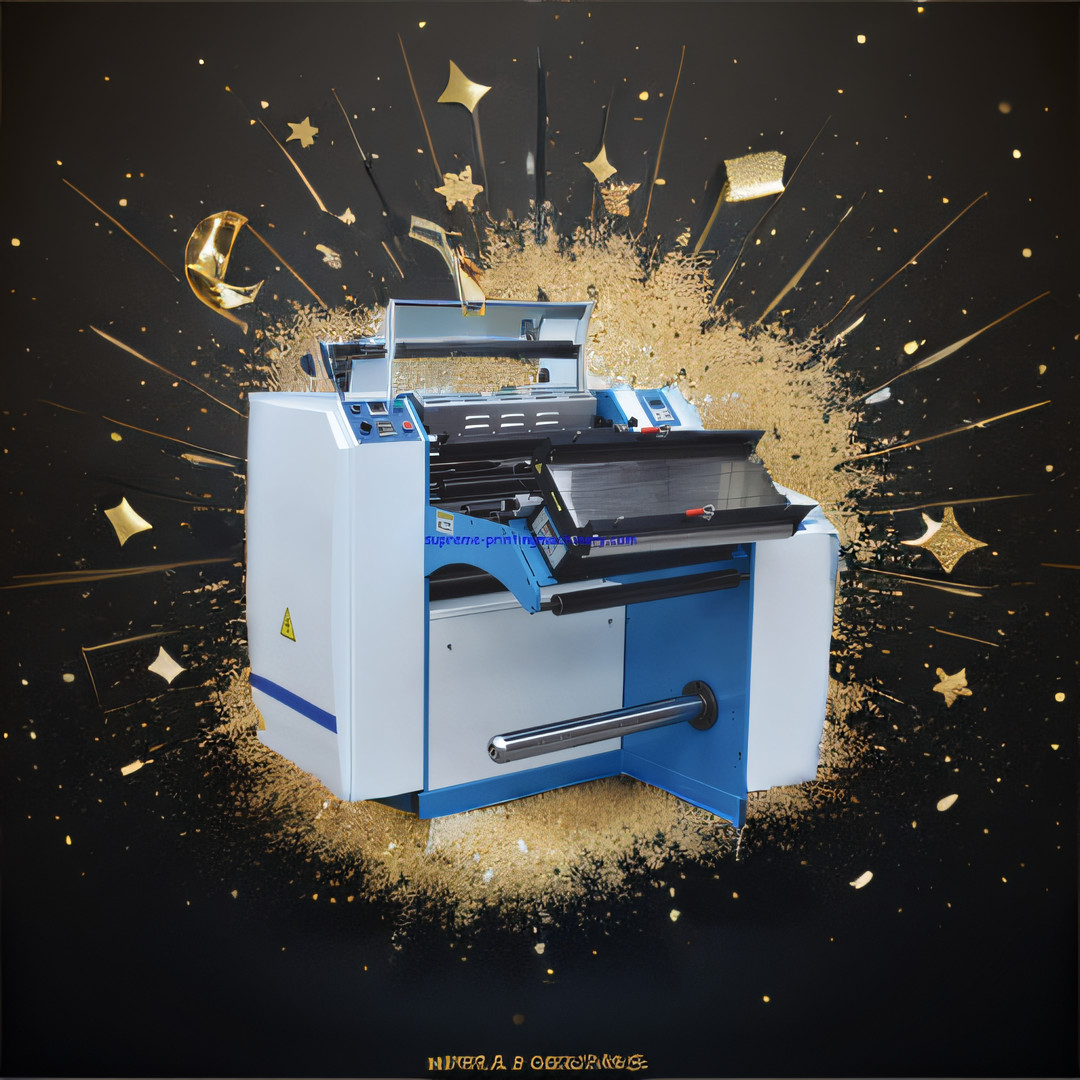

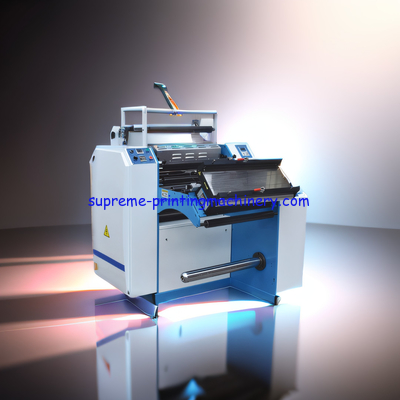

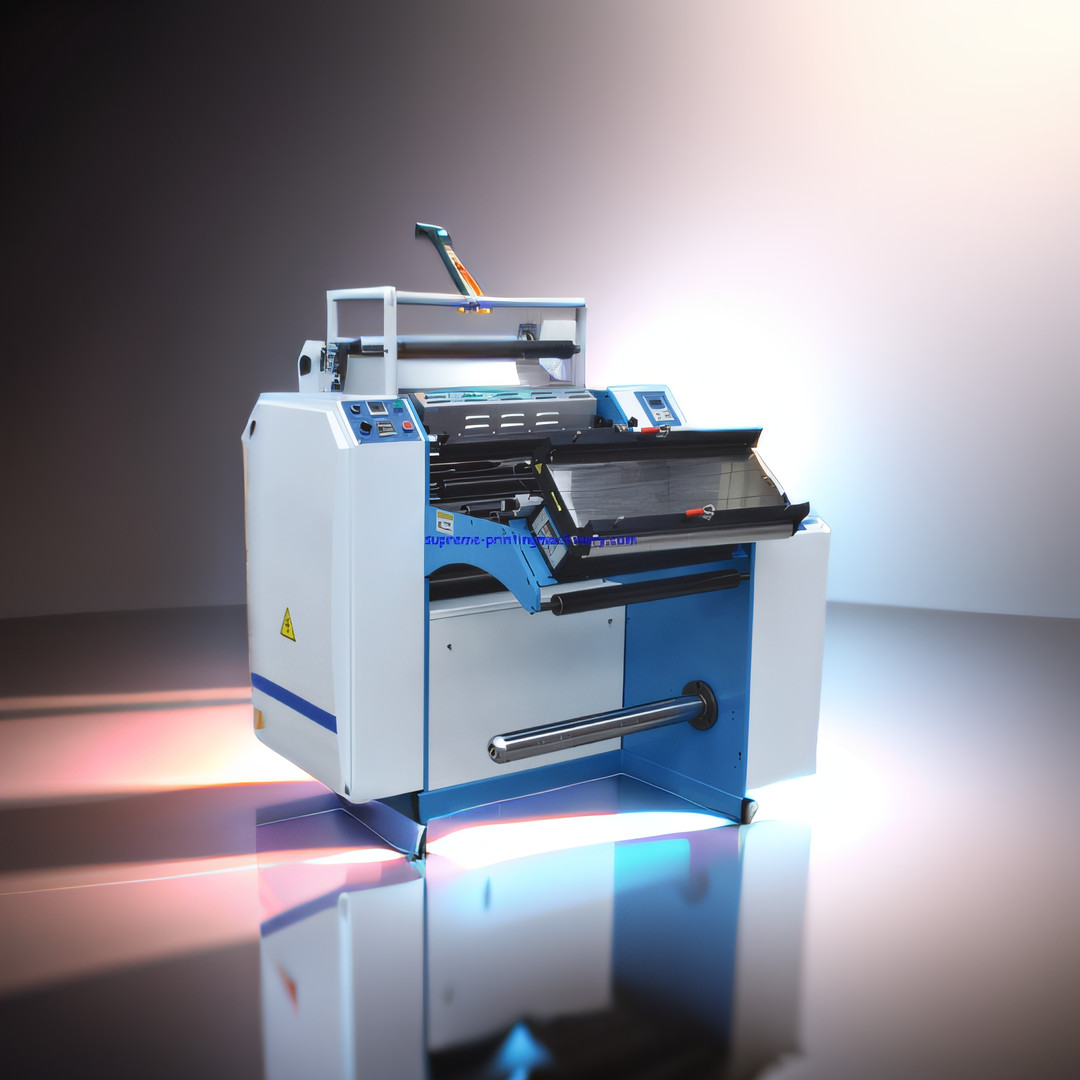

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: FM-350
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: Roll To Roll Pre Coating Film Laminating Machine Oil Pressure Constant Temperature Heating Electromagnetic Heating Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating



The machine has a compact structure, greatly saving land space for enterprises. It adopts oil pressure constant temperature heating control to ensure the quality of printed products. It adopts pre coating film, which is lower in cost than ordinary cold film. The machine adopts magnetic powder tension control for unwinding and rewinding to ensure machine quality. Equipped with an automatic web guide, uneven products can also be perfectly coated, saving materials. This machine is a necessary post press helper for major printing enterprises



Specifications:

model FM-350
Max paper diameter 600mm
Suit for paper thickness 105-500gsm
Max laminating speed 65m/min
Total power 16.5kw
Machine weight 450kg
Machine size 1655*1030*1235mm



1:The Orange-red baffle in the image is used to limit the position of the web paper, so as to avoid beyond the scope of correction

during processing.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 0

2:The yellow part in the image shows the manual oil pump, and above the oil pump is an oil pressure gauge for easy operation and monitoring of oil pressure at any time. The black valve body is locked to prevent oil pump pressure drop. The blue valve body at the bottom serves as a pressure regulating function, allowing for specified pressure and making it easier to achieve the required pressure by adjusting it

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 1

3:Image 1 shows the overall deviation correction device. image 2 shows a U-shaped opposing sensor, which has high accuracy in correcting deviation and can accurately correct deviation regardless of the transparency of the material

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 2

4:When one roll is finished and the next roll is replaced. Having this device can avoid frequent machine adjustments, paper threading, and positioning. Reduce machine stopping time

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 3

5:216mm large diameter heating roller. The surface of the roller is polished with a mirror, providing a better texture, durability, and wear resistance. Stable heating.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 4

6:Commonly used for pre coating films with poor quality, wrinkles, unevenness, and uneven left and right sides. The left and right eccentric blocks can be adjusted appropriately. Maintain consistent tension between the left and right sides of the film to avoid wrinkling before entering the heating roller and affecting the quality of the film coating

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 5

7:This machine adopts three tile type expansion shafts and abandons the fixed mode of air expansion shaft, completely freeing the machine from the constraints of the air compressor. Tile type expansion shaft is more convenient and fast

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 6

8:Effectively control the tension of the film release shaft to prevent wrinkling caused by relaxation of the pre coated film, which affects the processing effect.

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 7

9:paper drawing:

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating 8

Support and Services:

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating Technical Support and Services

We provide technical support and services for roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

roll to roll pre coating film Laminating machine oil pressure constant temperature heating electromagnetic heating is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.
