| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | FQ-350F |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 40sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|

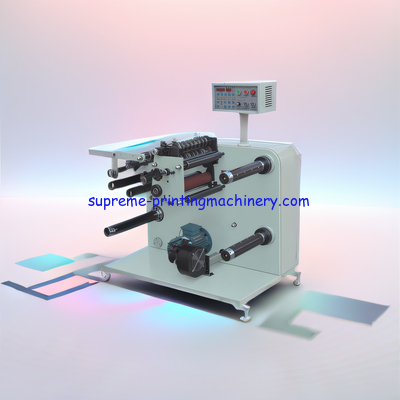

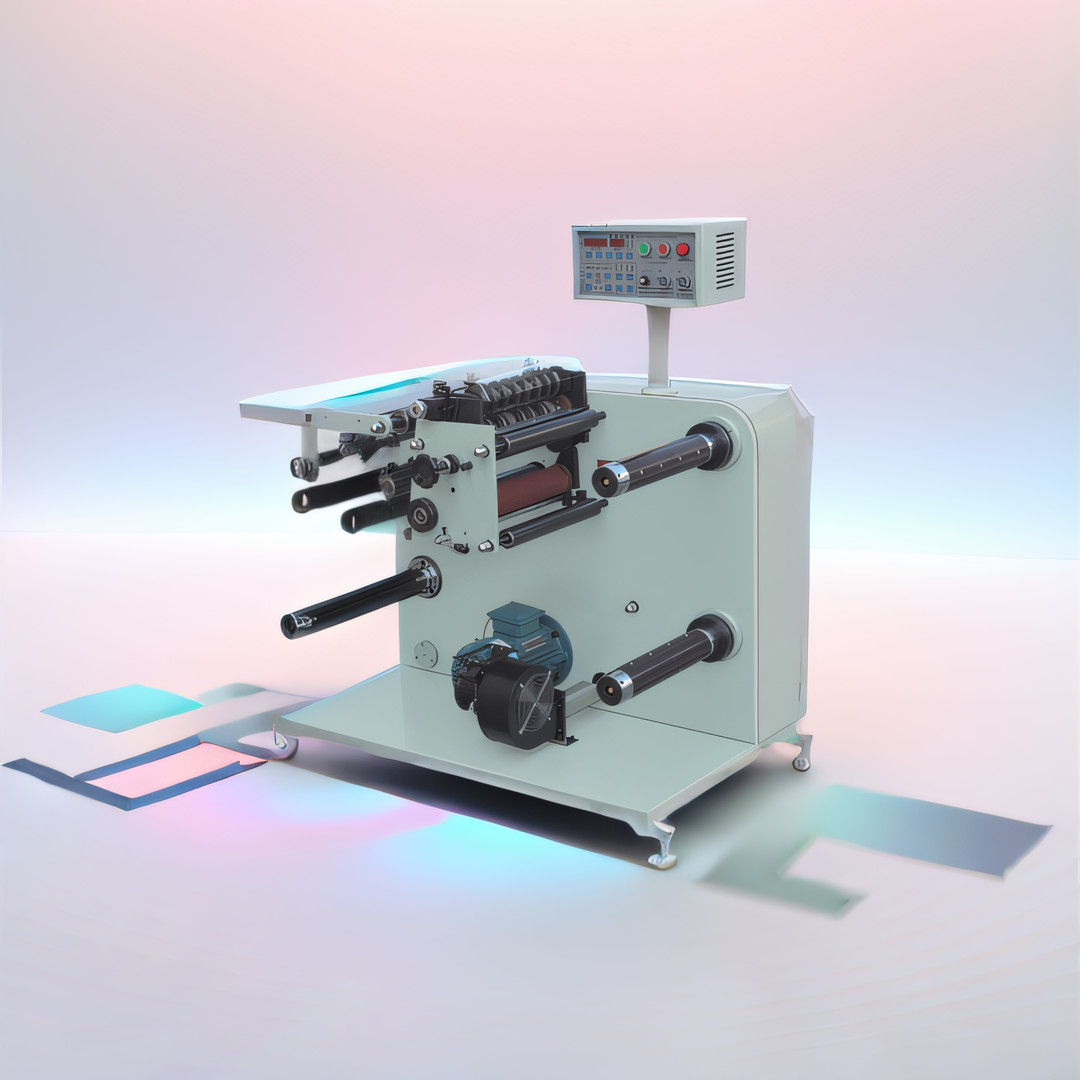

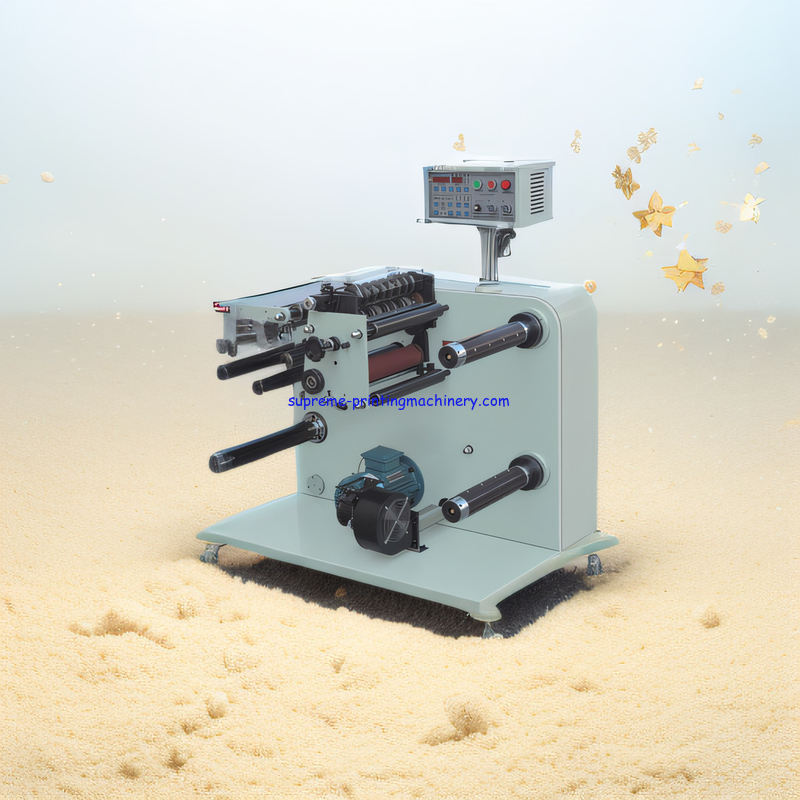

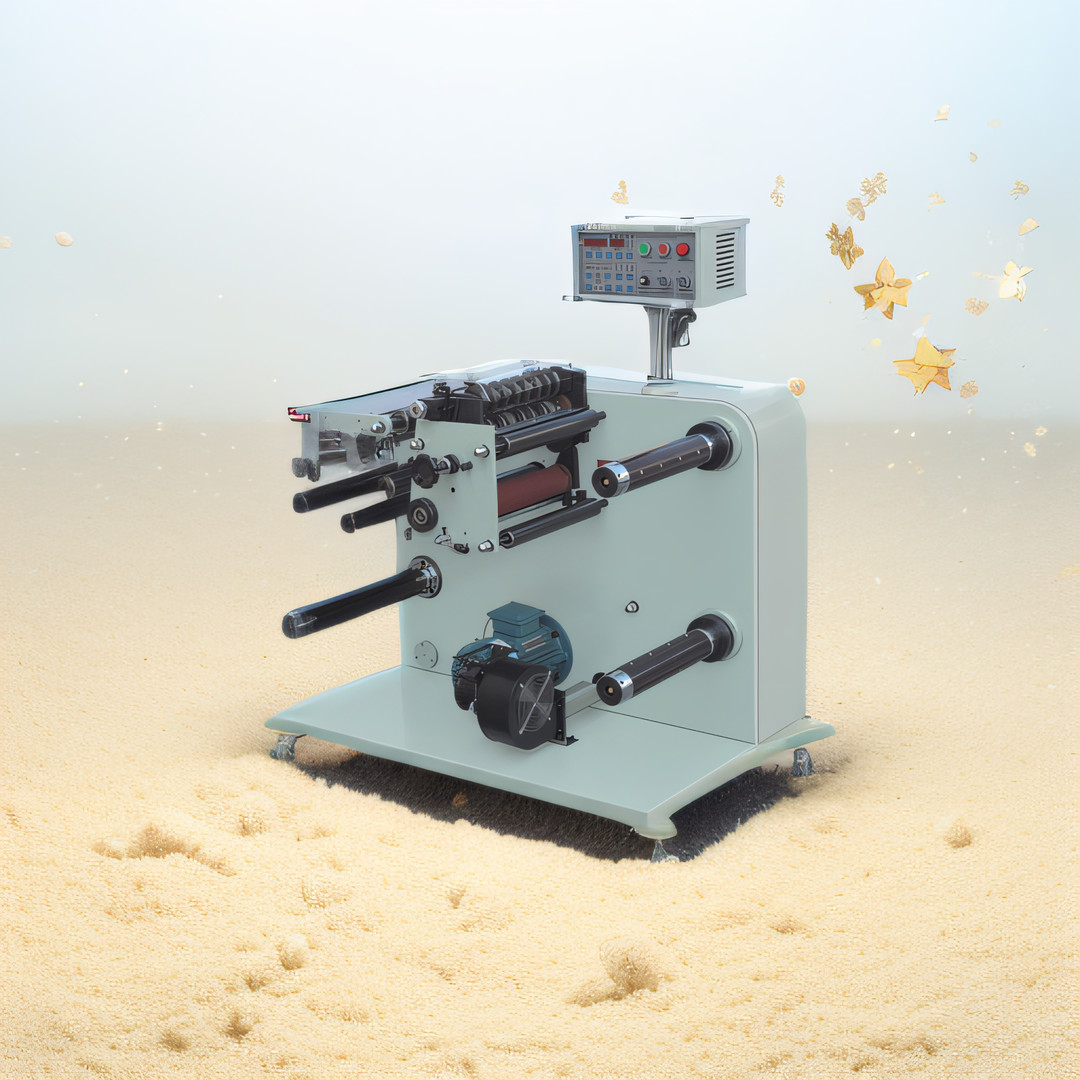

| Product Name: | FQ-350F SLITTING MACHINE MAKING TAGS ENVELOPES FOR TEA BAG 70GSM 220GSM PAPER WITH ROTARY DIE CUTTING STATION TEA TAG | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
Functional characteristics
FQ-320F/420F is automatic slitting machine, which is a matched machine with die cutting machine, it is suitable to slit narrow paper, it can automatic meter, set length, automatic stop, automatic web-guiding and so on functions. Whole machine is with compact structure,running fast,high efficiency,high accuracy,easy-operation,running stably etc features.
Technical parameters:
| Model | FQ-320F | FQ-550F |
| Slitting speed | 120m/min | 100m/min |
| Max. Roll Width | 350mm | 540mm |
| Max. Unwinding diameter | 500mm | 800mm |
| Max. rewinding diameter | 500mm | 500mm |
| Min. Slitting width | 16mm | 16mm |
| Max. Slitting width | 320mm | 540mm |
| Accuracy rate | ±0.10mm | ±0.10mm |
| Voltage | 220v | 380V |
| Main motor power | 1.5kw | 2.2kw |
| weight | 400kg | 800kg |
| Dimension | 1100*800*1280mm | 1800*1100*1280mm |
Functional characteristics:
MQ-450Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, laminating(option), slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.
Features:
1. Rewinder and unwinder all are with magnetic tension controller
2. Air shaft automatic inflate air
3. For rewinder, it is turret type,have 3 rewinders. The rewinder size can change
Technical parameters:
| model | MQ-350Y | MQ-450Y |
| Slitting speed | 120m/min | 120m/min |
| Max. Roll Width | 320mm | 420mm |
| Max. Unwinding diameter | 500mm | 700mm |
| Max. rewinding diameter | 500mm | 500mm |
| Accuracy rate | ±0.10mm | ±0.10mm |
| weight | 600kg | 800kg |
| Dimension | 1700*1000*1600mm | 1800*1300*1700mm |
| Magnetic size | 60T-150T | 60T-150T |
We provide technical support and services for FQ-350F SLITTING MACHINE MAKING TAGS ENVELOPES FOR TEA BAG 70GSM 220GSM PAPER WITH ROTARY DIE CUTTING STATION TEA TAG. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for FQ-350F SLITTING MACHINE MAKING TAGS ENVELOPES FOR TEA BAG 70GSM 220GSM PAPER WITH ROTARY DIE CUTTING STATION TEA TAG. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for FQ-350F SLITTING MACHINE MAKING TAGS ENVELOPES FOR TEA BAG 70GSM 220GSM PAPER WITH ROTARY DIE CUTTING STATION TEA TAG. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
FQ-350F SLITTING MACHINE MAKING TAGS ENVELOPES FOR TEA BAG 70GSM 220GSM PAPER WITH ROTARY DIE CUTTING STATION TEA TAG is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
