Product Name: | RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

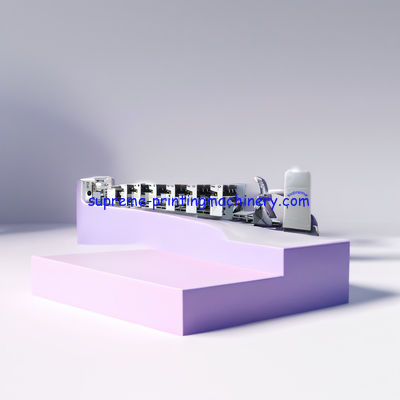

RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER
http://www.youtube.com/@labelturretrewindingmachinery
The machine can finish material-feeding, printing, varnish, solid color coating, IR or UV drying, laminating, rewinding and die-cutting even slitting ect in one process,it is an ideal machine for printing paper and top-grade adhesive label.
1. The flexo printing machine adopts the ceramic anilox rollers to spread ink. which is characterized by wearable, harden treatment and long using life, etc. It can improve the printing efficiency and more pretty products.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic.(PLC controlled)
3. Each printing unit of the flexo printing machine has one IR drier UV dryer can be optional.
4. PLC auto tension controlled, with touch screen operation, more convinient
5. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
6. Unwinding and rewinding shaft adopt air shaft each 1 pc 3 inch, it's convenient to change load and unload the material.
7. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
8: Shaft-less for the printing cylinder, faster for the change the cylinder
Technical data | |
Model | RYW-2320 |
Max Printing speed | 80m/min |
Printing color | 2 color |
Max roll paper width | 350mm |
Max priniting width | 320mm |
Max unwinding diameter | 500mm |
Max rewinding diameter | 500mm |
Printing cir | 60-200T |
Overprinting precision | +-0.1mm |
Machine thickness | 20mm(after processing) |
Main motor | 7.5kw(4/5/6 color 320) |
Total power | 10KW(4 color 320) |
Total weight | About 2500KG(4 color 320) |
Machine size |
3500mm*1100mm*1200mm(L*W*H) (4 color 320) Added 1 color(400mm length) |
We provide technical support and services for RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RYW-2320 FLEXO PRINTING MACHINE TURN BAR FOR BOTH SIDE PRINTED MATERIAL:PAPER AND CARDBOARD 200GSM ADHESIVE PAPER is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
