MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M

Basic Information
Place of Origin: China
Brand Name: supreme
Certification: CE
Model Number: MQ-350C
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

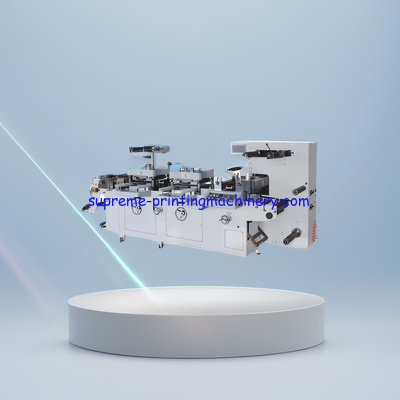

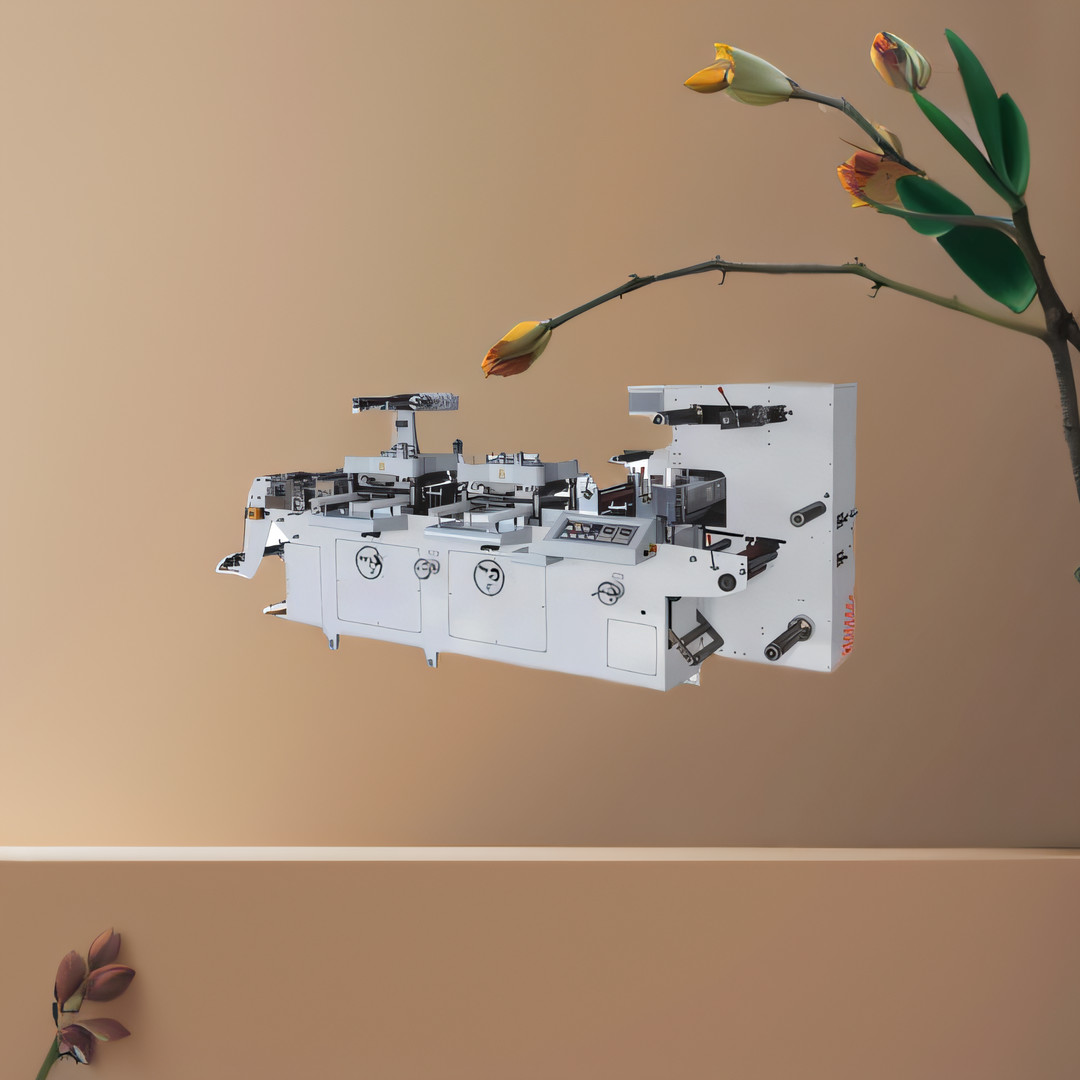

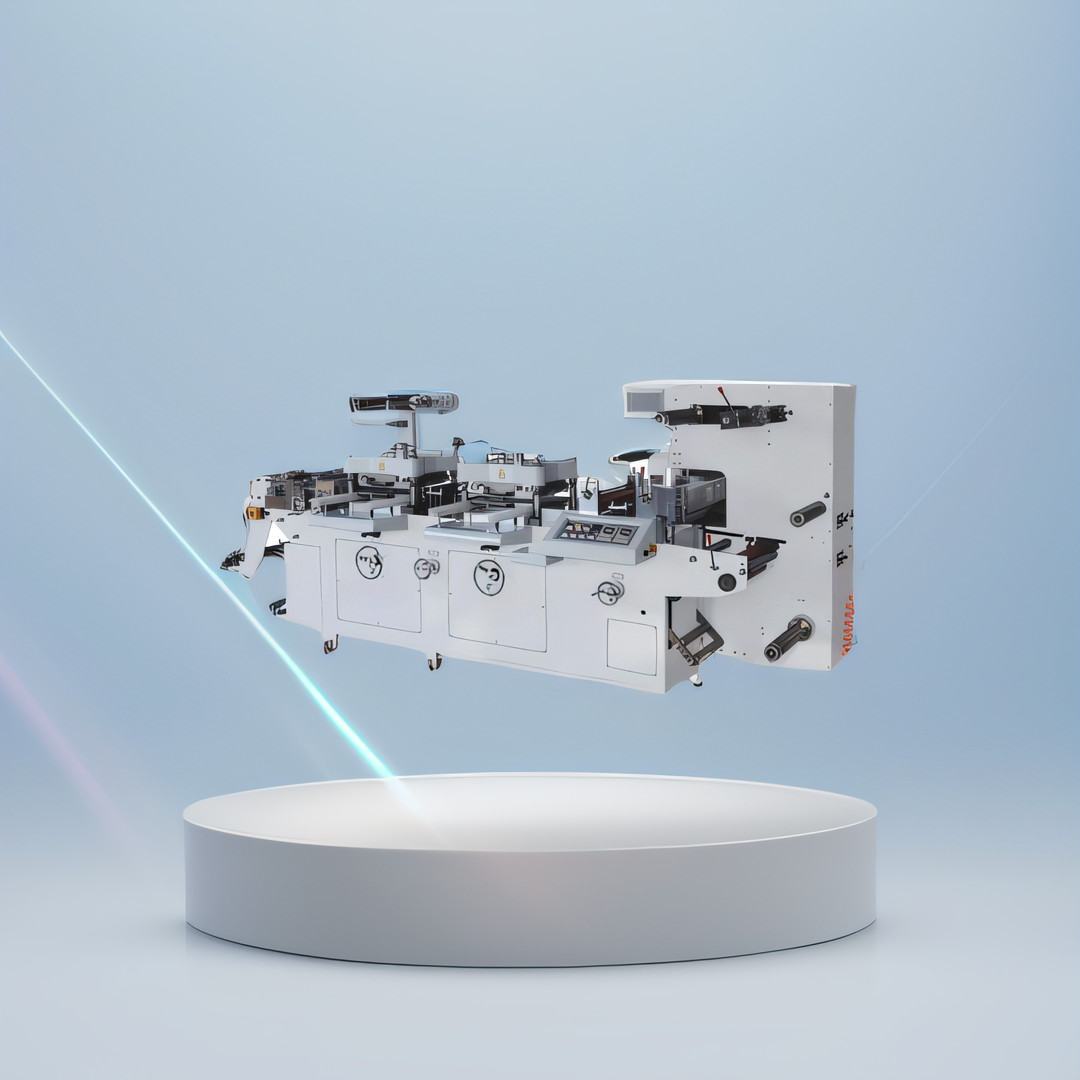

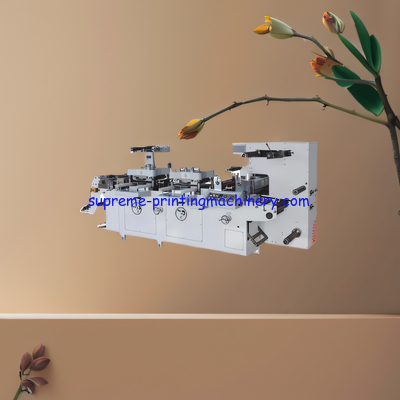

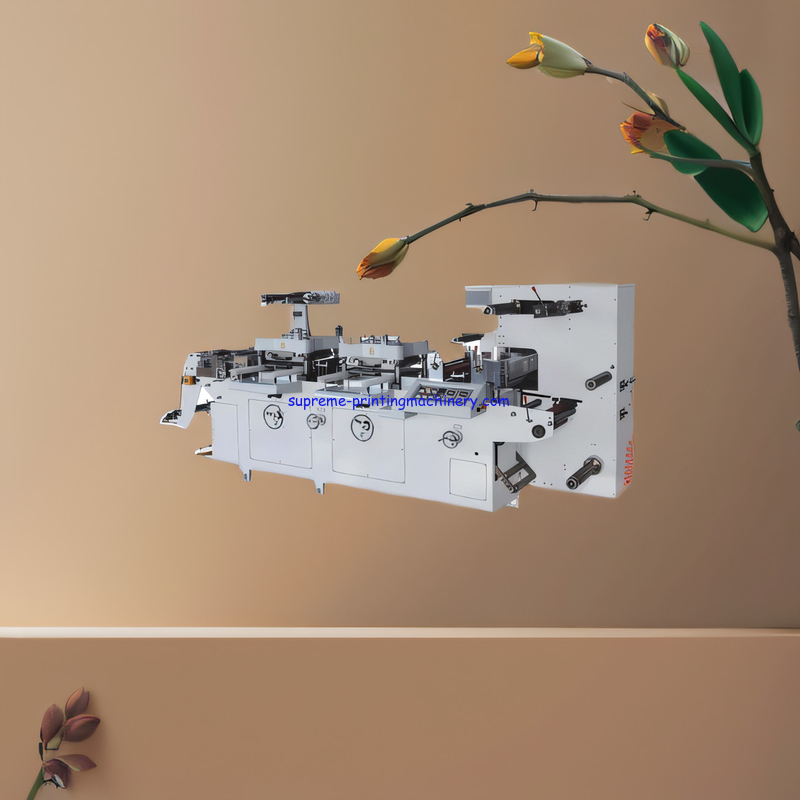

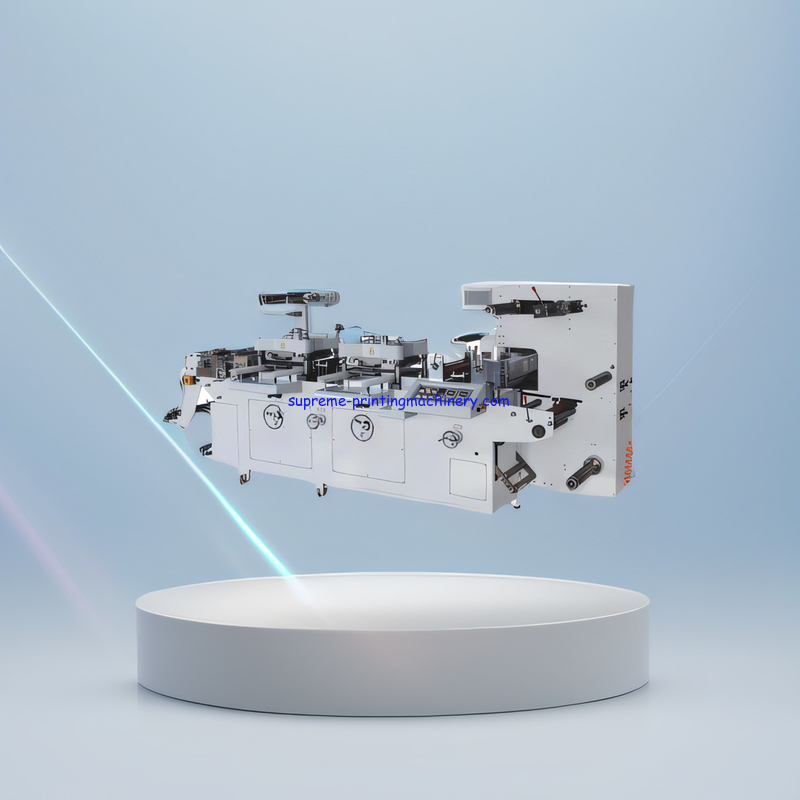

MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M



Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding

The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.

This machine is widely used in electronic line, adhesive product line and so on.



Features:

This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material colors, unwinding-die cutting-waste discharging-sheet cutting-rewinding all are completed in one turn, all are control by PLC control system.



Technical parameters:

model MQ-350C
Max. Feeding width 320mm
Cutting area/stamping 310*350mm
Cutting speed 300 times/min
Position accuracy ±0.10mm
Power of main motor 5KW
Size(L*W*H) 3800*1400*1600
Unwinding/rewinding diameter 600mm
Voltage 380v
Total power 10kw
weight 2200kg

Note:standard machine the sheets cutting speed is about 150-160pces/min, if with servo motor, it can do 220-300 sheets/min





Support and Services:

MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M Technical Support and Services

We provide technical support and services for MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M?
A: The Brand Name is Supreme.
Q: What is the Model Number of MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M?
A: The Model Number is MQ-C.
Q: Where is the Place of Origin of MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M?
A: The Place of Origin is China.
Q: What is the Certification of MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of MQ-350C AUTOMATIC LABEL DIE CUTTING AND HOT STAMPING MACHINE TWO STATION FLATBED TWO HEAD MIDDLE HIGH SPEED 300TIMES/M?
A: The Minimum Order Quantity is 1.
