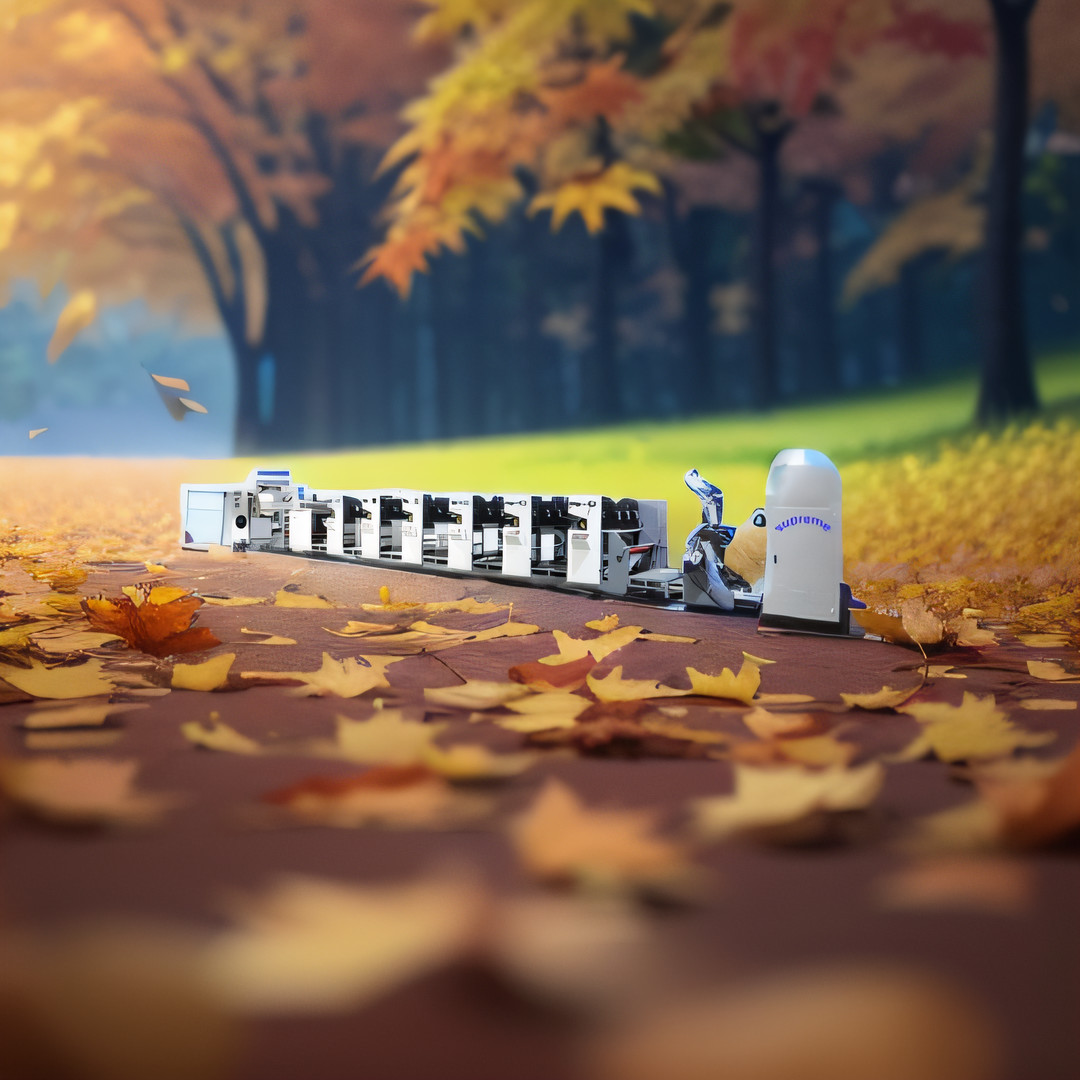

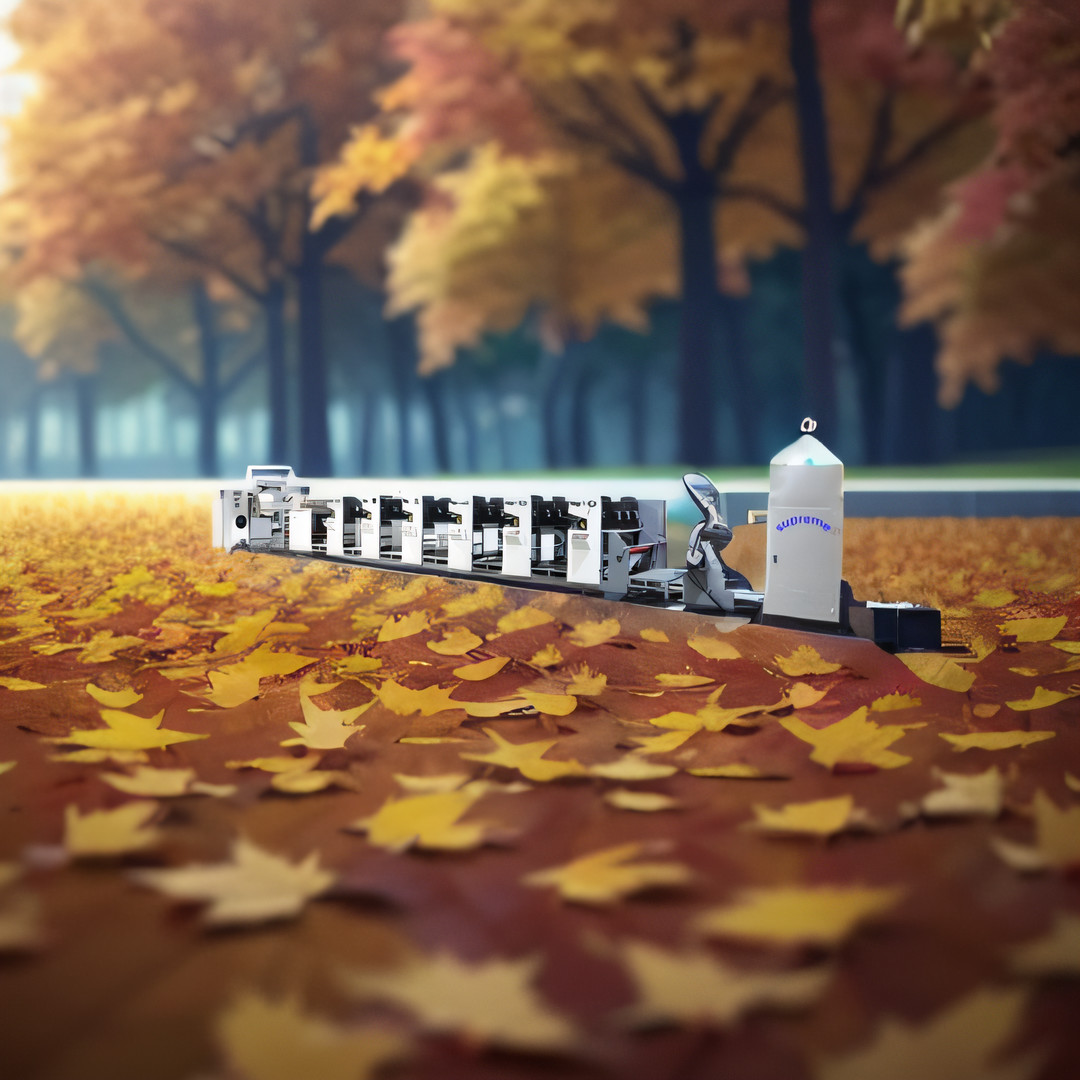

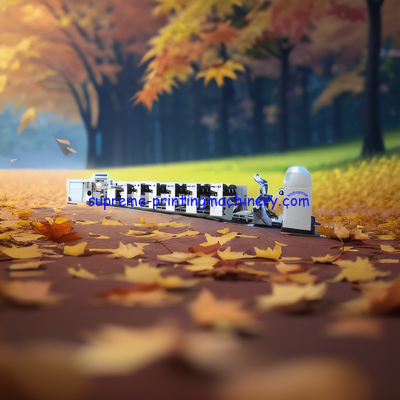

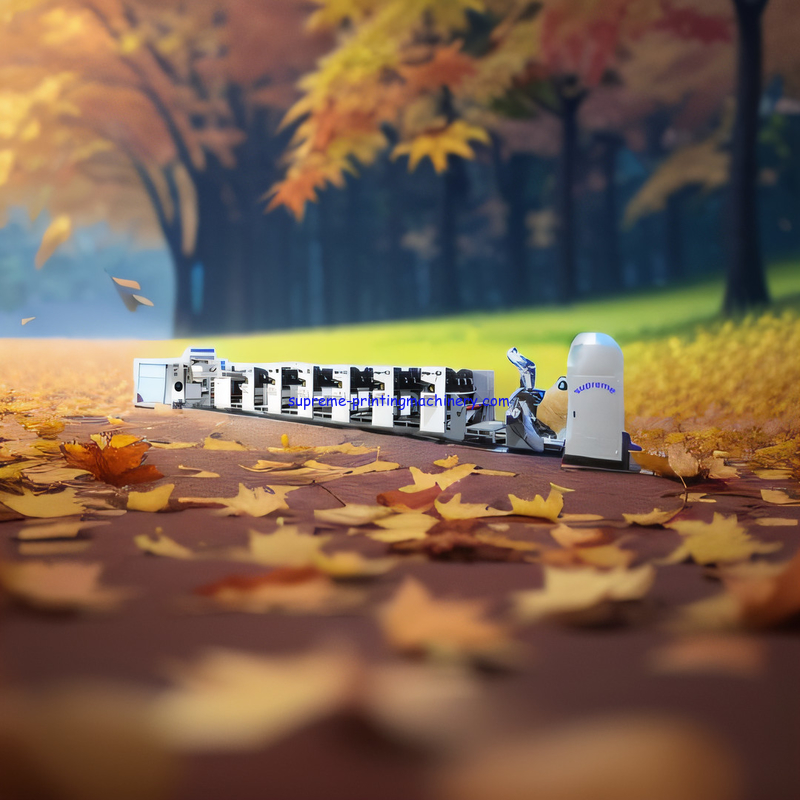

YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE

YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE

https://www.youtube.com/@labelturretrewindingmachinery

Features of this machine:
1. The printing unit adopts a petal structure, making plate changing convenient and fast.
2. Adjustment of printing and ink transfer pressure: The plate roller adopts a shoulder walking method, and the printing pressure and ink transfer pressure are adjusted to fine tune the corresponding support brackets on both sides. The printing pressure does not need to be adjusted greatly when the plate roller is changed to a larger or smaller size. If there are special printing requirements, only a small fine tuning is needed, greatly improving the efficiency of printing.

1:Introduction to this machine:

1.Super short distance from unwinding to rewinding.
2.A specially designed scraper independently developed to compensate for high-speed ink flying and reduce the volatilization of solvents in the air.
3.Repeat printing with a length of 205-635MM.
4.Adopting helical gears for oblique displacement, precise color registration, and stable printing.
5.Printing material: roll paper, non-woven fabric.
6.Short plate making period and low cost. The period for making a multi-color gravure cylinder is 5-10 days, while the production of a flexographic plate takes 5 hours. The size of the flexographic plate depends on the printing area, which is much cheaper than the cost of the gravure printing cylinder.
7.Pre press correction, post press strong wind+infrared drying design. Avoid scratching and dirtiness caused by poor ink drying.
8.The printing part is composed of: 1 printing bottom roller, 2 printing plate roller, 3 ceramic anilox roller, 4 doctor blade, 5 stainless steel ink tank, and 6 variable frequency oven.
9.Process 1: unwinding, 2: automatic constant tension, 3: doctor blade, 4: printing unit, 5: traction, 6: automatic constant tension, 7: material rewinding and slitting

2:Technical parameters

3:Machine configuration:
1.Unwinding device:
1)Semi automatic unwinding device: hydraulic automatic feeding
2)Inflation shaft specification: 3 "
3)Number of inflatable shafts: 1
4)Tension control range: 0-100kg/full width
5)Magnetic brake: 10KG, automatic tension control
6)Fully automatic tension detection device;
7)1 set of ultrasonic web guide

2.Printing unit
1)Drive mode: direct connection
2)Printing plate shaft:
(1)Vertical color registration accuracy: +- 0.1MM
(2) Horizontal color registration accuracy: +- 0.1MM
3) Overall composition: plate roller, scraper, ink tank, Anilox,
4) Scraper: 4 sets of single and double directional scrapers are used. In order to facilitate installation, the material of the scraper is high-strength aluminum alloy, which is convenient and fast for loading, unloading, and cleaning;

3.Drying device:
1) Each color group is equipped with strong wind and infrared oven drying:
2) The overall printing is dried before cooling. The electric heating of the oven and intelligent control of the fan make the temperature inside the oven controllable.

4.Rewinding device
1)Rewinding method: up and down rewinding
2)Installation method of paper core: 1 inflatable shaft
3)Inflation shaft specification: 3 "
4)Rewinding motor: 4KW, 1 set
5)Tension control: fully automatic tension control
6)Rewinding tension range: 5-20KG/full width

4.Extra facilities (user responsible)
1.Power supply: 3-phase * 380V * 50HZ, three-phase 4-wire system
2. Air compressor: 2KW (1 unit)

Support and Services:

We provide technical support and services for YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

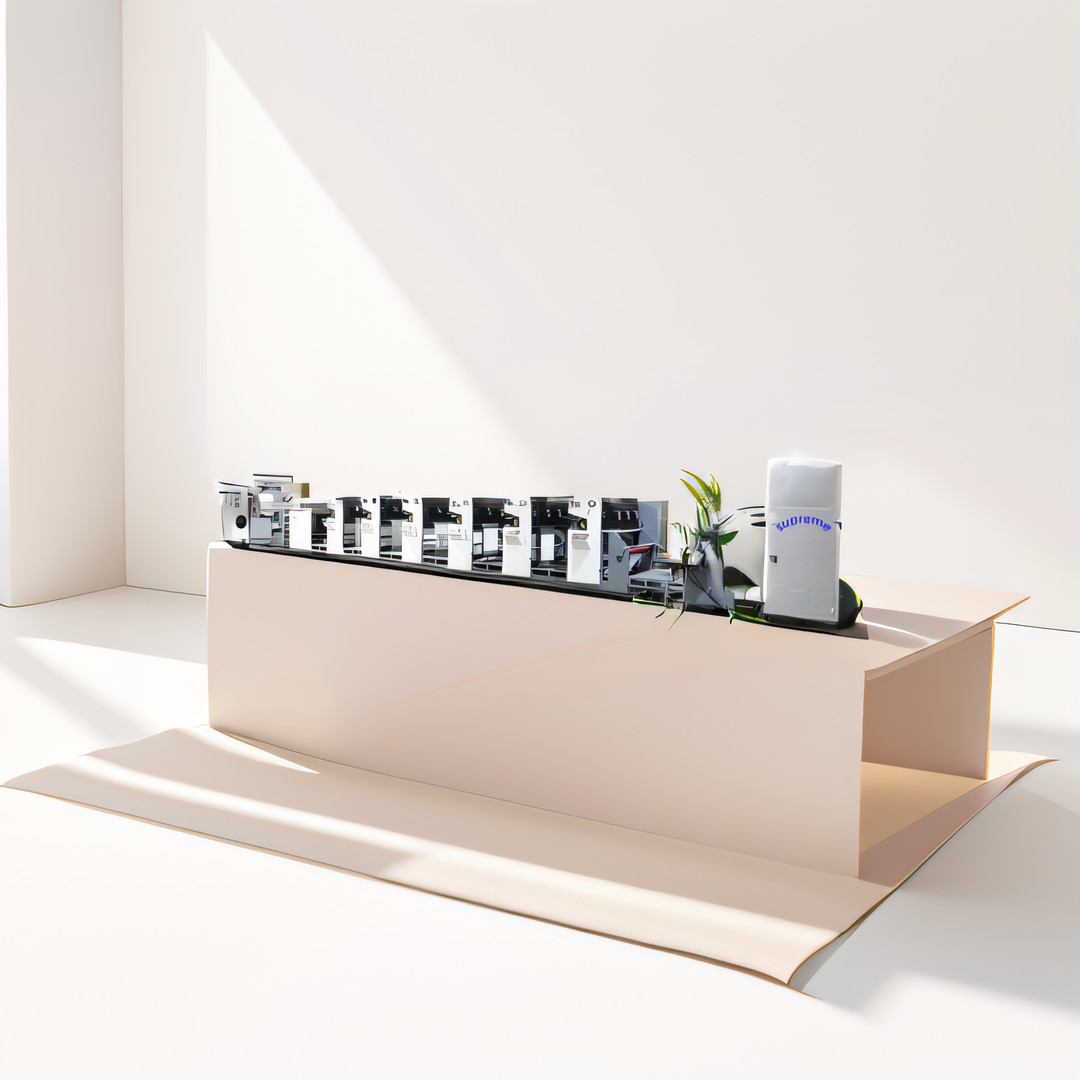

YT-4-650 UNIT TYPE FLEXOGRAPHIC PRINTING MACHINE PETAL STRUCTURE MAKING PLATE CHANGING CONVINIENT AND FAST 2023 NEW MODE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
