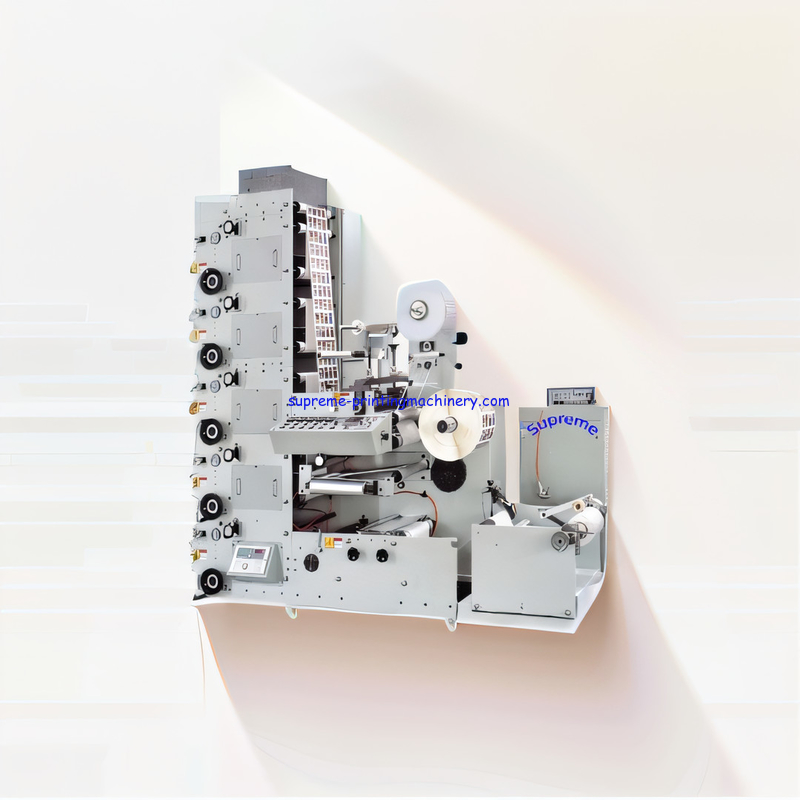

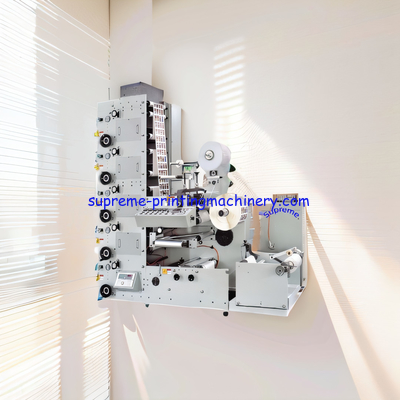

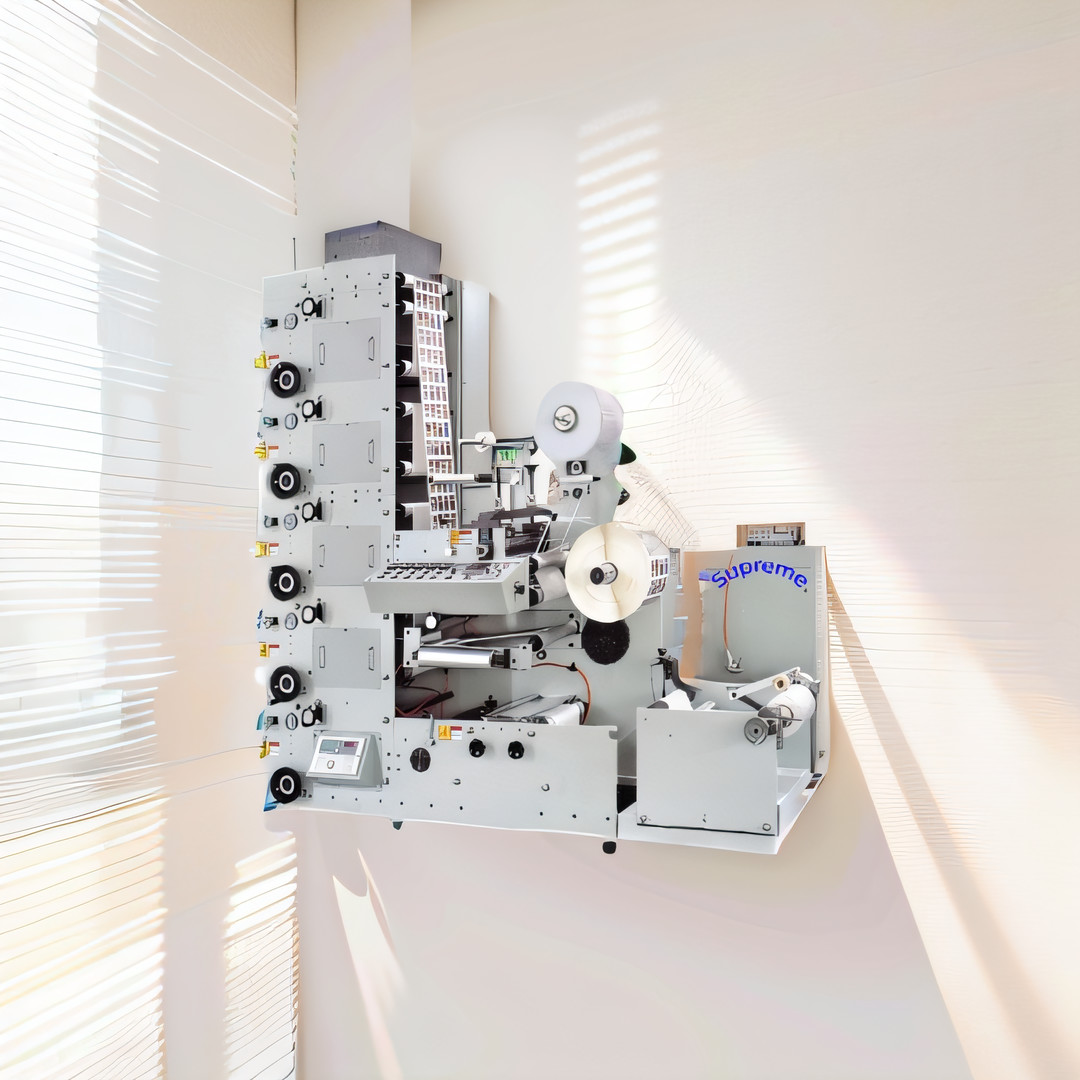

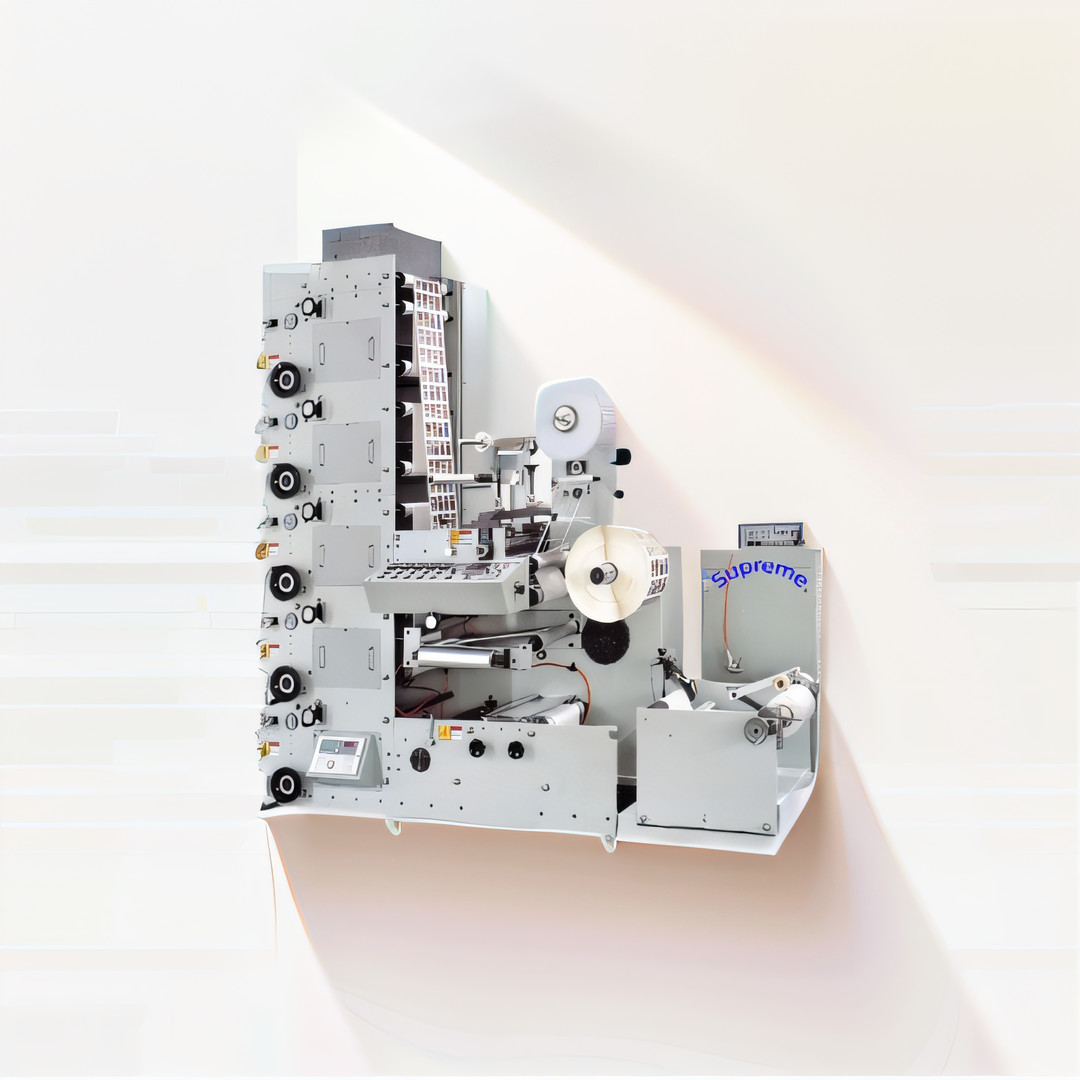

RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR

Basic Information
Place of Origin: China
Brand Name: supreme
Certification: CE
Model Number: RY320-4B
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR



Station for 4-color flexo printing machine:

1.One mounting machine

2.One anilox roller for each group (lpi is optional, made in shanghai)

3.Three sets printing rollers (3*4=12)

4.Printing both sides at the same time (with turn bar)

5.With the lamination

6.One unwinding tension controller (Mitsubishi Japan)

7.One rewinding tension controller

8.One die cutting station



Main technical parameter:

Model RY320-4B
Printing speed 80m/min
Printing color 4colors
Max. Web width 320mm
Max. Printing width 310mm
Max. Unwinding diameter 600mm
Max. Rewinding diameter 550mm
Printing girth 175-380mm
Precision of registration ±0.10mm
Dimensions 2100*1100*3000(mm)
Machine weight About 2500kg





Electirc part: Pls check with attachment table.

NO. Item Brand, Origin country
1 Unwinding Tension Contoller Mistubishi Japan
2 Rewinding Tension Controller ZXT China
3 Inverter

Schneider Germany



4 Breaker Schneider Germany
5 Buttons Schneider Germany
6 AC contactor Schneider Germany

Spare Parts to be sent along with machine:

1:IR Temperature Controller * 2

2:Tension Controller Board* 1

3:Brighten Lamps* 4

4:Tension Meters Ammeter* 2

5:Anilox Delay Relay* 2

6:Hall Sensor * 2

7:IR Rocker Switch*2

8:Anilox Rocker Switch*2

9:Print Cylinder Cooper Bush * 4

10:Air Ram for Print Cylinder* 1

11:Air Ram for Anilox Roller*1

12:Doctor Blades*4pcs

13:Air Nozzle* 2





Characteristics:

1:Adopt the anilox roller to spread ink.

2:Unwinding and rewinding are controlled by magnetism power brake, clutch. (or by automatic tension controller of mitsubishi , made in Japan).

3:Printing unit adopt 360º for registration.

4:Printing unit have one infrared to dry the device group each.

5:The rubber roller can break away from automatically while parking, and running at a low speed, in order to avoid water being black to be dry.

6:The main motor is adopted the import stepless regulation of frequency conversion.

7:Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.



Support and Services:

RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR Technical Support and Services

We provide technical support and services for RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR?
A: The Brand Name is Supreme.
Q: What is the Model Number of RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR?
A: The Model Number is RY-L.
Q: Where is the Place of Origin of RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR?
A: The Place of Origin is China.
Q: What is the Certification of RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of RY320-4B FLEXO PRINTING MACHINE MITSUBISHI JAPAN UNWINDING TENSION CONTROLLER LAMINATION DIE CUTTING STATION TURN BAR?
A: The Minimum Order Quantity is 1.
