| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | RY-4502L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

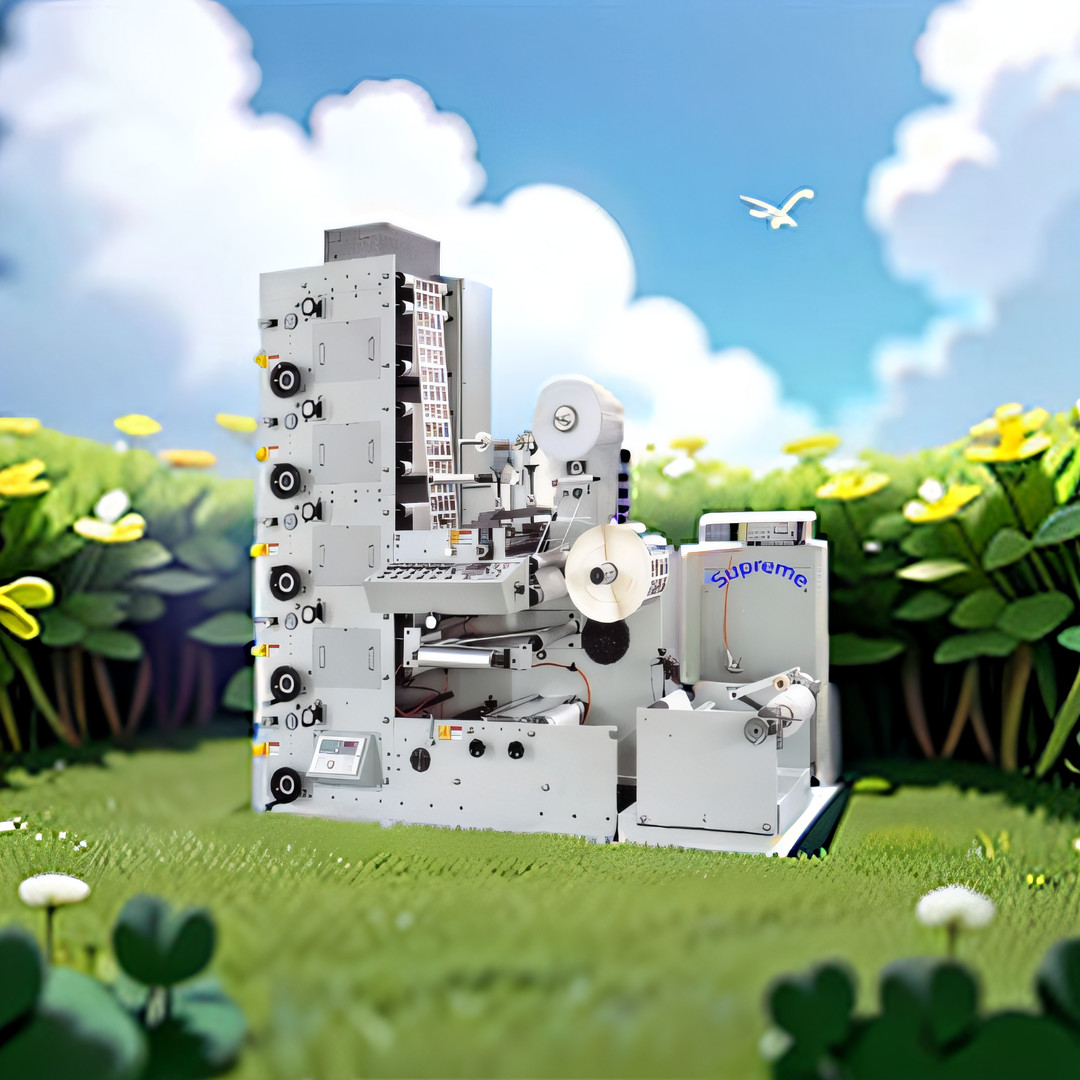

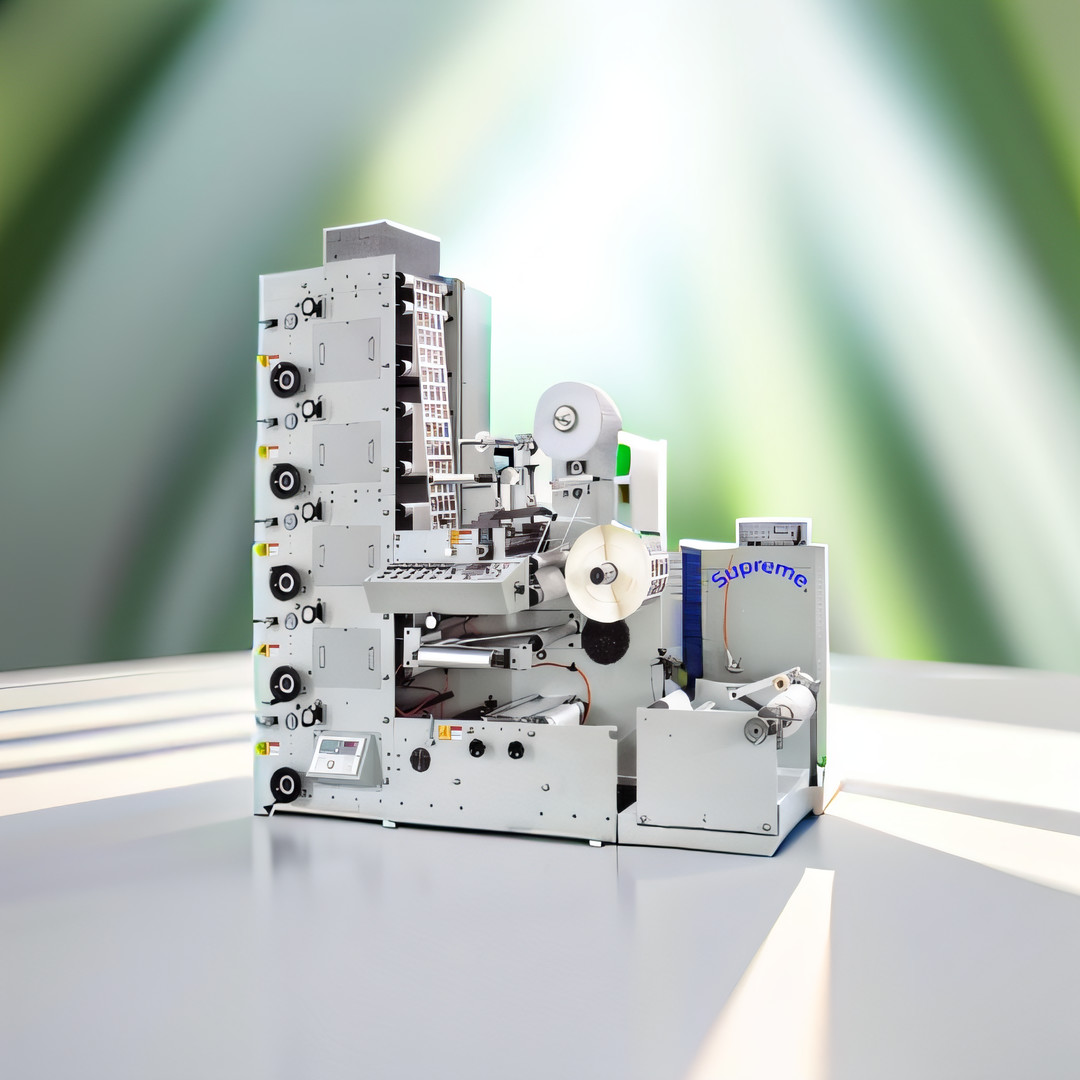

RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND
http://www.youtube.com/@labelturretrewindingmachinery
| Specifications: |
|
l Adopt high quality ceramic anilox cylinder to transfer the ink. l Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch. l Unwinding adopts auto tension controller. l Each printing unit adopts 360° degree adjustment, it can independently gear and loosen, so other printing units can continue do printing. l Each printing unit equips with IR dryer l Equipped with web guide for tracking. l This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process. l The ink rollers will be separated from the printing rollers, and keep running when the machine stops. l The main machine inverter is imported. l It equipped with 3” air expanding shaft on unwinding/rewinding section. l All the rollers are deal with thermal treated. l The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label. |
| Main Technical Parameters: | |
| Printing speed | 10-80 m/min |
| Printing color | 2 color |
| Max. web width | 450 mm |
| Max. printing width | 420 mm |
| Max. unwinding diameter | 600 mm |
| Max. rewinding diameter | 600 mm |
| Printing length | 177.8-355.6 mm |
| Voltage | 380V±10% |
| Precision | ±0.1mm |
| Voltage | three-phase four-wire 380V,50HZ |
| Weight | 1700kg |
| Overall Dimensions(LxWxH) | 2000x 1350 x 1700mm |
We provide technical support and services for RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RY-4502L COLOR AUTOMATIC LABEL FLEXO PRINTING MACHINE INCLUDE DIE CUTTING UNIT MITSUBISHI TENSION CONTROLLER FOR UNWIND is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
