Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
---|---|---|---|
Product Name: | RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

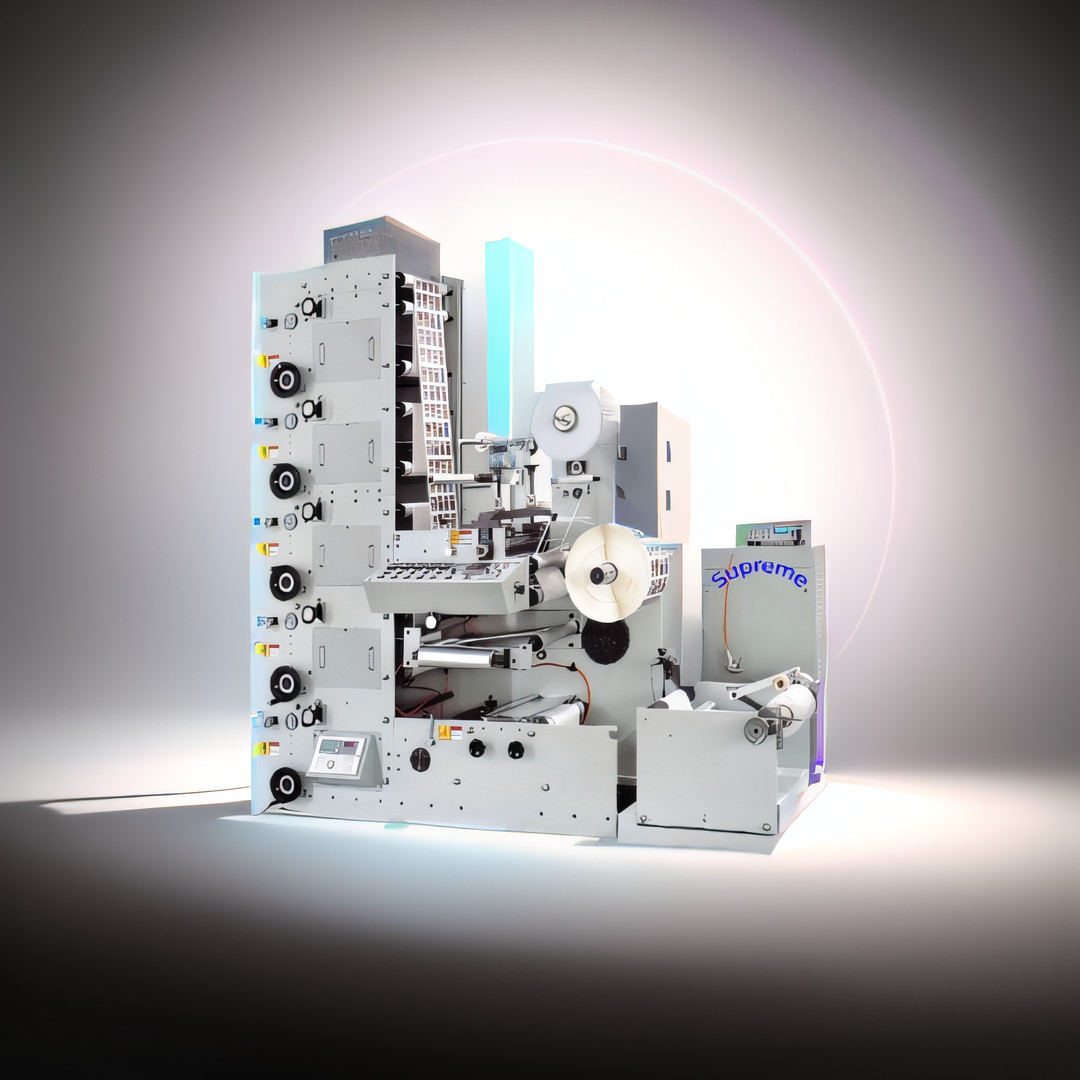

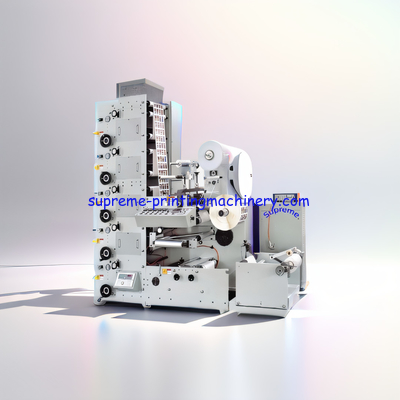

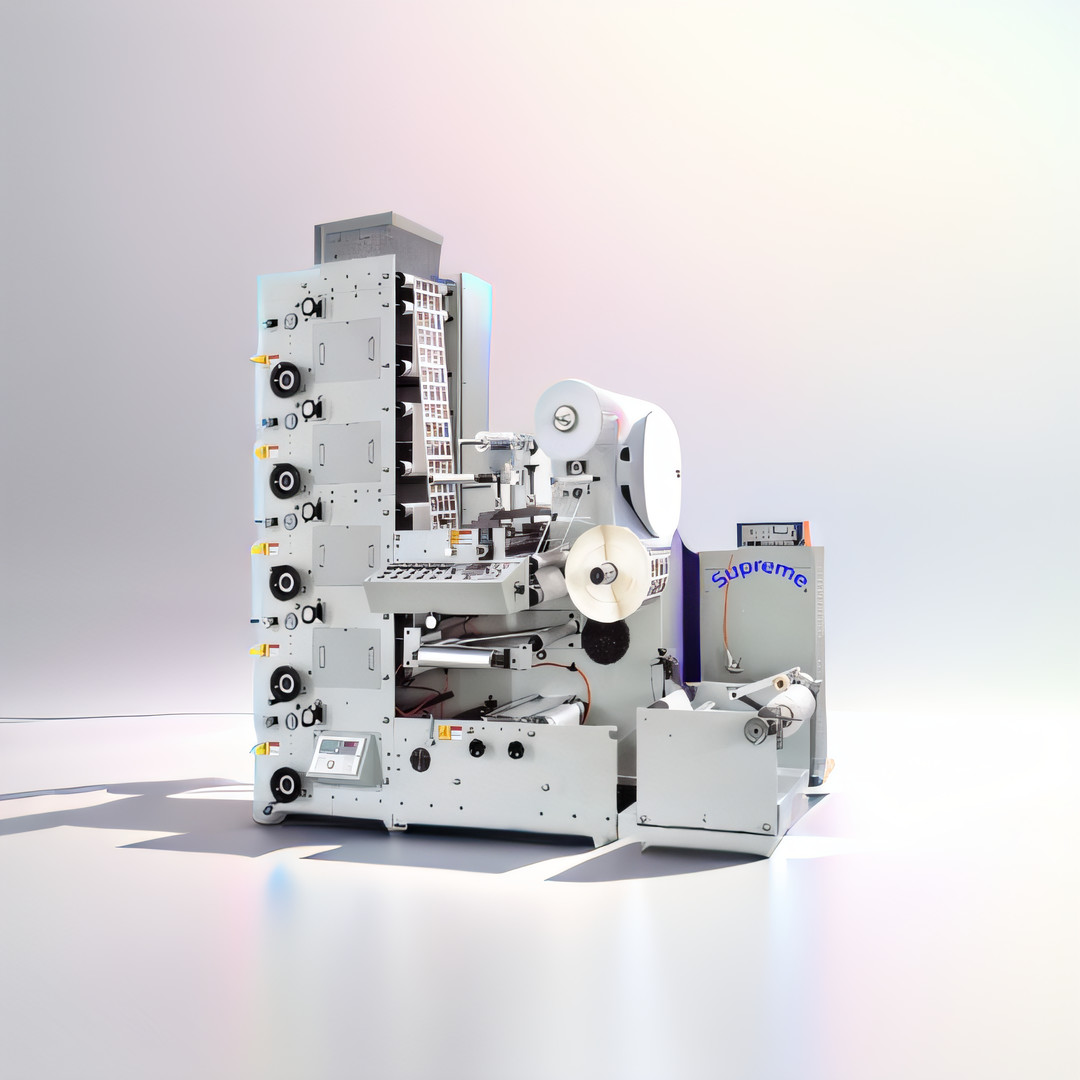

RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS
http://www.youtube.com/@labelturretrewindingmachinery
1. Ceramic Anilox is used for ink transmission.
2. Both unwinding and rewinding are controlled by magnetic powder brakes and magnetic powder clutches (or optional Japanese Mitsubishi automatic tension controllers).
3. Each printing unit adopts 360 ° circumferential plate alignment adjustment.
4. Each printing unit has a set of infrared drying devices.
5. Randomly equipped with a set of die-cutting stations to complete printing die-cutting at once.
6. When stop, the ink roller can automatically detach and operate at low speed to prevent ink from drying.
7. The main motor adopts imported variable frequency stepless speed regulation.
8. Complete paper feeding, printing, varnishing, automatic infrared drying, lamination, and winding in process
2:Main technical parameters of Flexography machine
Model | RY-320L |
Printing Speed | 80m/min |
Printing Colours | 4Colours |
Max. Web Width | 320mm |
Maximum printing width | 310mm |
Max. Unwinding diameter | 600mm |
Max. Rewinding Diameter | 600mm |
Printing perimeter | 177.8~355.6mm |
Precision | ± 0.15mm |
Main Motor | 2.2KW |
IR Power | 5.2KW |
Dimensions | 2000X1500X2000 (mm) |
Machine Weight | approximately 1600KG |
We provide technical support and services for RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RY-320L FLEXOGRAPHIC PRINTING PRESS MACHINERY IDEA FOR ROLL SELF-ADHESIVE, SINGLE-LAYER PAPER, BILLS AND OTHER MATERIALS is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
