| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | RY-320 -5L |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

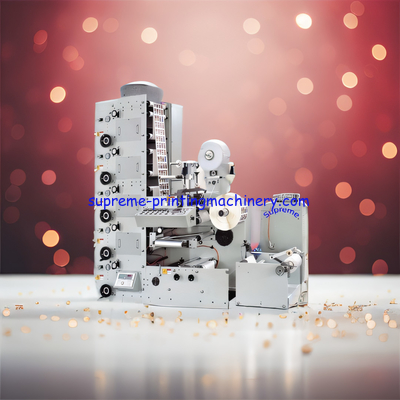

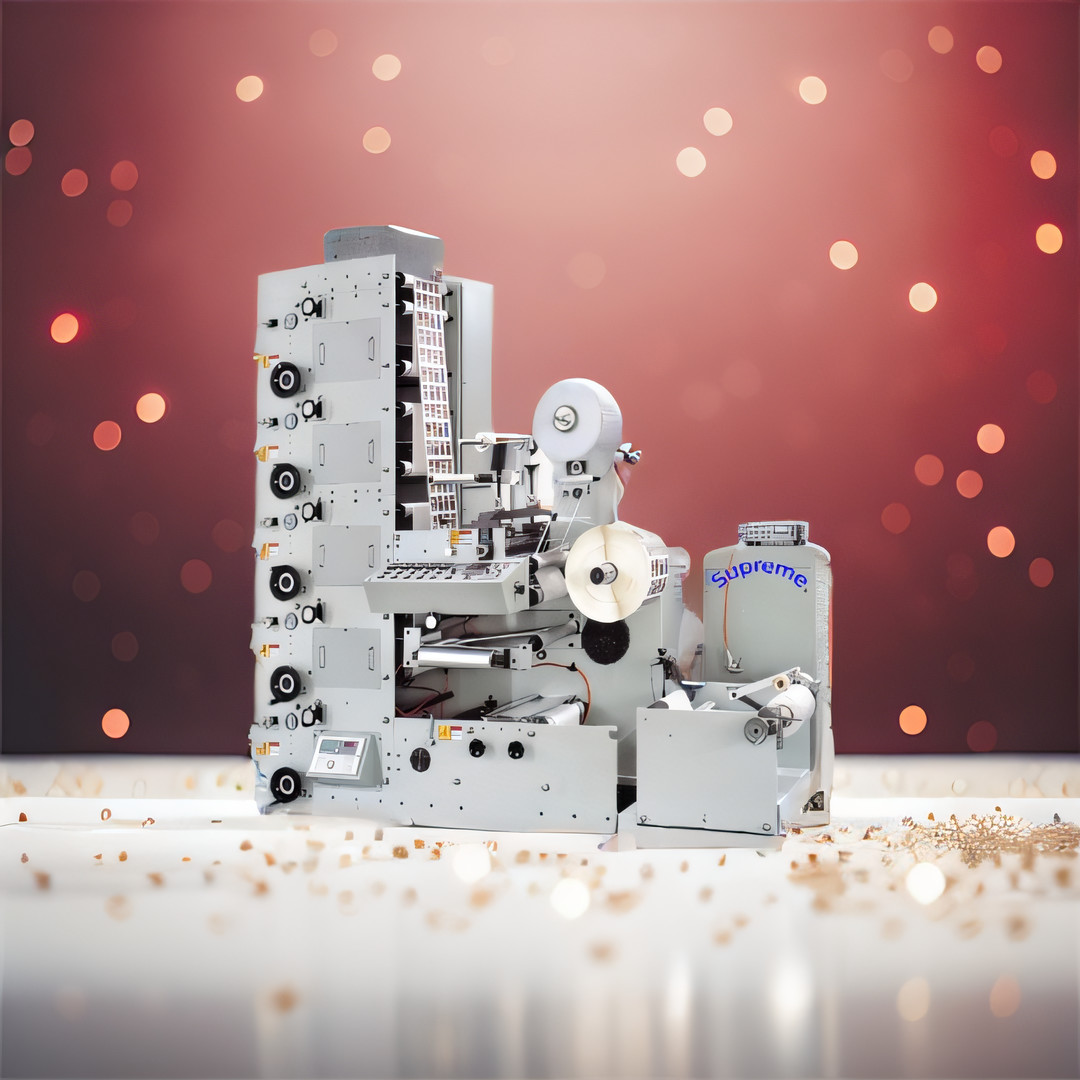

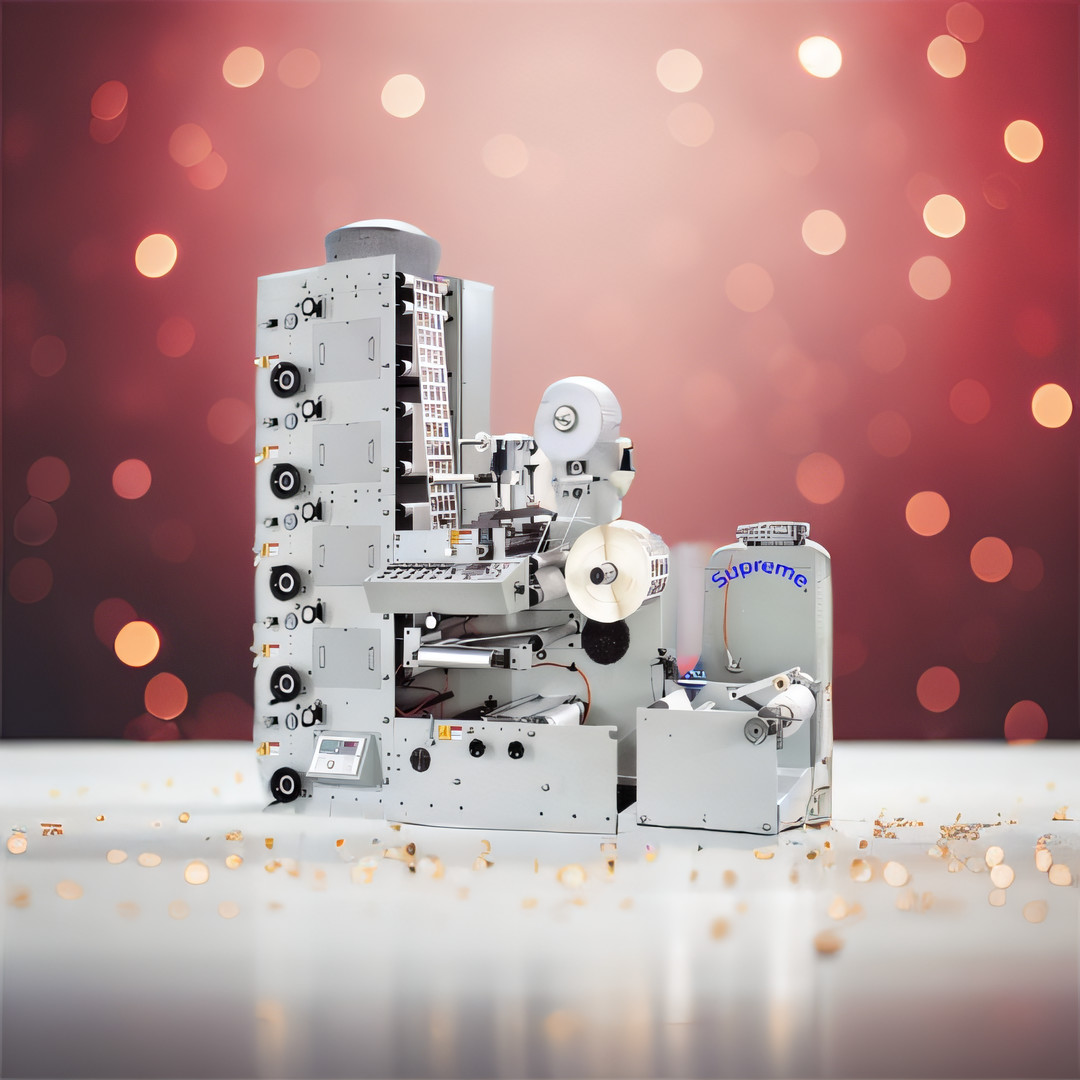

RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE
http://www.youtube.com/@labelturretrewindingmachinery
Product Description
1:Adopt the ceramic anilox cylinder to transfer the ink
2:Unwinding and rewinding are controlled by magnetic powder brake/clutch
3:Each printing unit adopt 360 degree plate adjustment
4:Each printing unit equipped with IR dryer (UV dryers are optional)
5:This machine with one die cutting station, which make printing and die cutting can be finished in one process
6:This ink rollers will be separated from the printing rollers, and keep running when the machine stops.
7:The main machine inverter is imported (Delta, etc)
8:The machine can finish material-feeding, printing, vanishing, drying, laminating, rewinding and die-cutting in a process. It’s an ideal machine for printing note and top-grade adhesive paper labels, film labels.
| MAIN TECHNICAL SPECIFICATION: | |
| Printing speed (m/min) | 60-80m/min |
| Printing color (color) | 5(color) |
| Max web width (mm) | 320mm |
| Max printing width (mm) | 310mm |
| Max unwind diameter | 600mm |
| Max rewind diameter (mm ) | 550mm |
| Printing girth (mm) | 175-381mm |
| overprint Precision(mm) | ±0.1mm |
| Can add UV drying units | 5Group |
| Overall dimensions ( L x W x H ) | 3000 ×1500×3000mm |
| Machine weight (kg) | about2000kg |
The chosen electric apparatus for the machine:
1. Electric apparatus: Made by Schneider;
2. Temperature controller: Made in China
3. Web guide system: China brand
Summarization:
A. Unwinding unit,
B. Printing color system
C. Rewinding unit
A. Unwinding unit
1.Unwinding diameter:φ600mm
2. Unwinding shaft: 3 inches air shaft,
3. Tension control: magnetic powder brake
B. Printing Color system
1.Printing cylinder length: max. 120teeth (381mm)
2:Drying system: IR drying or UV drying.
C. Die cutting stations
ONE DIE CUTTING STATION
1:Magnetic roller, die cutting knife roller need extra cost. (As it’s different price with different sizes)
We provide technical support and services for RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
RY-320 -5L FLEXO PRINTING MACHINE CERAMIC ANILOX CYLINDER TO TRANSFER THE INK MAGNETIC POWDER BRAKE/CLUTCH 360 DEGREE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
