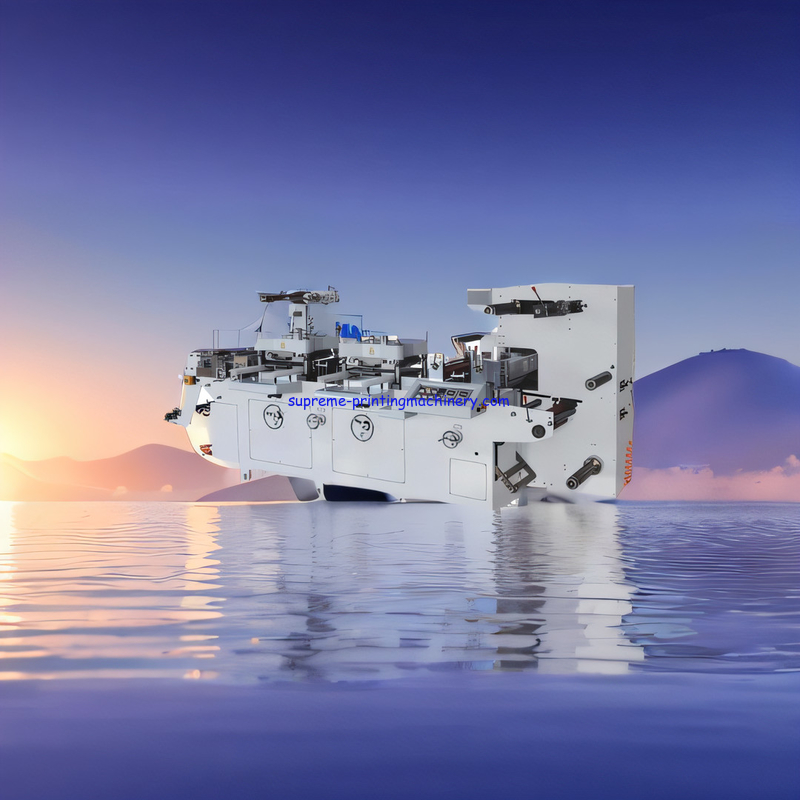

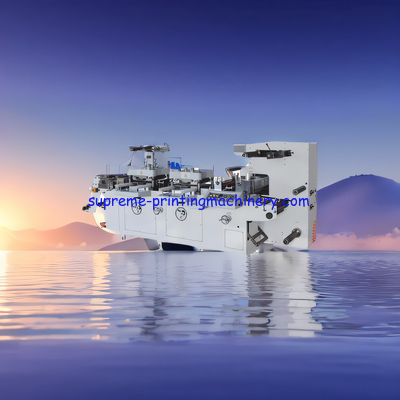

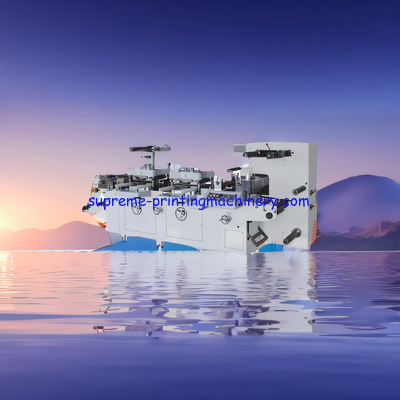

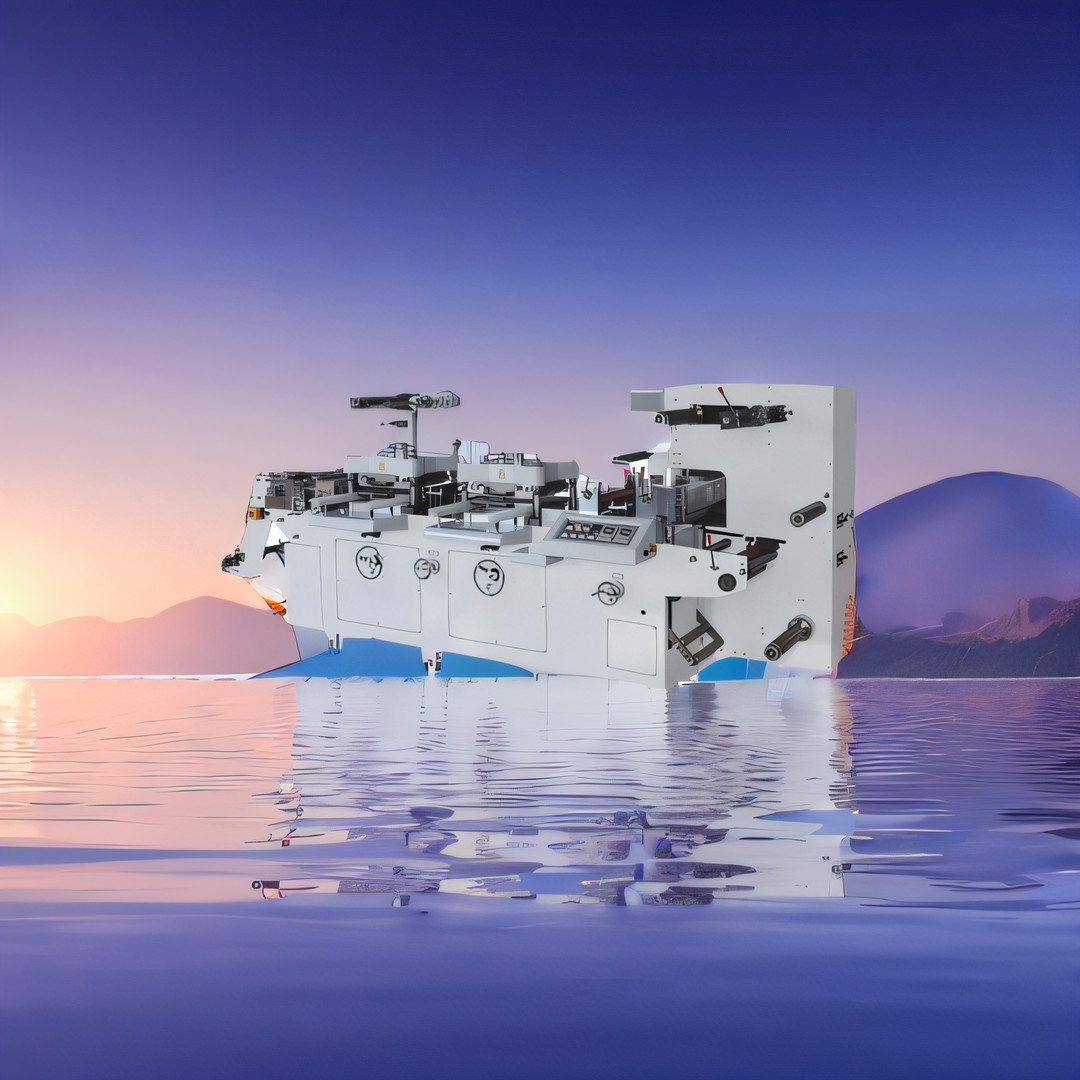

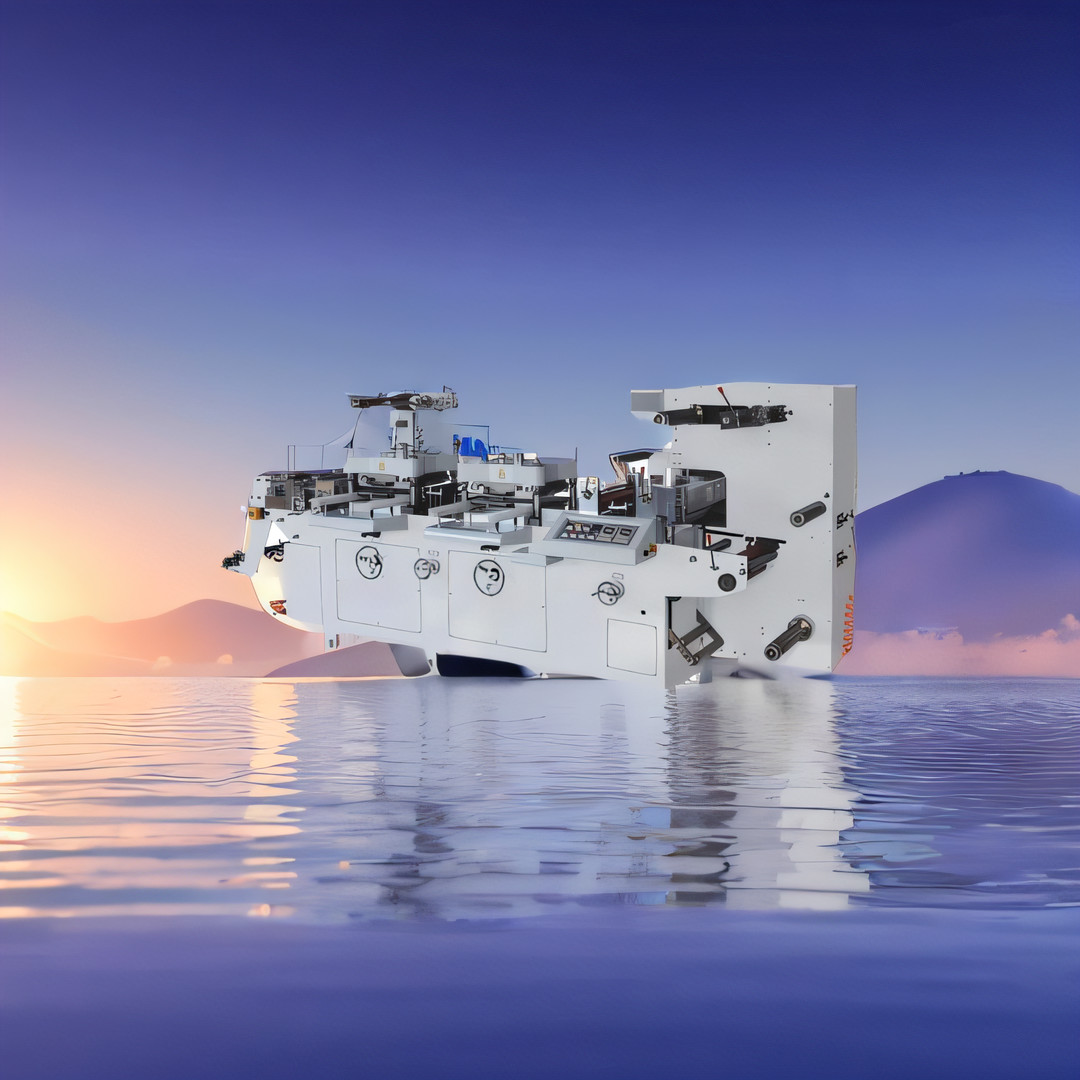

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT

Basic Information
Place of Origin: China
Brand Name: supreme
Certification: CE
Model Number: MQ-320Z
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20set/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT



1. Performance characteristics

Die cutting speed 300/min
Die cutting accuracy +/-0.1
Die cutting area 300 (length) * 300 (width)
Maximum width of paper 320mm
Maximum diameter of unwinding 600mm
Maximum diameter of winding 600mm
Weight 3500kg
Voltage 380V
Total power 13KW
Packaging size

3700 (length) * 1250 (width) * 1700 (height)



2.Unwinding section
A.Unwinding air shaft
B.Friction type tension controlled
C.Unwinding traction pulling roller
D.Unwinding dacing roller
E. Automatic deviation correction
F. Color tracking



3. Die cutting part
A. 5.5KW main motor
B. Automatic circulating lubrication system
C. Main bearing (Harbin)
D. Spring
E. Body Casting Assembly
F. Die cutting station assembly



4. Material pulling part
A. Pulling servo motor (Inovance, China)
B. Pulling rubber roller (rubber)
C. Bearing (Harbin)
D. Synchronous belt (Ningbo Fulong)



5. Waste collection
A. Waste shaft
B. Magnetic clutch



6. Rewinding section
A. Rewinding dacing roller
B. Rewinding traction rubber roller
C. Rewinding traction motor
D. Rewinding air shaft
E. Magnetic clutch



7. sheet cutting section
A. Steel cutting knife
B. Electromagnetic brake clutch



8. Electric control part
A. Controller PLC (China Inovance)
B. Servo motor driver (Inovance, China)
C. Touch screen (MCGS)
D. Host Inverter (Schneider, France)
E. Color tracking (German Leuze)
F. Proximity switch (Dongtou Baideli)
G. Knife control board (Supreme)
I. Switching power supply (Taiwan Mingwei)
J. Relay (China Chint)
K. Button (Schneider, France)
L. AC contactor (China Chint)



9.Sheet metal, cover,paint ect



10. Others
A. Toolbox
B. Instructions



Support and Services:

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT Technical Support and Services

We provide technical support and services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?
A: The Brand Name is Supreme.
Q: What is the Model Number of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?
A: The Model Number is MQ-320Z.
Q: Where is the Place of Origin of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?
A: The Place of Origin is China.
Q: What is the Certification of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of MQ-320Z DOUBLE HEAD DOUBLE STATION FLATBED DIE CUTTING MACHINE 300TIMES/MINUTES HOT STAMPING FUNCTION 300MM*300MM CUT?
A: The Minimum Order Quantity is 1.
