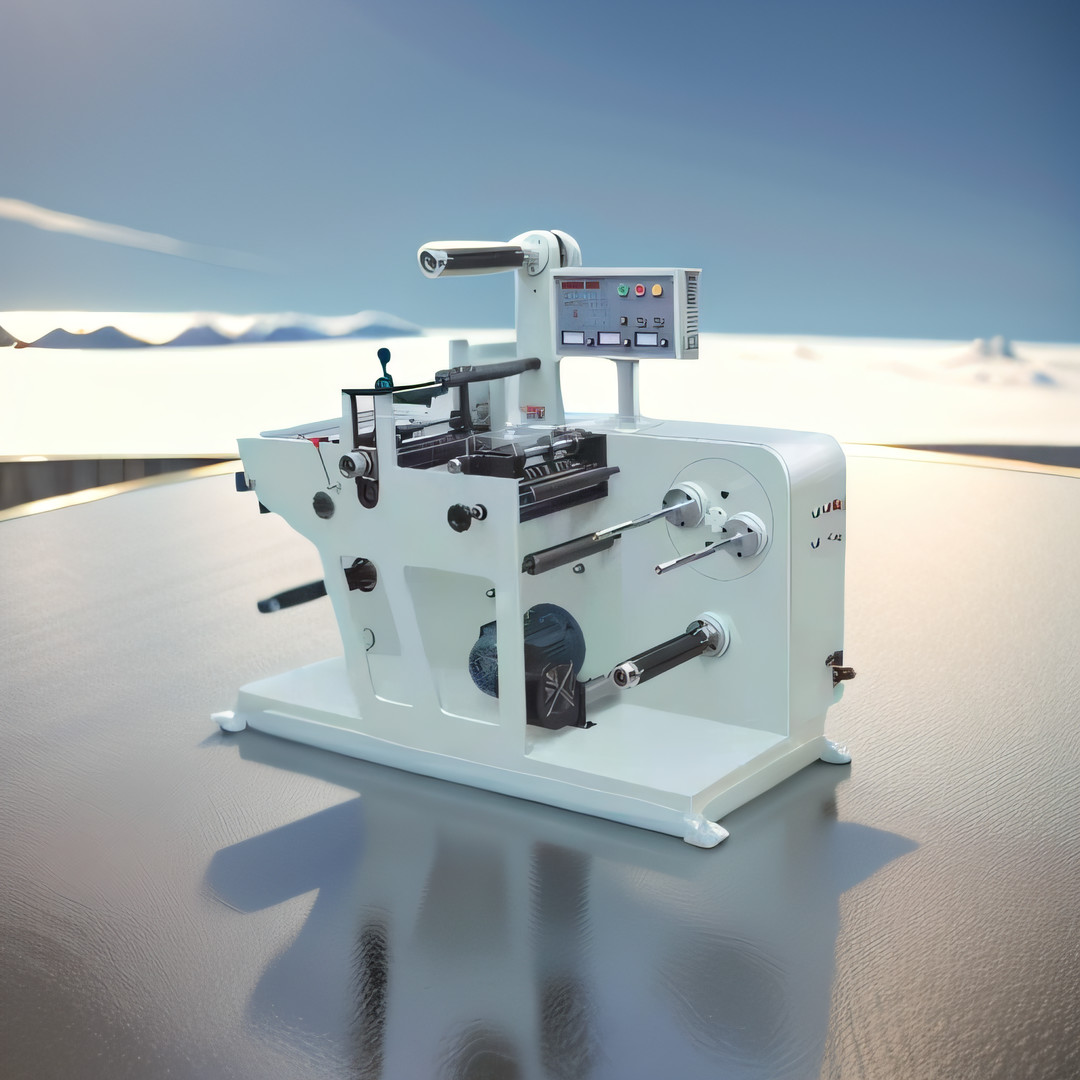

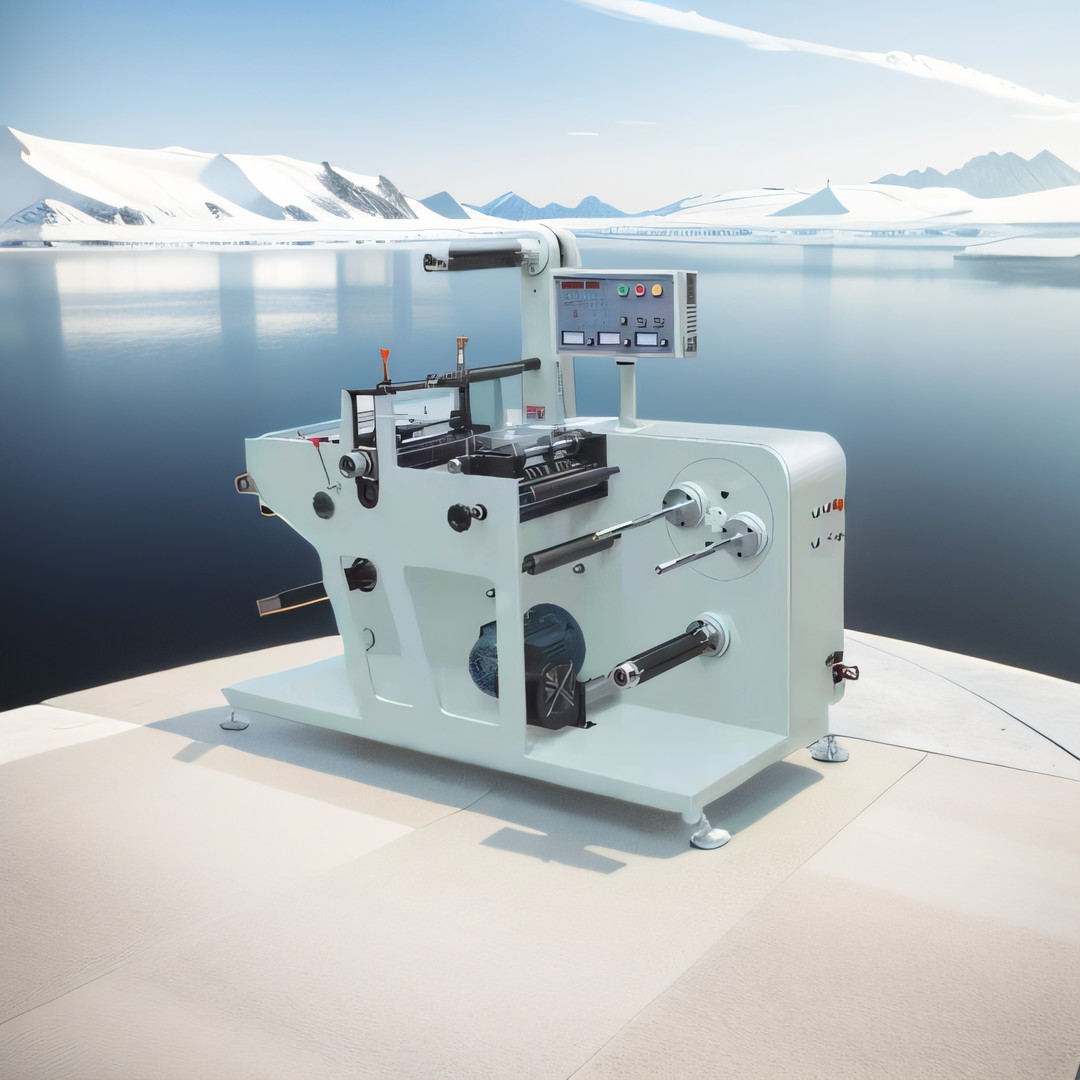

ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT

Basic Information
Place of Origin: China
Brand Name: supreme
Certification: CE
Model Number: MQ-350Y
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT

Note: Standard MQ-350Y with following customized
1:Machine heightened to be 600mm
2:Web guide(client offer)
3:Hand and foot pedal for speed control
4:Blower should be silent(low noise)
5:Remover smoothly and speed/slow controller for feeling wastage
6:Voltage: 1Phase 220V 50-60HZ


Functional characteristics:

MQ-350Y model die cutting and slitting machine is with rotary die cutting function is a new design, it equipped with high accurate rotary die cutting system, this machine is suitable for blank adhesive label material. Die cutting, laminating(option), slitting can be completed in one process. It has the function of automatic meter counting, Automatic stop, web guiding by photoelectric etc functions. This machine has the characteristic of compact structure,fast speed,high efficiency,easy operation,accurate slitting and stably running and so on features.

Features:

1. Rewinder and unwinder all are with magnetic tension controller

2. Air shaft automatic inflate air

3. For rewinder, it is turret type,have 3 rewinders. The rewinder size can change

Technical parameters:

model MQ-350Y MQ-450Y
Slitting speed 120m/min 120m/min
Max. Roll Width 320mm 420mm
Max. Unwinding diameter 500mm 500mm
Max. rewinding diameter 500mm 500mm
Accuracy rate ±0.10mm ±0.10mm
weight 600kg 800kg
Dimension 1700*1000*1600mm 1800*1300*1700mm
Magnetic size 60T-150T 60T-150T



Support and Services:

ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT Technical Support and Services

We provide technical support and services for ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.

At our facility, we provide a full range of services for ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.

Our goal is to provide the best technical support and services for ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.

Packing and Shipping:

Packaging and Shipping

ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT?
A: The Brand Name is Supreme.
Q: What is the Model Number of ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT?
A: The Model Number is MQ-Y.
Q: Where is the Place of Origin of ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT?
A: The Place of Origin is China.
Q: What is the Certification of ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of ROTARY BLANK LABEL DIE CUTTING MACHINE WITH SLITTER NUMBER/METER COUNTING FUNCTION 600MM UNWIND REWIND EXTRA AIR SHAFT?
A: The Minimum Order Quantity is 1.
