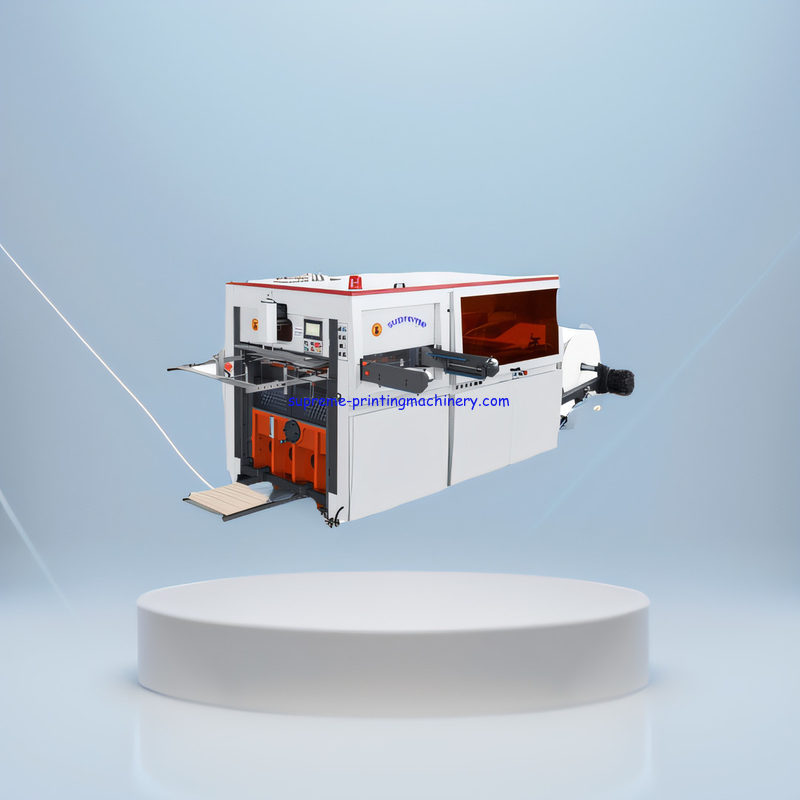

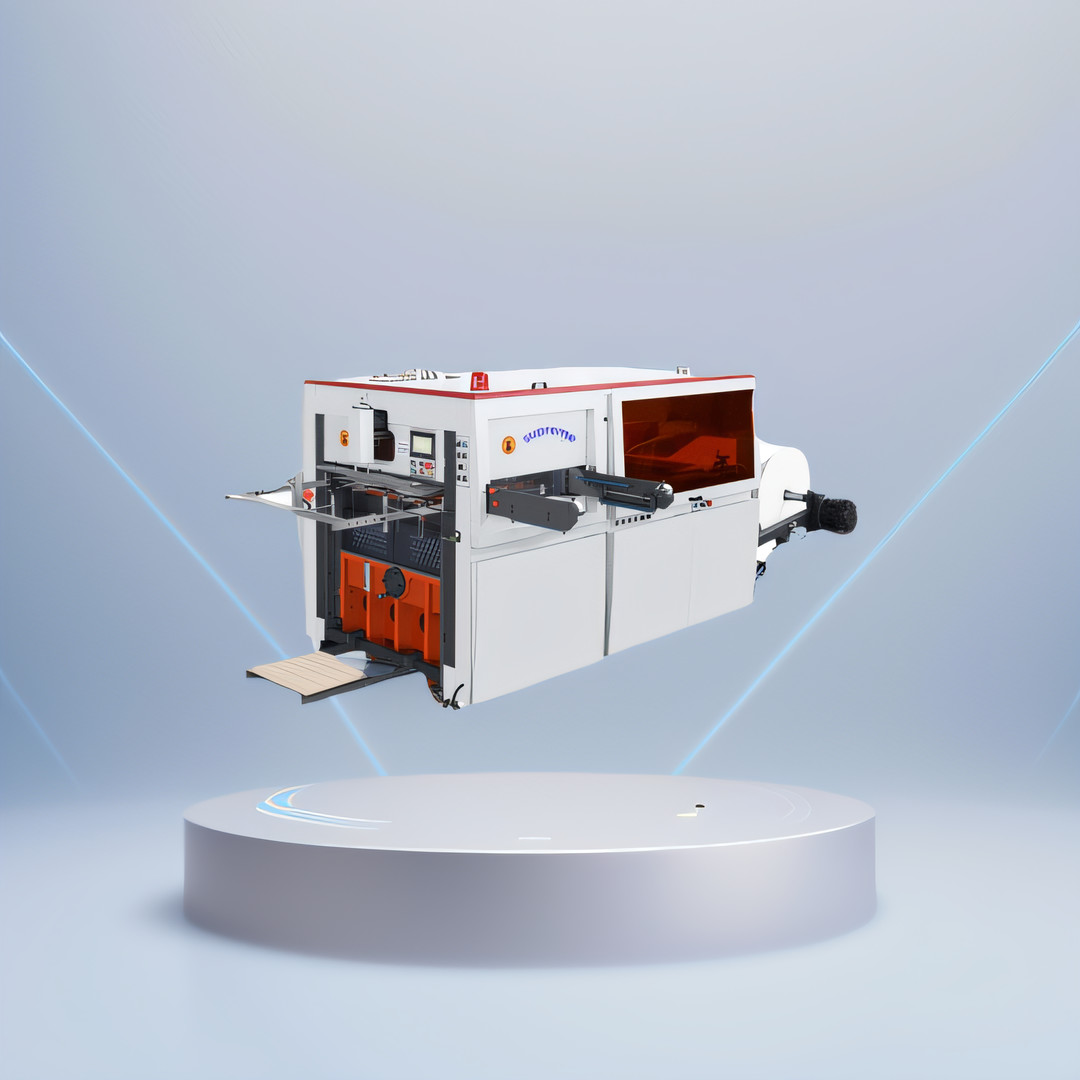

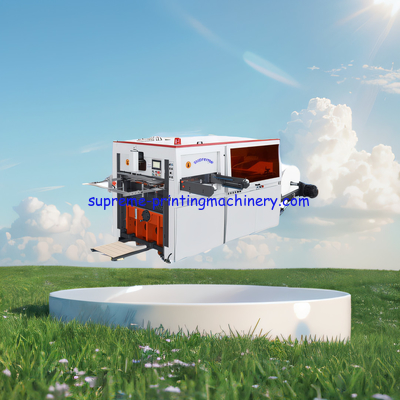

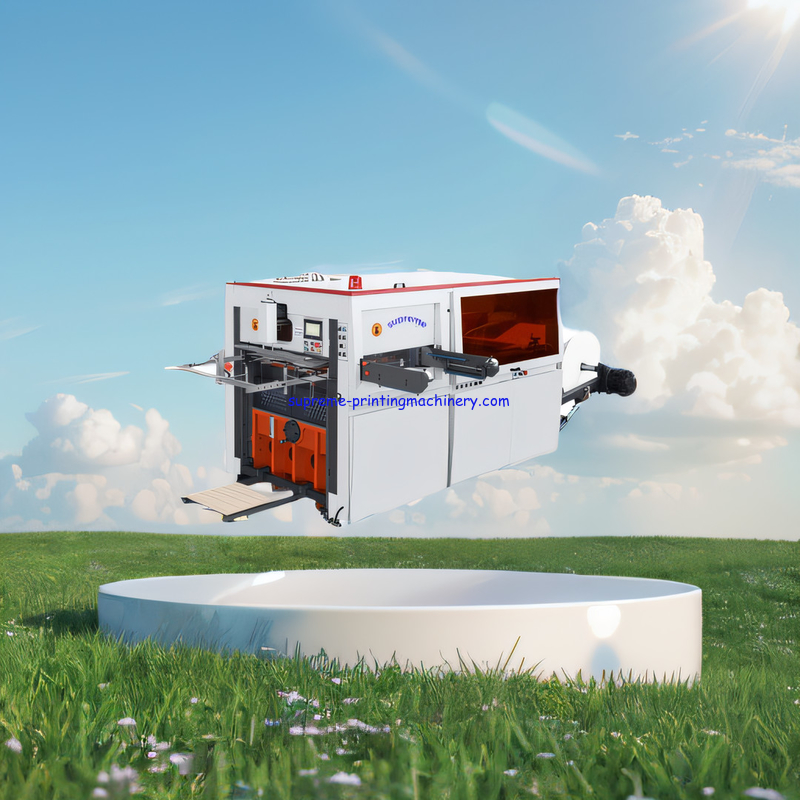

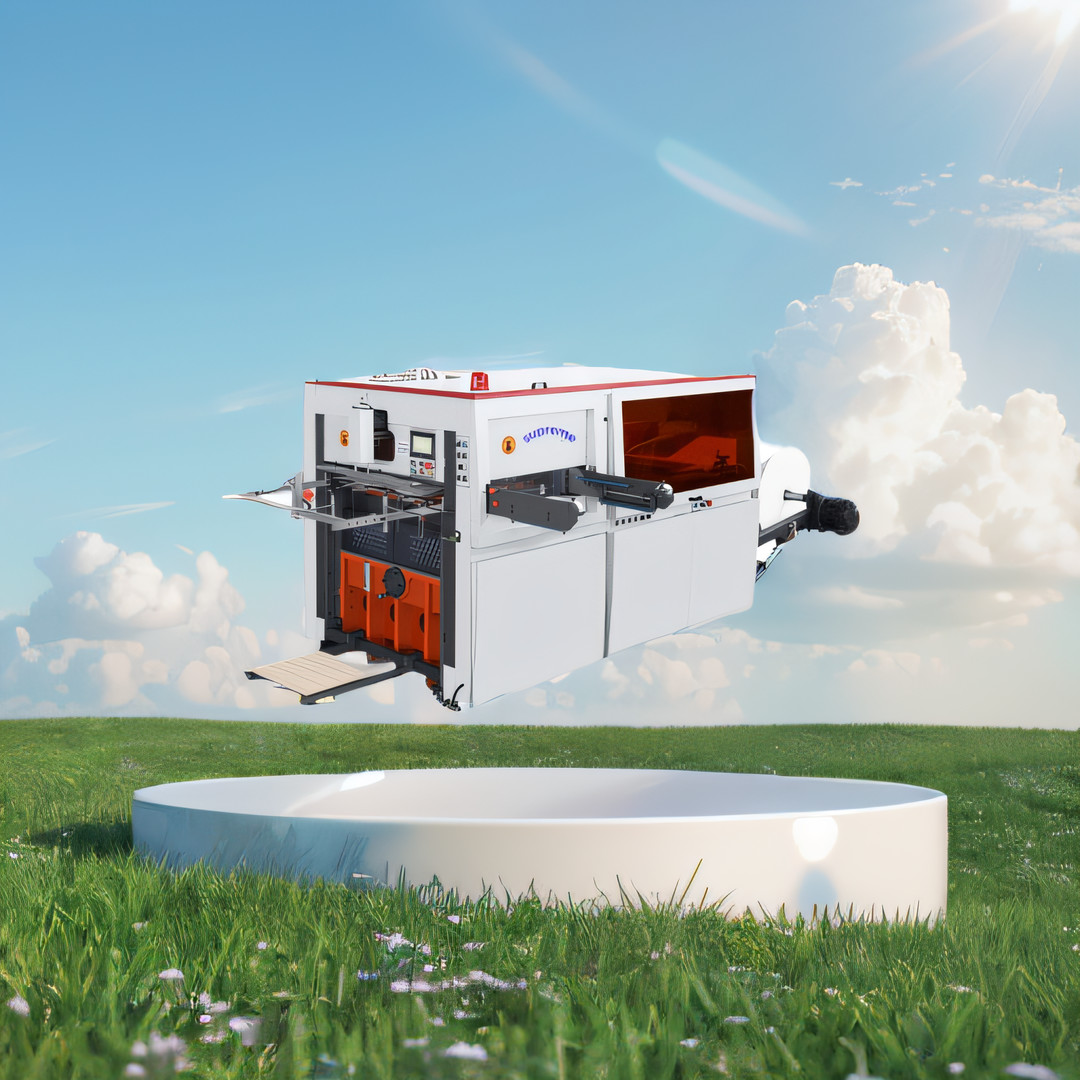

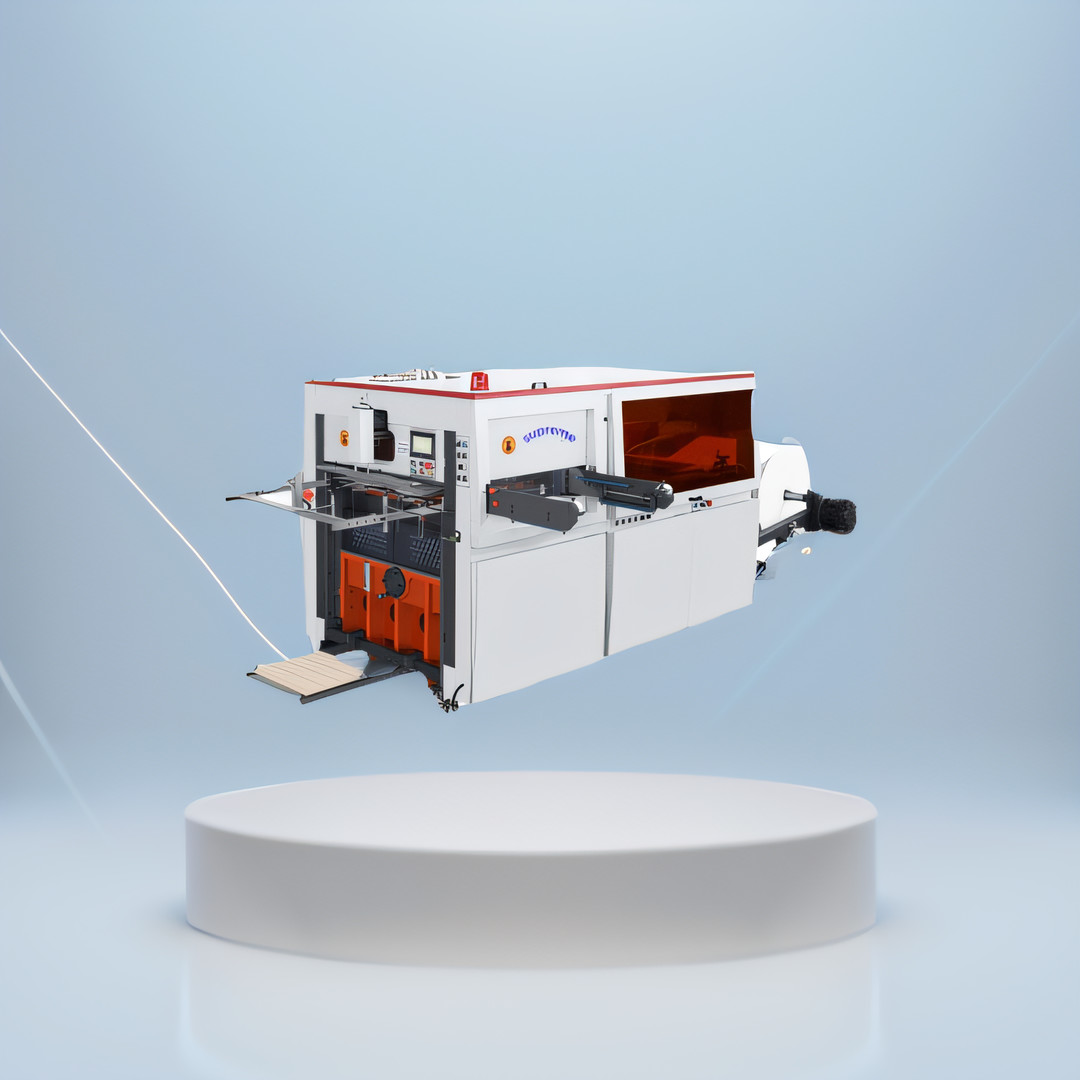

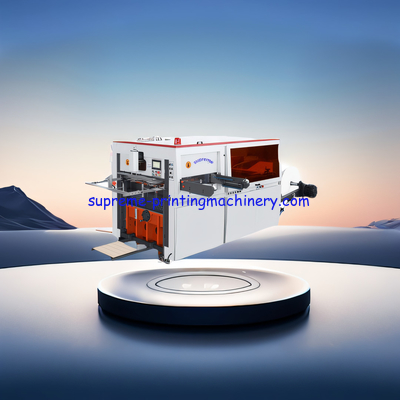

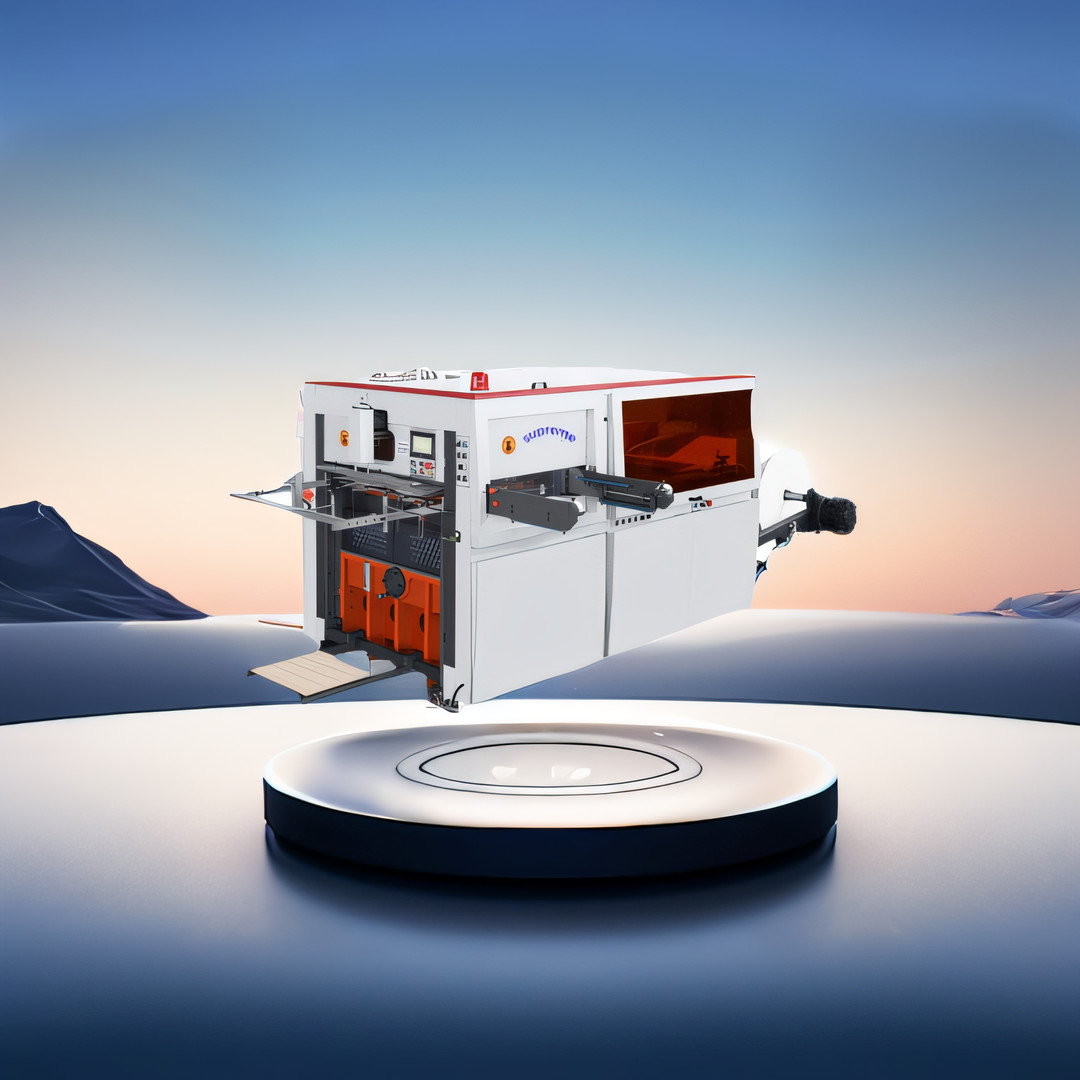

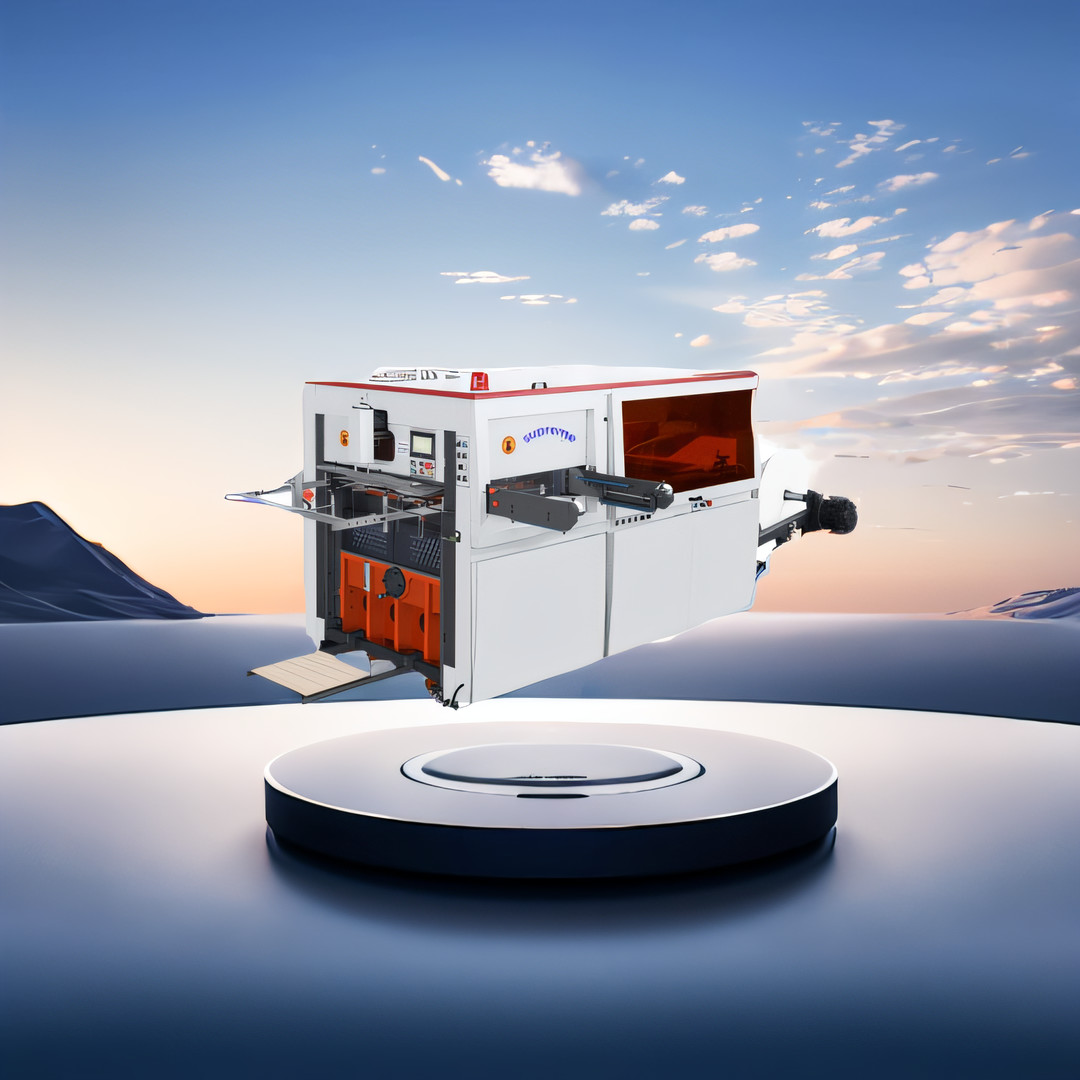

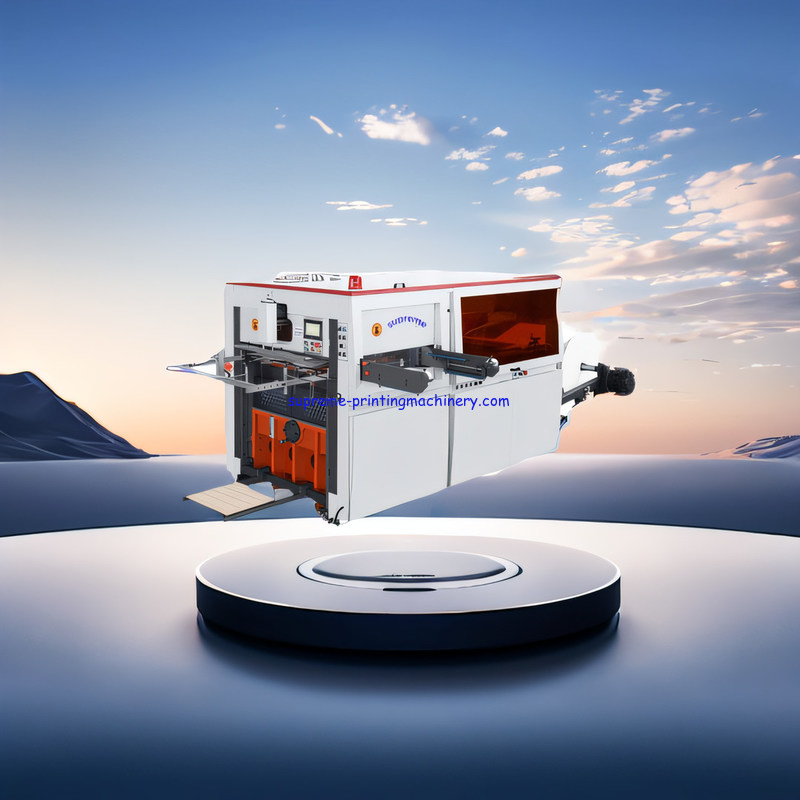

MQ-940II ROLL DIE CUTTING MACHINE INTERNATIONAL ADVANCED TECHNOLOGY STABLE SAFETY PRECISION WOODEN DIE CUTTING SAVE COST

MQ-940II ROLL DIE CUTTING MACHINE INTERNATIONAL ADVANCED TECHNOLOGY STABLE SAFETY PRECISION WOODEN DIE CUTTING SAVE COST

https://www.youtube.com/@labelturretrewindingmachinery

Technical Specification

Introduction

MQ-940II roll die cutting machine is with international advanced technology, more stable, more safety, and more precision, widely used in printing, packaging and paper products industries.

Standard with the machine:

1: microcomputer

2: man-machine control interface

3: servo positioning

4: AC frequency inverter

5: Auto counting

6: Manual pneumatic locking plate

7: Photoelectric web guide

8: Electromagnetic clutch

9: Centralized oil lubrication system

10: Overload protection and unique transmission device

11:All the main part and control device are imported

.

Main structure

1:Worm gear drive system:

1): Strong and stable pressure when machine running at high speed

2): when cutting, more precision, Low noise, operation stable

3): The main frame, movable frame, top frame made of ductile iron, higher tensile strength, deformation resistance act

2. Automatic Lubrication system:

1: main driving oil supplying regularly

2: reduce friction

3: machine life longer

4: auto stop protection when the oil pressure low

5: with oil filter, clean oil; with flow switch to monitor oil lacking

3. Die cutting power

1: Drive by 7.5KW frequency motor, saving power, step-less regulator

2: With large fly-wheel co-working, die cutting more strong and stable, power- saving

3: Pneumatic clutch brake, control the driving torque by air pressure adjusted, lower noise, higher brake performance

4: When overload, auto stop on time

4. Electrical pressure controlled:

1: more precision, more fast to adjust the die cutting pressure

2: separated motor to adjust the pressure automatic

3: man-machine interface to control, more convenient

5. Color tracking

1: can work for both printed and unprinted

2: servo motor and photoelectric co-working, to work for the printed products, warranty the position of die cutting and printing design to be perfect.

3: simple operation by micro-computer to set feeding length

Motor:

1: Main motor controlled by the inverter, lower energy, higher efficiency

PLC and Touch screen:

1: with the PLC auto tension controlled, touch screen operation, more convenient

7. Paper adjustment device:

1: to fix or adjust the paper in a suitable position controlled by motor

8. Die cutting part:

1: Pneumatic locking, more safety to avoid falling off

2: Die cutting plate: 65MN steel plate with heating treatment, higher hardness and flatness

3: with guide to input and output, saving time for plate changed

9. Paper jam alarm

1: Auto stop when paper jam

10. Unwinding part:

1: Pneumatic stop break, more stable

2: Tension controlled by PLC automatically

3: Hydraulic lifter at 1.5Ton material

4: Max unwinding diameter can be 1600mm

11. Material feeder

1: paper feeding by rubber roller controlled by traction motor, more convenient and easier

12. Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. More smoothly for the machine running

13. Material feeding

1: with the photo eye tracking, ensure the material feeding and die cutting is synchronization

14. Limit switch Level gauge

1: Paper cup height sensor and controlled, to keep the paper cup at the same height to save labor

15: Paper cup collection part:

1: chain controlled

2: Leveling device manual and pneumatic type

3: Paper cup punching device

About us:

Professionally research and development in paper cup flexographic printing machine, paper cup die cutting machine, paper cup forming machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of paper cup machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of paper cup machines, and welcome all new and old customers and friends to visit!

Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
