| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | YTGS |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

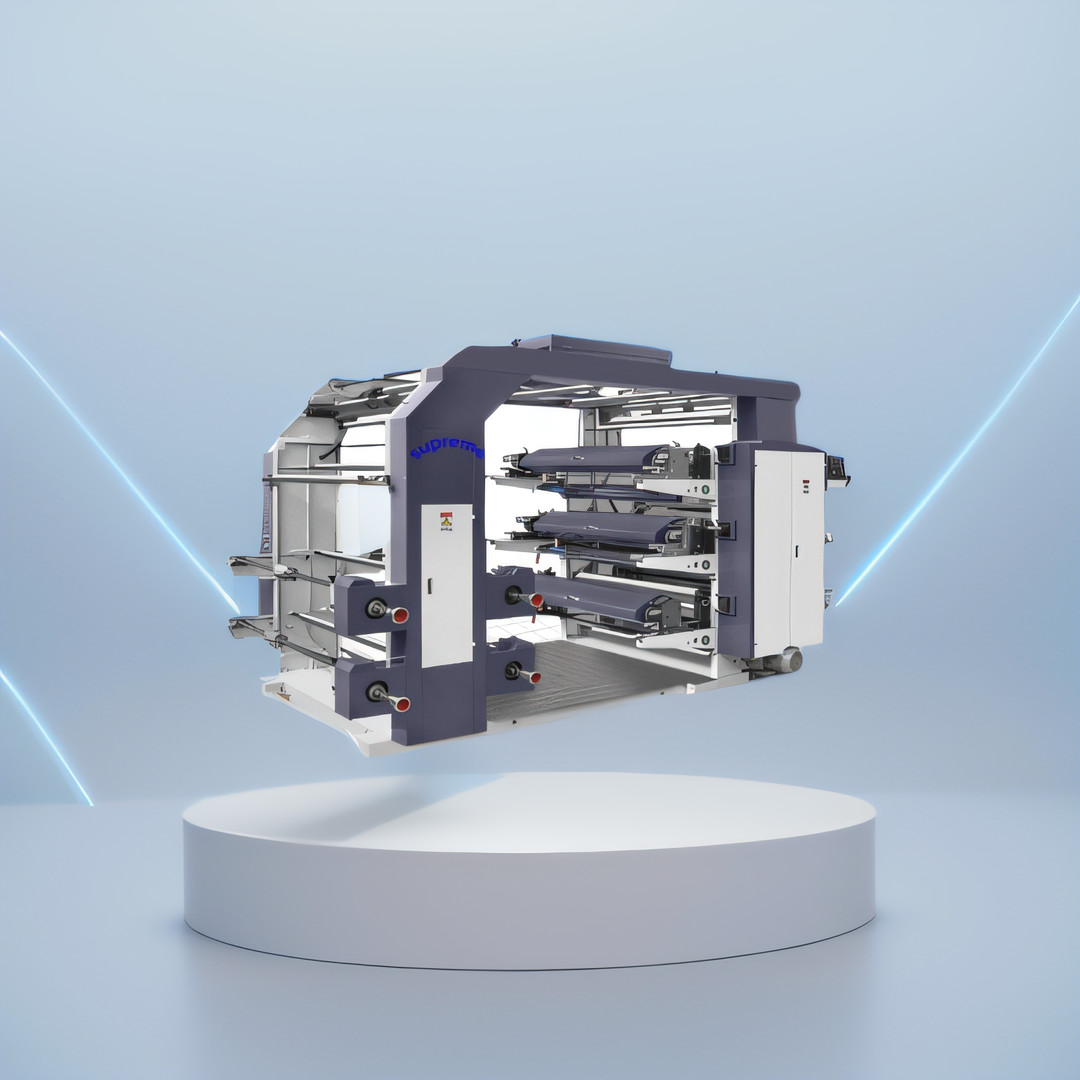

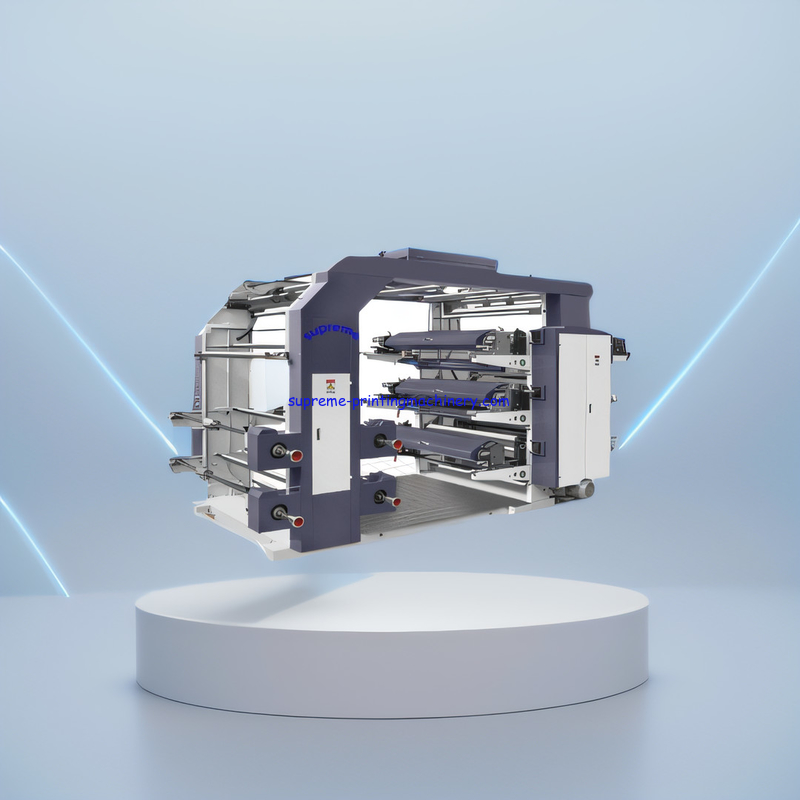

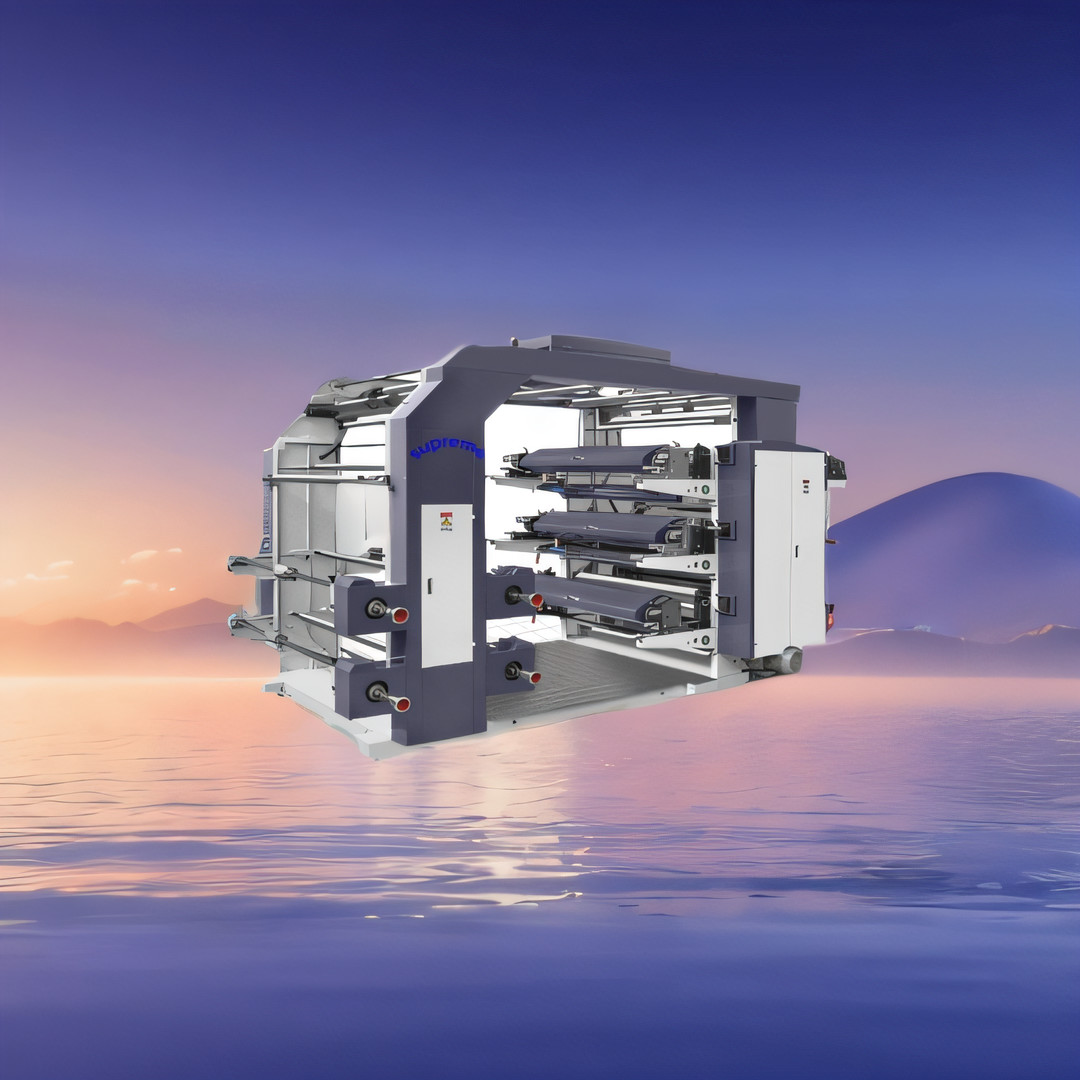

YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION
https://www.youtube.com/@labelturretrewindingmachinery
Technical Parameter:
|
Main parameter: |
|
| Model | YTGS |
| Machine frame |
Cast iron, 75mm thickness |
| Suitable material | Paper 30-350gsm; Film; Non woven fabric ect |
| NO. Of Printing color | 1-8color |
| Max. Material Width | 630/830/1030/1230-4000mm |
| Max. Effective Printing Width | 560/760/960/1160-3960mm |
| Max. Mechanical speed | 130m/min (Actual speed depend on print material, plate, ink etc.) |
| Max. Printing speed | 10-120m/min(Actual speed depend on print material, plate, ink etc.) |
| Register precision | +-0.2mm |
| Main motor | 3.7 KW(4 color 1200mm) |
| Inverter | 3.7 KW(4 color 1200mm) |
| Total power | 45KW(4 color 1200mm) |
| Plate Thickness | 2.38mm (Both side adhesive tape included) |
| Cover Dimensions (m) | According to the color, width example: 6200*2400*2600mm (4 color 1200mm) |
| Machine weight | 4800KG(4 color 1200mm) |
| Voltage | 380V/3P/50HZ(can be customized) |
| Pinch roller | Pneumatic control |
|
Single unwind unit |
|
| Max. Unwind diameter: | Ø1200mm(max 1000KG) |
| Unwind way | 10KG magnetic brake auto tension controller |
| Tension system | Automatic tension,1pcs |
| Web guide | EPC, 1pcs |
| unwind Material holder |
By air shaft 3’’,1pcs(optional 6 inch) |
|
Traction unit |
|
| traction consist of | Aluminum roller, Plating roller |
| traction zone | 2 unit: unwind and rewind |
|
Printing unit |
|
| Anilox roll & Inking Running way |
Ceramic anilox roller pcs( according to colors): 200-800LPI (chamber doctor blade) |
| Max. Printing length (repeat ) | 300-1200mm( can be customized) |
| Plate material | Resin or rubber plate |
| Adjusting of Register | By manual( Auto ARC is optional) |
| Press power | Mechanic control |
| Register precision | Longitude:±0.2mm; Transverse:±0.2mm |
| Printing roller lift up and down | Hydraulic control |
|
Drying unit |
|
| Drying model | IR( UV is optional) |
| Air blower (big) | Shanghai (according to colors,width,material) |
| Air blower (small) | shanghai, control fan volume(according to colors,width,material) |
| Heating power | (according to colors,width,material) |
|
Electric unit |
|
| Main motor | Siemens beide brand (according to colors,width,material) |
| Master Frequency Inverter | Delta brand (according to colors,width,material) |
| Inking motor | china brand (according to colors,width,material) |
| 7.Single rewind unit | |
| Max. Rewind diameter: | Ø1200mm(max 1000KG) |
| Rewind way | Auto surface friction rewinding |
| Tension control | Dancing roller frequency close loop controlled |
| Rewind material holder | air shaft 3’’, 1pcs |
| Rewinding motor |
2.2KW Geared motor |
Toolbox 1pcs: Spare Part for free
| NO. | Name of Part | Quantity |
| 1 | Tool box | 1set |
| 2 | Phillip screwdriver | 1pcs |
| 3 | Slotted screwdriver | 1pcs |
| 4 | Inner Hexgam Spanner | 1set |
| 5 | Oil gun | 1pcs |

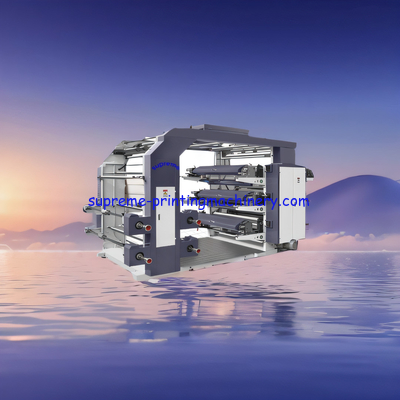

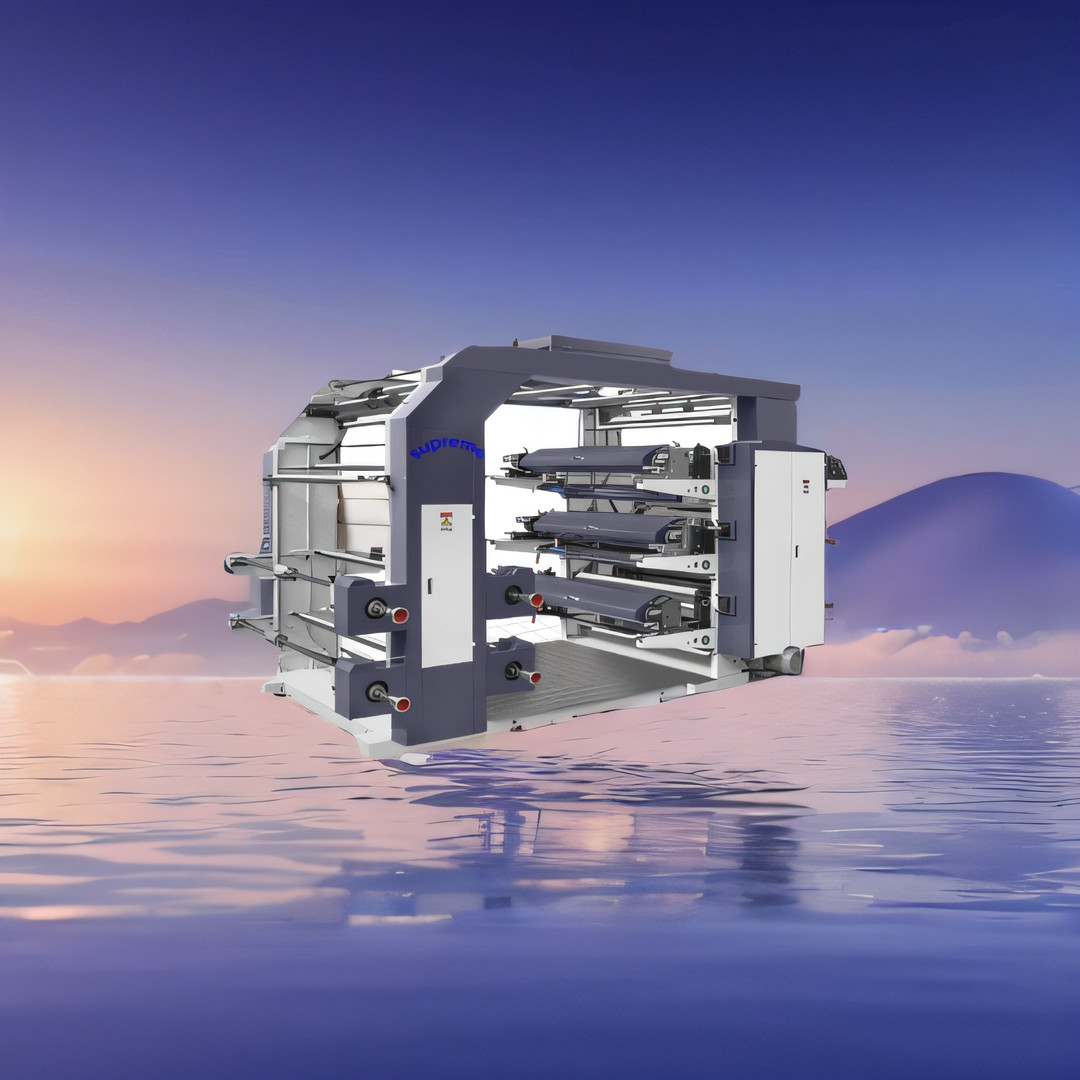

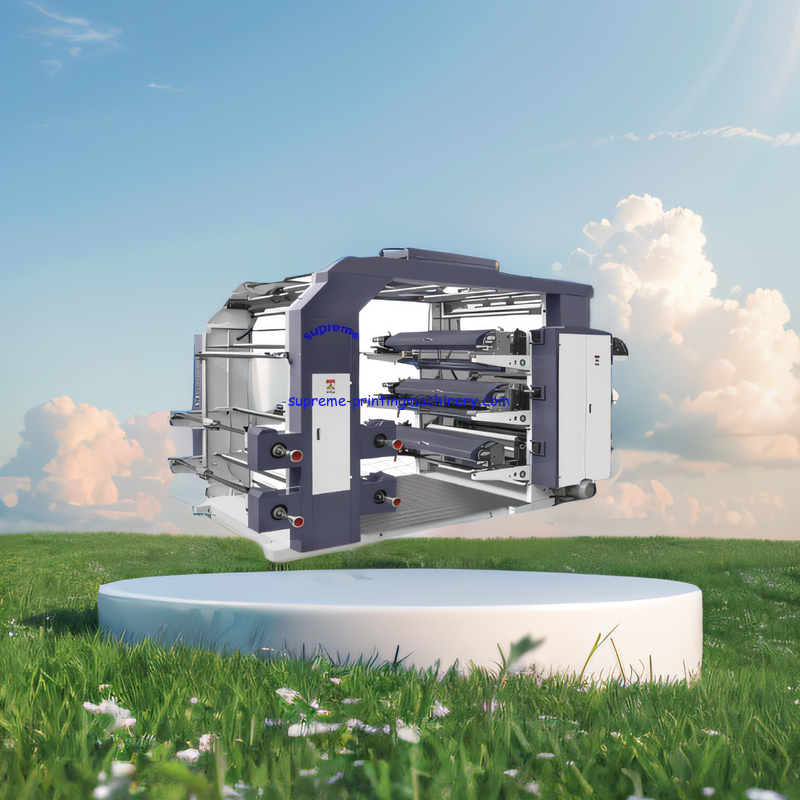

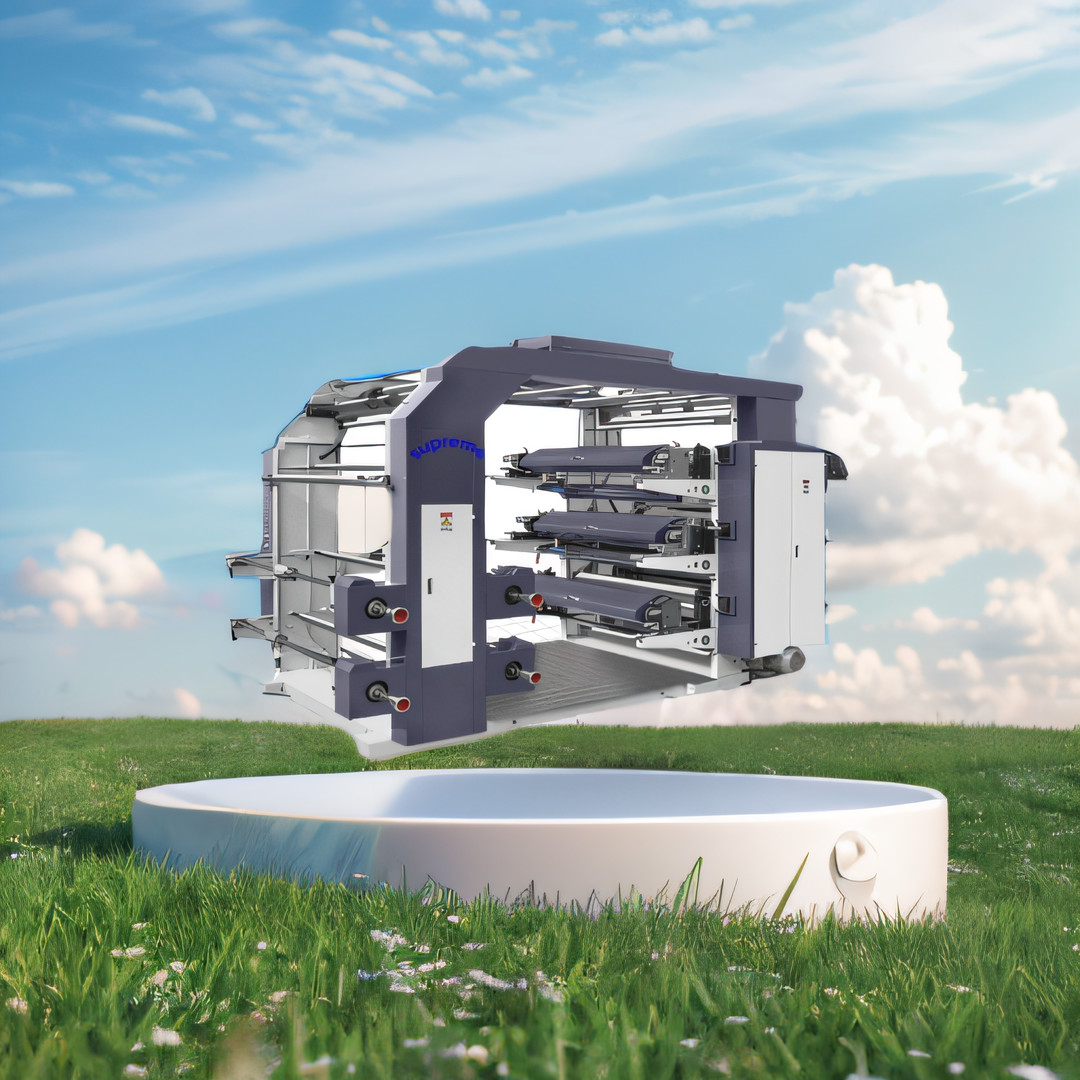

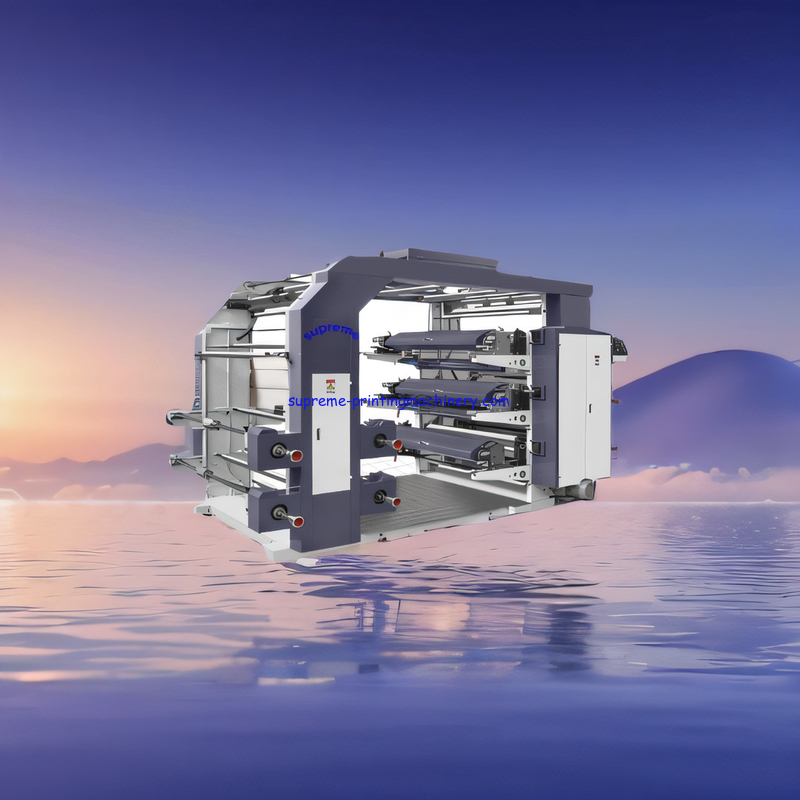

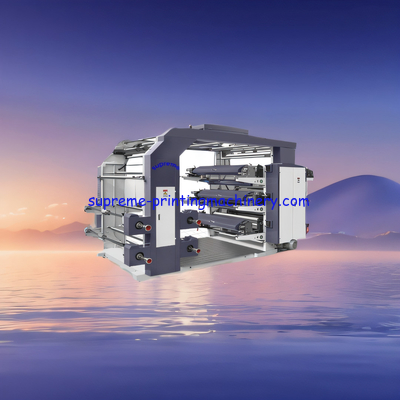

Machine photo for reference:
1:Cast iron, 75mm thickness(more thickness; more stable)
2:The printing roller is made of enlarged and thickened steel roller, and is electroplated with 10-mircon hard chromium protective polishing treatment, and the aluminum alloy guide wheel is subjected to hard oxidation, dynamic balance and static balance treatment.
3:Pneumatic cylinder auto loader, easier operation more simple. Surface friction rewinding, auto unloaded, material rewinding more neatly, unloaded more convinient
4:High-precision widened synchronous belt transmission, low noise when the machine runs at high speed, low vibration makes the machine more stable, the plate roller gear adopts a special helical gear transmission, each tooth has a printing length of 5MM, which makes the printing effect more stable and the printing length more accurate
Optional:
1: Chamber doctor blade (with Ink circulation system):Improve the printing speed; Prevent ink splash and reduce printing color difference)
Ink circulation diaphragm pump (automatically supply ink to chamber doctor blade)
2:PLC auto tension controlled: Delta brand 10 inch touch screen
3: Hydraulic loader and unloaded(max 1000KG material), if material more than 800kg better be hydraulic for more stable
4: Inspection computer with camera:
5:Printing cylinder lifter
We provide technical support and services for YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
YTGS FLEXO PRINTING MACHINE STACK TYPE 120M/MIN Ø1200MM UNWINDING AND REWINDING DIAMETER SYNCHRONOUS BELT TRANSMMISSION is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
