| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | YT-PT |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

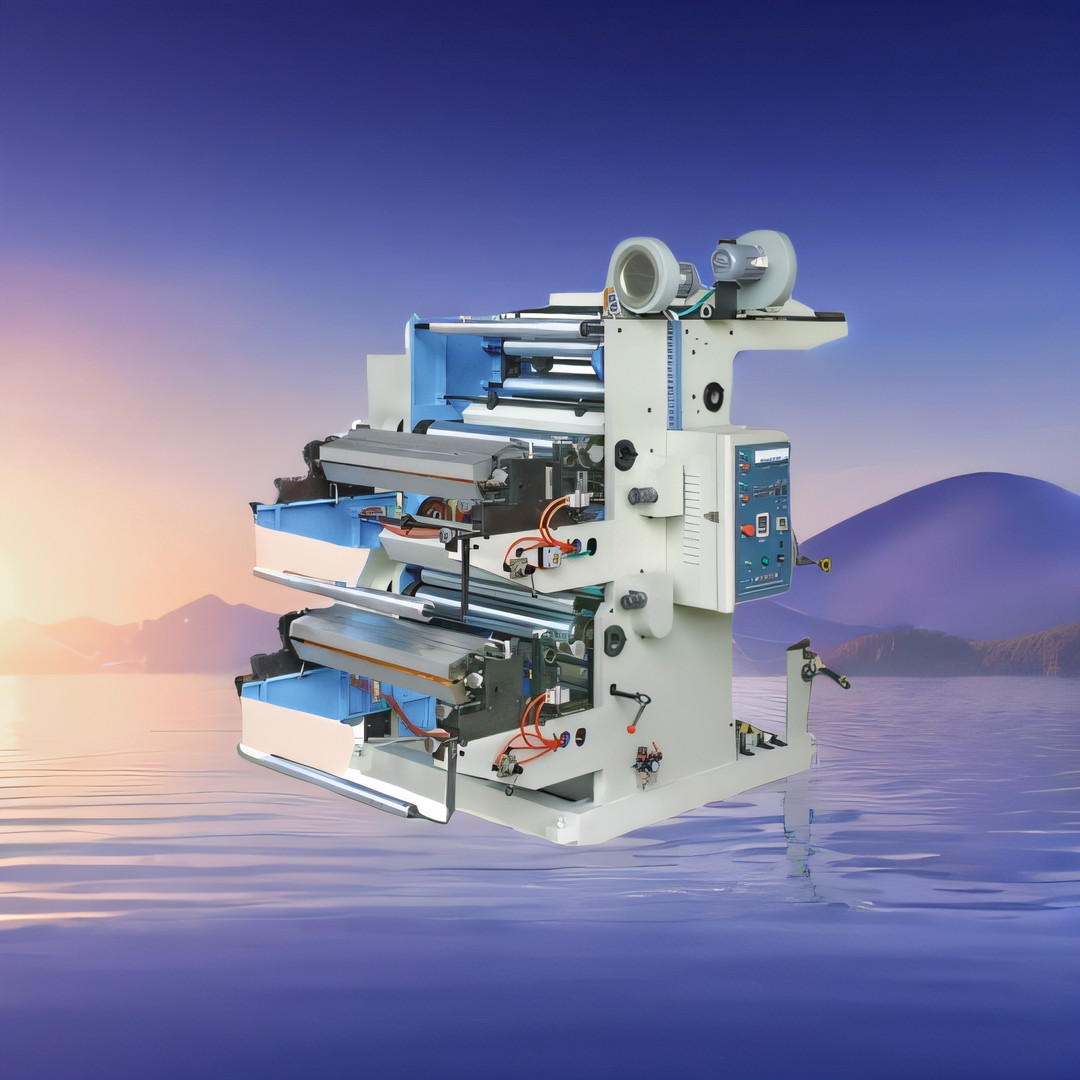

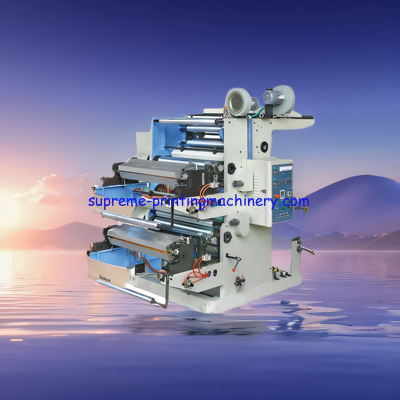

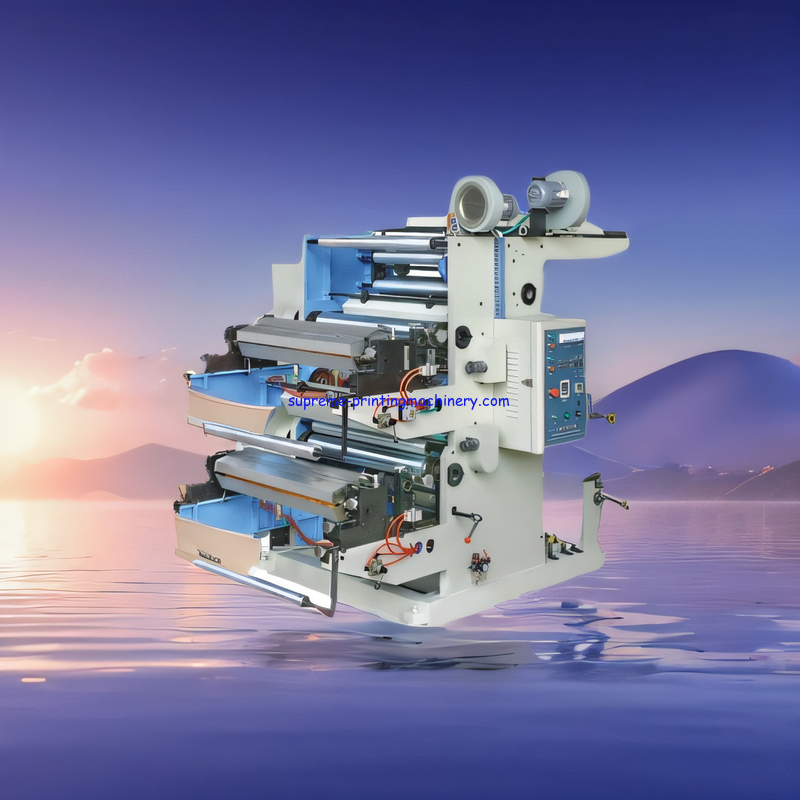

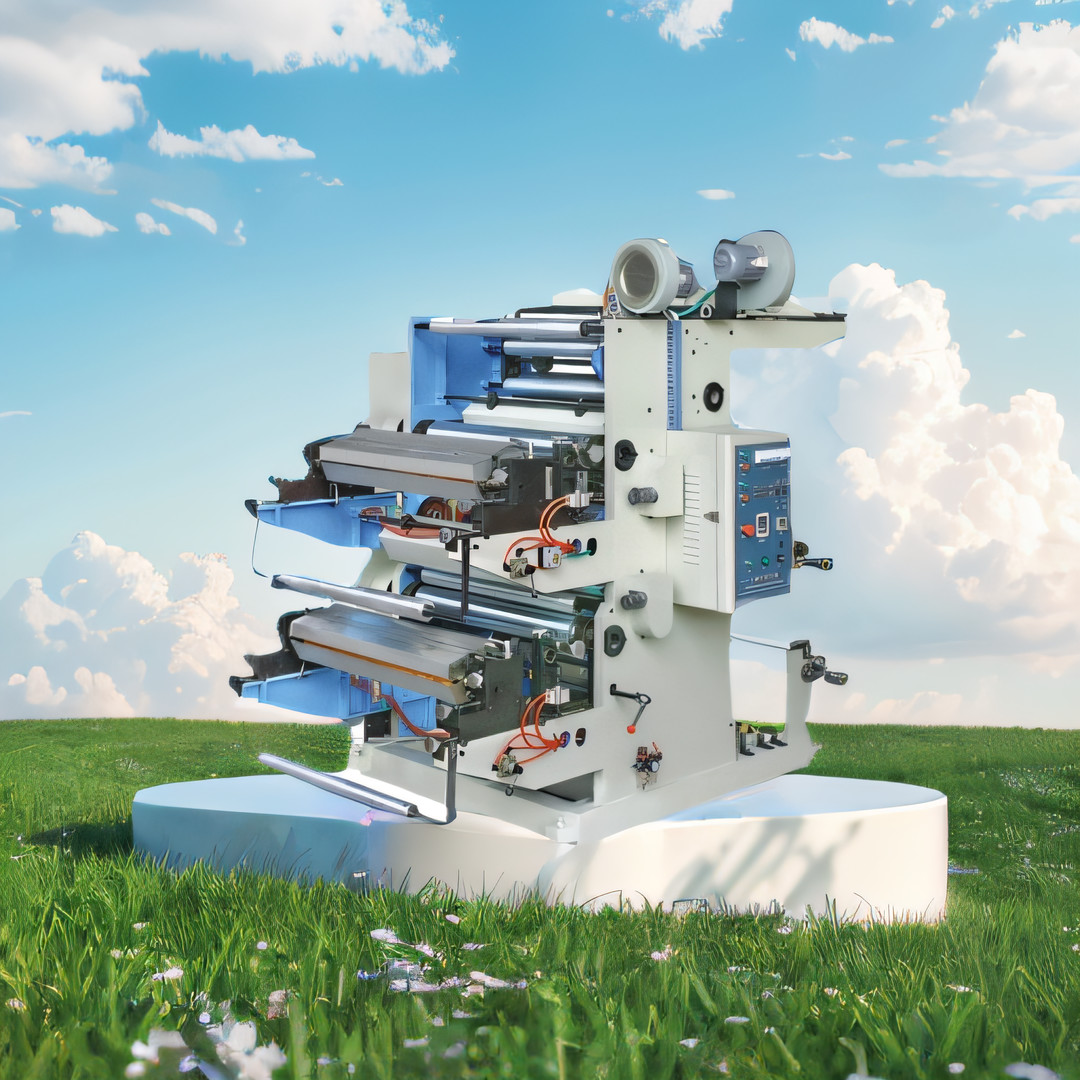

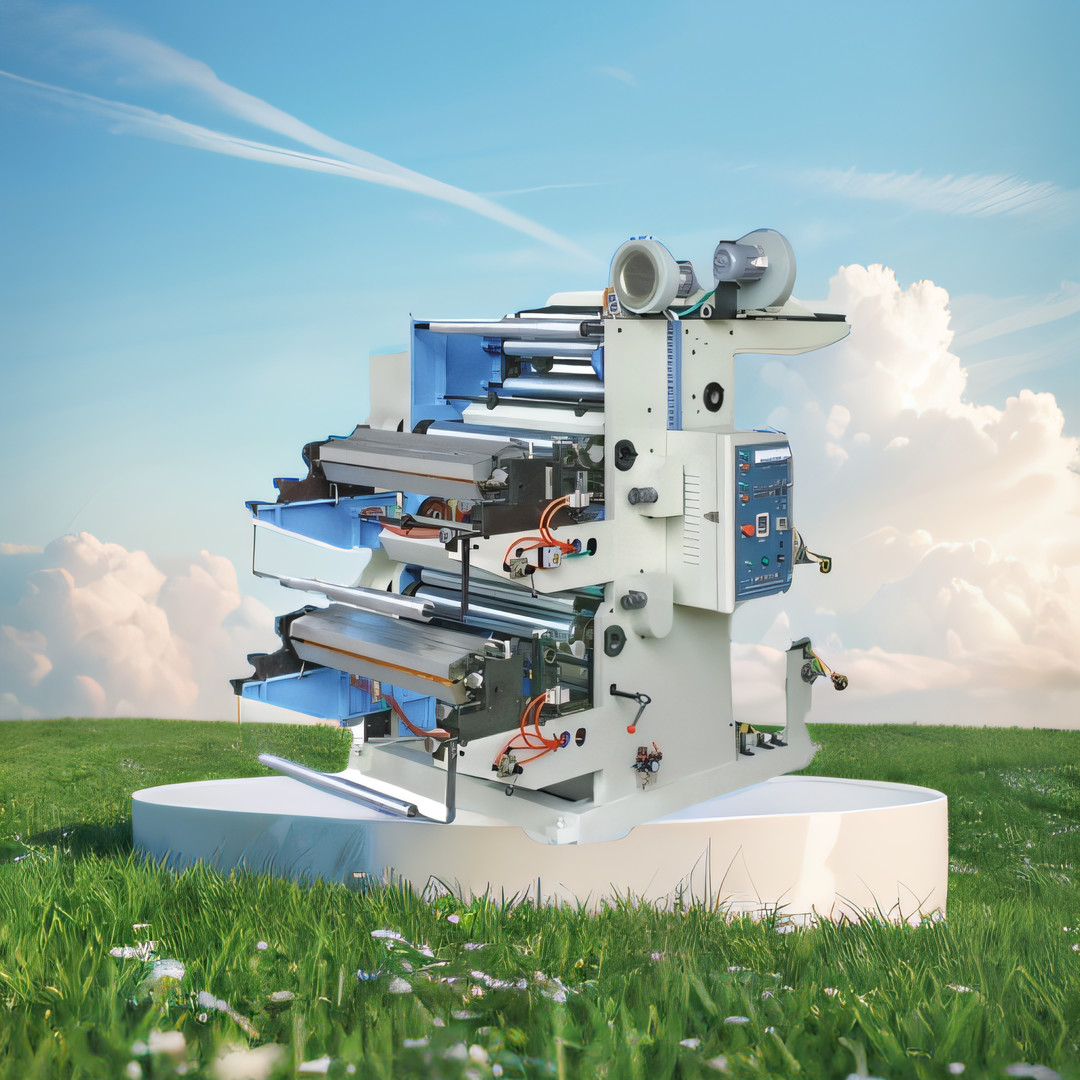

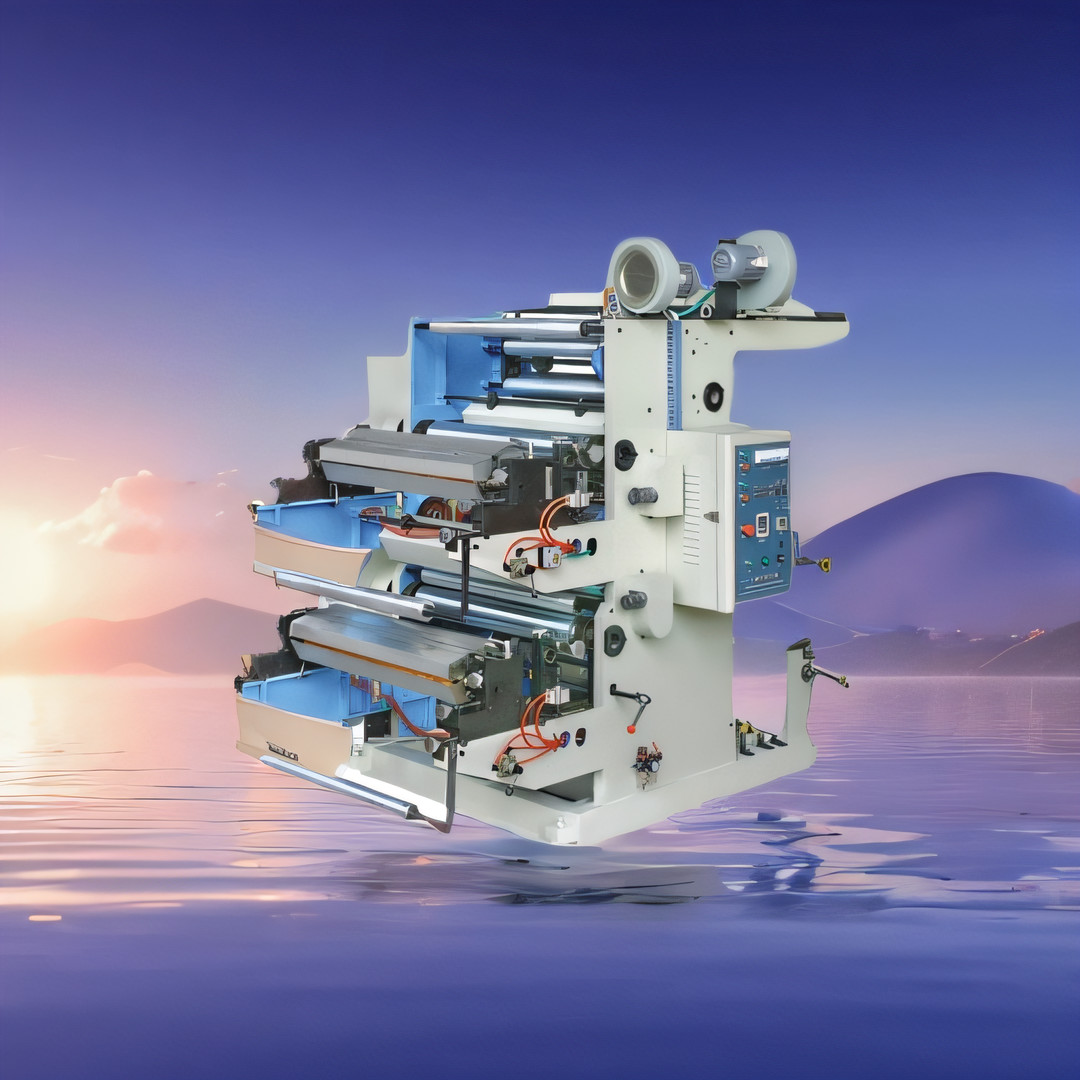

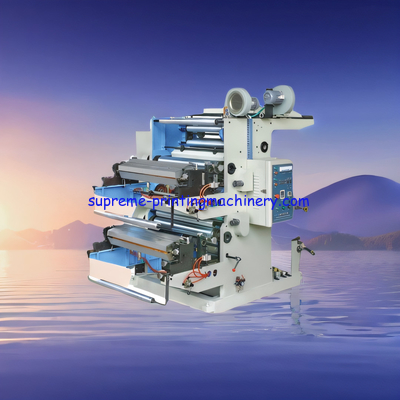

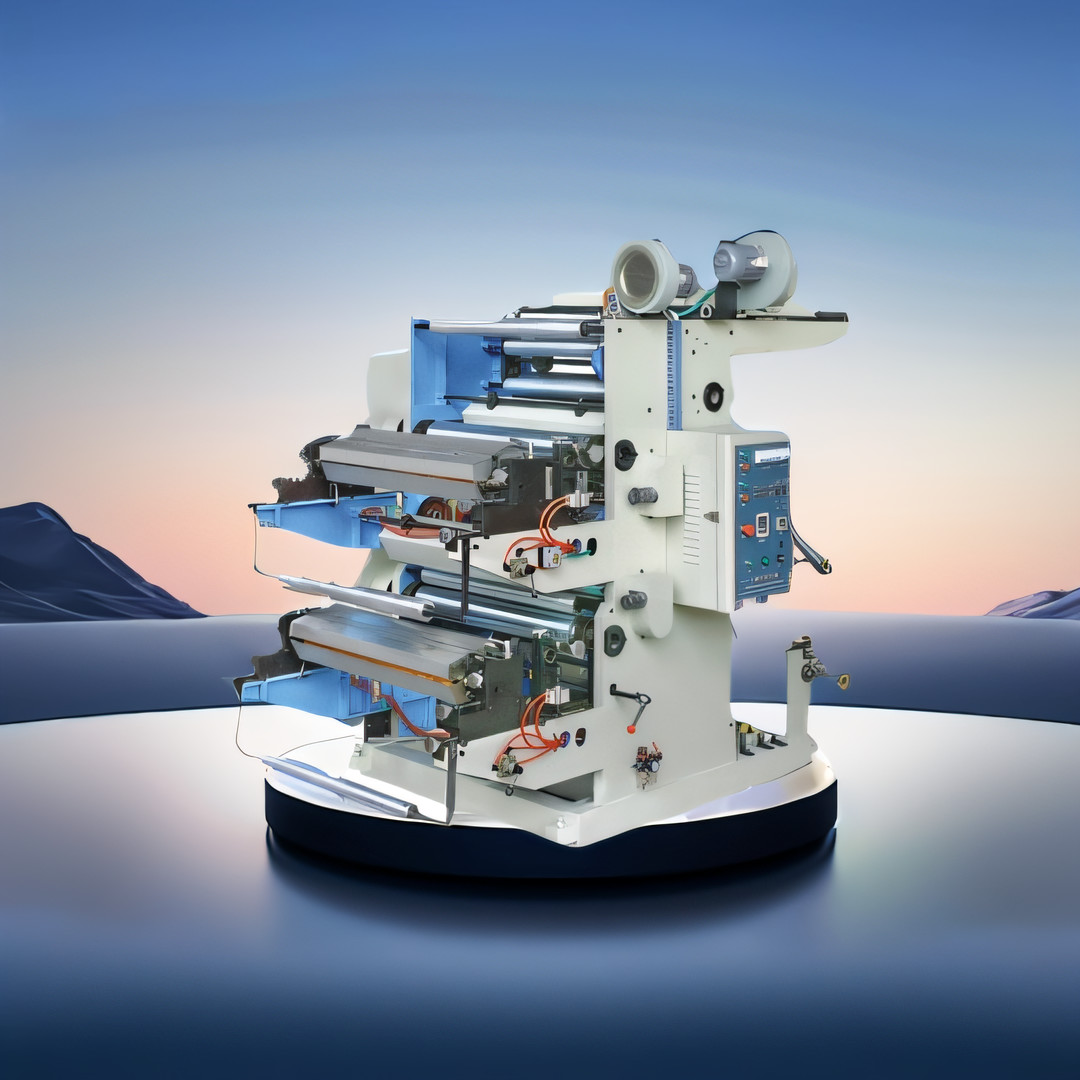

YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS
http://www.youtube.com/@labelturretrewindingmachinery
1:Easy operation, flexible starting, accurate color register.
2:The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3:Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4:The printing ink is spread by the anilox cylinder with even ink color.
5:Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6:360°continuous and adjustable longitudinal register device.
7:The frequency control of motor speed adapts to different printing speeds.
8:There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
9:Magnetic powder brake for unwinding tension control. magnetic powder clutch for rewinding tension control.
Technical Parameter:
|
Main parameter: |
|
| Model | YT-PT |
| Machine frame | Cast iron, 50mm thickness |
| NO. Of Printing color | 1-8color |
| Max. Material Width | 630/830/1030/1230-4000mm |
| Max. Effective Printing Width | 560/760/960/1160-3960mm |
| Max. Mechanical speed | 70m/min (Actual speed depend on print material, plate, ink etc.) |
| Max. Printing speed | 10-50m/min(Actual speed depend on print material, plate, ink etc.) |
| Plate Thickness | 2.38mm (Both side adhesive tape included) |
| Machine power | According to material, color, width |
| Cover Dimensions (m) | According to the color, width |
| Voltage | 380V/3P/50HZ(can be customized) |
| Pinch roller | Pneumatic control |
|
Single unwind unit |
|
| Max. Unwind diameter: | Ø600mm( can be customized) |
| Unwind way | Center unwinding; with 2.5kg Magnetic powder and brake |
| Tension system | Automatic tension,1pcs |
| Web guide | EPC, 1pcs |
| unwind Material holder | By air shaft 3’’,1pcs(optional 6 inch) |
|
Traction unit |
|
| traction consist of | Aluminum roller, Plating roller |
| traction zone | 2 unit: unwind and rewind |
|
Printing unit |
|
| Anilox roll & Inking Running way |
Steel anilox roller pcs( according to colors): 250-300LPI (china Ruian ) Rubber roller, pcs ( according to colors) Printing unit Ink cover pcs ( according to colors) |
| Max. Printing length (repeat ) | 200-1000mm( can be customized) |
| Plate material | Resin or rubber plate |
| Machine drive | Straight gear drive (helical gear is optional) |
| Adjusting of Register | By manual( Auto ARC is optional) |
| Press power | Mechanic control |
| Register precision | Longitude:±0.5mm; Transverse:±0.5mm |
| Printing roller lift up and down | Pneumatic control |
|
Drying unit |
|
| Drying model | Electric heating, bowing first then heating. |
| Air blower (big) | Shanghai (according to colors,width,material) |
| Air blower (small) | shanghai, control fan volume(according to colors,width,material) |
| Heating power | (according to colors,width,material) |
|
Electric unit |
|
| Main motor | Siemens beide brand (according to colors,width,material) |
| Master Frequency Inverter | Siemens beide brand (according to colors,width,material) |
| Inking motor | china brand (according to colors,width,material) |
| 7.Single rewind unit | |
| Max. Rewind diameter: | Ø600mm( can be customized) |
| Rewind way | Center rewinding; with 5kg Magnetic powder and clutch |
| Tension control | Automatic tension,1pcs |
| Rewind material holder | air shaft 3’’, 1pcs |
Toolbox 1pcs: Spare Part for free
| NO. | Name of Part | Quantity |
| 1 | Tool box | 1set |
| 2 | Phillip screwdriver | 1pcs |
| 3 | Slotted screwdriver | 1pcs |
| 4 | Inner Hexgam Spanner | 1set |
| 5 | Oil gun | 1pcs |
Machine photo for reference:
Straight gear drive:
Single Unwinding unit/rewind unit:
Automatic tension and EPC:
Steel anilox roller pcs ; Rubber roller pcs; Printing unit ink cover pcs( according to colors)
Dryer on top and dryer between printing
We provide technical support and services for YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
YT-PT FLEXO PRINTING MACHINE 6COLOR 1000MM STRAIGHT GEAR TYPE FLEXOGRAPHIC PRINTING MACHINE EXPORTED CONFIGURATIONS is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
