| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | B-1600 |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Fumigation wooden box |
| Delivery Time: | 30-60working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20sets/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

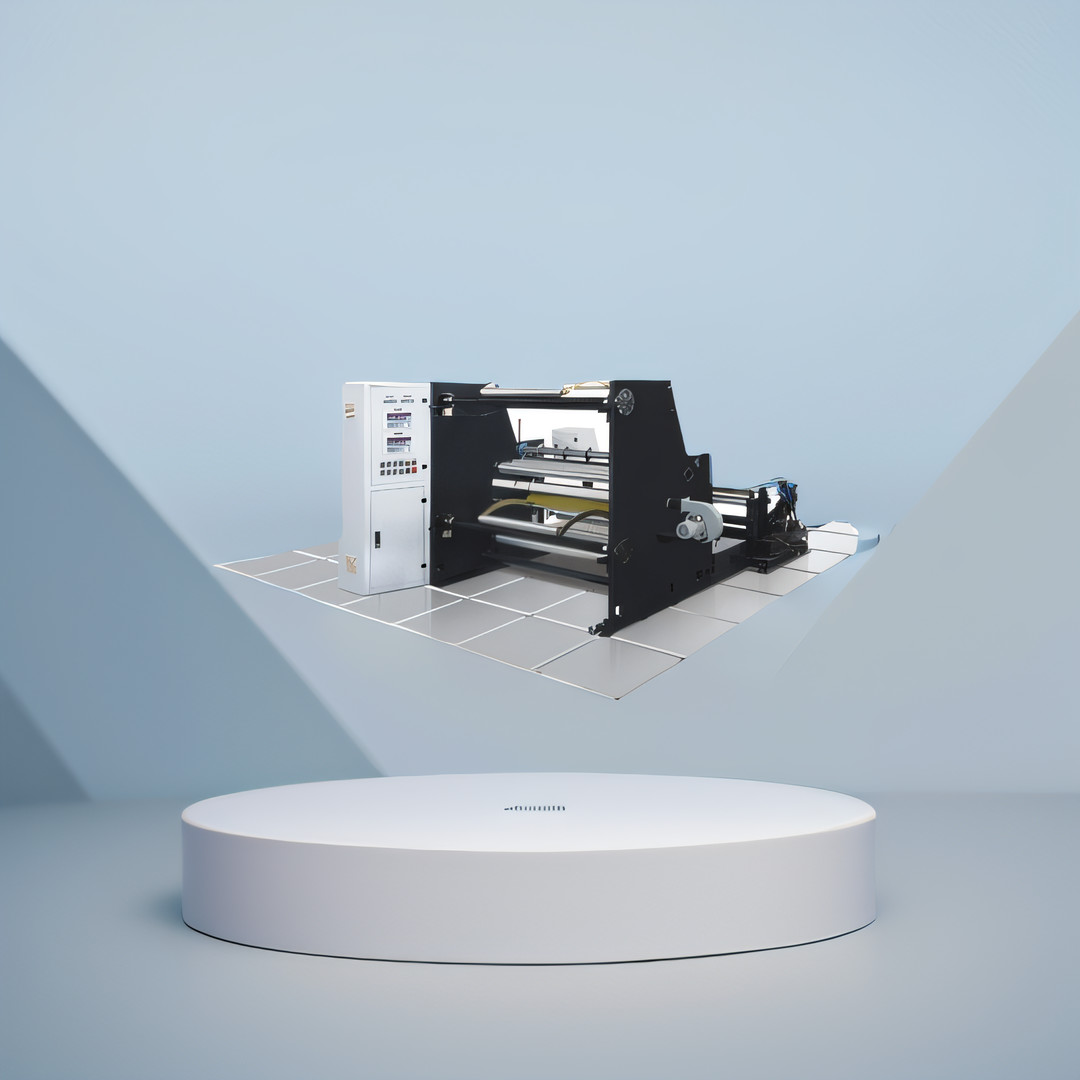

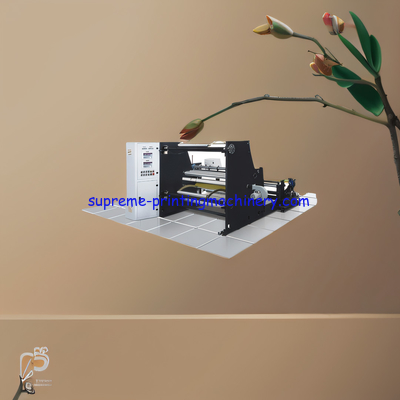

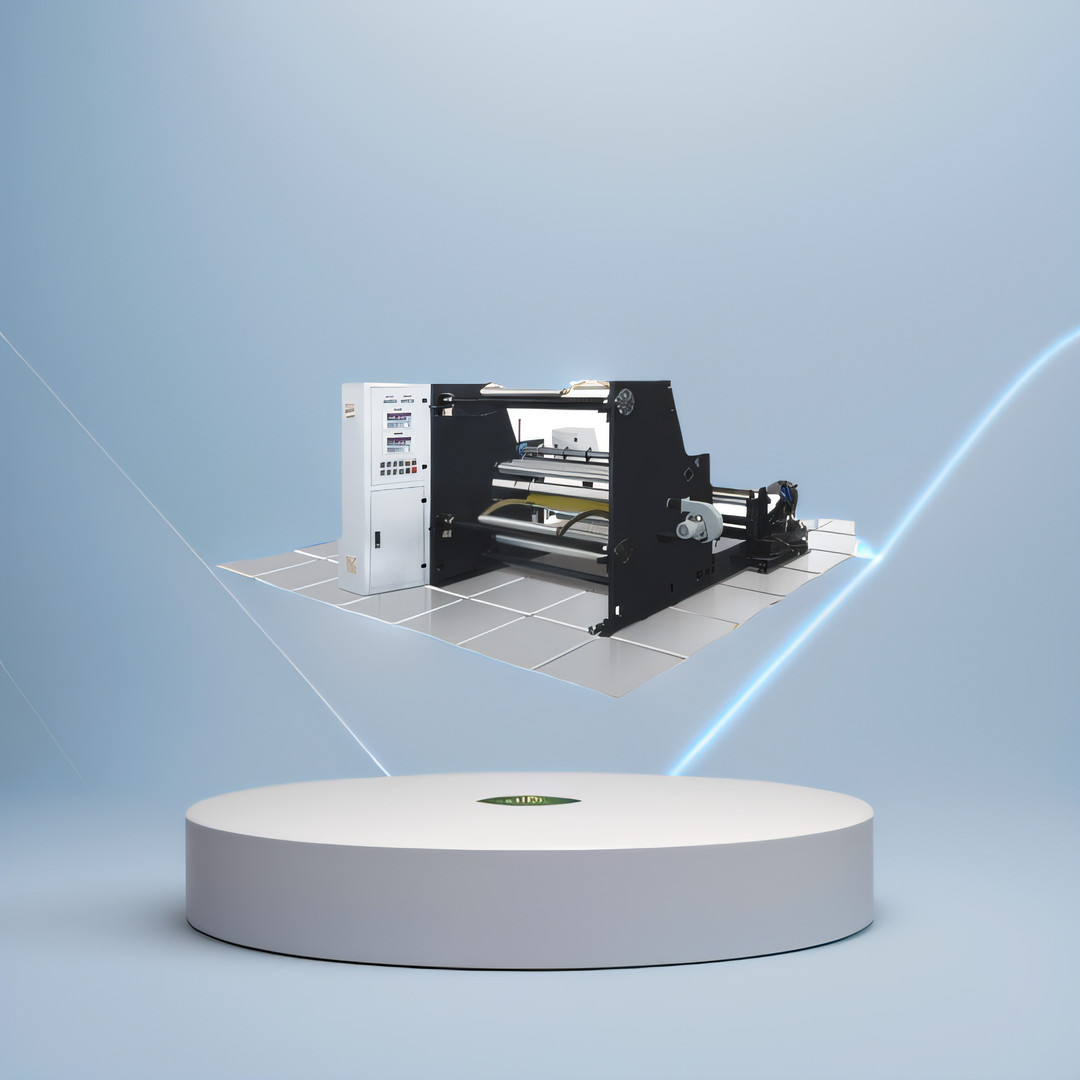

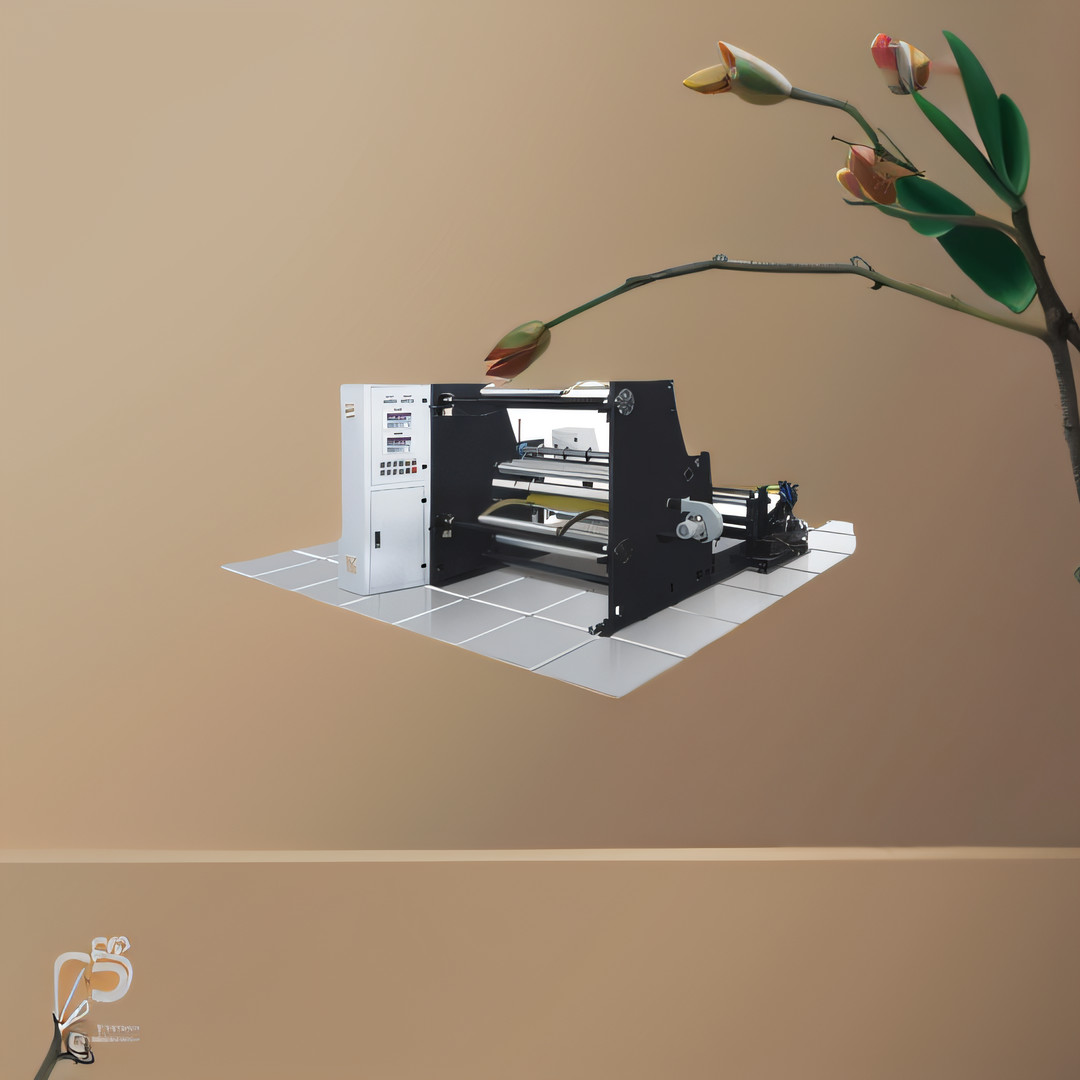

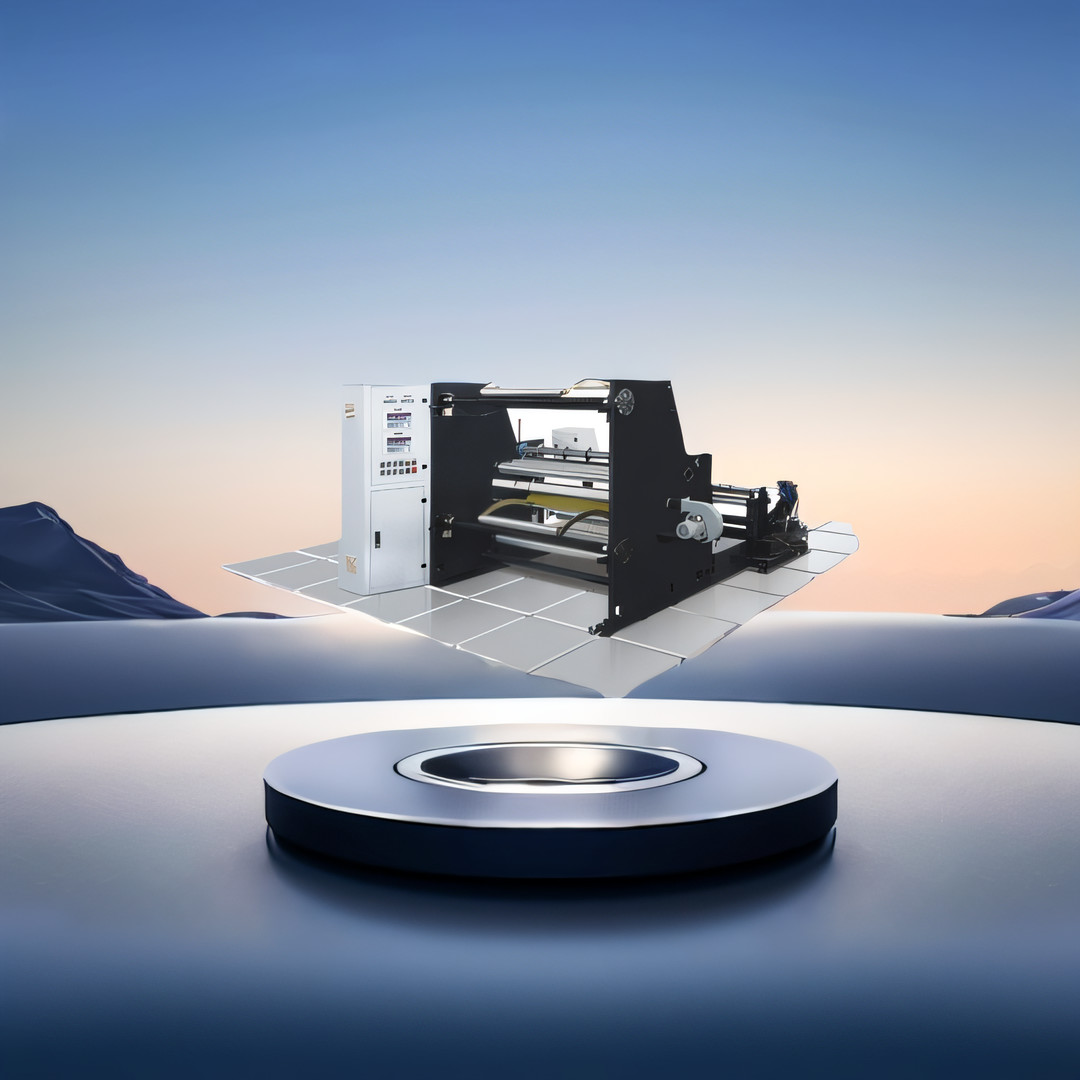

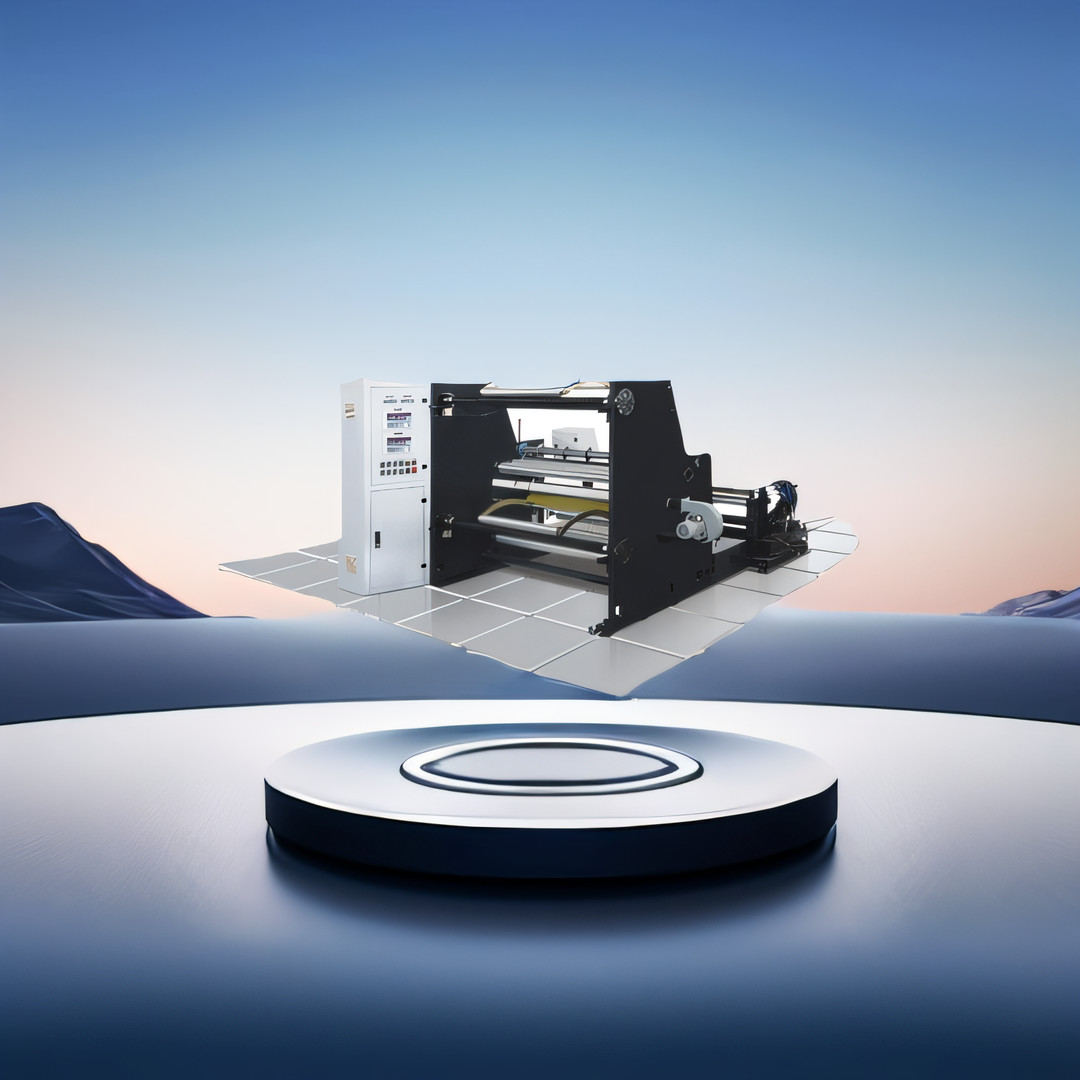

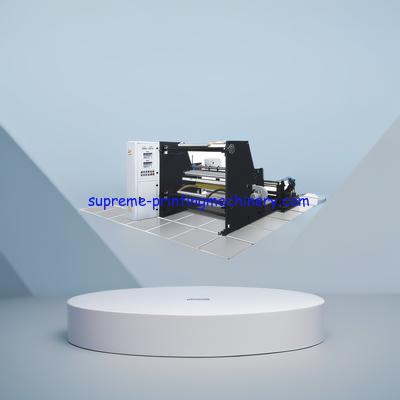

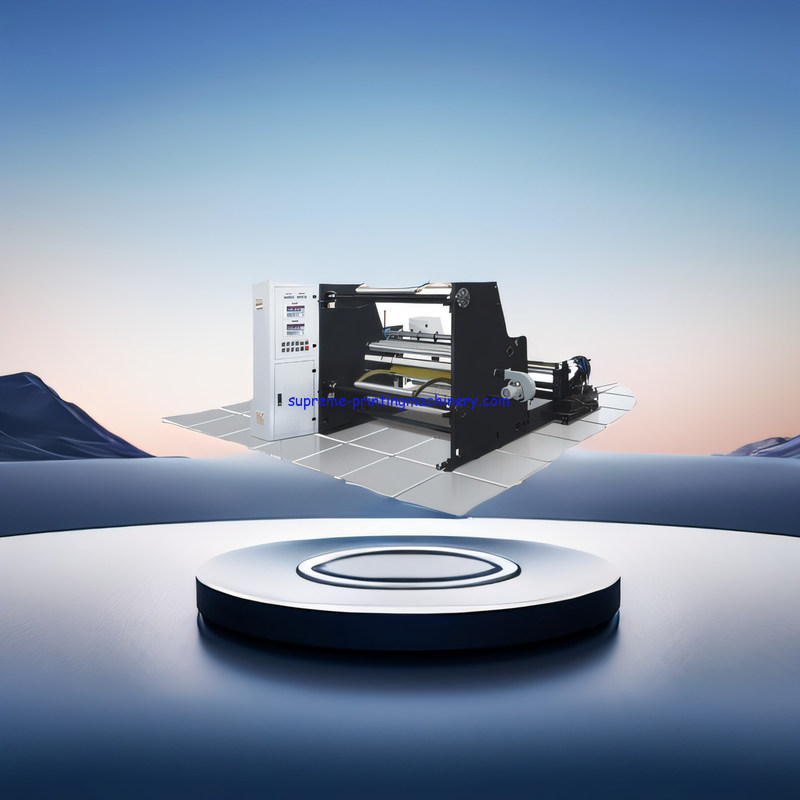

B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC
http://www.youtube.com/@labelturretrewindingmachinery
| Usage characteristic |
| This machine is used to cut all kinds of roll materials such as Label, paper. especially for the heavy roll material. with perfect running stable and high precision. |
| FEATURE |
| 1. The rewinding shaft working by motor drive directly. It use vector frequency inverter to realize automatic tension control. |
|
2. Rewinding air shaft(slip shaft) can unloading, it is convenient for unloading (optional auto unloading device). |
|
3. Magnetic powder brake is used to unwind, and roll diameter accounted automatically by PLC, and automatic tension control. |
|
4. Loading and unloading material on the unwind section adopts air shaft to load and unload material(shaftless with 3-6 adapter will be optional), the roll can be lifted up and down pneumatically(hydraulic), hence it is convenient to load and unload material with high efficiency, automatically web guide when unwinding. |
| 5. Slitting adopts circular knife for slitting, disk tidy, have edge waste device. |
| 6. The system has meter counting or number counting, automatic stop by setting length or quantity you need first. |
|
7. The system has perfect mechanic, electric and pneumatic design, also good safety protection. |
| Model | B-1600 |
| Width of raw material | 1600mm |
| Max. Diameter of unwinding | Φ1000mm |
| Machine speed | 30-300m/min |
| Max. Diameter of rewinding | 1000mm |
| Slitting and rewinding width | 30-1600mm |
| Error correction accuracy | ±0.1mm |
| Weight of machine | 3800kg |
| Total power | 15kw |
| Overall dimensions(L×W×H) | 3600×3200×1900mm |
| Rewinding/Unwinding paper core dia | 3" |
| Unwinding magnetic powder brake | 10 kg |
| Main motor | 4 kw |
| Rewiding motor | 4 kw (2 pcs) |
| Suitable material | Paper, adhesive sticker label, etc |
| Configure of Equipments, and Interrelated Variable |
|
Unwind Section: Structure: 1. Separated unwinding frame, with air shaft( shaftless with 3-6 adapter), automatic hydraulic material loading device 2. Horizontal edge position controlling system 3. automatic tension controller
|
|
Traction transmission device: Structure: 1. AC vector inverter drive 2. Synchronized belt drive 3. adopt import Bearing 4. double roller face to face rolling type
|
|
Slitting Section: 1. Adopt round knives 2. Waste trim extractor |
|
Rewind Section: 1. double air shafts(slip shaft), to rewind up and down 2. automatic tension controller 3. air shafts (slip shaft) can be moved away 4. double frequency motors for rewinding
|
|
Material Unloading: automatic material unloading device, can unload the final slitted material on the ground automatically. |
|
Machine Frames: 1. with High strength and low stress alloy cast iron wall plate. 2. wall plate secondary stress relieving, with better stability.
|
|
Pneumatic hydraulic system: adopt pneumatic and hydraulic device, operate by the panel, execute through electromagnetism valve, fully automatically, reducing labor intensity |
|
Electrical control system 1. Man-machine interface, PLC control, advanced technology. 2. Man-machine interface, display and set the main speed, rewinding length, and tension setting, taper setting.
|
We provide technical support and services for B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
B-1600 HIGH-SPEED SLITTING MACHINE UNWINDING:3 INCH AIR SHAFT SHAFTLESS WITH 3-6 ADAPTER REWINDING:3 INCH SLIP SHAFT 2PC is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
