Product Name: | MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

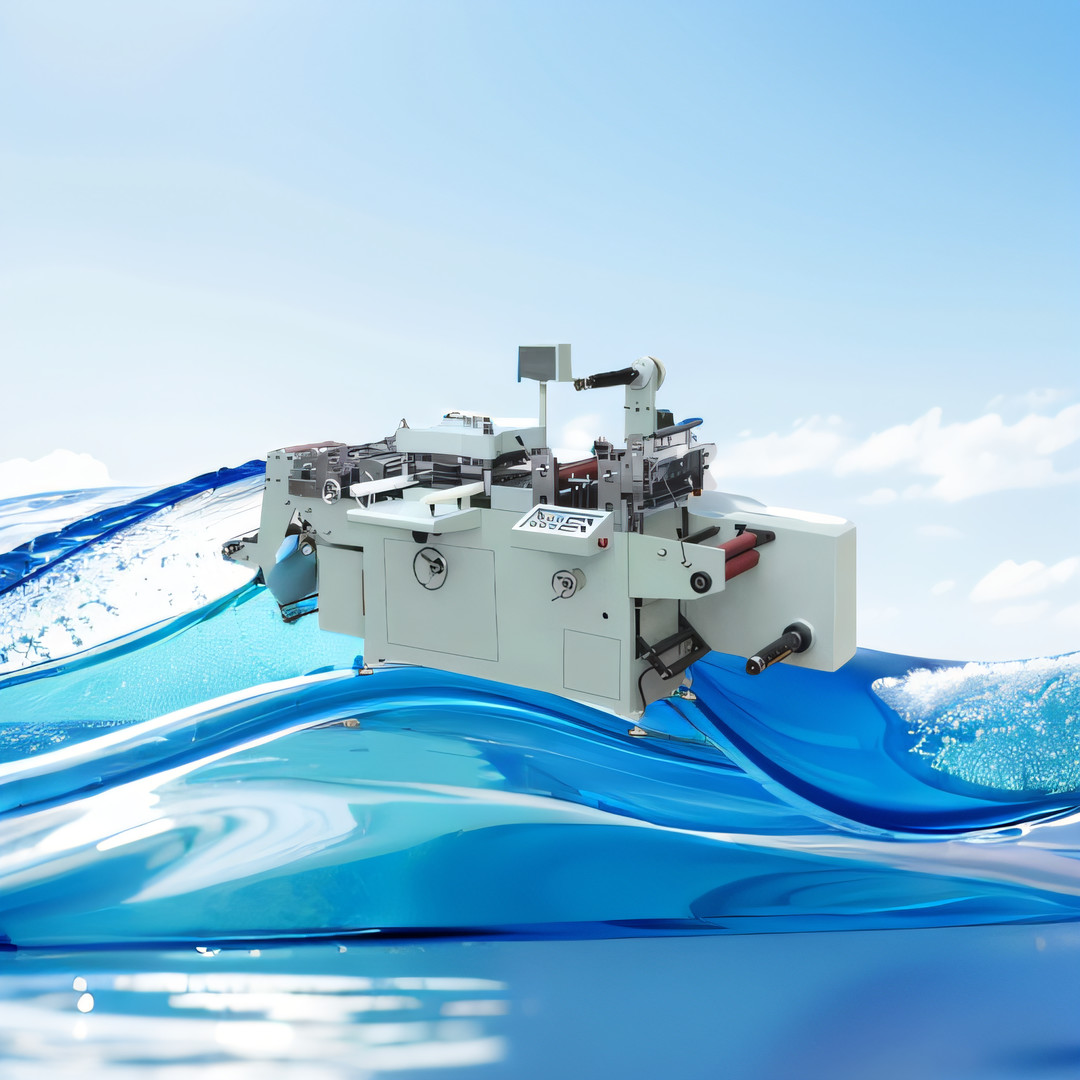

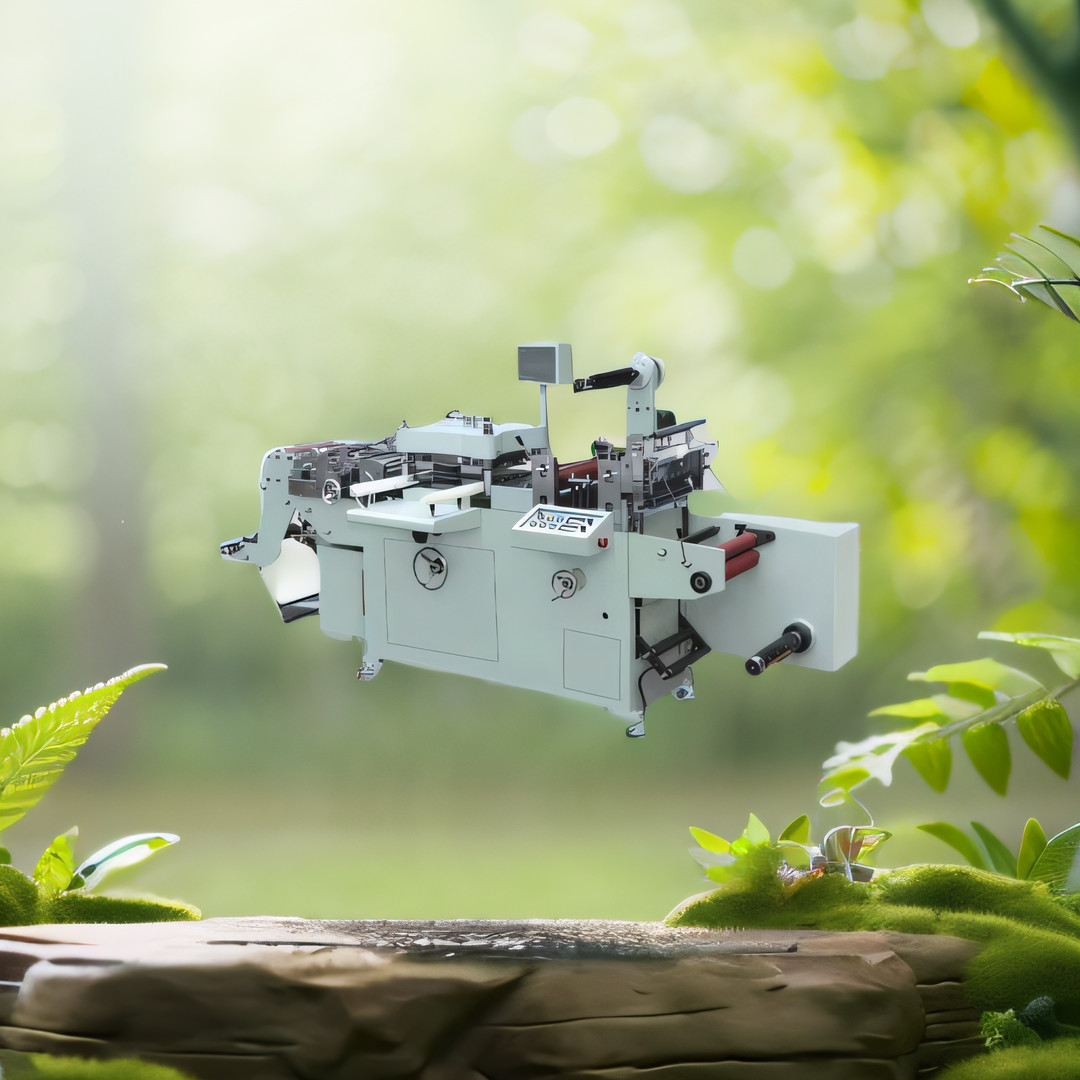

MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE
http://www.youtube.com/@labelturretrewindingmachinery
Optional:
1:Laminating 2:Hot stamping 3:Hole punching
Note:standard machine the sheets cutting speed is about 150-160pces/min, if with servo motor, it can do 220-300 sheets/min
Note:A model will be 200times/minutes; Z model will be 300times/minutes
Different with the 300times by waste rewinder and roll rewinder as red mark
Extended functions: laminating-stamping-punching
Standard functions: unwinding-die cutting-waste discharging-cutting into pieces-rewinding
The paper adhesive label, nylon membrane trademark and the radium anti-fake trademark.this machine is matching with different printing machine and slitting machine, such as roll paper printing machine,flexo printing machine,screen printing machine,gravure printing machine.
This machine is widely used in electronic line, adhesive product line and so on.
Features:
This machine is insistent of platen pressing structure, servo system control the material feeding and forwarding, the photoelectric eyes track the material, unwinding-die cutting-waste discharging-sheet cutting-rewinding all is completed in one turn, all are control by PLC control system.
Advantage:
1:Wast rewinder with sepatate motor and magnetic tension controller
2:Roll rewinder with separate motor and magnetic tension controller
3:Photoelectric eyes: Germany--Leuze
4:Exported brand parts and auotmatic oil lubricate system
model | MQ-350Z |
Max. Feeding width | 350mm |
Cutting area | 340*340mm |
Cutting speed | 300 times/min |
Position accuracy | ±0.10mm |
Power of main motor | 2.2kw |
Size(L*W*H) | 2750*1250*1400 |
Unwinding/rewinding diameter | 650mm/600mm |
Voltage | 380v |
Total power | 5kw |
weight | 1700kg |
We provide technical support and services for MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE . Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE . Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE . Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
MQ-350Z AUTOMATIC MEDIUM SPEED LABEL DIE CUTTING MACHINE OPTIONAL FILM LAMINATING HOT STAMPING HOLD PUNCHING SIDE MIDDLE is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
