MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED

Basic Information
Place of Origin: China
Brand Name: supreme
Certification: CE
Model Number: MQ-320-Y
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

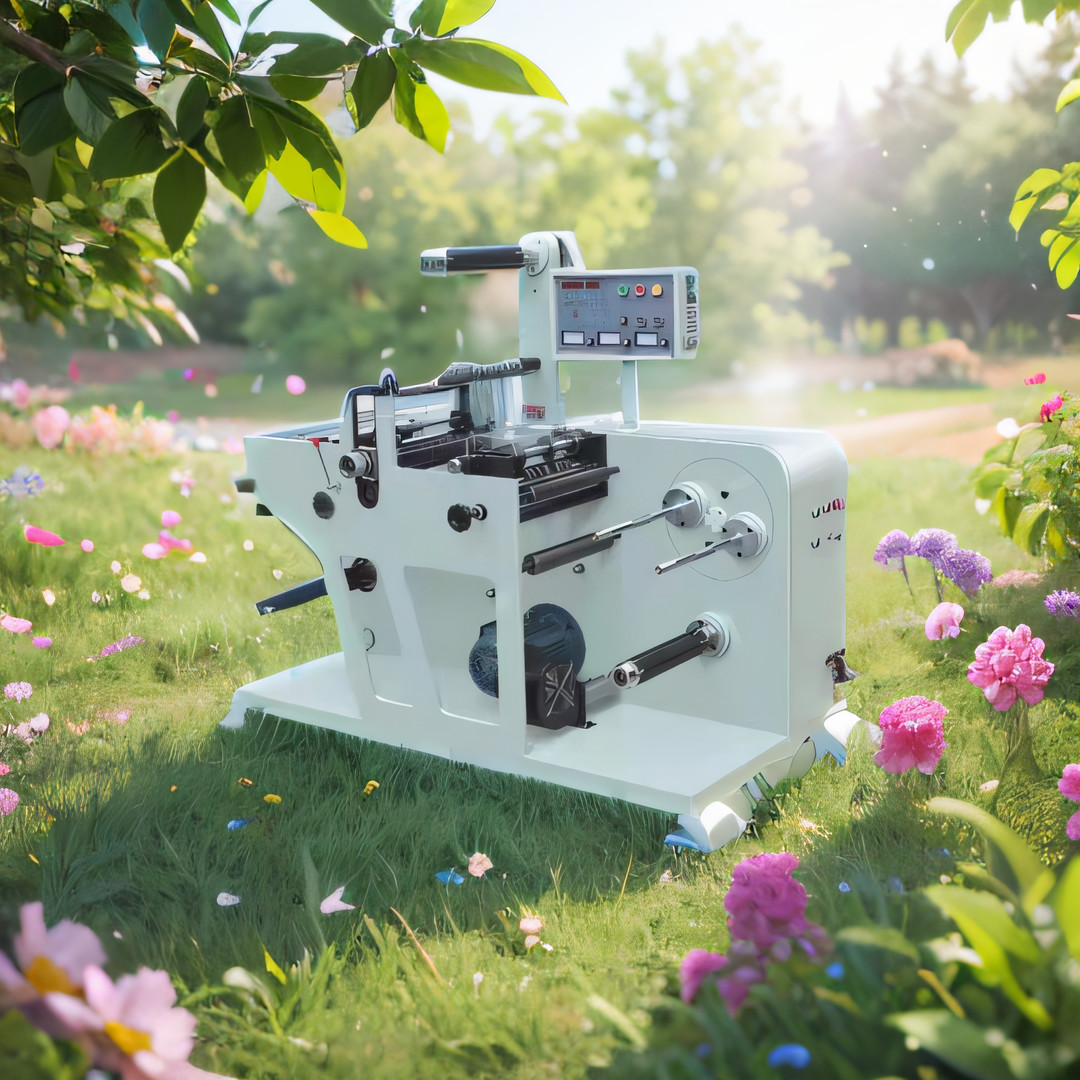

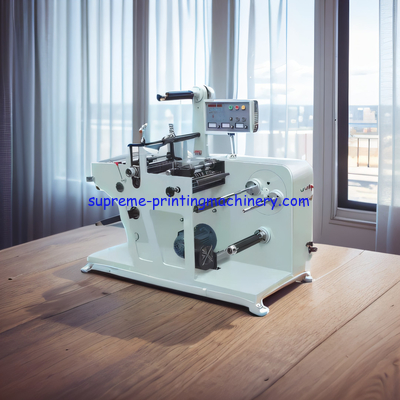

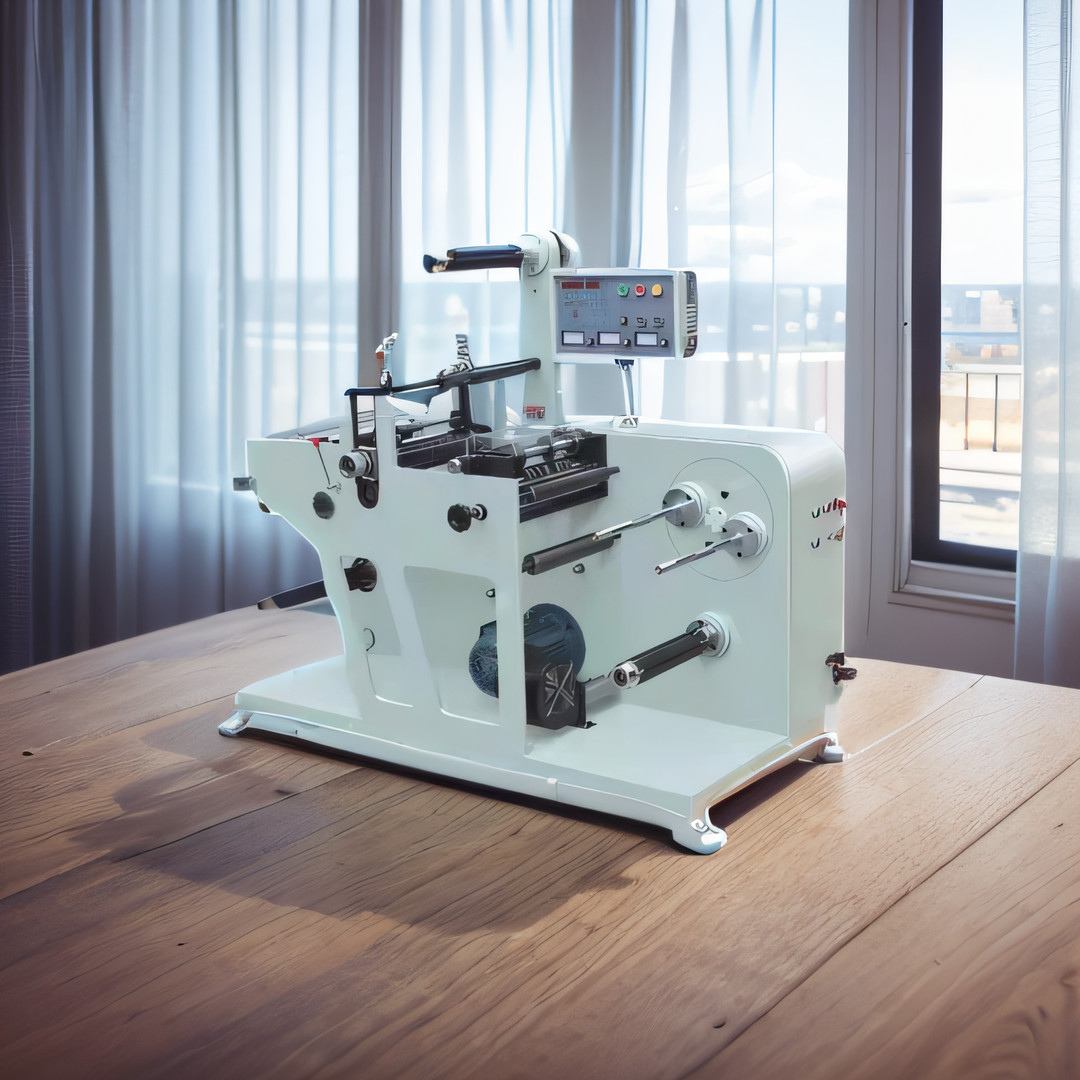

MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED



MQ320-Y Rotary Blank Label Die Cuting Machine With Slitter is a new machinery which research and development for the clients who have Single product structure, it has the function of high precision rotary die cutting station and slitting station, optional for turret rewinding into 2 inch,1.5inch even 1 inch air shaft, it is also work for the blank label laminating.

1:Auto meter/number counting, auto stopping

2:Web guide by photoelectric eye

3: It has the characteristics of compact structure, fast speed, high efficiency, easy operation, accurate slitting, stable operation and so on.



Standard:

1:Rotary die cutting station

2:Slitting station with 8 sets round knife

3:1 pcs 3 inch unwinding air shaft+1 pcs rewinding air shaft+2 pcs 1.5/1/2inch air shaft. (Automatic inflation)

4:meter/number counter.

5:web guide 2 pcs right and left for material

6:1 magnetic brake, 3 pcs magnetic clutch

7:Fan blower for blowing away the waste

8:Main motor

9:Inverter

10: Synchronous motor for waste rewinding controlled



Specification:

Machine Model MQ320-Y MQ420-Y
Slitting Speed 120m/min 120m/min
Die Cutting Speed 120m/min 120m/min
Max. Web Width 320mm 420mm
Max. Unwinding Diameter 500mm 500mm
Max. Rewinding diameter for big roll 500mm 500mm
Max. Rewinding diameter for small roll 300mm 300mm
Length of Die Cutting 190-476 mm 190-476mm
Dimensions 1700*1000*1600mm 1800*1300*1700mm
Main motor 1.5 KW 2.2KW
Voltage 220V/380V 220V/380V
Min. Slitting width 16mm 16mm
Machine weight 600 kgs 800 kgs





Packing and Shipping:

Packaging and Shipping

MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.

Machines are shipped via air or sea freight, depending on the customer’s preference.

FAQ:

Q: What is the Brand Name of MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED ?
A: The Brand Name is Supreme.
Q: What is the Model Number of MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED ?
A: The Model Number is MQ-320-Y.
Q: Where is the Place of Origin of MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED?
A: The Place of Origin is China.
Q: What is the Certification of MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED?
A: The Certification is CE.
Q: What is the Minimum Order Quantity of MQ-320-Y ROTARY BLANK LABEL DIE CUTING MACHINE WITH SLITTER SYNCHRONOUS MOTOR FOR WASTE REWINDING CONTROLLED ?
A: The Minimum Order Quantity is 1.
