Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ-330/450/570
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Fumigation wooden box
Delivery Time: 30-60working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5sets/months
Detail Information
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Color: Customized To Client Requirement Voltage: 220/380V
Product Name: Automatic 4 Spindles Paper Non Stop Label Turret Slitter Rewinder Save Labor Cost And Improve Efficiency Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



Automatic Turret 4 shafts rewinder is a fully automatic rewinding machine, it's usually suitable to label production. the machine works together with slitting machine or other multi functional machine with slitting station, can do non-stop rewinding works to improving the production efficiency....



The machine suitable to printed or blank label after slitting:



Features

This type machine is our latest innovation for small label rolls automatic cutting and rewinding with high-efficiency. It can connect with unwinding section, die cutting machine and printing machine, etc.

Characteristics of Copy Paper Rewinder:
1. Automatic core loading equipped with a storage tower for small cores.
2. Automatic feeding system equipped with mechanical arm, ensure cores to be positioned automatically and accurately onto the rewind shaft.
3. PLC and touch screen automatic control, friendly operation,more convinient
4. Automatic applying glue(glue type machine) to cores
5. 4 spindle automatic turret rewinding
6. Automatic roll eject system
7. Automatic labeling as standard,make the machine price very favorable.
8. No changeover times involved (other than rewind shaft changeover)
9. High speed:50-120m/min
10. Double side heavy machine body ensure machine running stable in high speed
11. The large roulette is supported by a professional customized turret, which is maintenance-free for ten years.
12. Multi-optimized combination of mechanical and electrical, can realize single expansion shaft for eight-die rewinding roll without biting the roll.





Automatic slitting and rewinding machine has automatic threading, automatic gluing(optional glue-free), automatic sealing or labeling and other functions, can realize online non-stop rewinding, can be connected to die cutting machine, slitting machine, flexographic printing press and other equipment. The rewinder is equipped with 1 inch, 1.5 inch, 40mm, 3 inch inflatable air shaft, and can be interchangeable, reduce labor, improve efficiency.



Machine features:

1. Fully automatic 4-shaft turret type non-stop rewinding machine, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of jog, speed increase, speed reduction, emergency, to realize the best condition of printing machine.



2. The turret type rewinding machine system adopts the chinese famous brand innovice, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a vibrating plate automatic paper-feeding tube mechanism, a discharge mechanism, to realize online non-stop rewinding.



3. The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a 1-inch 1.5-inch 2-inch quick release air-expansion shaft. The rewinding machine does not require manual mechanical adjustment when changing the size of different reels, its system automatically adjusts the size of the reel to reduce the labor force for intelligent production.



Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)

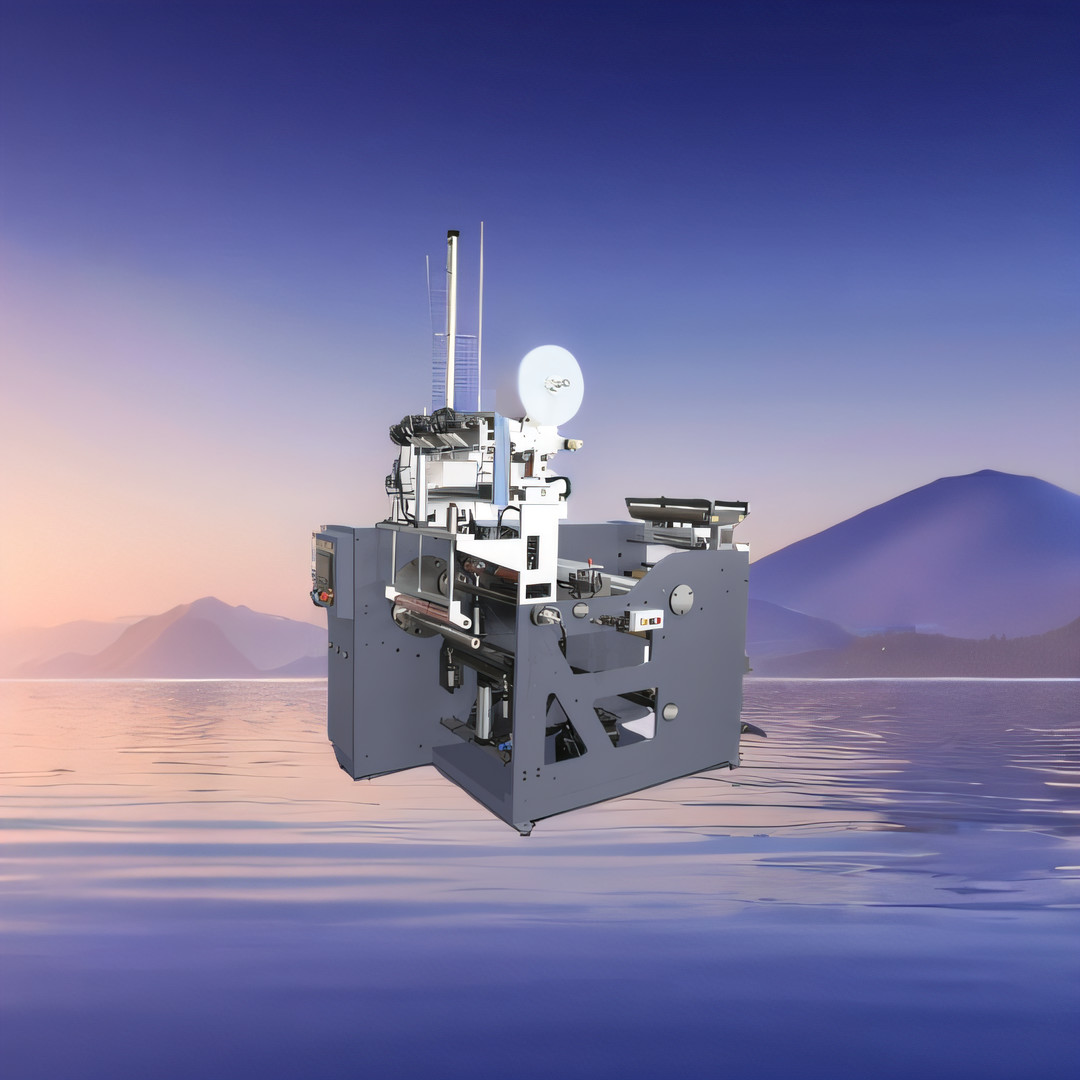

Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency 0



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

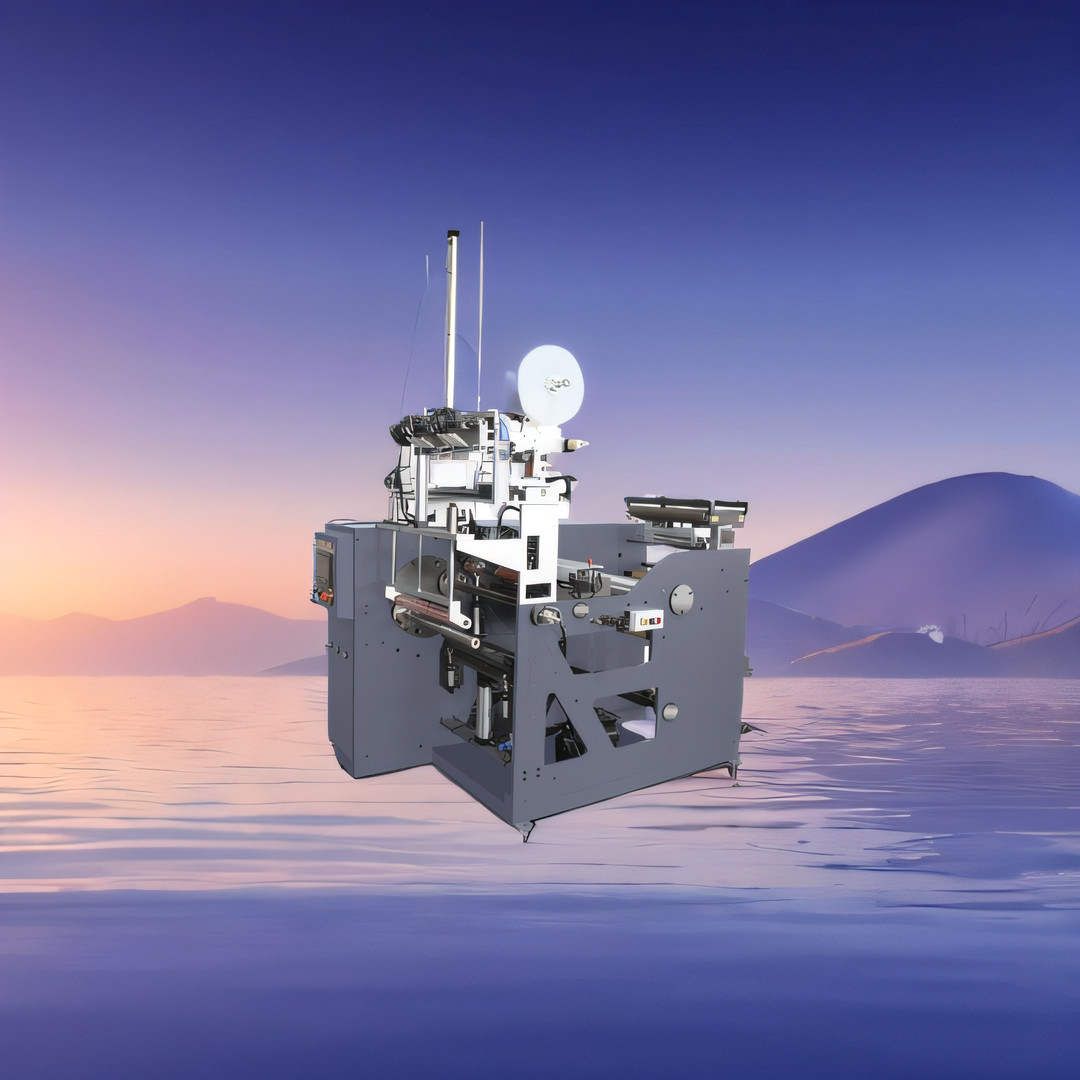

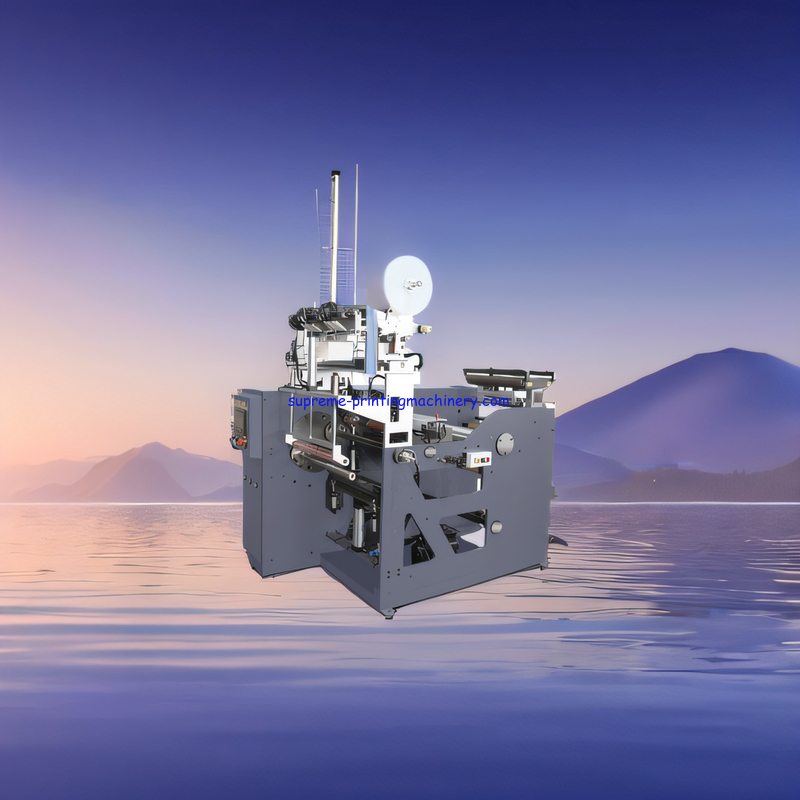

Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency 1Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency 2
