| Place of Origin: | China |
|---|---|
| Brand Name: | supreme |
| Certification: | CE |
| Model Number: | FQ-2200DZ |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 30-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10set/month |
| Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
|---|---|---|---|
| Product Name: | SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM | Note: | Because Of Upgraded And Development, Above Datasheet And Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |

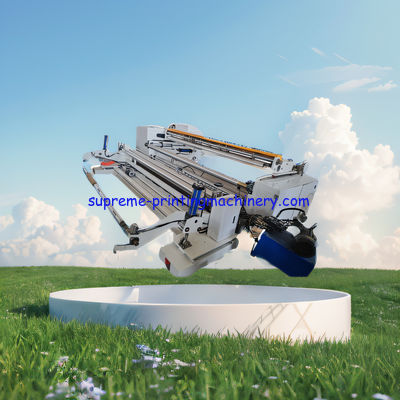

SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM
http://www.youtube.com/@labelturretrewindingmachinery
1:Usage:
This machine is suitable for cutting and rewinding various types of rolls: various roll papers (Kraft paper, masking tape paper, self-adhesive paper, coated paper, glossy paper etc.) and other roll materials.
2:Technical parameters:
| Model | FQ-2200DZ |
| Cutting speed | 10-200m/min |
| Maximum material width | 60-2200mm |
| Cutting width | 60-2200mm |
| Cutting material thickness | 15gsm-500gsm |
| Cutting accuracy | ± 0.1mm |
| Maximum unwinding diameter | 1000mm |
| Maximum winding diameter | 800mm |
| Web guide method | photoelectric or ultrasonic tracking |
| Tension control method | PLC control |
| Total power (KW) | 25KW |
| The machine weighs:approximately | 3800kg |
| Machine size (mm) L * W * H | 2250 × 3900 × 1400mm |
| Machine colors | refer to the above image |
| Working voltage | 3P 380V-50HZ |
3:Detailed machine configuration sheet:
1. Unwinding section
1)Unwinding station:single station
2)The support method:adopts a steel plate structure
3)Unwinding width:60-2200
4)Width of feed guide roller:2250mm
5)Unwinding diameter:1000mm
6)Maximum bearing capacity:≥ 3000kg
7)Unwinding method: shaft hydraulic feeding
8)Shaft core diameter:3 inches
9)Control method:pneumatic brake
10)Loading and unloading method: hydraulic automatic loading and unloading
11)Unwinding correction:bat brand technology
13)Web guide route: ± 75mm
14):Feeding guide roller:2250mm
15)Material receiving platform:1 set
2:Traction+transmission part
1)The machine structure:adopts high-quality steel plate structure
2)Iron plate thickness:50mm
3)Drive and transmission mechanism:servo motor drive
4)Motor power:7.5KW
5)Structural type:pressure roller adopt rubber roller, active roller adopt steel roller chrome plating
6)The traction method:pneumatic pressure
7)Roller width:2250mm
8)The compression method:adopts air cylinder control
3:Cutting section:
1)The cutting method:round knife
2)Adjustment method:manual
3)Cutting accuracy:± 0.1mm
4)The safety cover
5)Number of blades: 10 sets of round blades
4:Winding section
1)Structural mode: single rewinding
2)rewinding material and support method:mechanical arm, pneumatic control
3)Drive method: Servo motor drive
4)Motor power:7.5KW
5)Width of guide roller:2250mm
6)Winding station:single station
7)Winding shaft:air shaft
8)Maximum winding diameter:800mm
5:Unloading part
1)material pushing method:manual
2)Unloading method:Unloading arm Unloading
3)Maximum bearing capacity:≥ 3000kg
6:Control part:
1)Control method: PLC centralized control
2)Other additional functions: 1. Automatic shutdown for residual material detection. 2. Display the total number of meters and diameter. 3. Working meters. 4. Set meter sensing automatic deceleration shutdown. 5. Automatic tension control of winding and unwinding 6. Imported PLC is used to achieve precise and stable control functions, and the true color touch screen makes the image display simple and beautiful. Dialogue-based parameter setting environment, eliminating complicated settings to start operations: Before starting the machine, users only need to input parameters such as thickness, width, density, diameter, and speed of the raw material, and the following tasks are automatically calculated by the computer
3)Working voltage:3P 380V-50HZ
7:Other parts:
1)Waste edge blowing method: centrifugal fan blowing away
2)Waste edge treatment method:blown out from the side of the machine
3)1 set of speed display table (displaying the working speed of the machine on the screen)
8:Delivery of random spare parts:
1)Toolbox:standard:1 set
2)Oil gun:standard:1pc
3)air nozzles:standard:1pc
4)Level pads:standard:1pc
5)Manual:standard:1pc
We provide technical support and services for SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM. Our team of experienced technicians and engineers are available to help you with any questions or issues you may have. We offer a wide range of services such as installation, maintenance, troubleshooting, and repairs. In addition, we offer training and consulting to ensure that your machinery is running at its best.
At our facility, we provide a full range of services for SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM. Our team of technicians and engineers are available to help you with any questions or issues you may have. From installation to maintenance, our team is fully equipped and ready to assist you.
Our goal is to provide the best technical support and services for SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM. Our team of experts is available to answer any questions or concerns you may have. We take pride in providing quality service, and we are committed to ensuring your satisfaction.
SLITTING CUTTING AND REWINDING MACHINERY KRAFT COATED LAMINATED SILICON GLASSINE OFFSET PAPER CUP PAPER BAG 15-500GSM is packaged carefully to ensure it arrives safely and in excellent condition. The machines are fully assembled, and then wrapped in film then packed with the fumigation wooden box.
Machines are shipped via air or sea freight, depending on the customer’s preference.
