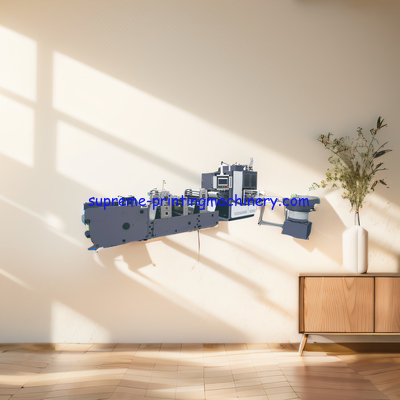

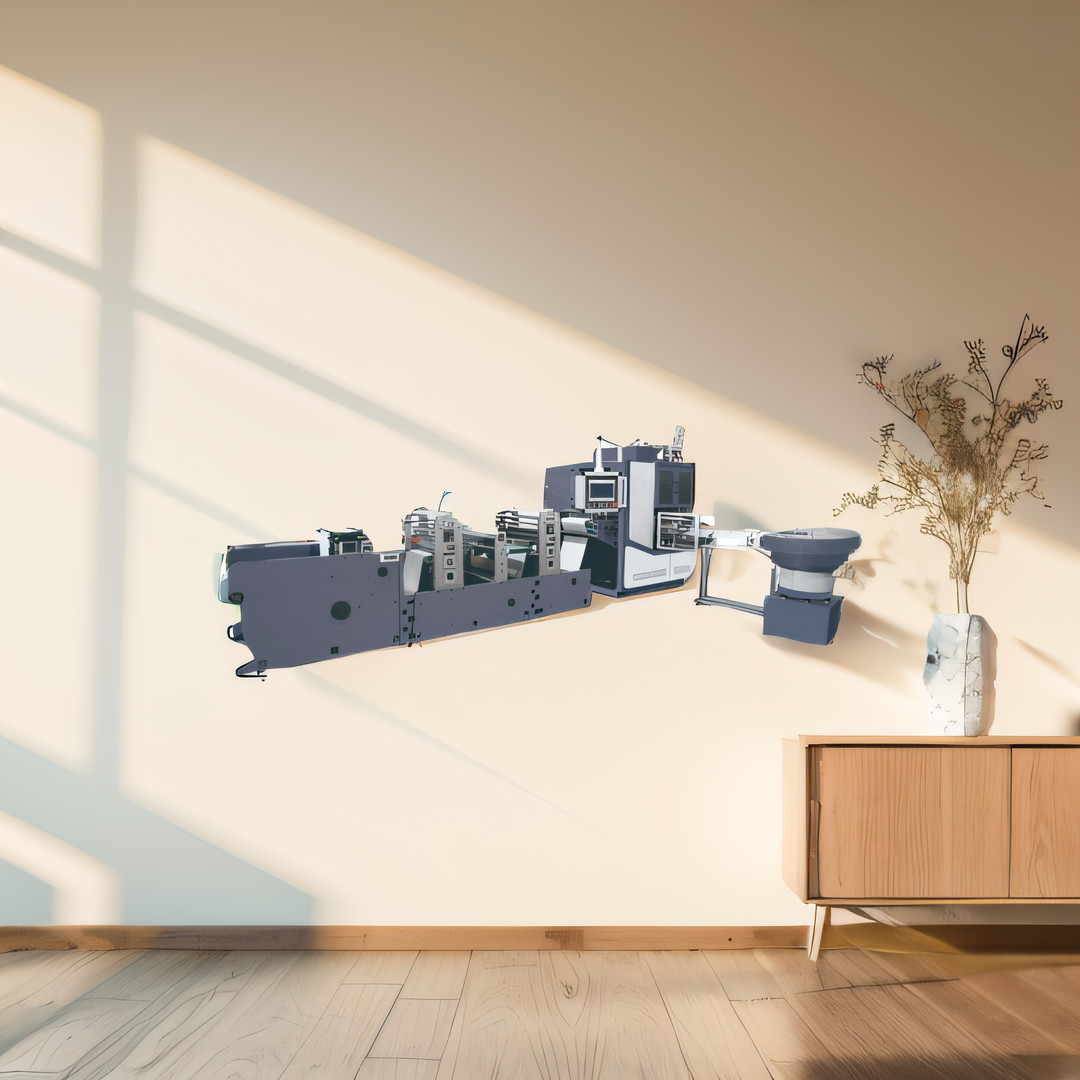

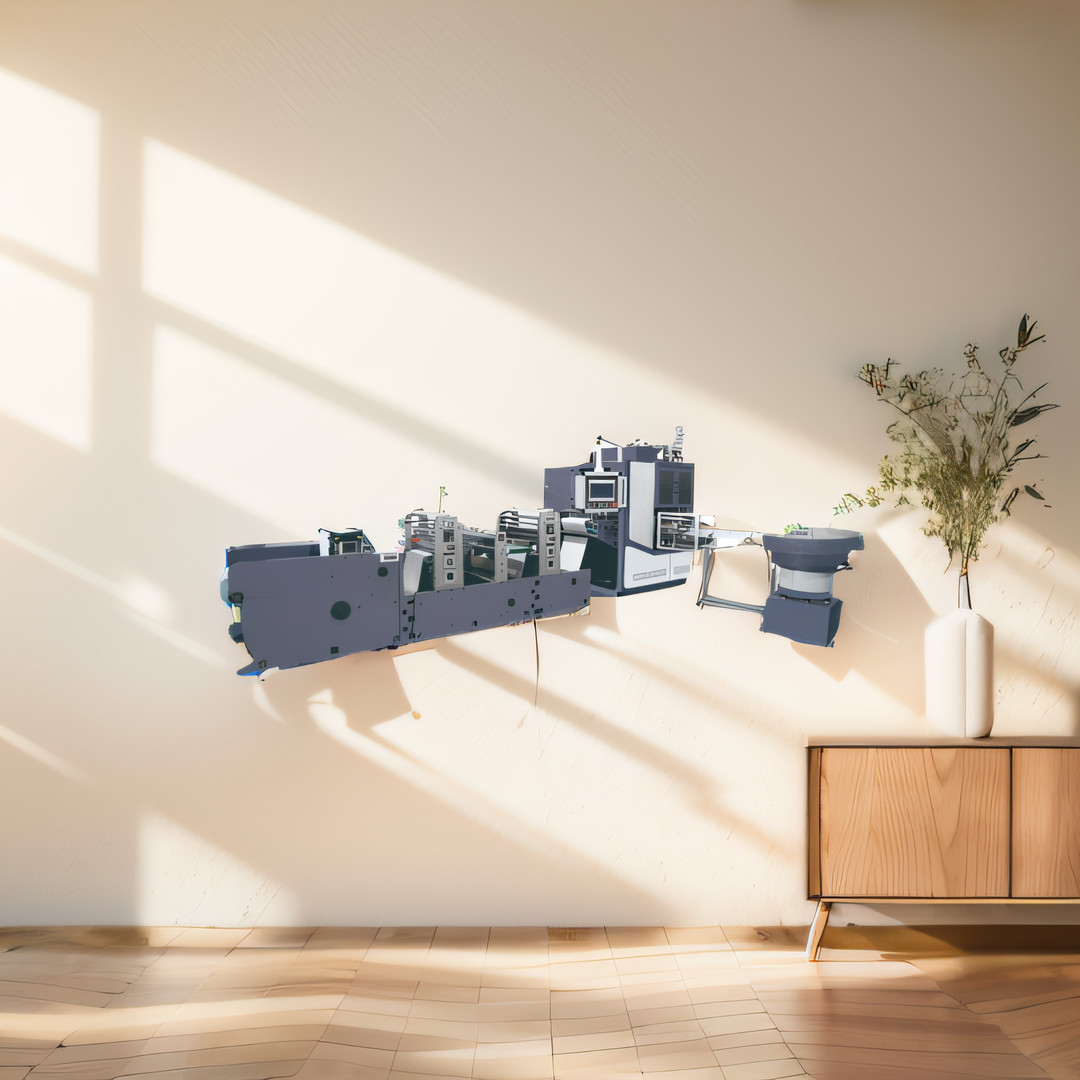

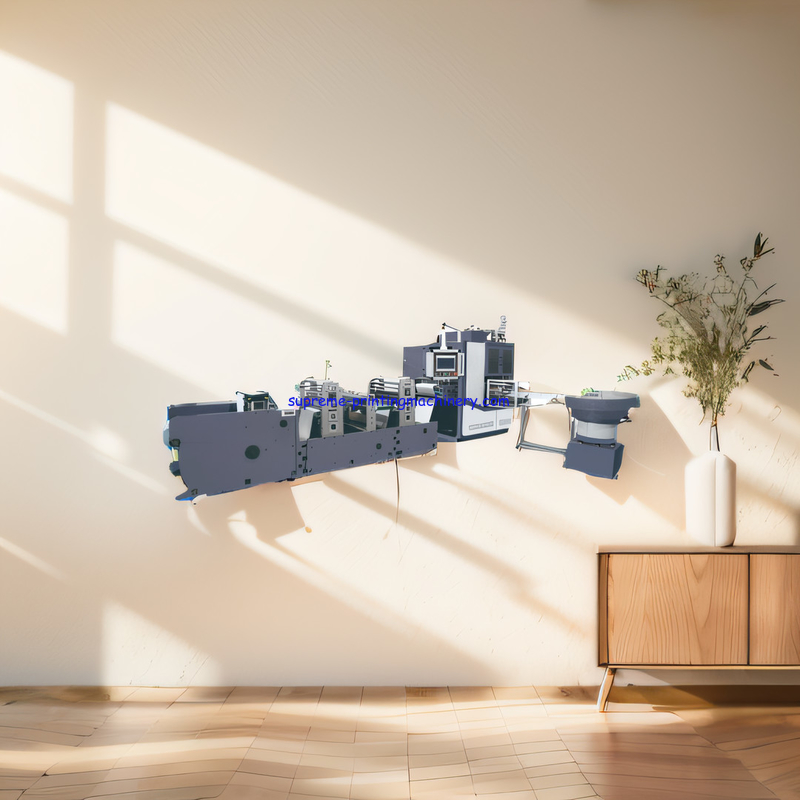

FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: fumigation wooden box
Delivery Time: 50-60 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Size: 330/450/570mm Service: OEM/ODM
Adhesive: Yes Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Packaging: Wooden Box Fumigations Type: Lable Adhesive Paper Sticker Solution
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER

Product Description:

The Automatic Turret 4 spindle shafts rewinder is an ideal machine for auto labelling product production. It is both highly efficient and easy to use with features that include:

  • Automatic core loading, with storage tower for small cores
  • An automated feeding system equipped with mechanical arm to accurately position cores onto the rewind shaft.
  • PLC and touch screen automatic control for superior operation quickly and easily.
  • Automatic application of glue to the cores(glue type).
  • 4 spindle automatic turret rewinding.
  • Automatic roll eject system.
  • Automatic labeling for a very attractive price.
  • No changeover times involved, other than rewind shaft changeover.
  • High speed capability of up to 120m/min.
  • Double sided heavy machine body for stability whilst running at high speed.
  • coupled with a professional customized turret for optimal performance that lasts a minimum of 10 years without maintenance.
  • A mechanical and electrical combination allows for single expansion shaft and eight-stream rewinding roll without any biting.


Applications:

The rewinder can be connected to various kinds of machines, such as rotary die cutting, slitting machines, and flexographic printing machines. What's more, it is equipped with a quick release air-expansion shaft with sizes range from 1-inch to 2-inch.

The rewinder machine is designed to be highly automated and intelligent, because its system automatically adjusts the size of different reels during production. This eliminates the need for manual mechanical adjustments, saving labor force for more efficiency.



Customization:

FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER
  • Brand Name: Supreme
  • Model Number: SZ
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 50-60 Working Days
  • Payment Terms: TT;LC
  • Supply Ability: 30sets/month
  • Service: OEM/ODM
  • Color : Customized
  • Type: Lable Adhesive Paper Sticker Solution
  • Design: Self Devolopment And Patented
  • Save labor 2-3 person from cost
  • Auto paper core loader and unloader
  • How does a slitter rewinder work?


Support and Services:

FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER offers technical support and services to ensure a successful production process. Our technical team is available to provide remote and on-site support for all our customers. Our team of experienced technicians is available to offer advice on the product’s operation and maintenance, as well as troubleshooting and technical advice. In addition, our team can help customers with installation, equipment upgrades, and optimization. We also provide a wide range of services, such as maintenance, repairs, technical training, and more. We strive to provide our customers with the highest level of service.



Packing and Shipping:

FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER Packaging and Shipping:

The FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER will be securely packaged wrapped film and fumigation wooden box. Then box outside put the shipping mark onside. The box will then be shipped to the desired destination, via a reliable courier service.



FAQ:

Q: What is the Brand Name of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER ?
A: The Brand Name is Supreme.
Q: What is the Model Number of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER ?
A: The Model Number is SZ.
Q: Where is the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER produced?
A: The FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER is produced in China.
Q: What is the Certification of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER ?
A: The Certification of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER is CE.
Q: What is the MOQ of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER ?
A: The MOQ of the FULL ROTARY/SEMI INTERMITTENT ROTARY/FLEXOGRAPHIC PRINT SLITTING ONLINE ADHESIVE LABEL STICKER PAPER TURRET REWINDER is 1.


Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
