AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: fumigation wooden box
Delivery Time: 50-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Voltage: 220V/380V Material: Paper Adhesive Sticker Label Layers
Adhesive: Yes Service: OEM/ODM
Type: Lable Adhesive Paper Sticker Solution Design: Self Devolopment And Patented
Packaging: Wooden Box Fumigations Video: For Video Sent Please Wechat/wa Me:+8618072118971
Language: Can Customized Into Client Regular Language For Easy Operations Product Name: AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER
Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER

Product Description:

The Automatic Turret 4-shafts four spindles Rewinder is a fully-automated rewinding machine intended mainly for use in labelling production. When combinated with a slitting machine or other multi-functional machines that includes a slitting station, the machine can perform nonstop rewinding to highly improve production rate.

This rewinder comes with a number of features, including an automatic core loading system with a storage tower for small cores, an automatic feeding system with a mechanical arm to precisely position cores onto rewind shafts, PLC and touch screen control for friendly operation, automatic gluing (glue type machine) for cores, 4-spindle automatic turret rewinding, automatic roll eject system, and automatic labelling for added convenience. In addition, with no changeover time involved (apart from rewind shaft changeover), this rewinder runs at a top speed of 50-120m/min with a double-sided heavy machine body to ensure stable operation even at increased speeds. Lastly, its large roulette is supported by a professional customized turret that is designed to require no maintenance for a period 10 years, while the multi-optimized combination of electrical and mechanical components enables single-expansion shafts to produce eight-die rewinding rolls without biting the rolls.



Applications:

The Rewinder can be connected to a range of machinery, such as rotary die cutting machines, slitting machines, and flexographic printing machines. In addition, it is equipped with quick-release air-expansion shafts of 1-inch, 1.5-inch and 2-inch sizes.

What sets this rewinder apart is its intelligence. With no manual adjustment required when changing the size of different reels, its system automatically adjusts the size of the reel, which significantly reduces the labor force. This feature makes the Rewinder ideal for intelligent production.


Customization:

We provide custom services for AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER with the following product attributes:

  • Brand Name: Supreme
  • Model Number: SZ
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Negotiation
  • Packaging Details: Fumigation Wooden Box
  • Delivery Time: 50-60 Working Days
  • Payment Terms: TT; LC
  • Supply Ability: 30sets/month
  • Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
  • Applications: Full Rotary/Semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/Slitting Machinery
  • Service: OEM/ODM
  • Design: Self Devolopment And Patented
  • Agent Wanted Turret Slitting Machinery Rewinder Machine, 4 Shaft Turret Rewinder , Save Labor 2-3 Person From Cost


Support and Services:

AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER Technical Support and Service includes:

  • 24/7 customer service hotline to answer inquiries about the product.
  • On-site maintenance and troubleshooting to keep the machine running at optimum performance.
  • Regular preventive maintenance to reduce the risk of unexpected breakdowns.
  • On-site technical training to ensure smooth operation and efficient utilization of the equipment.
  • Software and hardware upgrades to keep the machine up to date with the latest technology.


Packing and Shipping:

Packaging and Shipping of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER

AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is normally packed in wooden box, packed with wrapped film and fumigation wooden box. In order to ensure the safety of the equipment, the outside of wooden box will be marked with shipping mark. so we can ensure that the package reaches its destination safely and on time.



FAQ:

Q: What is the brand name of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER?
A: The brand name of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is Supreme.
Q: What is the model number of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER?
A: The model number of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is SZ.
Q: Where is the place of origin of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER?
A: The place of origin of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is China.
Q: What is the minimum order quantity of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER?
A: The minimum order quantity of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is 1.
Q: What is the price of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER?
A: The price of AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER is negotiable.


Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

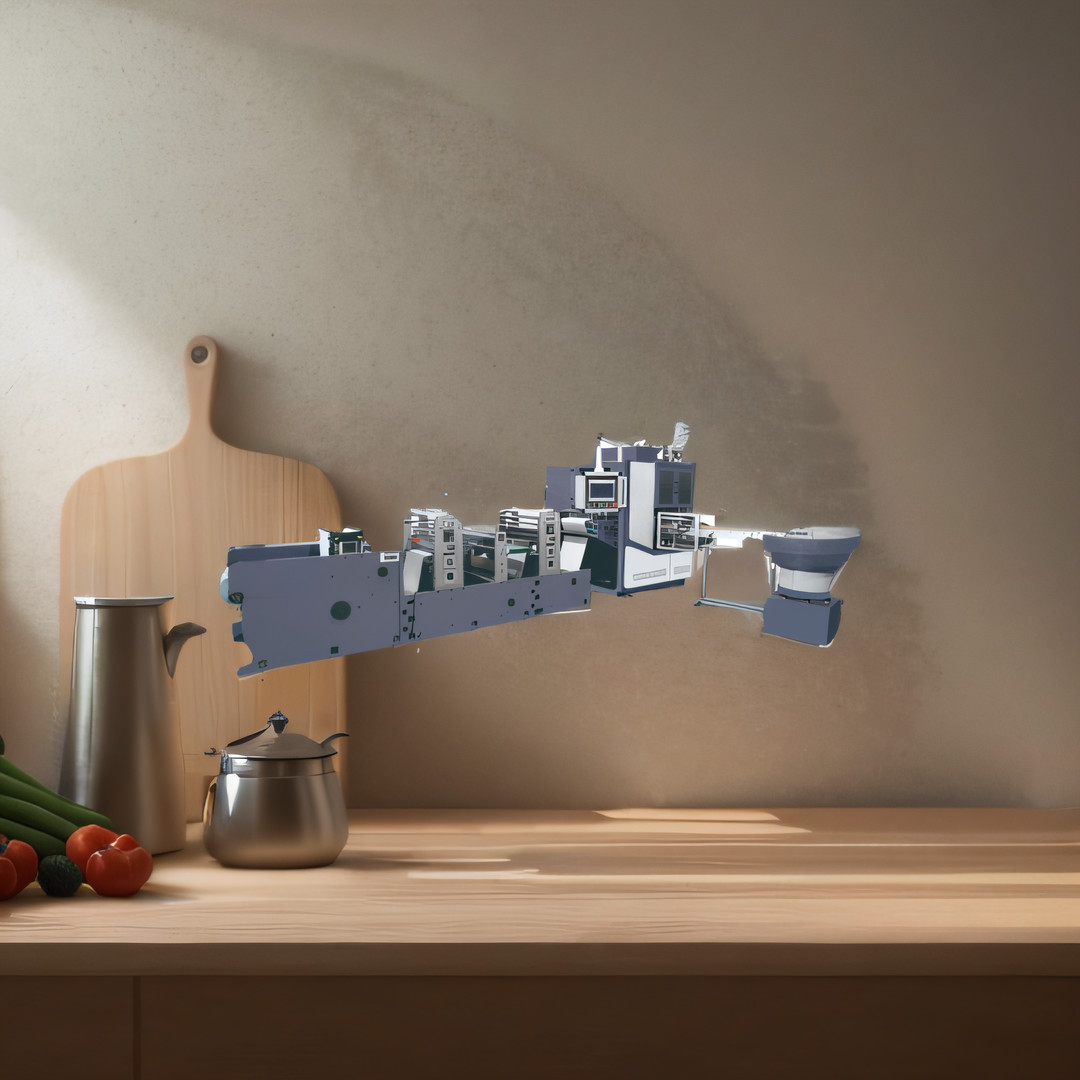

AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER 1AGENT WANTED TURRET SLITTING MACHINERY REWINDER WITH SEMI AUTO AND FULL AUTOMATIC LABELING 4 FOUR SPINDLE TURRET SLITTER 2
