SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: fumigation wooden box
Delivery Time: 50-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Product Name: SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER Design: Self Devolopment And Patented
Packaging: Wooden Box Fumigations Color: Customized
Type: Lable Adhesive Paper Sticker Solution Applications: Full Rotary/semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/slitting Machinery
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

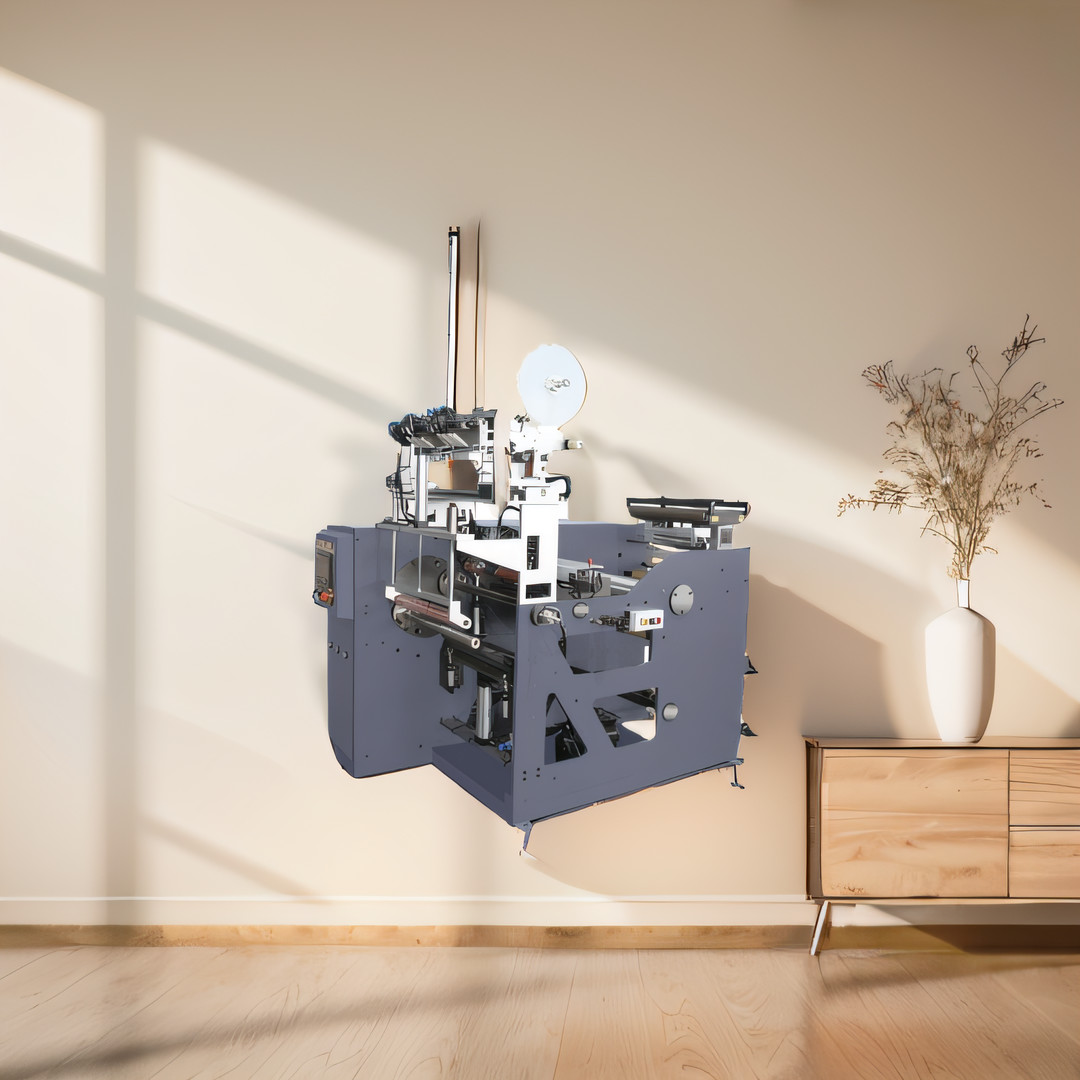

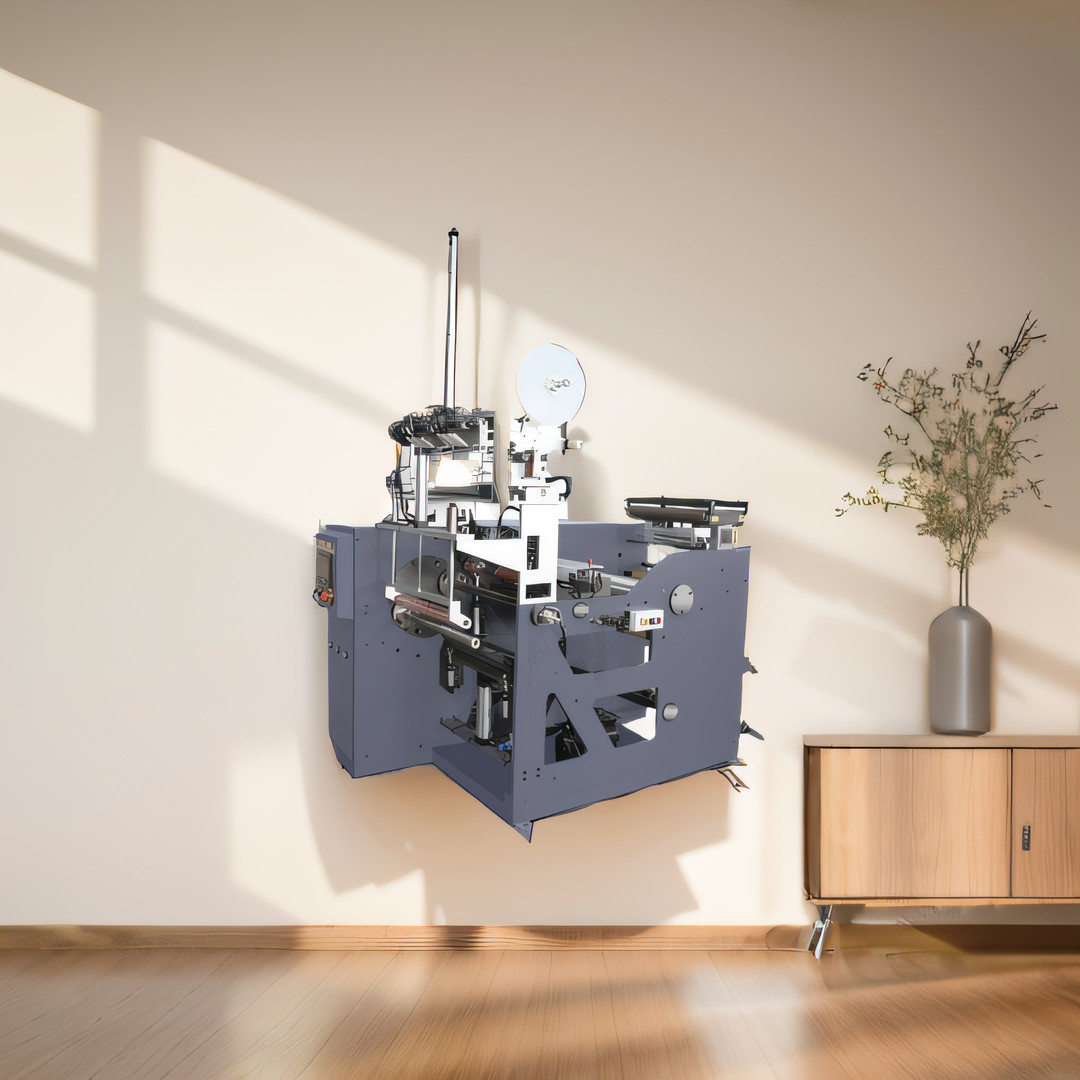

SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER

Product Description:

Automatic Turret 4 shafts rewinder is a fully automatic rewinding machine which is designed to meet the needs of label production. Connected together with a slitting machine or another multi-functional machine with a slitting station, the machine is capable of performing uninterrupted rewinding works, thus enhancing production efficiency.

The Copy Paper Rewinder has numerous advantageous features. To start with, it is equipped with an automatic core loading system featuring a storage tower meant for small cores. Furthermore, for positioning cores accurately and automatically onto the rewind shaft, an automatic feeding system boasting a mechanical arm is integrated in the machine. There is also an automatic core applying unit, PLC and touchscreens embedded for user-friendly and convenient control, a 4-spindle automatic turret rewinder, an automatic roll eject system, an automatic labeling as standard, no need for complicated changeover times (other than rewind shaft changeover), a high speed of 50-120 m/min, double sided heavy-duty machine body ensuring the machine to work stably in high speed, a large roulette supported by a custom-designed turret which is maintenance-free for a decade as well as a unique combination of mechanical and electrical characteristics allowing the handling of single expansion shaft for 8-die rewinding roll without risking the roll of being pinched.



Applications:

The rewinder can be connected to a variety of production machineries. This includes rotary die cutting machines, slitting machines, and flexographic printing machines. It is enabled with the convenient quick release air-expansion shaft of various sizes such as 1-inch, 1.5-inch, and 2-inch.

What makes the rewinding machine particularly special is that manual mechanical adjustments are unnecessary when changing reels of different sizes. The system of the machine is finely tuned to be able to automatically adjust the reel size. This reduces labor force for a more efficient production.



Customization:

SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER

Brand Name: Supreme

Model Number: SZ

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: fumigation wooden box

Delivery Time: 50-60 working days

Payment Terms: TT;LC

Supply Ability: 30sets/month

Color : Customized

Applications: Full Rotary/semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/slitting Machinery

Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft

Service: OEM/ODM

We provide agent wanted turret slitting machinery rewinder machine, Adhesive Label Slitting Machine High Speed with Turret rewinder Slitter Rewinder, lable non stop no glue turret rewinder slitting and rewinding machine.



Support and Services:

SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER provides technical support and services to ensure that customers can enjoy a quality product experience. Our technical support team will provide timely and effective assistance to help customers solve problems. Our team will answer all questions related to the product and provide expert advice. We also offer installation and maintenance services, providing the necessary tools and materials to ensure the smooth operation of the machinery. We also provide periodic maintenance and repairs to keep the machinery in optimal condition. In addition, we provide spare parts and replacement services for parts that cannot be repaired. Our customer service team is also available to answer any questions and provide assistance.



Packing and Shipping:

SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER
Packaging and Shipping:

TheSELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER is securely packaged in fumigation wooden box and then shipped via air, sea, or land transport. All components are checked for proper assembly and function before shipping.

```

FAQ:

Q1: What is the brand name of the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER ?

A1: The brand name of the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER is Supreme.

Q2: What is the model number of the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER ?

A2: The model number of SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER is SZ.

Q3: Where is the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER made?

A3: The SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER is made in China.

Q4: Does the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER have a CE certification?

A4: Yes, the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER has a CE certification.

Q5: How many sets of the SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER can be supplied each month?

A5: The SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER can be supplied up to 30sets per month.



Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company



SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER 1SELF DEVOLOPMENT AND PATENTED 4-SPINDLE AUTOMATIC TURRET REWINDER 1-INCH 1.5-INCH 2-INCH MAX 350MM REWINDING DIAMETER 2
