Material: | Paper Adhesive Sticker Label Layers | Design: | Self Devolopment And Patented |
---|---|---|---|
Applications: | Full Rotary/semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/slitting Machinery | Advantage: | 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft |
Voltage: | 220V/380V | Service: | OEM/ODM |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
Product Name: | LABEL NO GLUE NON STOP TURRET SLITTER REWINDER FOR ADHESIVE LABEL PAPER PROCESS MACHINERY 4 SPINDLE 120M/MIN 30MM REWIND | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

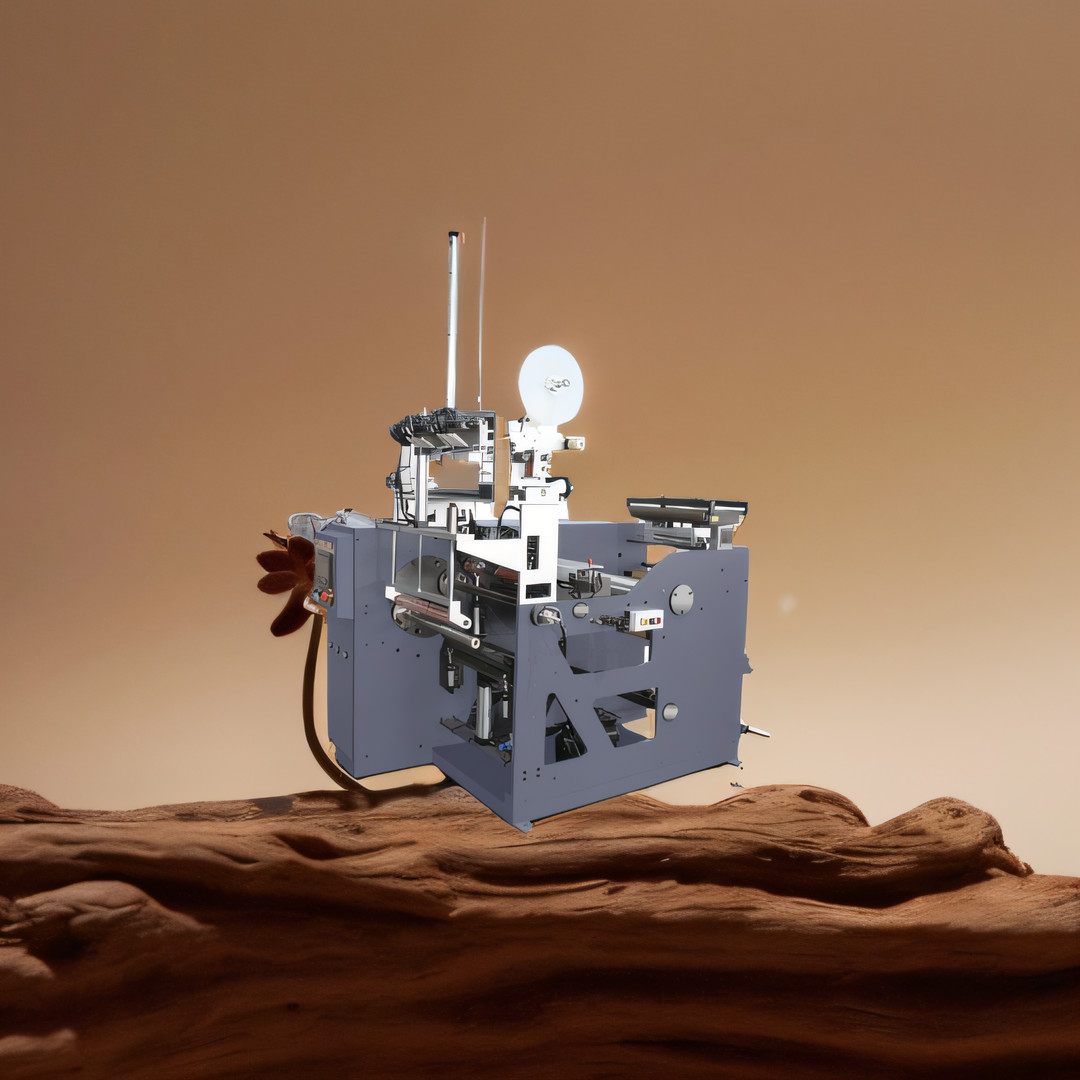

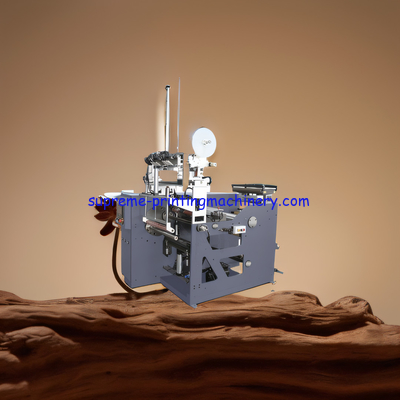

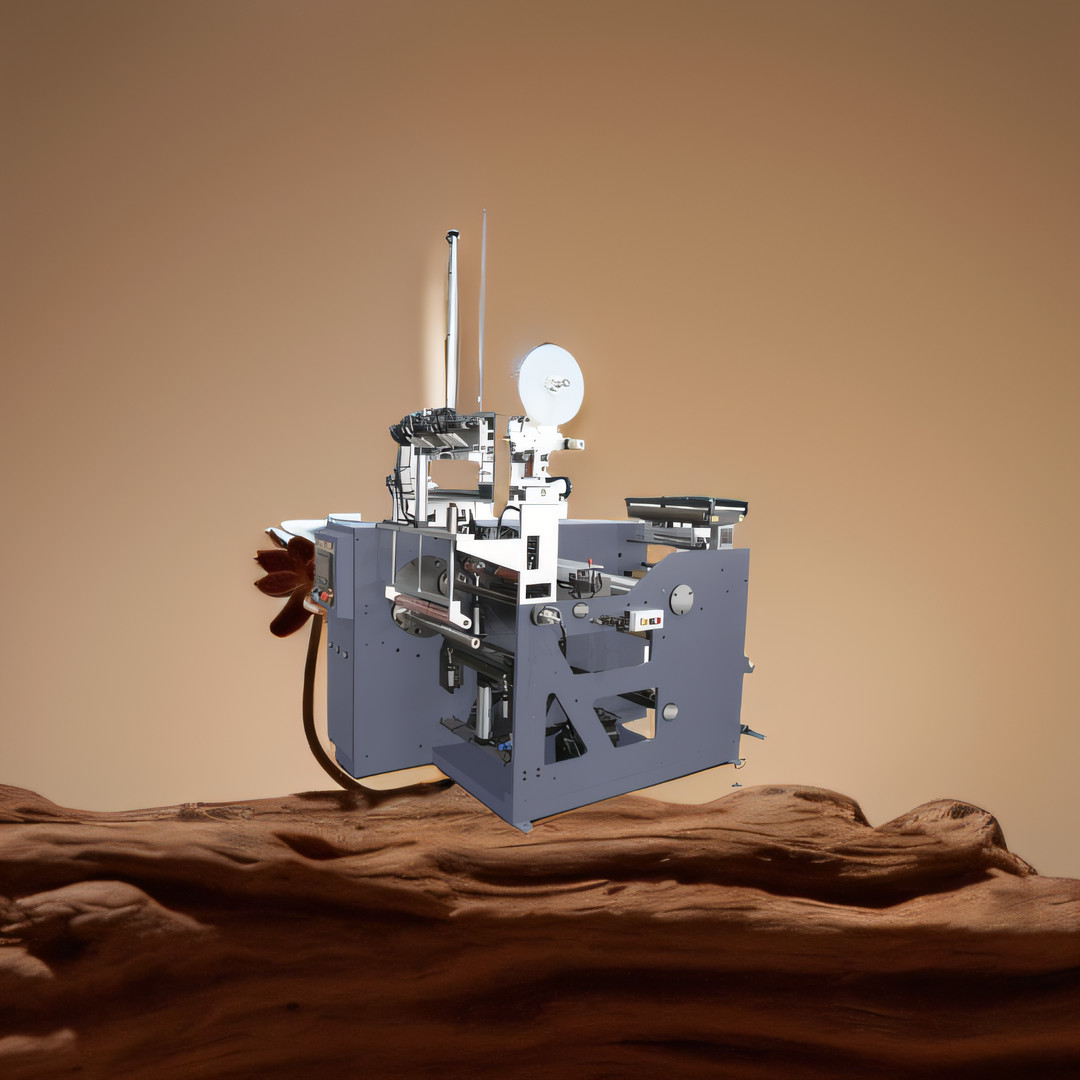

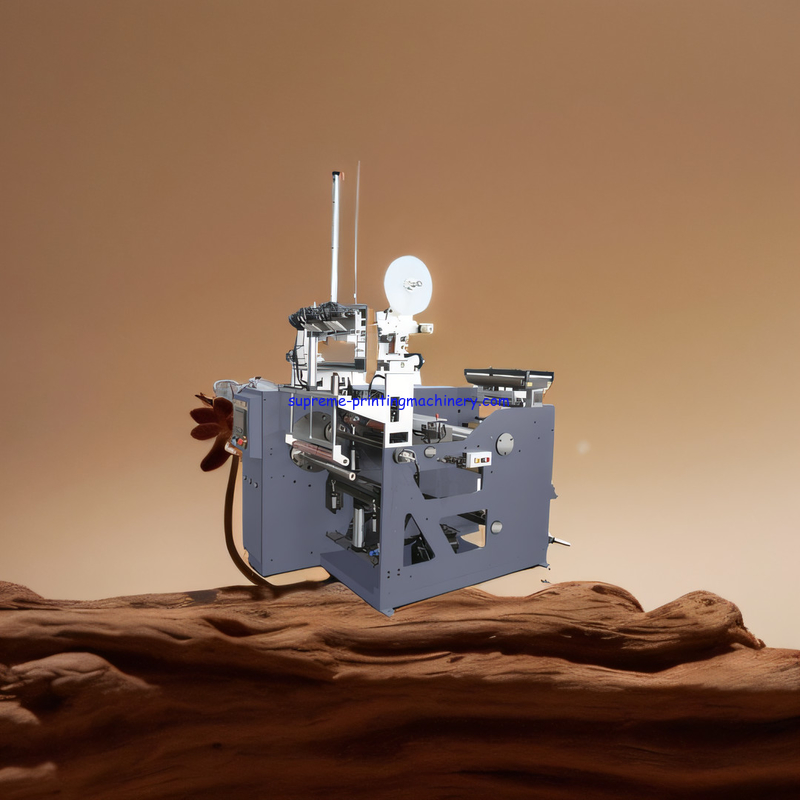

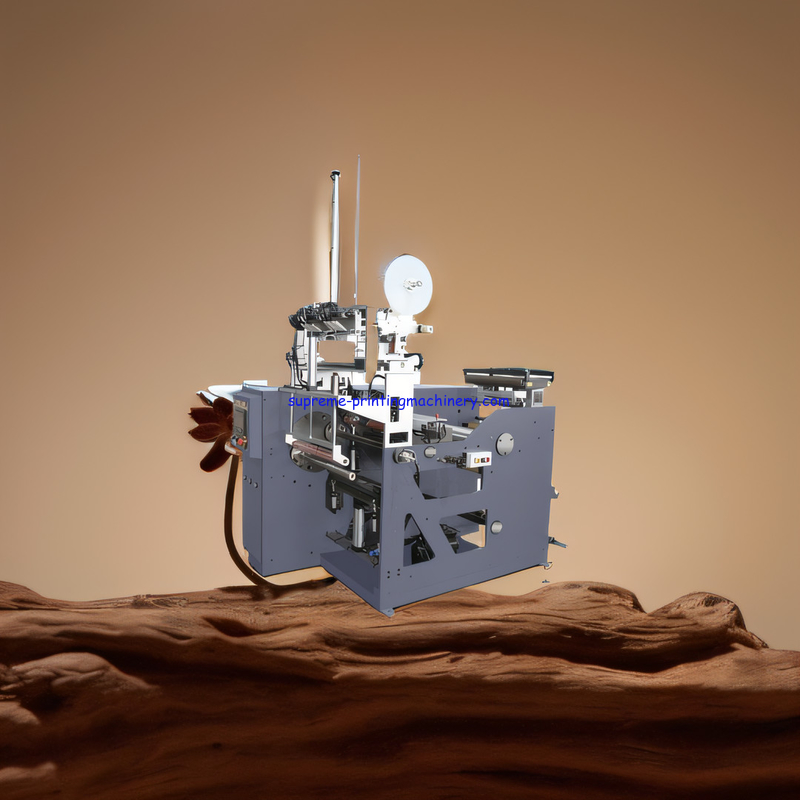

The Automatic Turret 4 shafts Rewinder is a fully automatic rewinding machine, and is suitable for label production. This machine works together with a slitting machine or other multifunctional machine with slitting station, which ensures a non-stop rewinding process to increase production efficiency.
This machine is equipped with several features to maximize its efficiency. Firstly, an automatic core loading system with a storage tower for small cores is provided. Secondly, an automatic feeding system with a mechanical arm is included to ensure cores are accurately and reliably positioned to the rewind shaft. Thirdly, PLC and touch screen automatic control are integrated into the system to enable a more user-friendly operation. Fourthly, the machine is able to apply glue to cores automatically. Fifthly, 4 spindle automatic turret rewinding is installed. Sixthly, an automatic roll eject system is included. Seventhly, an automatic labeling system is also provided, making the machine very cost-effective. Eighthly, no extra time for changeover is needed other than rewind shaft changeover. Lastly, the machine operates at the speed of 50 to 120m/min with a double side heavy machine body to ensure stable operation in high speed.
In addition, a large roulette is supported by a professional customized turret which can last for a full ten years without maintenance. Furthermore, an optimized combination of mechanical and electrical parts can achieve a single expansion shaft with eight-die rewinding roll without any issue.The rewinder can be connected to a variety of machines, which includes rotary die cutting, slitting machines, flexographic printing machines and so on. It's equipped with a quick release air-expansion shaft of sizes 1 inch, 1.5 inches, and 2 inches. With the system on the rewinding machine, manual and mechanical adjustments are no longer needed when dealing with different reel sizes. This is great for lowering labor forces, as the machine is able to adjust for itself, allowing for an intelligent production.
We provide technical support and services for our LABEL NO GLUE NON STOP TURRET SLITTER REWINDER FOR ADHESIVE LABEL PAPER PROCESS MACHINERY 4 SPINDLE 120M/MIN 30MM REWIND products, including but not limited to:
Our technical support and service team is available 24/7 to provide you with the best support and service you need for your LABEL NO GLUE NON STOP TURRET SLITTER REWINDER FOR ADHESIVE LABEL PAPER PROCESS MACHINERY 4 SPINDLE 120M/MIN 30MM REWIND
LABEL NO GLUE NON STOP TURRET SLITTER REWINDER FOR ADHESIVE LABEL PAPER PROCESS MACHINERY 4 SPINDLE 120M/MIN 30MM REWIND is carefully packaged to ensure it is safe during transit. Our packaging is designed to protect the product from any damage that may occur during shipping. We use film wrapped and fumigation wooden box
We use a combination of the most reliable shipping methods to ensure that our customers receive the product in the best condition. Our shipping partners are well-known and reliable, and they provide tracking information so you can track your package every step of the way.
Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece
3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces
5. Tool box: 1 box
6. internal hexagonal wrench:1 set
7: open spanner:10-17:1 group
8: Slotted screwdriver and cross screwdriver: 1piece/each
9: Level adjuster screw: 4 piece
10: circlip plier: 6#: 2 pieces
11:Oil gun: 1 piece
12:magnetic valve:DC24V:2 pieces
13:Relay:DC24V:2pieces
14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece
15:330/450/570 knife:1 pieces
16:Auto labeling device:1 set
Specification:
Machine Model | SZ-330 | SZ-450 | SZ-570 |
Max rewinding diameter (glue type) |
350mm | 350mm | 350mm |
Max rewinding diameter (glue free) |
200mm | 200mm | 200mm |
Max Paper feeding | 330mm | 450mm | 570mm |
Max rewinding speed | 50-120m/min | 50-120m/min | 50-120m/min |
Mini rewinding width | 30mm | 30mm | 30mm |
Power source | 380V/3P/50HZ | 380V/3P/50HZ | 380V/3P/50HZ |
Power | 13 kw | 13 kw | 13kw |
Air source | 0.8Mpa 1m3/min | 0.8Mpa 1.5m3/min | 0.8Mpa 1.5m3/min |
Machine Dimensions |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2200x2800mm (glue type) 3700 x2200 x2800 (glue free) |
Machine weight |
2500 kgs (glue type) 3500 kgs (glue free) |
2500 kgs (glue type) 3500 kgs (glue free) |
2800 kgs (glue type) 3800 kgs (glue free) |
The advantage of ours machine(finished by glue-less non-stop turret rewinder):
1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least
