VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Rewinding Part: AB Turret Graphic Rewinding Adhesive: Yes
Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Type: Lable Adhesive Paper Sticker Solution Voltage: 220V/380V
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM

Product Description:

Automatic Turret 4 Shafts Rewinder

The Automatic Turret 4 Shafts Rewinder is a fully automatic rewinding machine, most commonly used for labeling production. This machine is connected to a slitting machine or other multifunctional device with slitting capability, and can perform non-stop rewinding for increased efficiency.

This rewinder is equipped with several features, such as automatic core loading with a storage tower for smaller cores, an automatic feeding system with mechanical arm to ensure precise positioning of the cores onto the rewind shaft, and PLC and touch screen automatic control for improved user-friendliness. Additionally, this rewinder includes an automatic gluing system (for a glue-type machine) and automatic labeling as standard.

What's more, this rewinder eliminates the need for changeover times (other than rewind shaft changeovers), and runs at a high speed of 50-120m/min. The double-sided heavy machine body provides stability when running at high speed, and the remodeled turret is maintenance-free for 10 years. Lastly, the optimized combination of mechanics and electricals make it possible to rewind single expansion shafts for eight die rolls without damaging the rotation.



Applications:

The rewinder can be quickly connected to machines such as rotary die cutting, slitting and flexographic printing machines. It is equipped with a quick release air-expansion shaft of 1, 1.5 and 2 inches in diameter. Working with the rewinding machine does not demand manual mechanical adjustments when changing reel sizes, since its system can automatically run necessary adjustments to lessen labour force. This feature adds to the machine's intelligence in production.



Customization:

Customized VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM

Brand Name: Supreme
Model Number: SZ
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Fumigation Wooden Box
Delivery Time: 50-60 Working Days
Payment Terms: TT; LC
Supply Ability: 30sets/Month
Adhesive: Yes
Applications: Full Rotary/Semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/Slitting Machinery
Material: Paper Adhesive Sticker Label Layers
Size: 330/450/570mm
Rewinding Part: AB Turret Graphic Rewinder

Are you looking for a rewinder machine to make your adhesive label paper sticker processing easier? Look no further than Supreme’s customized VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM. Our 4-shaft turret rewinder and no glue turret slitter machine are perfect for a wide range of applications, from full rotary to semi intermittent rotary to Mark Andy, Omit, Neil Peter Flexo Printing, and slitting. Our machinery is made of the highest-quality adhesive sticker label layers and comes in sizes of 330, 450, and 570 mm. With an AB Turret Graphic Rewinder, you can be sure our machinery is both reliable and efficient. Get your customized VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM with Supreme today!



Support and Services:

Technical Support & Services for VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM

We provide full technical support and services for VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM, including:

  • On-site installation and commissioning
  • Inspection, maintenance and repair
  • Troubleshooting and technical advice
  • Online remote support
  • Training and technical seminars

Our team of experienced engineers and technicians are available 24/7 to provide you with the best service and support for your machinery.



Packing and Shipping:

Packaging and Shipping for VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM

The VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM will be carefully packaged and securely shipped to your destination. It will be securely wrapped for safe transport and then placed into fumigation wooden box. The box will be labeled with the necessary shipping information, including the product name and destination address.

The package will be secured using wrapped film and the fumigation wooden box. It will be then delivered to the shipping partner, who will take care of delivering it to its destination.



FAQ:

Q: What is the brand name of VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM?
A: The brand name is Supreme.
Q: What is the model number of the product?
A: The model number is SZ.
Q: Where is the product made?
A: The product is made in China.
Q: What certifications does it have?
A: It is certified with CE.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1.


Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

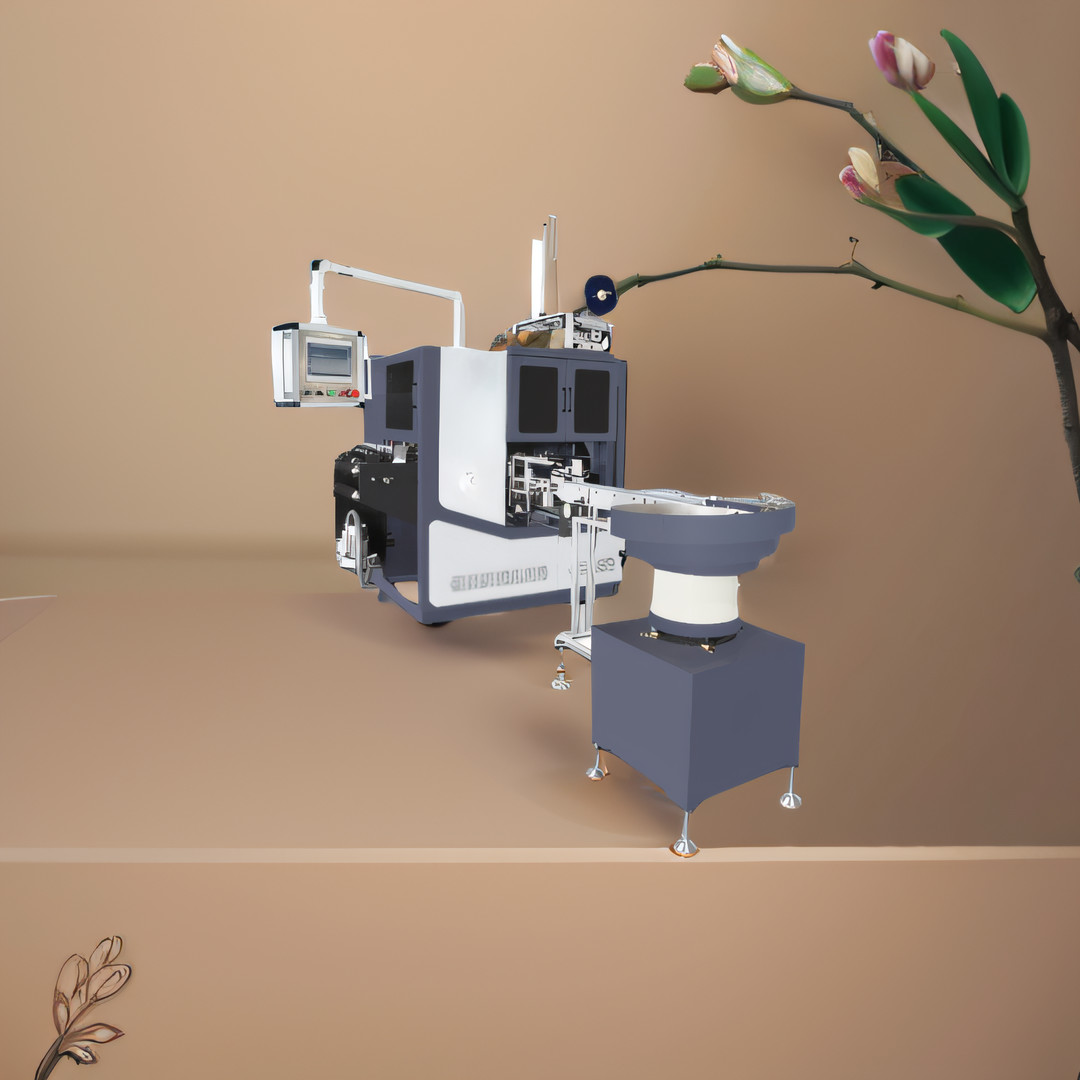

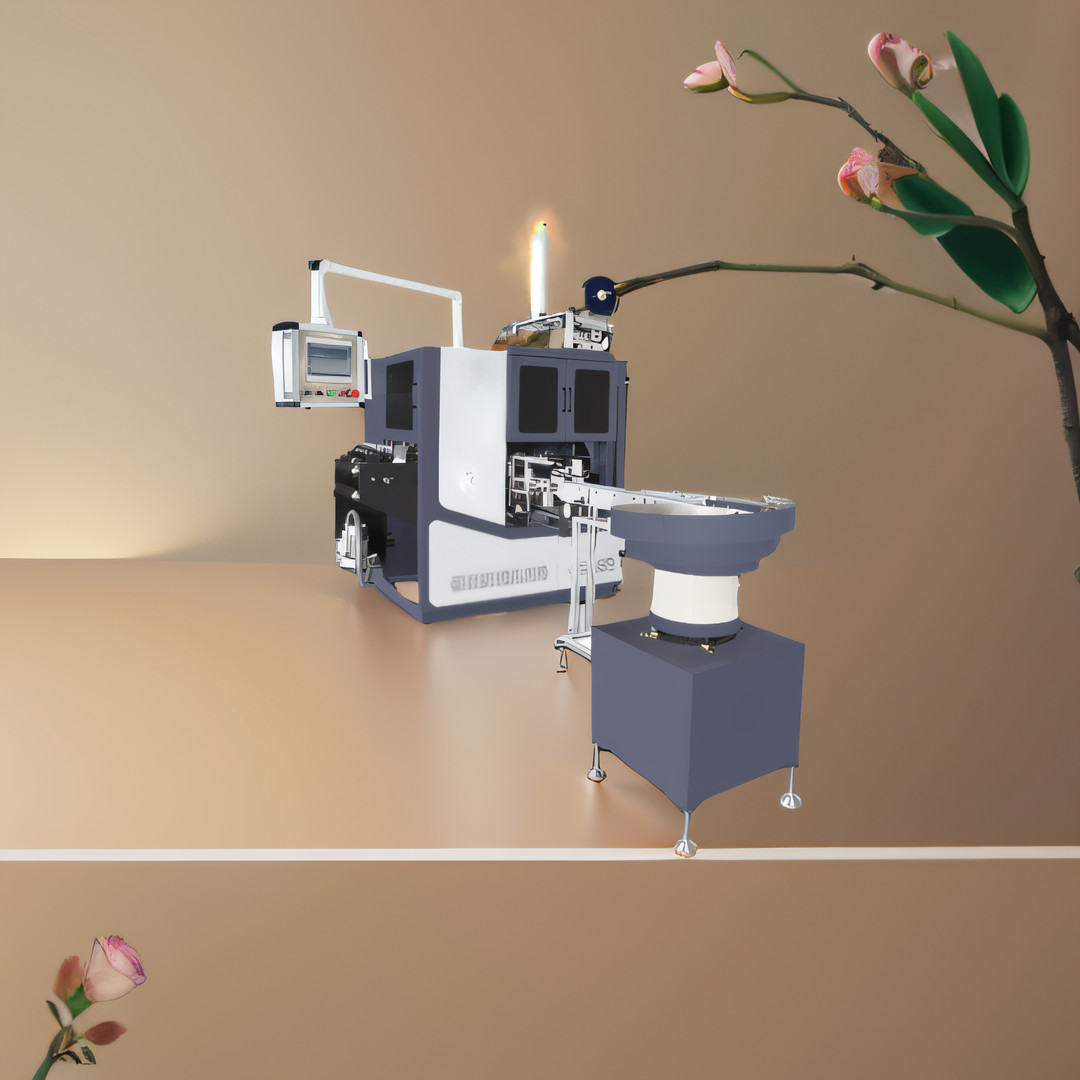

VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM 1VOLTAGE 220V LABLE SOLUTION LABEL NON GLUE NO STOP TURRET SLITTER REWINDER MACHINERY FULL AUTOMATIC 350MM REWIND 30MM 2
