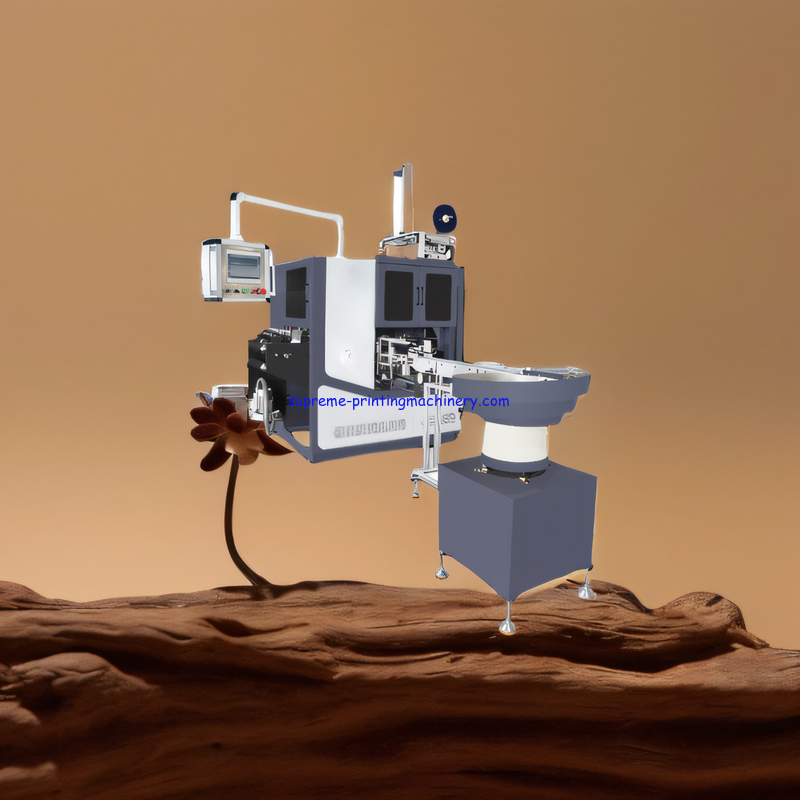

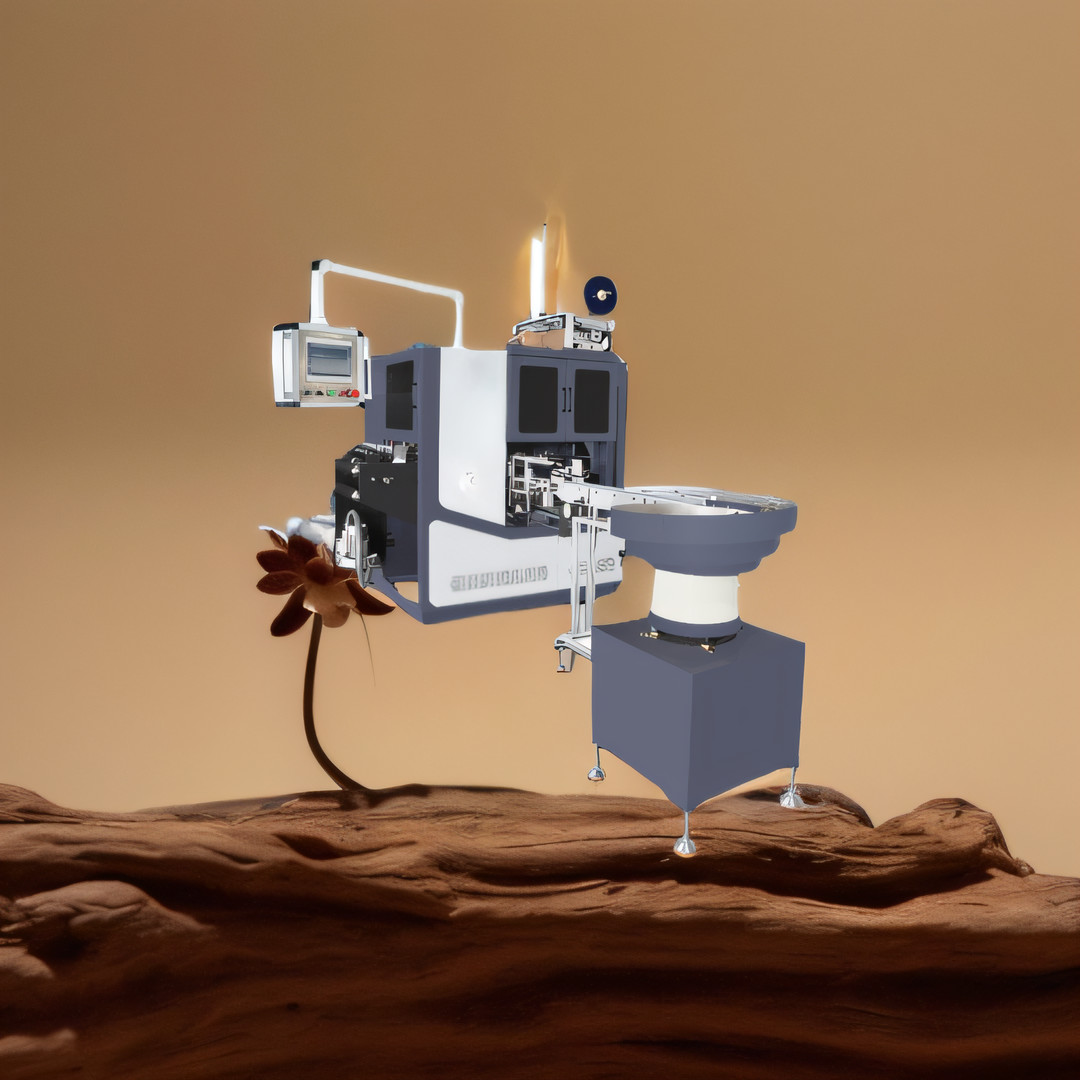

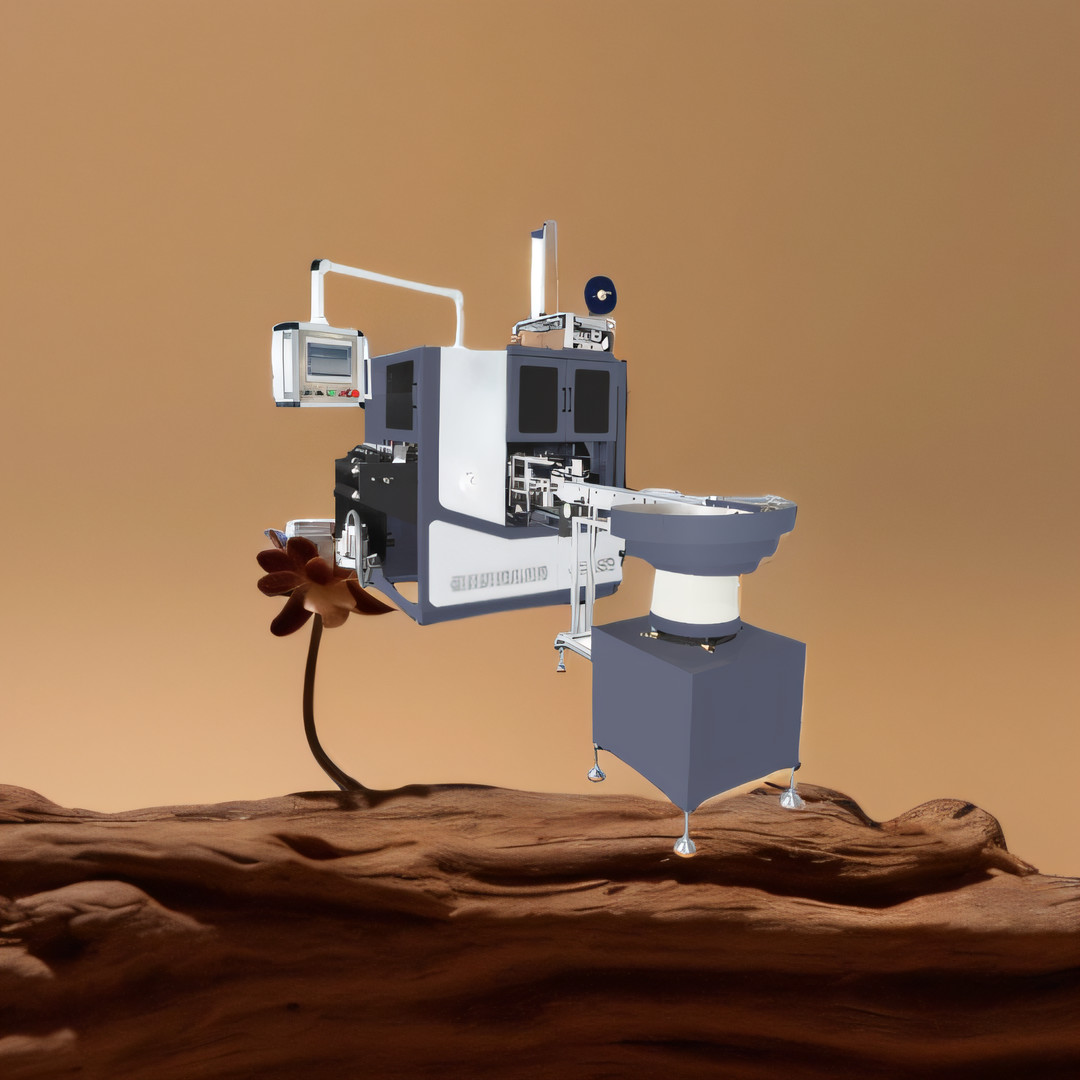

ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Applications: Full Rotary/semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/slitting Machinery Adhesive: Yes
Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Material: Paper Adhesive Sticker Label Layers Product Name: ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY
Type: Lable Adhesive Paper Sticker Solution Video: For Video Sent Please Wechat/wa Me:+8618072118971
Language: Can Customized Into Client Regular Language For Easy Operations Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY

Product Description:

Automatic Turret 4 shafts rewinder is a fully automatic rewinding machine that is typically suitable for label production. When used with a slitting machine or a multifunctional machine with a slitting station, it is capable of non-stop rewinding, thus enhancing production efficiency.

The Copy Paper Rewinder has several key features, including an automatic core loading system, which is equipped with a storage tower for small cores. Additionally, it has an automatic feeding system equipped with a mechanical arm which ensures accurate positioning of cores onto the rewind shaft. The user-friendly interface uses a PLC and a touch screen to control operation and a labeling system as standard.

Other features include the automatic application of glue (for glue type machines), 4-spindle automatic turret rewinding, automatic roll eject system, no changeover times (besides the rewind shaft changeover) and a high speed of 50-120m/min.

Moreover, the double-sided heavy machine body ensures stable running at a high speed and the large roulette is supported by a professional, customized turret with no maintenance needed for 10 years. To further optimize operation, a combination of mechanical and electrical elements has been implemented, allowing for single-expansion shafts on eight-die rewinding rolls without any tears or creases.



Applications:

The Rewinder:

The rewinder is a great tool that can be connected to rotary die cutting, slitting machines, flexographic printing machines, and other equipment. It has a quick release air-expansion shaft that is available in 1-inch, 1.5-inch, and 2-inch sizes.

The best feature of the rewinding machine is the fact that it does not require manual adjustments when changing the size of different reels. Its system can automatically adjust to different reel sizes, saving the user from tedious manual labour for a highly intelligent and efficient production.



Customization:

Supreme SZ ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY offers customized services for customers. This product has the following attributes: Brand Name: Supreme; Model Number: SZ; Place of Origin: China; Certification: CE; Minimum Order Quantity: 1; Price: negotiation; Packaging Details: fumigation wooden box; Delivery Time: 50-60 working days; Payment Terms: TT;LC; Supply Ability: 30sets/month; Design: Self Devolopment And Patented; Material: Paper Adhesive Sticker Label Layers; Rewinding part: AB Turret Graphic Rewinding; Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft. Our ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY has four rewind shaft turret type slitting machine, auto paper core loader, which is the key of the profit.



Support and Services:

ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY Technical Support and Services

We provide technical support and services for ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY to ensure that it runs smoothly and efficiently. Our team of trained professionals can provide custom solutions to any of your needs, from installation and configuration to repairs and maintenance.

We offer on-site services for installation and configuration, as well as troubleshooting and repairs. We also provide remote support via phone or email to help you diagnose issues and answer questions. Our team is always available to answer questions and provide support.

We also offer periodic maintenance services that can help keep your ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY running smoothly and efficiently. Our maintenance services include inspections, cleaning, and repairs to ensure that your equipment is always working properly.

At ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY, our goal is to provide you with the best technical support and service available. We are committed to ensuring your satisfaction with our products and services.



Packing and Shipping:

The ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY is packaged and shipped in multiple layers of protective material in order to ensure that the product arrives to its destination in perfect condition. The product is first wrapped in wrapped film . Then, the product is placed in a fumigation wooden box protect from damaged during transit. Finally, the box is marked with shipping mark and finally shipped.



FAQ:

  • Q: What is the brand name of ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY?
    A: The brand name of ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY is Supreme.
  • Q: What is the model number of ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY?
    A: The model number of ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY is SZ.
  • Q: Where is the ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY made?
    A: The ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY is made in China.
  • Q: Does the ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY have CE certification?
    A: Yes, the ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY has CE certification.
  • Q: What is the minimum order quantity for ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY?
    A: The minimum order quantity for ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM AUTOMATIC CORE LOADING SYSTEM TURRET SLITTER REWINDER MACHINERY is 1.



Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
