CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Service: OEM/ODM Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Voltage: 220V/380V Design: Self Devolopment And Patented
Packaging: Wooden Box Fumigations Type: Lable Adhesive Paper Sticker Solution
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET

Product Description:

Automatic Turret 4 shafts rewinder is a fully automatic rewinding machine designed for label production, which can be easily connected to a slitting machine or other multi-functional machinery with slitting station for non-stop and highly efficient mechanism.

It boast a wide range of features, such as: automatic core loading feature that comes equipped with a storage tower for small cores, automatic feeding system with mechanical arm to ensure quick and accurate positioning of cores onto the rewind shaft, PLC and touch screen automatic control for an easier operation, automatic application of glue (glue-type machine) to cores, 4 spindle automatic turret rewinding, automatic roll eject system, ability of automatic labeling as standard, no changeover times involved, maximum speed of 120m per minute, double side heavy body machine to ensure stable running at high speed, professionally-customized turret that is maintenance-free, and an optimized combination of mechanical and electrical components which can realize single expansion shaft for eight die rewinding roll without biting the roll.



Applications:

The rewinder is suitable for connecting with rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a quick release air-expansion shaft of 1 inch, 1.5 inch and 2 inch size. It eliminates the need of manual mechanical adjustment when changing the size of reels and automatically adjusts the reels size for reducing the labor intensity, which facilitates intelligent production.



Customization:

Customized Services for CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET
  • Brand Name: Supreme
  • Model Number: SZ
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Fumigation Wooden Box
  • Delivery Time: 50-60 Working Days
  • Payment Terms: TT;LC
  • Supply Ability: 30sets/month
  • Packaging: Wooden Box Fumigations
  • Product Name: Label No Glue Turret Slitter Rewinder Semi Auto And Full Automatic Labeling System
  • Applications: Full Rotary/Semi Intermittent Rotary/Mark Andy/Omit/Neil Peter Flexo Printing/Slitting Machinery
  • Keywords: Small Roll Slitter Rewinder for Adhesive Label with Turret, Small Roll Slitter Rewinder for Adhesive Label with Turret, What is a turret rewinder?


Support and Services:

CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET provides technical support and services including:

  • Installation and commissioning
  • Training and certification
  • Maintenance and repair
  • Software and hardware updates
  • Troubleshooting and technical support


Packing and Shipping:

The CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is packaged and shipped with the following steps:

  • Examine the machinery for any damages and defects.
  • Package the machinery with protective materials such as film wrap, fumigation wooden box.
  • Securely attach the package to the shipping pallet.
  • Label the package with the item's name and shipping mark.
  • Ensure the package is sealed and secure.
  • Transfer the package from the warehouse to the shipping carrier.


FAQ:

Q: What is the Brand Name of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
A: The Brand Name of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is Supreme.
Q: What is the Model Number of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
A: The Model Number of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is SZ.
Q: Where is CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET produced?
A: CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is produced in China.
Q: Is CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET certified?
A: Yes, CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is certified with CE.
Q: What is the minimum order quantity of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET?
A: The minimum order quantity of CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET is 1.


Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

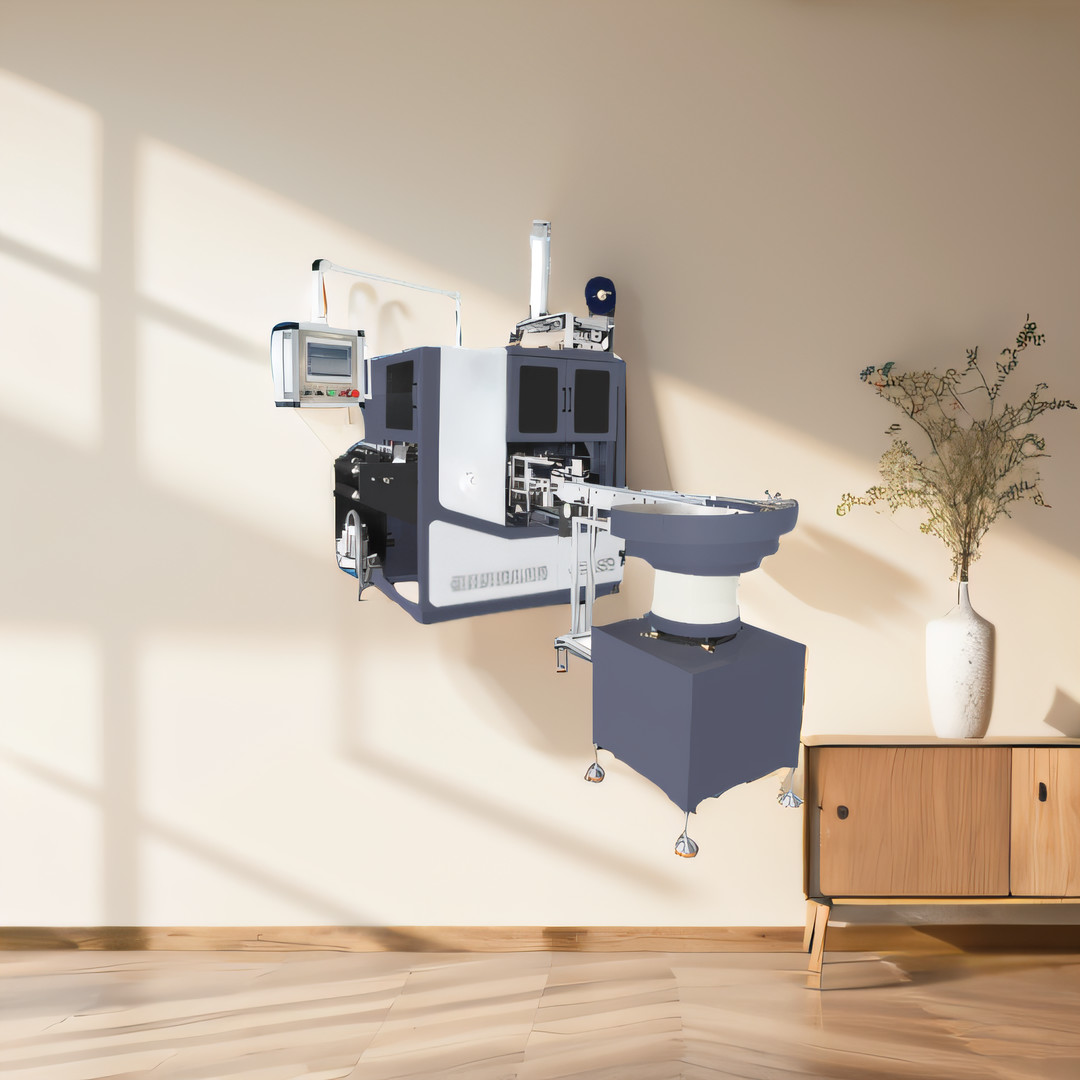

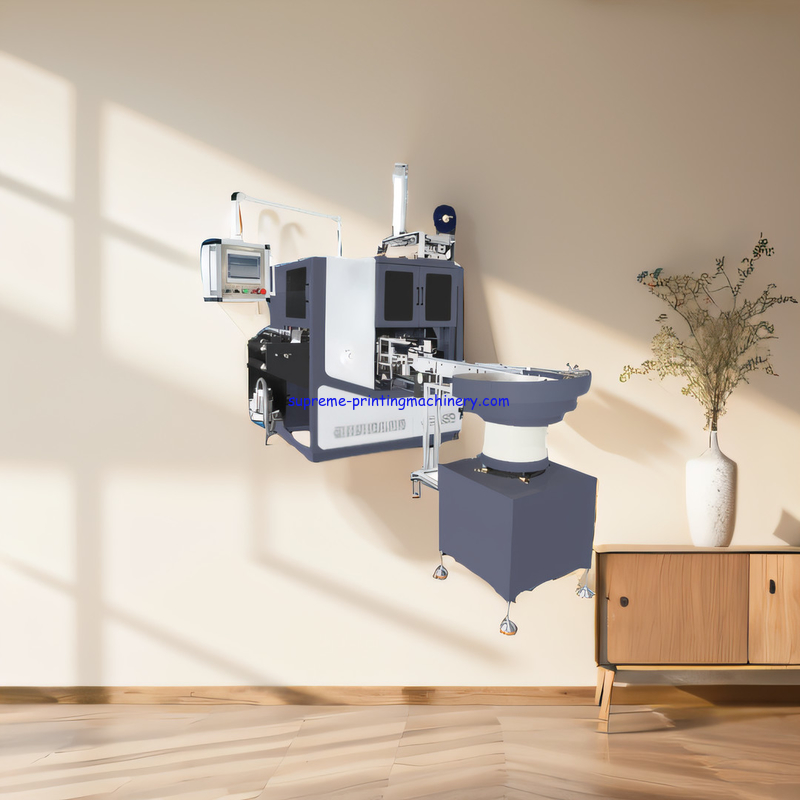

CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET 1CUSTOMIZED COLOR ADHESIVE LABEL PAPER PROCESS MACHINERY 330/450/570MM VOLTAGE 220V/380V FULLY AUTOMATIC REWINDING TURRET 2
