full SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Design: Self Devolopment And Patented Material: Paper Adhesive Sticker Label Layers
Type: Lable Adhesive Paper Sticker Solution Adhesive: Yes
Packaging: Wooden Box Fumigations Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Product Name: Full SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

full SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER

Product Description:

The Automatic Turret 4 Shafts Rewinder is a highly efficient tool designed for label production. It works in tandem with other multi-functional machines that include a slitting station, enabling them to work non-stop for enhanced production efficiency.

Its features make it suitable for both blank and printed labels after they were slit.

Part of the incredible features of the Copy Paper Rewinder include:

  • An automatic core loading system with the capacity to store small cores
  • An automated feeding system equipped with a mechanical arm for accurate, automatic positioning of cores onto the rewind shaft
  • A high-end PLC and touch screen control, making operation convenient
  • Automatic glue application system (gum type machine)
  • Automatic 4 spindle turret rewinding
  • Automatic roll eject system
  • Automatic labeling as a standard, offered on a very affordable price
  • No changeovers (save for rewind shafts)
  • High speed (between 50-120m/min)
  • Double side heavy machine body to guarantee stability of operations in high speed
  • A large customized turret with maintenance-free features for a decade
  • An optimized combination of mechanical and electrical components, letting this machine use a single expanding shaft for eight die rewinding rolls with no roll biting





Applications:

The rewinder can be connected to various machines such as rotary die cutting machines, slitting machines, and flexographic printing machines. It is fitted with a 1-inch, 1.5-inch, and 2-inch quick-release air-expansion shaft. This feature ensures that the rewinding machine does not need manual mechanical adjusting when changing different reel sizes. The machine is equipped with a system that automatically adjusts the size of the reel, thus eliminating the need for manual labor and increasing efficiency.



Customization:

Customized FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER

Brand Name: Supreme

Model Number: SZ

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Fumigation wooden box

Delivery Time: 50-60 working days

Payment Terms: TT;LC

Supply Ability: 30sets/month

Rewinding part: AB Turret Graphic Rewinding

Adhesive: Yes

Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft

Product Name: Label No Glue Turret Slitter Rewinder Semi Auto and Full Automatic Labeling System

Voltage: 220V/380V

Keywords:
  • 4 2 Shaft Turret Slitter
  • Agent Wanted Turret Slitting Machinery Rewinder Machine
  • Label Narrow Web Turret Rewinders


Support and Services:

FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER Technical Support and Service

We provide technical support and service for our FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER. Our team is made up of highly trained technicians who specialize in the installation and maintenance of the machinery.

We offer a comprehensive range of services, including:

  • Installation and startup services
  • Maintenance and repair services
  • Consultation services
  • Troubleshooting and problem solving services
  • Technical advice and support

Our team is available to answer any questions you have about the machinery and provide assistance when needed. If you need help with installation, setup, or maintenance, our technicians are here to assist.



Packing and Shipping:

The FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER will be packaged and shipped in accordance with the following standards:

  • The product will be safely wrapped in high-grade plastic film.
  • The product will be placed in a sturdy wooden box or shipping container, to protect against damage during transit
  • The shipment will include appropriate documentation, such as product manuals, safety instructions, and any other relevant paperwork.
  • The shipment will be sent via a reliable courier, with tracking enabled.


FAQ:

Q: What is the Brand Name of FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER?
A: The Brand Name of FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER is Supreme.
Q: What is the Model Number of FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER?
A: The Model Number of FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER is SZ.
Q: Where is FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER made?
A: FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER is made in China.
Q: What certifications does FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER have?
A: FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER has CE Certification.
Q: What is the Minimum Order Quantity for FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER?
A: The Minimum Order Quantity for FULL SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER is 1.



Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

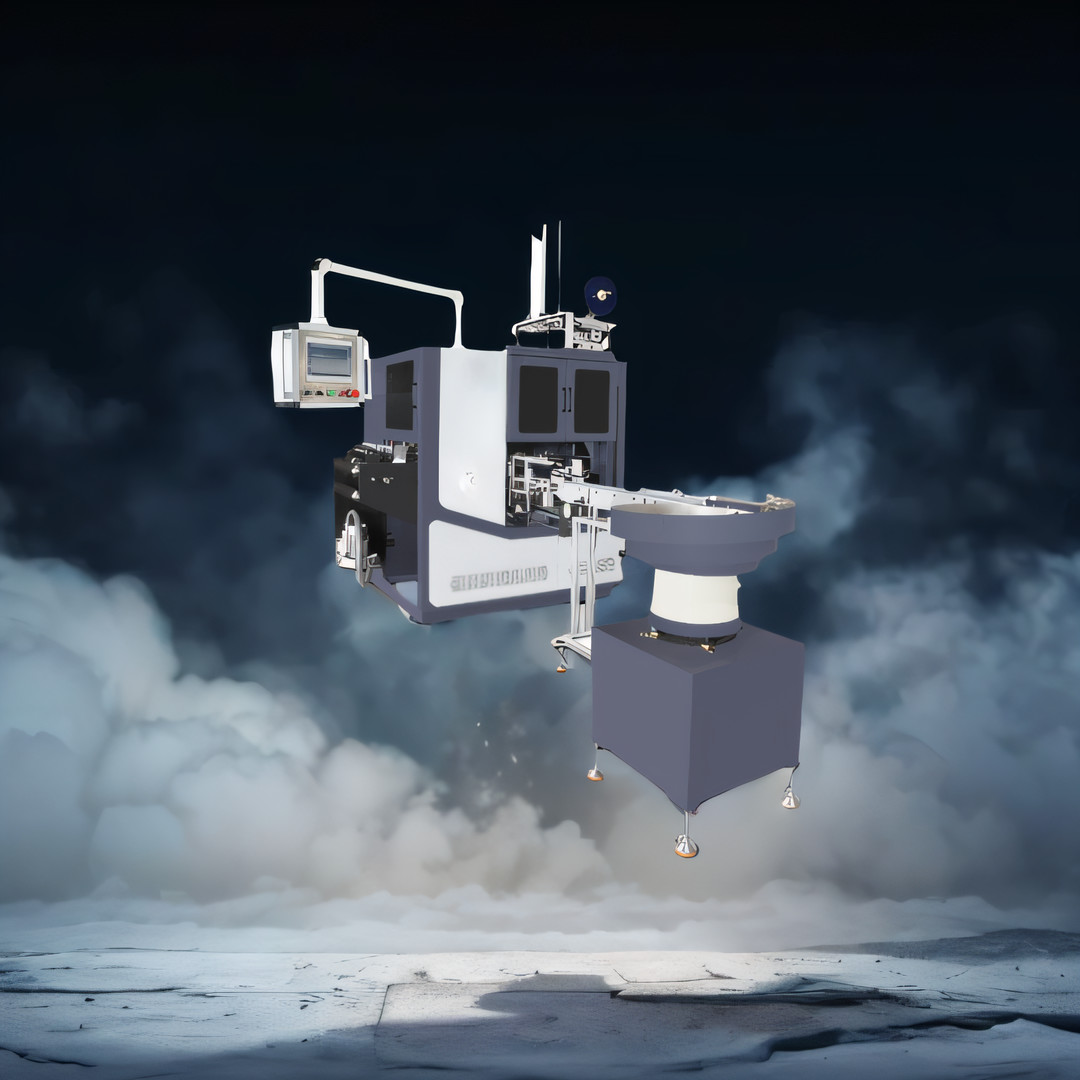

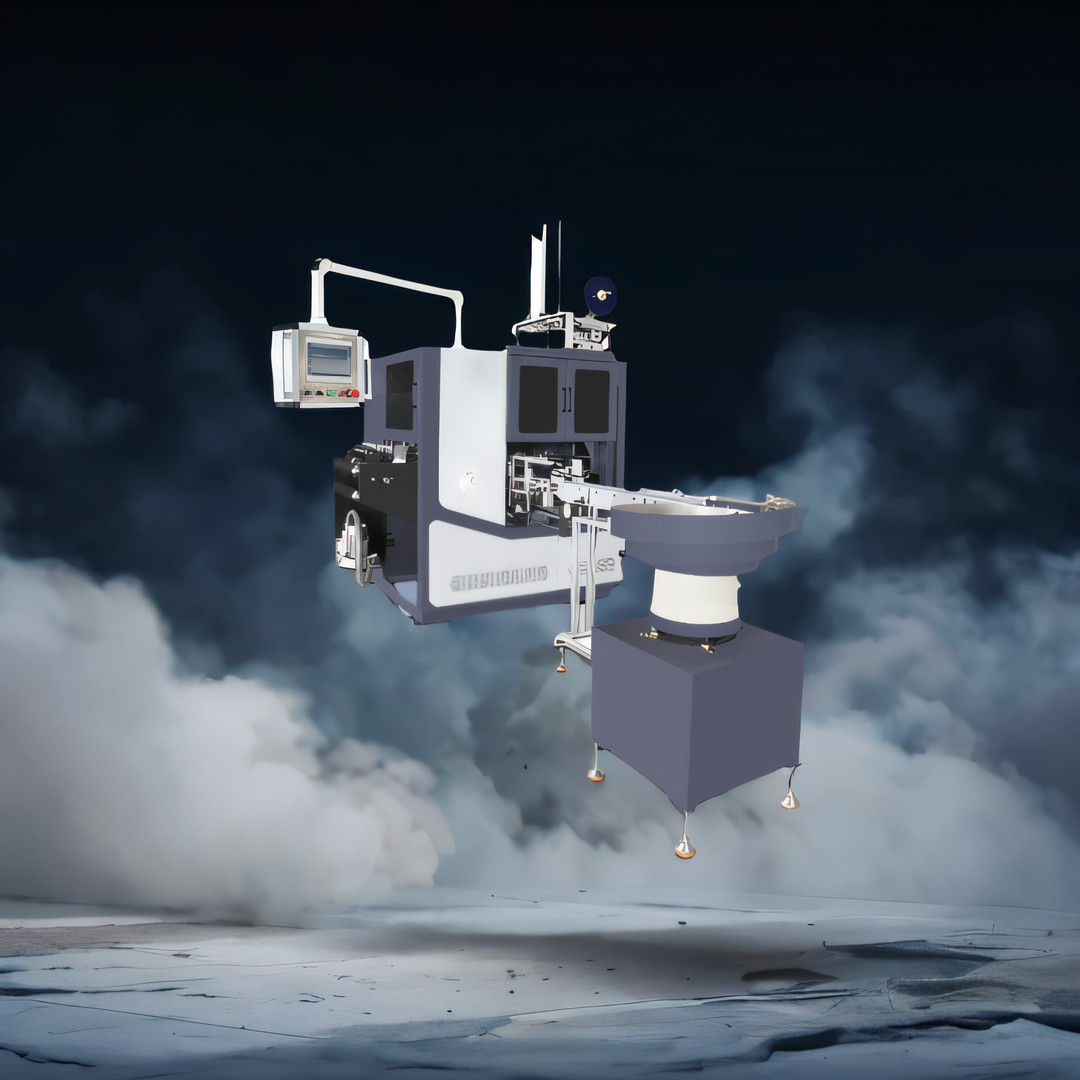

full SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER 1full SEMI AUTO LABEL SLITTER REWINDER FEATURING LABEL ADHESIVE PAPER STICKER SOLUTION AUTOMATIC TURRET 4 SHAFTS REWINDER 2
