| Place of Origin: | China |
|---|---|
| Brand Name: | Supreme |
| Certification: | CE |
| Model Number: | SZ |
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | fumigation wooden box |
| Delivery Time: | 50-60 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30sets/month |
| Color: | Customized | Voltage: | 220V/380V |
|---|---|---|---|
| Material: | Paper Adhesive Sticker Label Layers | Application: | Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label |
| Product Name: | AGENT WANTED TURRET SLITTING MACHINERY REWINDER MACHINE FOR PACKAGING WOOD BOX FUMIGATIONS AUTOMATIC TURRET 4 SHAFTS | Type: | Lable Adhesive Paper Sticker Solution |
| Size: | 330/450/570mm | Video: | For Video Sent Please Wechat/wa Me:+8618072118971 |
| Language: | Can Customized Into Client Regular Language For Easy Operations | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

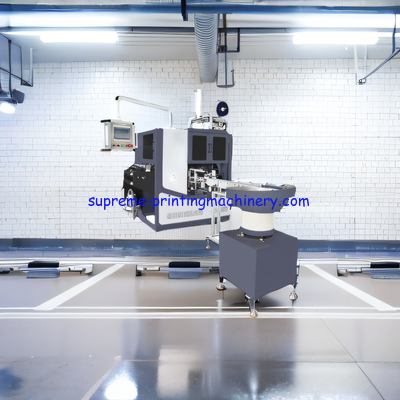

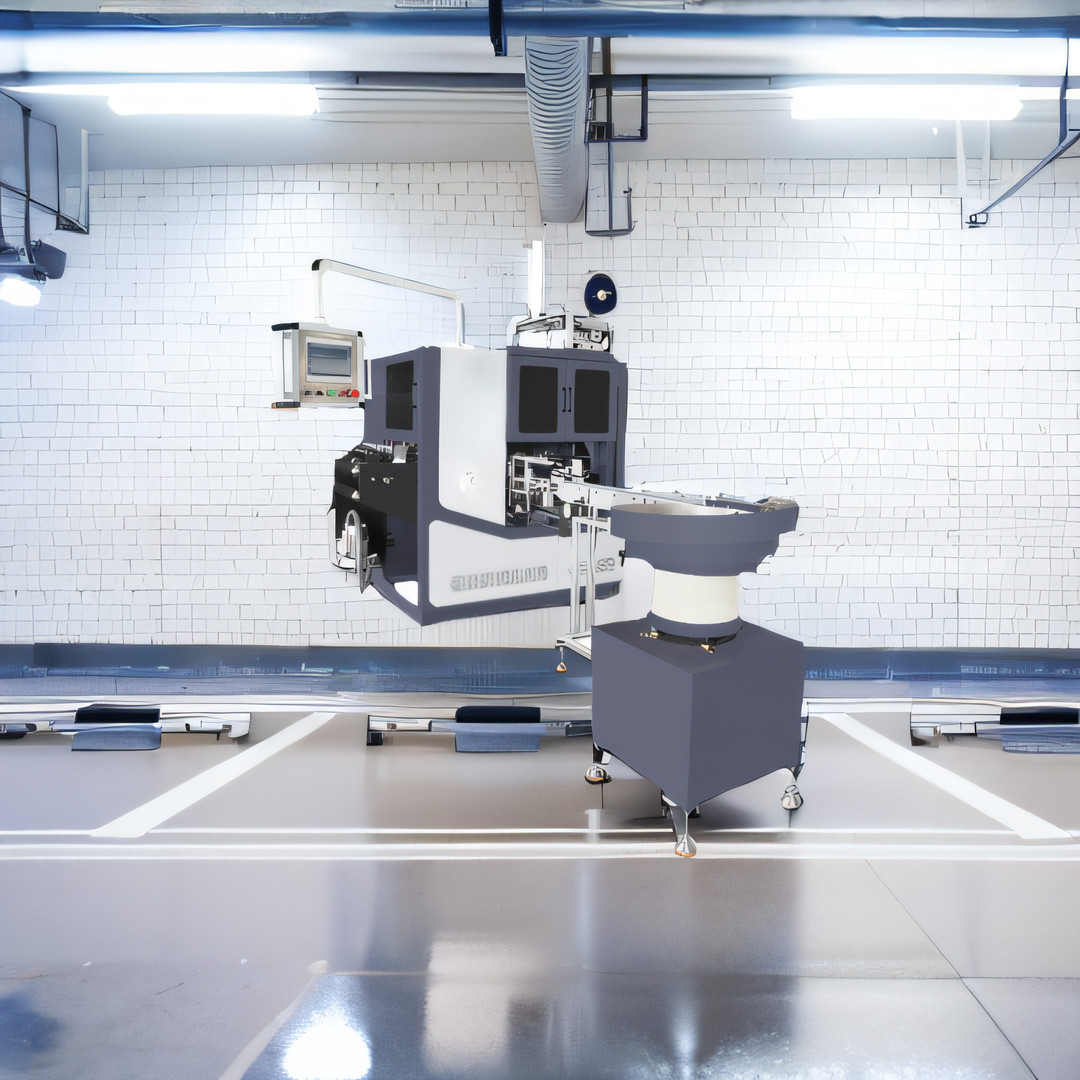

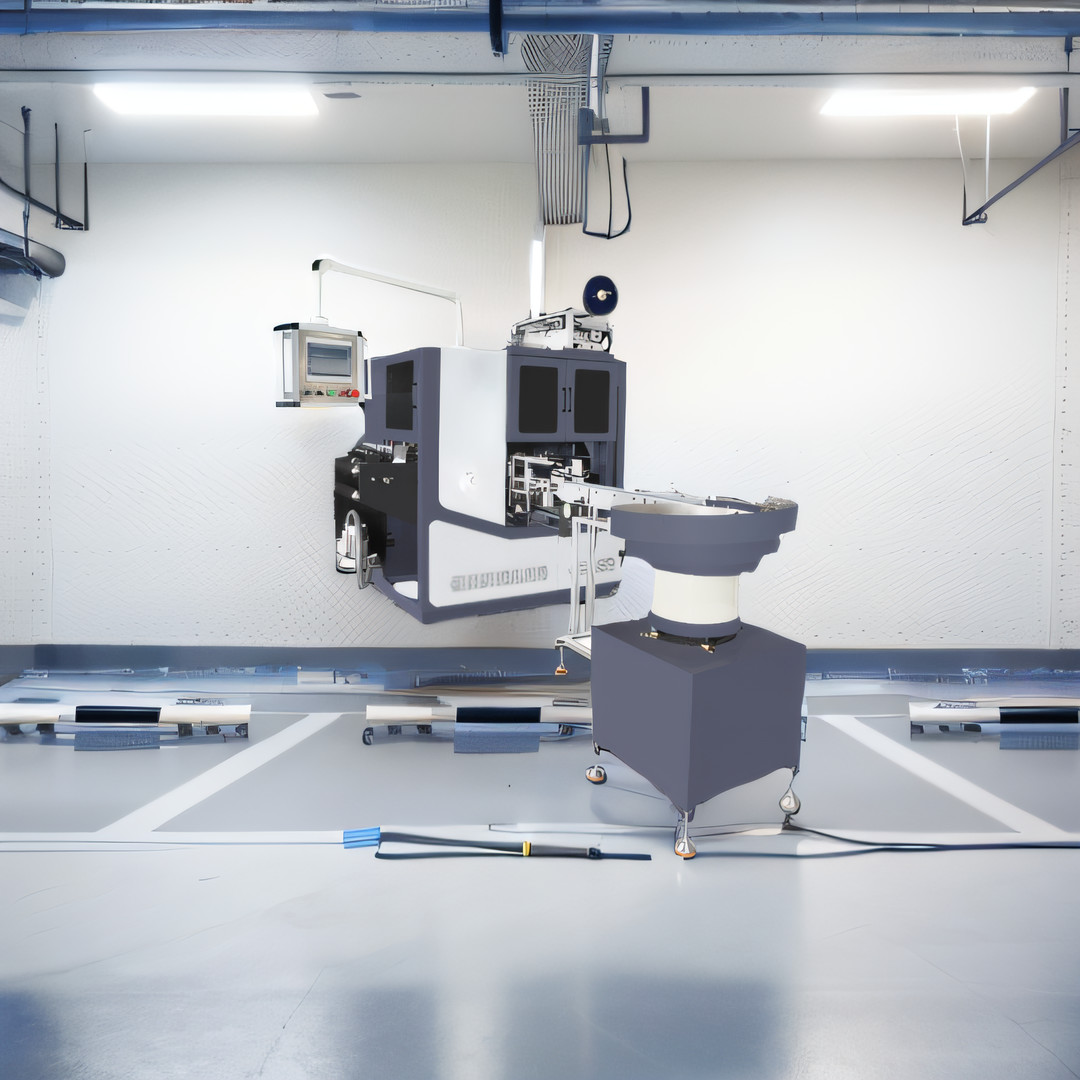

The Automatic Turret 4 shafts rewinder is a fully automated rewinding machine, primarily suited for label production. Working in synergy with a slitting machine or multi-functional machine with slitting station, it ensures non-stop rewinding which significantly boosts productivity.
This model is particularly suitable for printed or blank labels produced through a slitting machine, and is packed with many features. Automatic core loading is embedded with a storage for small cores, while the feeding system uses a mechanical arm to accurately position cores onto the rewind shaft during operation. Remote PLC and touch screen control makes for an easy user experience.
Its double sided heavy machine body ensures it will remain resilient during high-speed operation, while its 8-die rewinding roll avoids biting into the roll. It has a maximum speed of 120 m/min, and standard labelling to keep the price favorable.
The rewinder is an essential machine and it can be utilized in conjunction with rotary die-cutting machines, slitting machines, flexographic printing machines, and other equipment. Its design is top of the line, outfitted with a one-inch, one-and-a-half-inch, and two-inch quick-release air-expansion shaft.
This rewinding machine removes a tedious process associated with production, as manual mechanical adjustments are not needed when changing reels of diverse sizes. The machine's system will automatically adjust the reel size, reducing the workload needed to get the job done. This upgrade to intelligent and efficient production helps make the entire process simpler and more time-efficient.
Supreme offers custom-made AGENT WANTED TURRET SLITTING MACHINERY REWINDER MACHINE FOR PACKAGING WOOD BOX FUMIGATIONS AUTOMATIC TURRET 4 SHAFTS with brand name Supreme, model number SZ. It is certified with CE, and the minimum order quantity is 1. The price is negotiable. The packaging details are fumigation wooden box. The delivery time is 50-60 working days. The payment terms are TT;LC. The supply ability is 30sets/month. The voltage is 220V/380V, and it also has adhesive. This machinery is suitable for full rotary/semi intermittent rotary/mark andy/omit/neil peter flexo printing/slitting machinery with paper adhesive sticker label layers. The packaging is wooden box fumigations. It also has 4 shaft turret rewinder, AB turret graphic spindle shaft rewinding machinery.
AGENT WANTED TURRET SLITTING MACHINERY REWINDER MACHINE FOR PACKAGING WOOD BOX FUMIGATIONS AUTOMATIC TURRET 4 SHAFTS provides technical support and services to help ensure that your machinery is operating at maximum efficiency. Our experienced team of experts are available to answer your questions and provide advice on any aspect of the label paper process machinery.
We offer an array of services to customers including installation and setup, preventative maintenance, troubleshooting, and repairs. Our experts have a thorough knowledge of the machinery and can help you understand the best way to use it and take maximum advantage of its features. We also provide training for operators in order to ensure maximum safety and efficiency.
In addition to technical support and services, we also offer a range of additional services. These include customizing the machinery to suit your specific needs, designing and manufacturing special parts, and providing spare parts and accessories. We can also provide emergency repair services if needed.
At AGENT WANTED TURRET SLITTING MACHINERY REWINDER MACHINE FOR PACKAGING WOOD BOX FUMIGATIONS AUTOMATIC TURRET 4 SHAFTS, we understand the importance of keeping your machinery running smoothly and efficiently. With our technical support and services, you can rest assured that your label paper process machinery is in safe hands.
AGENT WANTED TURRET SLITTING MACHINERY REWINDER MACHINE FOR PACKAGING WOOD BOX FUMIGATIONS AUTOMATIC TURRET 4 SHAFTS is packaged with high-grade materials to ensure safe delivery. The packaging includes film wrap, fumigation wooden box. The product is then shipped in secure truck to the designated address.
Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece
3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces
5. Tool box: 1 box
6. internal hexagonal wrench:1 set
7: open spanner:10-17:1 group
8: Slotted screwdriver and cross screwdriver: 1piece/each
9: Level adjuster screw: 4 piece
10: circlip plier: 6#: 2 pieces
11:Oil gun: 1 piece
12:magnetic valve:DC24V:2 pieces
13:Relay:DC24V:2pieces
14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece
15:330/450/570 knife:1 pieces
16:Auto labeling device:1 set
Specification:
| Machine Model | SZ-330 | SZ-450 | SZ-570 |
|
Max rewinding diameter (glue type) |
350mm | 350mm | 350mm |
|
Max rewinding diameter (glue free) |
200mm | 200mm | 200mm |
| Max Paper feeding | 330mm | 450mm | 570mm |
| Max rewinding speed | 50-120m/min | 50-120m/min | 50-120m/min |
| Mini rewinding width | 30mm | 30mm | 30mm |
| Power source | 380V/3P/50HZ | 380V/3P/50HZ | 380V/3P/50HZ |
| Power | 13 kw | 13 kw | 13kw |
| Air source | 0.8Mpa 1m3/min | 0.8Mpa 1.5m3/min | 0.8Mpa 1.5m3/min |
| Machine Dimensions |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2080x2800mm (glue type) 3700 x2080 x2800 (glue free) |
2020x2200x2800mm (glue type) 3700 x2200 x2800 (glue free) |
| Machine weight |
2500 kgs (glue type) 3500 kgs (glue free) |
2500 kgs (glue type) 3500 kgs (glue free) |
2800 kgs (glue type) 3800 kgs (glue free) |
The advantage of ours machine(finished by glue-less non-stop turret rewinder):
1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least
About us:
Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.
Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!
Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
