SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Rewinding Part: AB Turret Graphic Rewinding Material: Paper Adhesive Sticker Label Layers
Adhesive: Yes Type: Lable Adhesive Paper Sticker Solution
Packaging: Wooden Box Fumigations Voltage: 220V/380V
Size: 330/450/570mm Service: OEM/ODM
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

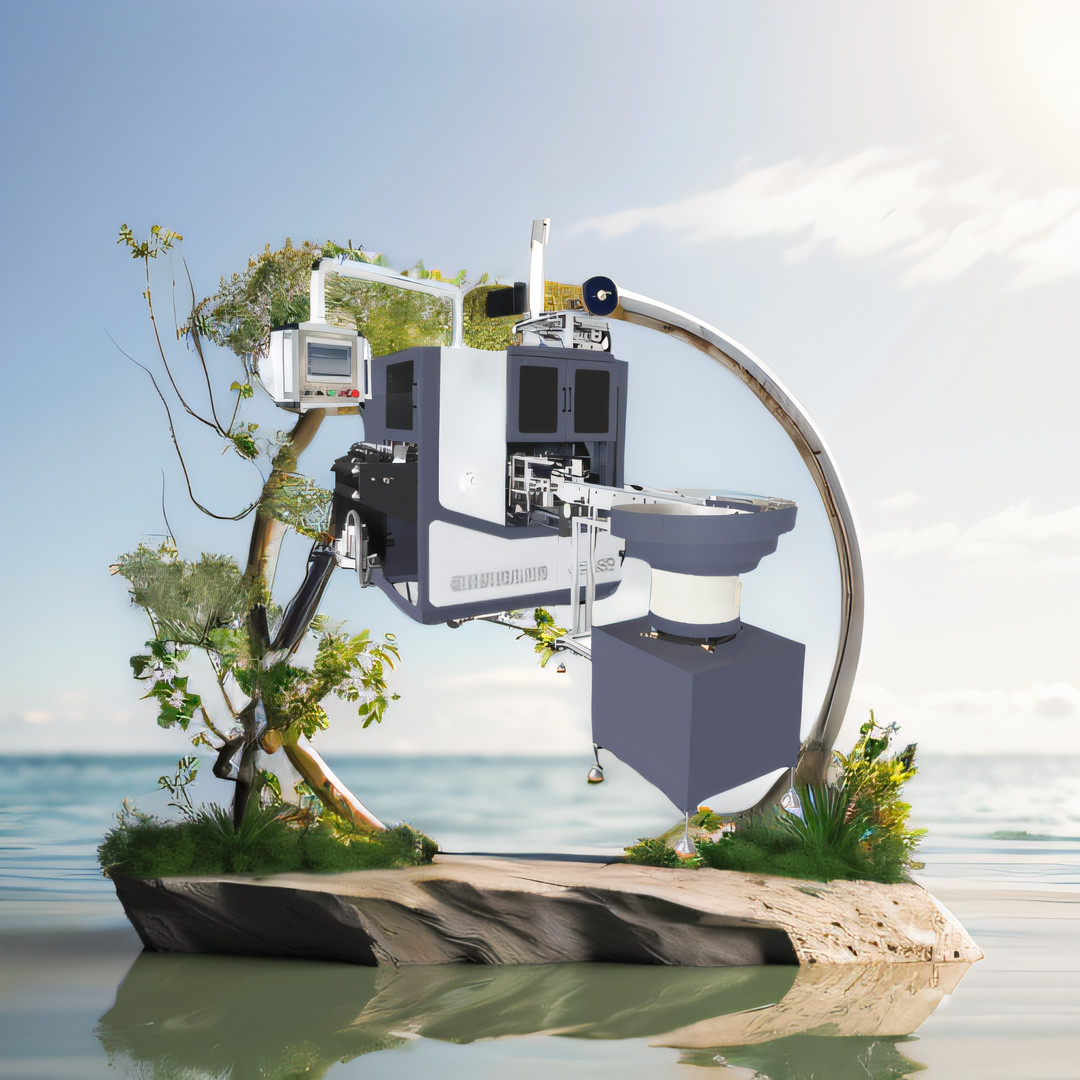

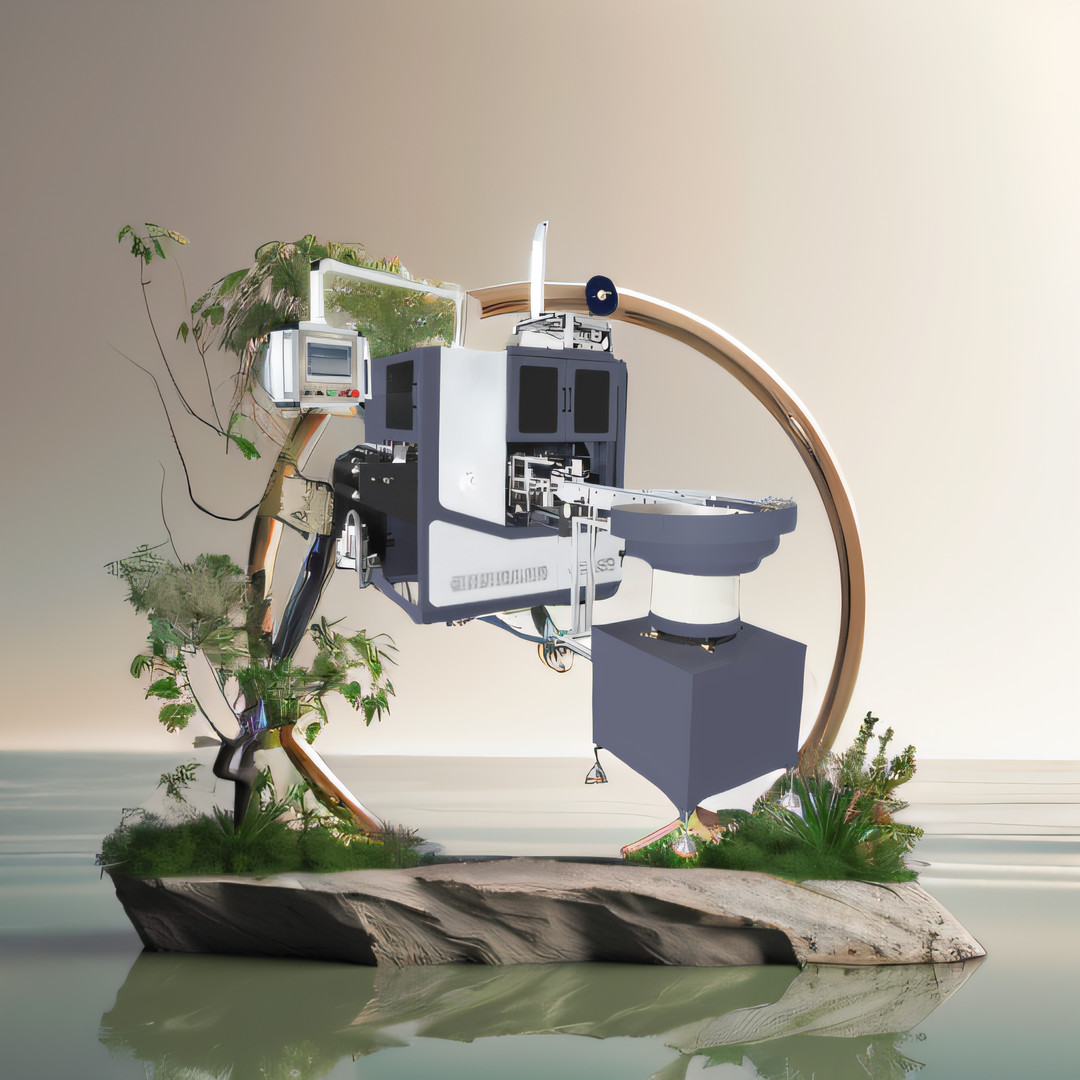

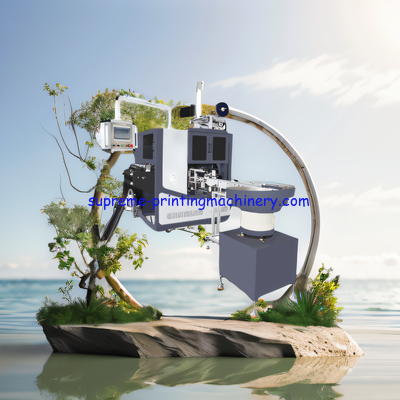

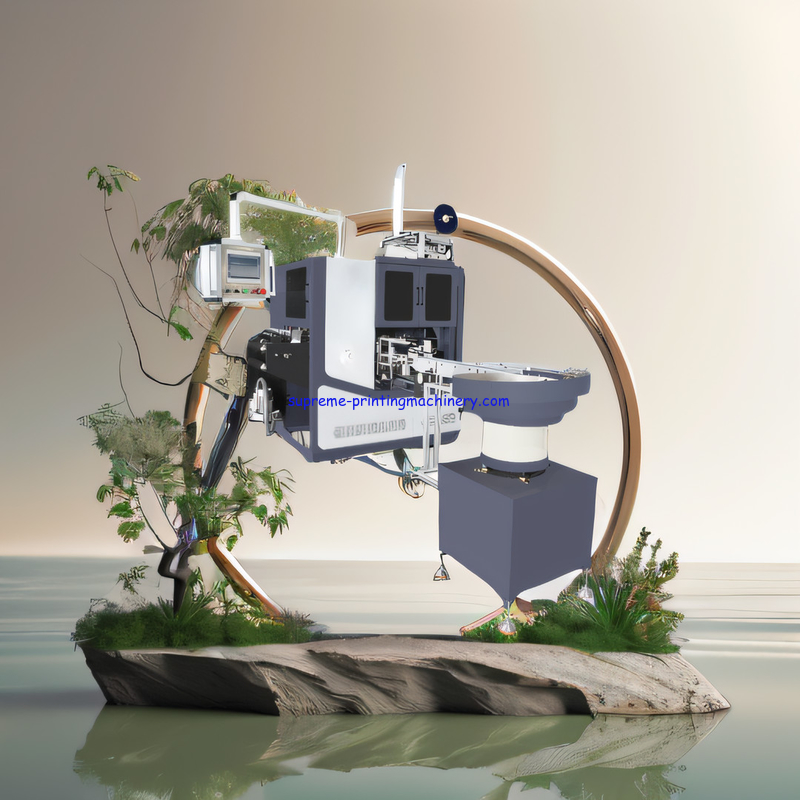

SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER

Product Description:

Automatic Turret 4 shafts rewinder is an efficient and fully automatic rewinding machine that is usually suitable for label production. The machine cooperates with slitting machine or other multifunctional machines with slitting station for non-stop rewinding, thus improving the production efficiency.

This machine is able to proccess printed or blank labels after slitting, and offers great features ranging from automatic core loading with storage tower for small cores, automatic feeding system with mechanical arm, PLC and touch screen automatic control, automatic gluing (with glue type machine), 4 spindle automatic turret rewinding, automatic roll eject system, automatic labeling as standard, no changeover times(except rewind shaft changeover), high speed, double side heavy machine body for stability in high speed, large roulette supported by a personalized turret, maintenance-free for ten years, as well as multi-optimized combination of mechanical and electrical which allows single expansion shaft for eight-die rewinding roll without biting the roll.



Applications:

The Rewinder is a functional device which can connected to a variety of machines, including rotary die cutting machines, slitting machines, flexograhic printing machines, etc. It comes equipped with a quick release air-expansion shaft ranging from 1-inch to 2-inch.

What's even greater is that this Rewinder does not require manual mechanical adjustment when it comes to changing the size of different reels. Its system is capable of adjusting the size of the reel autonomously. This is a great feature as it reduces labor force and promotes intelligent production.



Customization:

Supreme SZ Customized SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER
  • Brand Name: Supreme
  • Model Number: SZ
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 50-60 working days
  • Payment Terms: TT;LC
  • Supply Ability: 30sets/month
  • Voltage: 220V/380V
  • Adhesive: Yes
  • Rewinding part: AB Turret Graphic Rewinding
  • Size: 330/450/570mm
  • Type: Lable Adhesive Paper Sticker Solution

If you're looking for label narrow web Turret Rewinders, then Supreme SZ Customized SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER is the ideal solution for you. Boasting a Best no glue turret slitter machine, we have No glue turret slitter machine for sale that are perfect for any application.



Support and Services:

SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER Technical Support and Service

We provide comprehensive technical support and service for our SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER. Our team of experts is available to help you with any questions or concerns you may have. We are here to make sure that your machinery is running at peak performance and to ensure that you get the most out of your investment.

Our team is able to provide service and support in the form of:

  • Training and troubleshooting
  • Preventative maintenance
  • Repair and replacement of parts
  • Software updates
  • Fault diagnosis and repair
  • On-site support and assistance

We strive to provide the best service and support possible, so don't hesitate to contact us if you have any questions or need assistance with your SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER.



Packing and Shipping:

SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER is shipped in a secure manner to ensure its safe arrival to its destination. The machinery is first placed in a box The box is then placed into a larger shipping container and labeled with the appropriate shipping information. The container is then shipped by air, sea, or land, depending on the needs of the customer.



FAQ:

  • Q: What is the Brand Name of SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER?
    A: The Brand Name is Supreme.
  • Q: What's the Model Number of SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER?
    A: The Model Number is SZ.
  • Q: Where is SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER made?
    A: SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER is made in China.
  • Q: Does SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER have a CE Certification?
    A: Yes, SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER has a CE Certification.
  • Q: What is the Minimum Order Quantity of SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER?
    A: The Minimum Order Quantity is 1.





Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER 1SEMI AUTO AND FULL AUTOMATIC LABELING SYSTEM ADHESIVE LABEL PAPER PROCESS MACHINERY AUTOMATIC TURRET 4 SHAFTS REWINDER 2
