220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: SZ
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 50-60 Working Days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30sets/month
Detail Information
Product Name: 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND Rewinding Part: AB Turret Graphic Rewinding
Design: Self Devolopment And Patented Application: Non Glue Auto Labeling And Slitting Machinery For Paper Adhesive Sticker Label
Type: Lable Adhesive Paper Sticker Solution Size: 330/450/570mm
Material: Paper Adhesive Sticker Label Layers Video: For Video Sent Please Wechat/wa Me:+8618072118971
Language: Can Customized Into Client Regular Language For Easy Operations Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND

Product Description:

Automatic Turret 4 shafts Rewinder

The Automatic Turret 4 shafts Rewinder is a fully automatic rewinding machine, which is suitable for label production. By working together with the slitting machine or other multi-functional machines with slitting stations, it can continuously wind without stopping, thus greatly improving the production efficiency.

It is suitable to apply glue or labels(no glue) to printed or blank labels after slitting. With its built-in PLC and touch screen control, the operation of the machine is very friendly and convenient. Specifically, it is equipped with an automatic core loading system with storage tower for small cores, an automatic feeding system with mechanical arm that ensures accurate core positioning on the rewind shaft, an automatic roll ejection system, an automatic labeling system, and a double-side heavy machine body for a stable running in high-speed modes (50-120 m/min). Furthermore, the optimized combination of mechanical and electrical systems can realize a single expansion shaft for eight-die rewinding roll without biting the roll.



Applications:

The rewinder can be connected to various types of machines: rotary die cutting, slitting machines, flexographic printing machines and other equipment. In addition, it is equipped with a quick-release air-expansion shaft of 1-inch, 1.5-inch, and 2-inch sizes.

The rewinding machine is designed for maximum efficiency. There is no need for manual mechanical adjustment when changing the sizes of the reels, since its system automatically adjusts the size of the reel to enable industrial-level production with a lower input of labor force.



Customization:

Customized 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND

Brand Name: Supreme
Model Number: SZ
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Fumigation Wooden Box
Delivery Time: 50-60 Working Days
Payment Terms: TT; LC
Supply Ability: 30 Sets/Month
Type: Lable Adhesive Paper Sticker Solution
Voltage: 220V/380V
Adhesive: Yes
Material: Paper Adhesive Sticker Label Layers
Advantage: 1 Inch, 1.5 Inch, 40mm, 3 Inch Auto Inflatable Air Shaft
Highlight: Lable Non Stop No Glue Turret Rewinder, Adhesive Label Slitting Machine High Speed with Turret Rewinder Slitter Rewinder, No Glue Turret Slitter Machine for Sale



Support and Services:

220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND Technical Support and Service

We offer comprehensive technical support and service for our 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND. Our technical support team is available 24/7, and we offer a full range of services, including:

  • Installation and maintenance guidance
  • Troubleshooting support
  • Technical support for spare parts
  • Online customer service
  • On-site repair and maintenance

We strive to provide the highest quality of service and support for our 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND customers. If you need any assistance, please contact us for more information.



Packing and Shipping:

220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND Packaging and Shipping:

The 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND will be packaged in a secure wooden box with film wrapped. The package will be shipped using a reliable and secure courier service such as sea or air.



FAQ:

Q1: What's the brand name of the 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND?
A1: The brand name is Supreme.
Q2: What's the model number?
A2: The model number is SZ.
Q3: Where is the 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND produced?
A3: The 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND is produced in China.
Q4: Does the 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND have certifications?
A4: Yes, the 220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND has CE certifications.
Q5: What's the minimum order quantity?
A5: The minimum order quantity is 1.


Standard with the machine:
1. rewinding machine: SZ-330/SZ-450/SZ-570: 1 piece
2. tube delivery rack: 1 piece

3. vibration plate:1 piece
4. Air shaft:SZ-330/SZ-450/SZ-570:12 pieces

5. Tool box: 1 box

6. internal hexagonal wrench:1 set

7: open spanner:10-17:1 group

8: Slotted screwdriver and cross screwdriver: 1piece/each

9: Level adjuster screw: 4 piece

10: circlip plier: 6#: 2 pieces

11:Oil gun: 1 piece

12:magnetic valve:DC24V:2 pieces

13:Relay:DC24V:2pieces

14:encoder:DBS36E-S3AK02000: Germany Sick: 1 piece

15:330/450/570 knife:1 pieces

16:Auto labeling device:1 set



Specification:

Machine Model SZ-330 SZ-450 SZ-570

Max rewinding diameter

(glue type)

350mm 350mm 350mm

Max rewinding diameter

(glue free)

200mm 200mm 200mm
Max Paper feeding 330mm 450mm 570mm
Max rewinding speed 50-120m/min 50-120m/min 50-120m/min
Mini rewinding width 30mm 30mm 30mm
Power source 380V/3P/50HZ 380V/3P/50HZ 380V/3P/50HZ
Power 13 kw 13 kw 13kw
Air source 0.8Mpa 1m3/min 0.8Mpa 1.5m3/min 0.8Mpa 1.5m3/min
Machine Dimensions

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2080x2800mm

(glue type)

3700 x2080 x2800

(glue free)

2020x2200x2800mm

(glue type)

3700 x2200 x2800

(glue free)

Machine weight

2500 kgs (glue type)

3500 kgs (glue free)

2500 kgs (glue type)

3500 kgs (glue free)

2800 kgs (glue type)

3800 kgs (glue free)



Automatic 4 spindles paper non stop label turret slitter rewinder save labor cost and improve efficiency



The advantage of ours machine(finished by glue-less non-stop turret rewinder):

1:No creases 2:Zero waste 3:save glue cost 4:save electricity consumptions PS others:1:Fold on the label 2:4-5 label waste at least



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

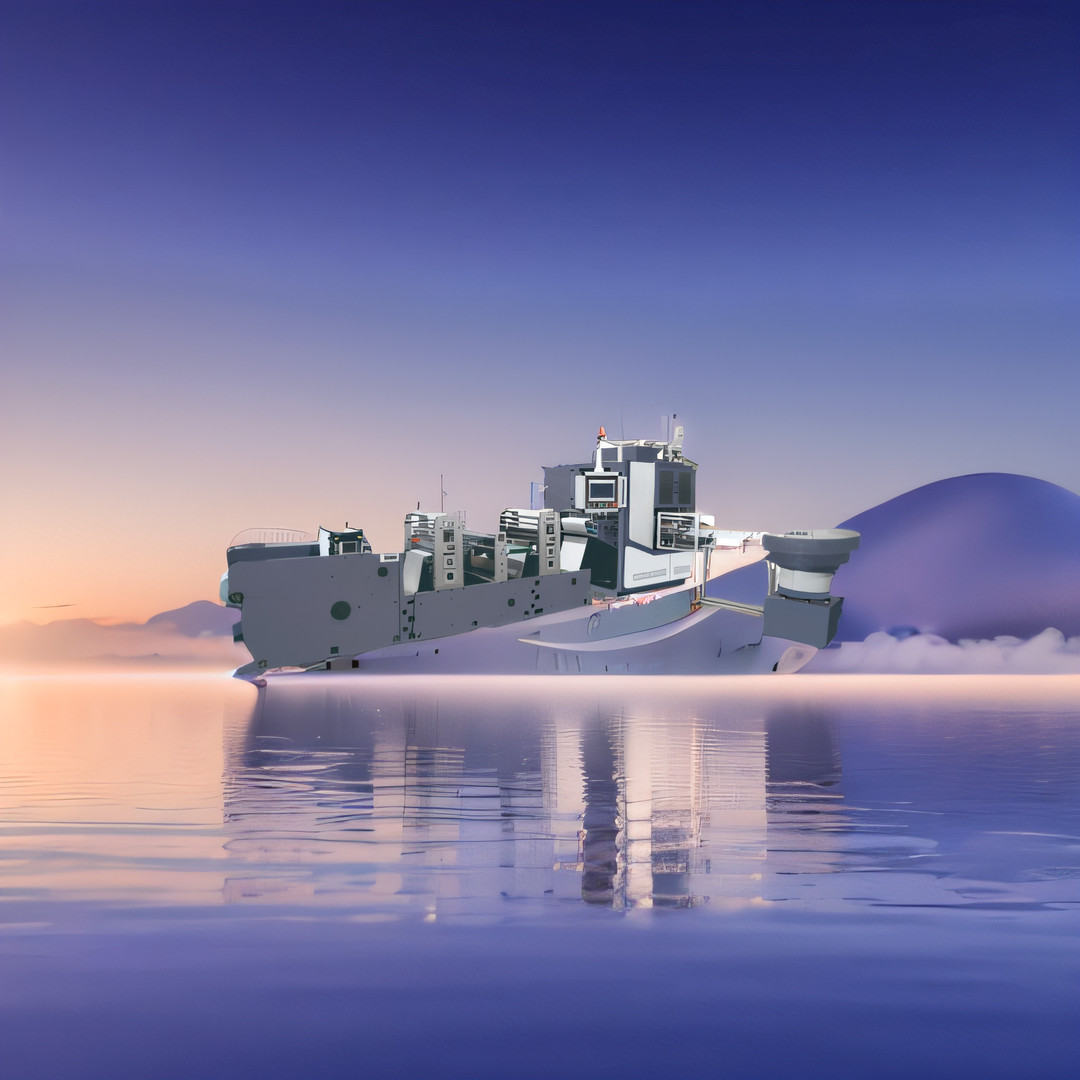

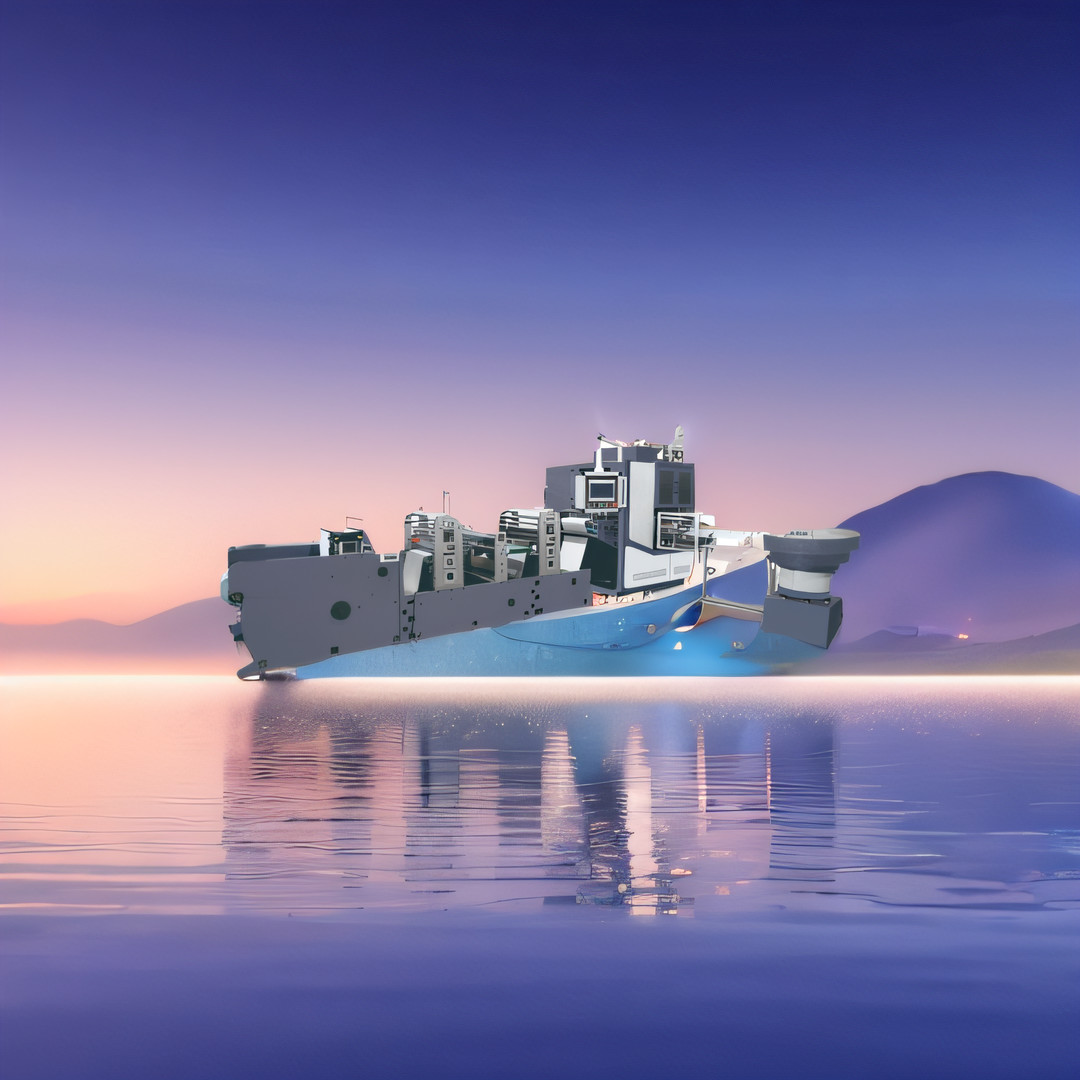

220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND 1220V/380V ADHESIVE LABEL PAPER PROCESS MACHINERY LABEL NO GLUE TURRET SLITTER REWINDER AUTOMATIC TURRET 4 SHAFTS REWIND 2
