Max Speed: | 24000time/h | Die Cutting Precision: | +-0.1mm |
---|---|---|---|
Unwinding Max Diameter: | 800mm | Max Material Feeding Width: | 350mm |
Voltage: | 380V | Warranty: | 1 Year |
Model: | MQ-350G | Max Material Pulling Length: | 80m/min |
Video: | For Video Sent Please Wechat/wa Me:+8618072118971 | Language: | Can Customized Into Client Regular Language For Easy Operations |
Product Name: | HIGHLY PRODUCTIVE DIE CUTTING MACHINES 350MM*350MM SIZE HIGH SPEED DIE CUTTING MACHINE OPTIONAL HOT STAMP HOLE PUNCHING | Note: | Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company |
http://www.youtube.com/@labelturretrewindingmachinery

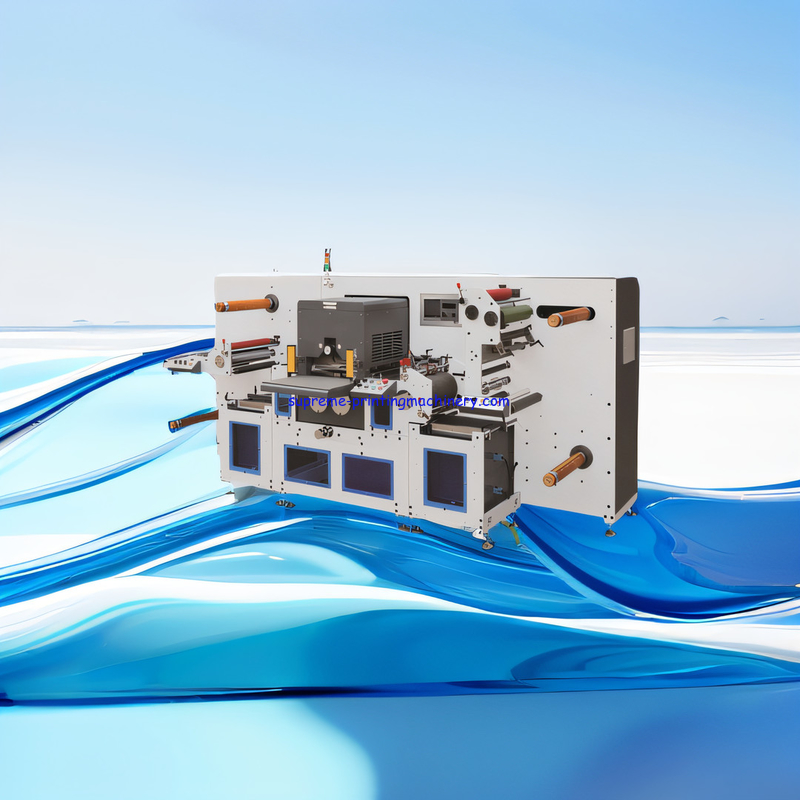

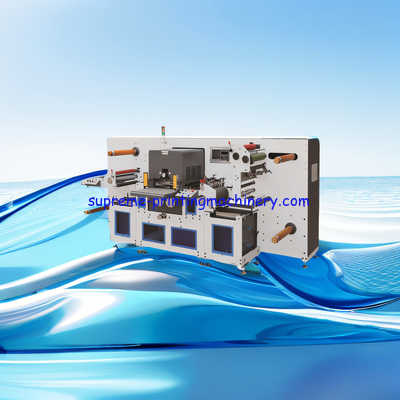

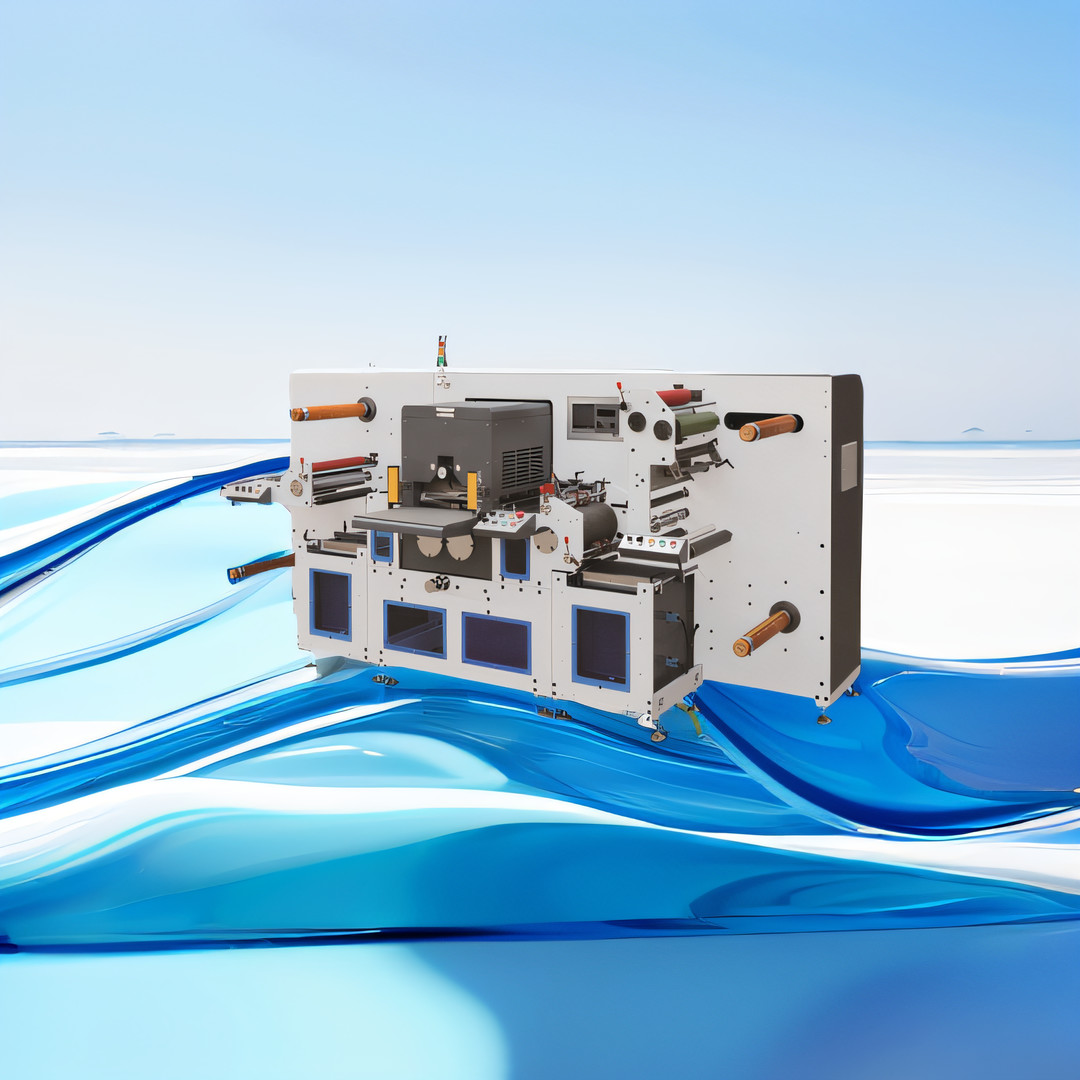

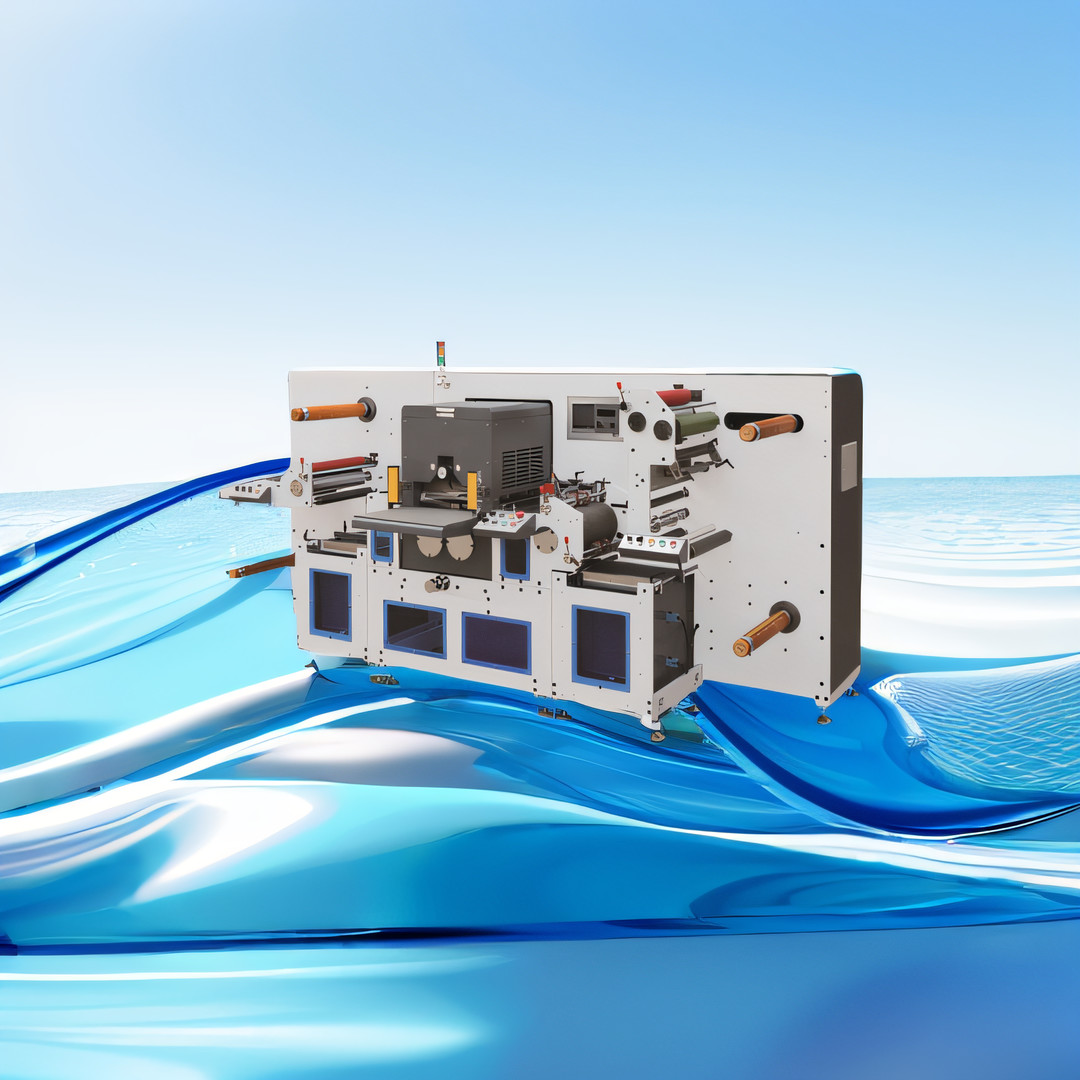

We conducted our own research on this machine. It is equipped with a flat bed structure and a computer servo system for material pulling. All processes - feeding, die cutting, waste discharge, and rewinding sheet cutting - can be completed in one time with the help of a computer.
This machine is the best choice when used together with high speed roll label printing machines, flexo printing machines, satellitic printing machines, PS printing machines, and batch-type printing machines - it is used for die cutting adhesive labels and adhesive label products.
Brand Name: Supreme
Model Number: MQ-350G
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Warranty: 1 Year
Model: MQ-350G
MOQ: 1 Set
Max Material Feeding width: 350mm
Die Cutting Size: 350mm*350mm
Supreme MQ-350G is a high speed die cutting machine with a maximum material feeding width of 350mm and a die cutting size of 350mm*350mm. It is certified with CE and comes with a 1 Year warranty. It has a minimum order quantity of 1 and its price is negotiable. It is packed in a fumigation wooden box and can be delivered in 30-60 working days. Payment methods accepted are TT;LC and it has a supply ability of 20sets/month.
Supreme MQ-350G is a flatbed die cutting machine with a maximum material feeding width of 350mm and a die cutting size of 350mm*350mm. It is certified with CE and comes with a 1 Year warranty. It has a minimum order quantity of 1 and its price is negotiable. It is packed in a fumigation wooden box and can be delivered in 30-60 working days. Payment methods accepted are TT;LC and it has a supply ability of 20sets/month.
Supreme MQ-350G is a high-speed full flat bed die cutting machine with a maximum material feeding width of 350mm and a die cutting size of 350mm*350mm. It is certified with CE and comes with a 1 Year warranty. It has a minimum order quantity of 1 and its price is negotiable. It is packed in a fumigation wooden box and can be delivered in 30-60 working days. Payment methods accepted are TT;LC and it has a supply ability of 20sets/month.
We offer comprehensive technical support and service for our HIGHLY PRODUCTIVE DIE CUTTING MACHINES 350MM*350MM SIZE HIGH SPEED DIE CUTTING MACHINE OPTIONAL HOT STAMP HOLE PUNCHING. Our experienced team of professionals can help you with everything from installation and maintenance of the machinery to troubleshooting and repairs.
Our technical support and service include:
We are committed to providing the highest quality of service and will do our best to ensure your satisfaction. If you have any questions or need further technical assistance, please contact us.
HIGHLY PRODUCTIVE DIE CUTTING MACHINES 350MM*350MM SIZE HIGH SPEED DIE CUTTING MACHINE OPTIONAL HOT STAMP HOLE PUNCHING is packaged and shipped according to the size and weight of the machine, as well as the type of packaging material and shipping method used. Packaging materials may include wooden pallet, wooden box, wrapped film, and other protective materials. Shipping methods may include air freight, ground shipping, or rail transport, depending on the customer's needs.
To ensure the safe delivery of the HIGHLY PRODUCTIVE DIE CUTTING MACHINES 350MM*350MM SIZE HIGH SPEED DIE CUTTING MACHINE OPTIONAL HOT STAMP HOLE PUNCHING, the packaging and shipping procedures are rigorously tested and monitored. All packages are inspected for damage and any defective items are repaired or replaced. Proper packaging and shipping are essential to the safe and timely delivery of the machinery.
Feature:
1.Adopt PLC system, motion controller
2.24000 times/h , ensure run fast,high accuracy working stable.
3. Use wood die cutter,cheap and durable.
4. Use servo motor for main motor and material pulling,to keep accuracy.
5. Rewind and unwind is separate, it is suitable for film and label die cutting
6. With high speed sheet cutting ,sheet cutting by rotary, controlled by servo motor.
model | MQ-350G |
Max. Feeding width | 350mm |
No.1 cutting area | 350mm*350mm |
Max. speed | 24000time/h |
Max.length of meter | 80米/分钟(80m/min) |
Position accuracy | ±0.10mm |
Position unwinder dia | 800mm |
Max.rewinder dia | 800mm |
Size(L*W*H) | 3300*1400*1500 |
Voltage | 380v,3phase |
Total power | 11kw |
Weight | 2800kg |
