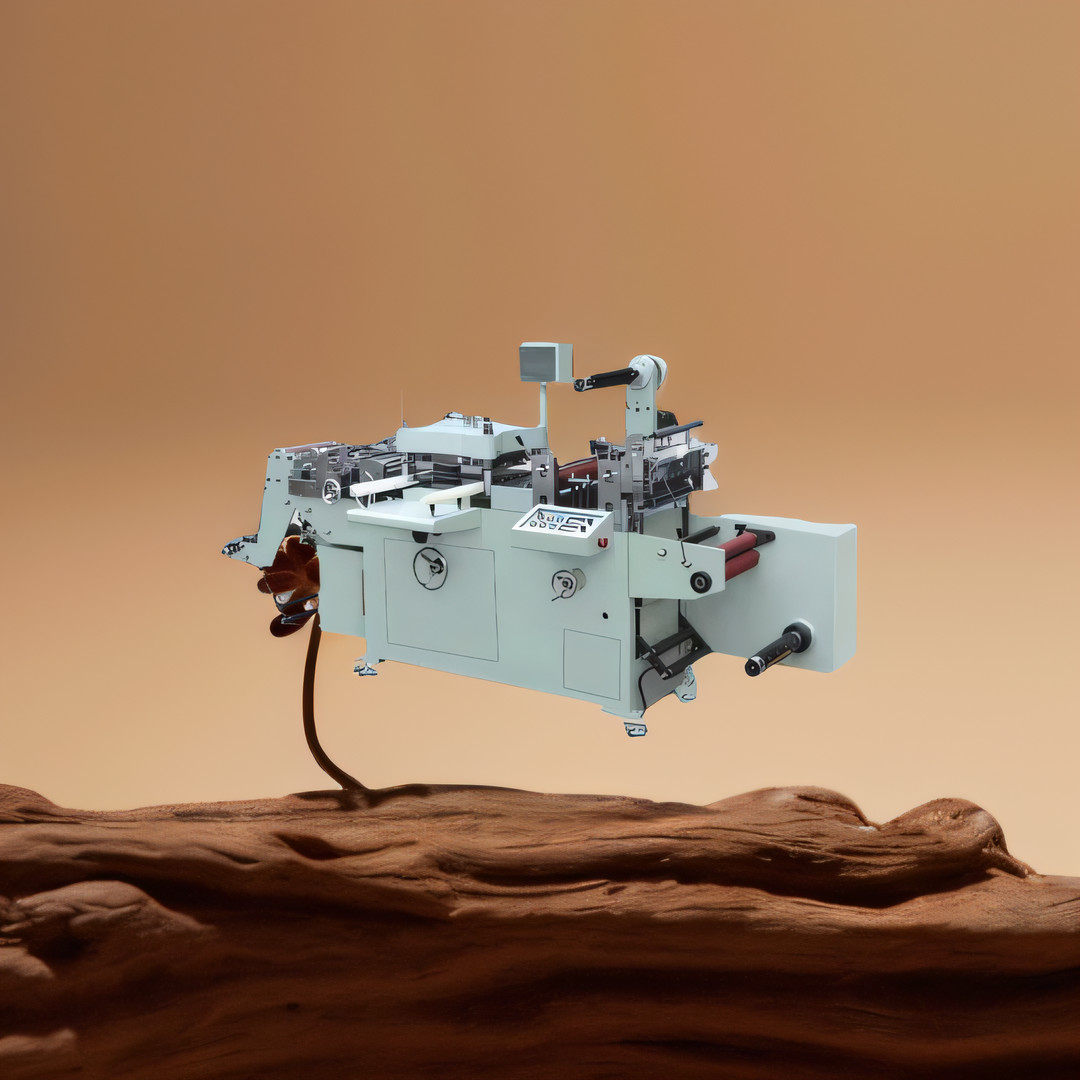

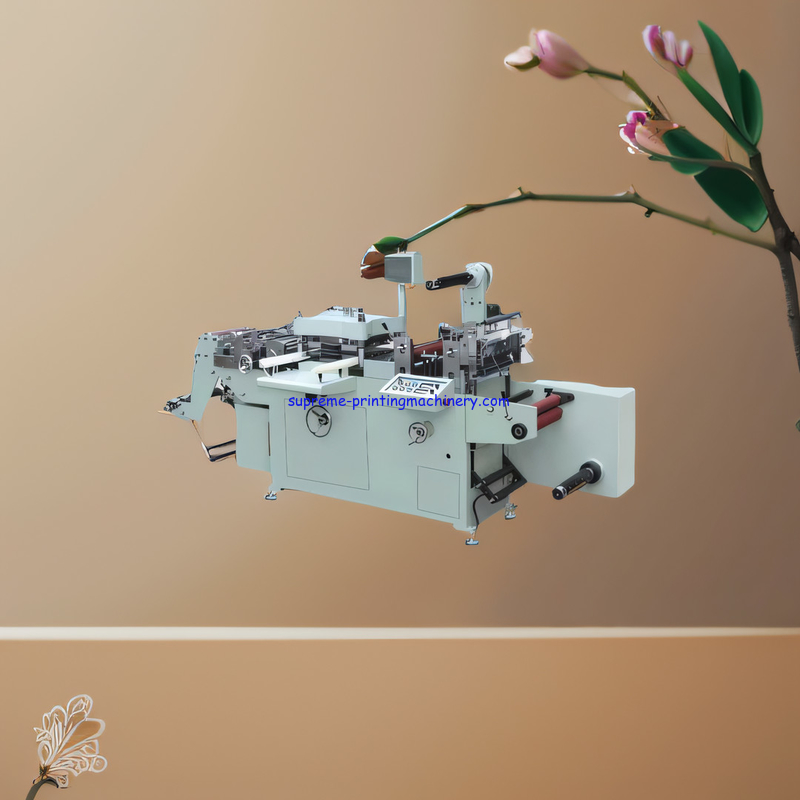

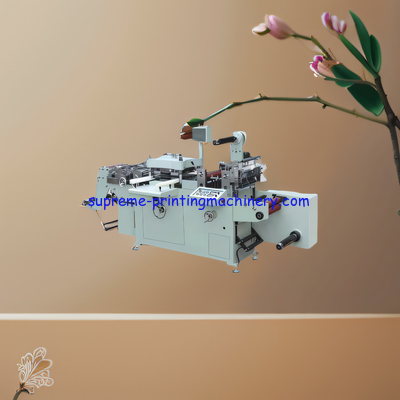

ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350Z
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Max Material Pulling Length: 45m/min Die Cutting Size: 340mm*340mm
Voltage: 380V Model: MQ-350Z
MOQ: 1 Set Warranty: 1 Year
Max Rewinding Diameter: 600mm Max Material Feeding Width: 350mm
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE

Product Description:

MQ-Z: The Superior Middle High Speed Flatbed Die Cutting Machine

Experience the upgraded version of MQ-A, the MQ-Z die cutting machine, which offers a more economical and precise cutting solution. The machine's material feed is controlled by Schneider servo motors from France, ensuring stability in its operations. With the addition of two web guides, the machine provides an accuracy of +-0.1mm for both right and left cutting decisions. The German-made Leuze photoelectric eyes track colors for printed and unprinted materials, further enhancing precision.

All-in-One Post-Press Processing Solution for Labels

The MQ-Z boasts a range of functions including material feeding, web guiding, color tracking, die cutting, laminating, hot stamping, hole punching, and waste rewinding. With the touch screen and PLC automatic tension controller, all of these processes can be controlled in one seamless operation. This makes it the best choice for post-press processing of labels, including label paper, nylon membrane, radium trademark security trademarks, and more for electronic and adhesive products.

Optional Functions for Enhanced Efficiency

For even greater efficiency, the MQ-Z offers optional functions such as laminating, hot stamping, and hole punching. And with its servo motor, the machine can achieve a cutting speed of 220-300 sheets per minute, far surpassing the standard speed of 150-160 sheets per minute.

Fastest Cutting Speeds on the Market

For businesses with high-volume production needs, the MQ-Z is the ideal choice. With a cutting speed of 200-300 times per minute, it outperforms other machines on the market. And with the option for either waste rewinding or roll rewinding, marked by red or black markers, the MQ-Z offers unparalleled speed and efficiency.



Applications:

The process of converting materials into adhesive labels, nylon membrane trademarks, and radium anti-fake trademarks involves several steps. This machine is essential in completing these steps efficiently and precisely.

The first step is to unwind the material, which is usually in the form of a large roll. This is done using an unwinding function of the machine.

Next, the material is fed into a die cutting unit, where it will be cut into specific shapes and sizes according to the design. The precision of this process is crucial in ensuring the final product meets quality standards.

Any waste material created during the die cutting process is then discharged from the machine of waste rewinding, leaving behind only the desired shapes. This prevents any potential issues or defects in the final product.

After the waste is removed, the material is cut into smaller pieces as necessary. This cutting function is important, especially when producing smaller labels or trademarks.

Finally, the machine will rewind the finished product onto a new roll, ready for further processing or packaging. This rewinding function ensures that the product is organized and easy to handle.

This machine is compatible with various printing and slitting machines, including roll paper printing, flexo printing, screen printing, and gravure printing. This makes it a versatile and essential tool in different industries, such as electronic and adhesive product lines.



Customization:

Supreme ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE - MQ-350Z
Customized Service

Brand Name: Supreme

Model Number: MQ-350Z

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Fumigation Wooden Box

Delivery Time: 30-60 Working Days

Payment Terms: TT;LC

Supply Ability: 20 Sets/Month

Max Material Pulling Length: 45m/min

Max Speed: 300time/min

Model: MQ-350Z

Die Cutting Size: 340mm*340mm

Max Rewinding Diameter: 600mm

Key Features:
  • High speed die cutting machine
  • Commercial digital die cutting machine
  • Efficient and precise
  • Easy to operate
  • Durable and reliable
Customized Service:

At Supreme, we understand that every customer has unique needs and requirements. That's why we offer customized services for our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE. Our team of experts will work closely with you to design and manufacture a machine that meets your specific needs and budget.

Some of our customized services include:

  • Adjusting machine dimensions
  • Integrating additional features
  • Changing material specifications
  • Customized packaging and delivery options
  • And more!

With our customized service, you can be sure to get a machine that is tailored to your business and production requirements. Contact us today to learn more about our customized ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE and how we can help improve your production process.

Frequently Asked Questions:

How fast is a flat bed die cutter?

Our MQ-350Z model can reach a maximum speed of 300 times per minute, making it one of the fastest die cutting machines on the market.

What is the price of your high speed die cutting machine?

As our machines are customizable, the price may vary depending on your specific requirements. Please contact us for a personalized quote.

Do you offer commercial digital die cutting machines?

Yes, our MQ-350Z model is a commercial digital die cutting machine, designed for high volume production and precise cutting.

Support and Services:

Technical Support and Services for ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE
Technical Support

Our team of highly skilled technicians is available to provide technical support for all aspects of our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE. We offer both phone and on-site support to ensure that our clients have access to timely and effective solutions for any technical issues that may arise. Our technicians are extensively trained and knowledgeable in all aspects of our machinery, and are dedicated to helping our clients achieve optimal results.

Maintenance Services

To ensure that our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE continues to operate at peak performance, we offer comprehensive maintenance services. Our maintenance packages include regular equipment inspections, cleaning, and calibration to keep your machinery running smoothly and efficiently. Our technicians also provide recommendations for any necessary repairs or upgrades to further improve the performance of your machinery.

Training and Education

We believe that proper training and education are essential for maximizing the potential of our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE. That's why we offer comprehensive training programs for our clients, covering all aspects of operation, maintenance, and troubleshooting. Our training programs are tailored to meet the specific needs of each client, and can be conducted on-site or at our facilities.

Spare Parts and Consumables

We understand the importance of having access to high-quality spare parts and consumables for our machinery. That's why we offer a wide range of genuine replacement parts and consumables for all our products. Our spare parts are manufactured to the same standards as our original equipment, ensuring compatibility and optimal performance. We also offer competitive pricing and fast delivery to minimize any downtime for our clients.

Customization Services

We recognize that every client's needs are unique, and we are dedicated to providing customized solutions to meet those needs. Our team of engineers and technicians can work with clients to design and develop custom solutions for their specific production requirements. We also offer installation and commissioning services for our customized machinery to ensure a seamless integration into our client's production process.

Remote Monitoring and Diagnostic Services

To provide our clients with peace of mind, we offer remote monitoring and diagnostic services for our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE. This allows us to remotely monitor the performance of our machinery and quickly identify and address any potential issues. Our clients can also access real-time performance data and receive automated alerts for any abnormalities, allowing for proactive maintenance and reducing the risk of downtime.

Customer Support

Our commitment to customer satisfaction extends beyond just technical support and services. Our dedicated customer support team is available to assist with any inquiries, concerns, or feedback our clients may have. We value our clients' feedback and use it to continuously improve our products and services. We strive to provide the best possible experience for our clients and are always available to address any questions or issues they may have.



Packing and Shipping:



Packaging and Shipping

The ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE is carefully packaged and shipped to ensure its safety during transportation.

Each individual component of the machinery is wrapped in plastic film and placed in a sturdy wooden box.

The pallet is then loaded onto a truck for transportation. We work with reliable shipping companies to ensure timely and safe delivery of our products.

Upon arrival at the destination, our trained professionals will carefully unload and inspect the machinery before installation. Any damages or defects will be noted and reported immediately.

We take great care in packaging and shipping our products to guarantee their quality and condition upon arrival. Thank you for choosing our ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE.



Specification:



Machine Model MQ-350Z MQ-450Z MQ-550A
Max Die Cutting Speed 300 times/min 300 times/min 120 times/min
Max. Web Width 350mm 450mm 550mm
Max. Unwinding Diameter 700mm 650mm 650mm
Max. Rewinding Diameter 700mm 600mm 600mm
Max. Die Cutting Area 340*340mm 440*440mm 530*530mm
Precision of next die cut ±0.1mm ±0.1mm ±0.1mm
Total Power: 6 kw 10 kw 10kw
Voltage 380V 380V 380V
Dimensions 2900x1300x1400mm 2900x1450x1400mm 2900x1550x1400mm
Machine weight 2000 kgs 2500 kgs 3200 kgs



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company

ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE 0ADHESIVE LABEL PAPER PROCESS MACHINERY FOR MQ-350Z SUPERIOR MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE 340*340MM SIZE 1

.
