MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350Z
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Max Material Feeding Width: 350mm Warranty: 1 Year
MOQ: 1 Set Model: MQ-350Z
Max Rewinding Diameter: 600mm Unwinding Max Diameter: 650mm
Die Cutting Precision: +-0.1mm Max Speed: 300time/min
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

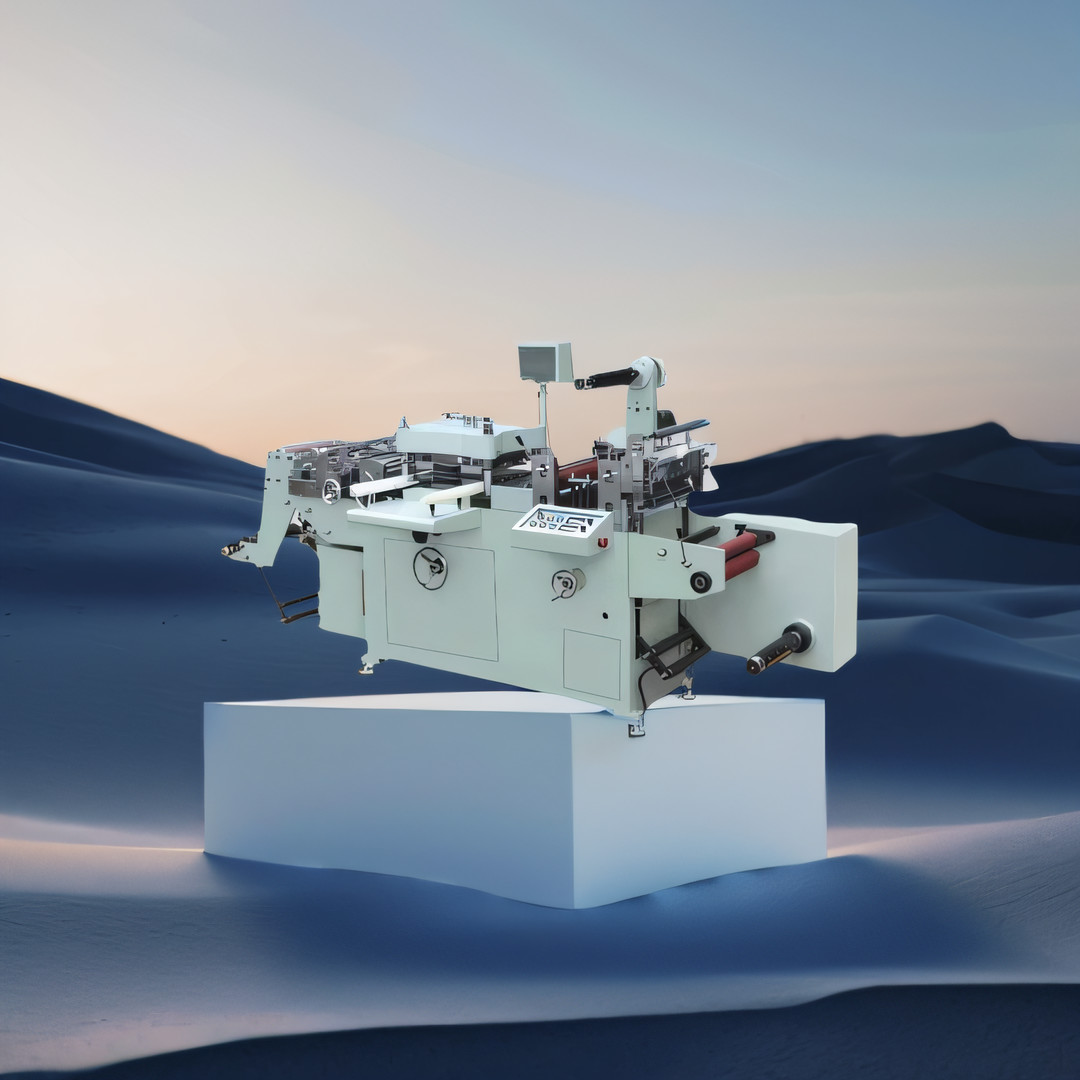

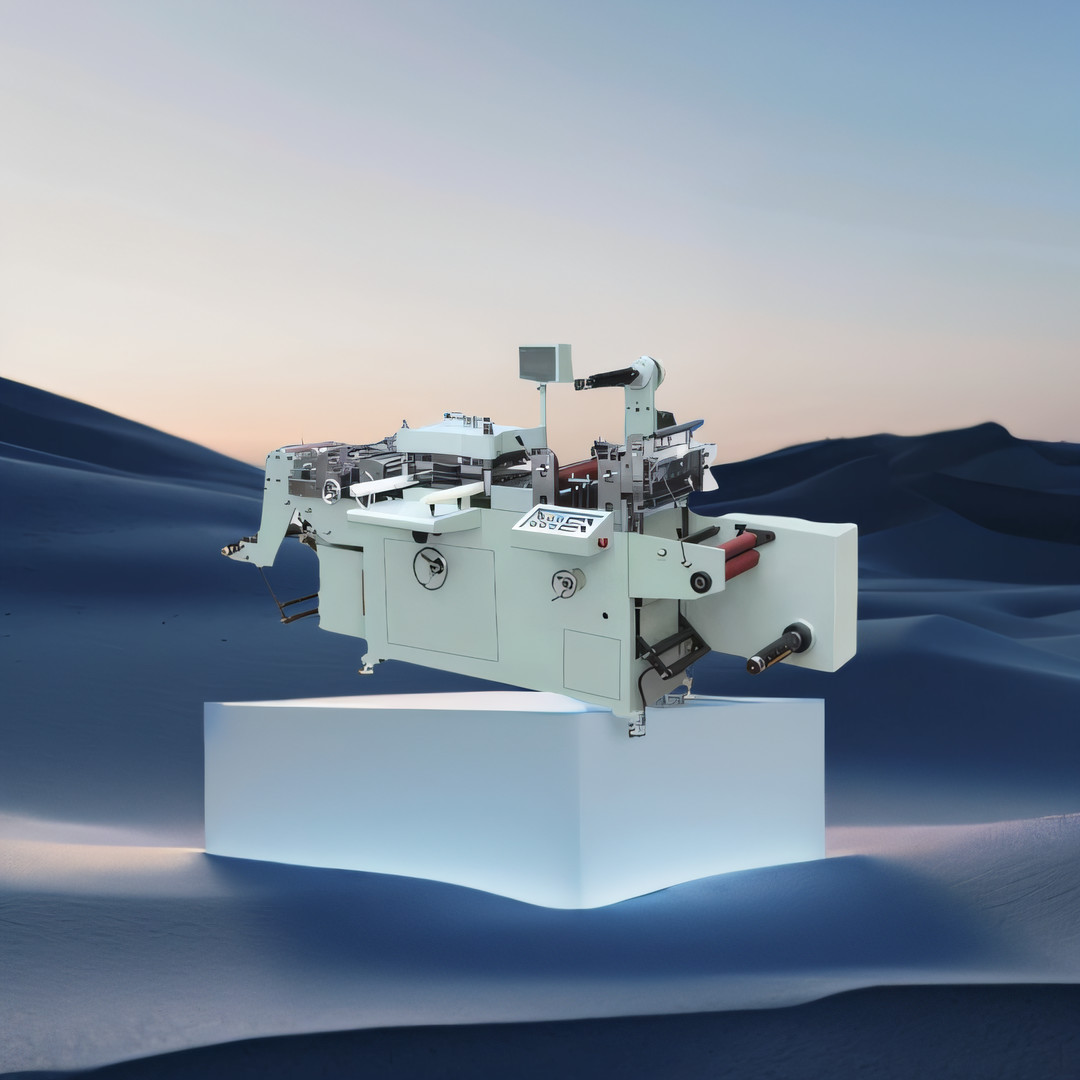

MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER

Product Description:

MQ-Z - The Advanced Middle High Speed Flatbed Die Cutting Machine

Upgrade your die cutting process with MQ-Z, the advanced version of MQ-A, equipped with enhanced economical and high precision features. Powered by Schneider France servo motors, the material movement is smoother and more stable than ever before. The machine is equipped with dual web guides, providing increased precision for +-0.1mm. The color tracking feature, powered by Leuze of Germany's photoelectric eyes, allows for efficient processing of both printed and unprinted materials.

The versatility of MQ-Z is unbeatable - it offers a comprehensive range of functions including material feeding, web guiding, color tracking, die cutting, laminating, hot stamping, hole punching, waste rewinding, and material sheeting or rewinding - all controlled by a user-friendly touch screen with PLC automatic tension controller. This makes it the perfect solution for all your Post-press label processing needs - whether it's label paper, nylon membrane, radium trademark, security trademark, or any other electronic or adhesive product.

Optional: Enhance Your Die Cutting Process

  1. Laminating
  2. Hot stamping
  3. Hole punching
  4. Note: For standard machines, the sheets cutting speed is about 150-160pces/min. However, with servo motor, it can process 220-300 sheets/min.
  5. Note: A model can achieve 200 times/minute while the Z model can achieve 300 times/minute.
  6. Note: The 300 times speed is achieved with the use of waste rewinder and roll rewinder as indicated by the red mark.


Applications:

The process of this machine is divided into several stages: unwinding, die cutting, waste discharging, cutting into pieces and rewinding.

This machine is designed to handle various materials, including paper adhesive labels, nylon membranes and radium anti-fake trademarks. It is compatible with different printing and slitting machines, such as roll paper printing machines, flexo printing machines, screen printing machines and gravure printing machines.

The machine has a wide range of applications, particularly in electronic and adhesive product lines. It plays a crucial role in enhancing production efficiency and achieving precision in cutting and rewinding processes.



Customization:

Supreme MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER - Customized Service
Brand Name: Supreme
Model Number: MQ-350Z
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: TT;LC
Supply Ability: 20sets/month
Max Speed: 300time/min
Max Material Feeding Width: 350mm
Die Cutting Precision: +-0.1mm
Max Rewinding Diameter: 600mm
Unwinding Max Diameter: 650mm

What is flat bed die cutting machine? A flat bed die cutting machine is a type of machine used for cutting various materials into specific shapes and sizes. It consists of a flat surface where the material is placed and a die, which is a sharp steel blade, that cuts through the material to create the desired shape.

What is the difference between rotary die cutting and flatbed die cutting? The main difference between rotary die cutting and flatbed die cutting is the method in which the material is fed through the machine. In rotary die cutting, the material is fed through a cylindrical die while in flatbed die cutting, the material is placed on a flat surface and the die comes down to cut it.

Automatic flat bed die cutter machine is a type of flat bed die cutting machine that has automated features, such as automatic material feeding and cutting, to improve efficiency and accuracy in the die cutting process.

Support and Services:

Technical Support and Service for MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER

Our MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER is backed by a team of highly skilled technicians and engineers who are dedicated to providing exceptional technical support and service to our customers.

Our technical support and service team is available to assist you with any issues or concerns you may have with your MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER. We offer a range of services to ensure the efficient and smooth operation of your machinery.

Some of the services we offer include:

  • Installation and setup of MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER
  • Training for operators and maintenance staff
  • Regular maintenance and servicing
  • 24/7 technical support hotline
  • Remote troubleshooting and support
  • On-site repairs and emergency services
  • Spare parts and replacement components

In addition to our technical support and service, we also provide comprehensive training programs for our customers to ensure they have a thorough understanding of their MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER. Our team is always available to answer any questions and provide guidance on the best practices for operating and maintaining the machinery.

We are committed to providing prompt and efficient service to minimize any downtime and keep your production running smoothly. Our goal is to ensure that our customers are completely satisfied with their MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER and the support they receive from us.



Packing and Shipping:



MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER
Packaging and Shipping

Our MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER is carefully packaged to ensure safe delivery to our customers. Each machine is first wrapped in protective material to prevent any damage during transportation. It is then placed in a sturdy fumigation wooden box

We offer flexible shipping options to accommodate our customers' needs. Our standard shipping option is via air or sea freight, depending on the destination. We also offer expedited shipping for urgent orders.

For international deliveries, all necessary customs forms and documents will be included with the shipment to ensure smooth and efficient processing through customs. We are also able to provide shipping insurance upon request for an additional fee.

Our team works diligently to ensure that your MAX SPEED 300TIME/MIN - UNWINDING MAX DIAMETER 650MM MIDDLE HIGH SPEED FLATBED DIE CUTTING MACHINE LABEL STICKER PAPER arrives in perfect condition and on time. We pride ourselves on our efficient and reliable shipping process.

For any questions or concerns regarding packaging and shipping, please do not hesitate to contact us. We are always happy to assist our customers in any way we can.



Specification:



Machine Model MQ-350Z MQ-450Z MQ-550A
Max Die Cutting Speed 300 times/min 300 times/min 120 times/min
Max. Web Width 350mm 450mm 550mm
Max. Unwinding Diameter 700mm 650mm 650mm
Max. Rewinding Diameter 700mm 600mm 600mm
Max. Die Cutting Area 340*340mm 440*440mm 530*530mm
Precision of next die cut ±0.1mm ±0.1mm ±0.1mm
Total Power: 6 kw 10 kw 10kw
Voltage 380V 380V 380V
Dimensions 2900x1300x1400mm 2900x1450x1400mm 2900x1550x1400mm
Machine weight 2000 kgs 2500 kgs 3200 kgs



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
