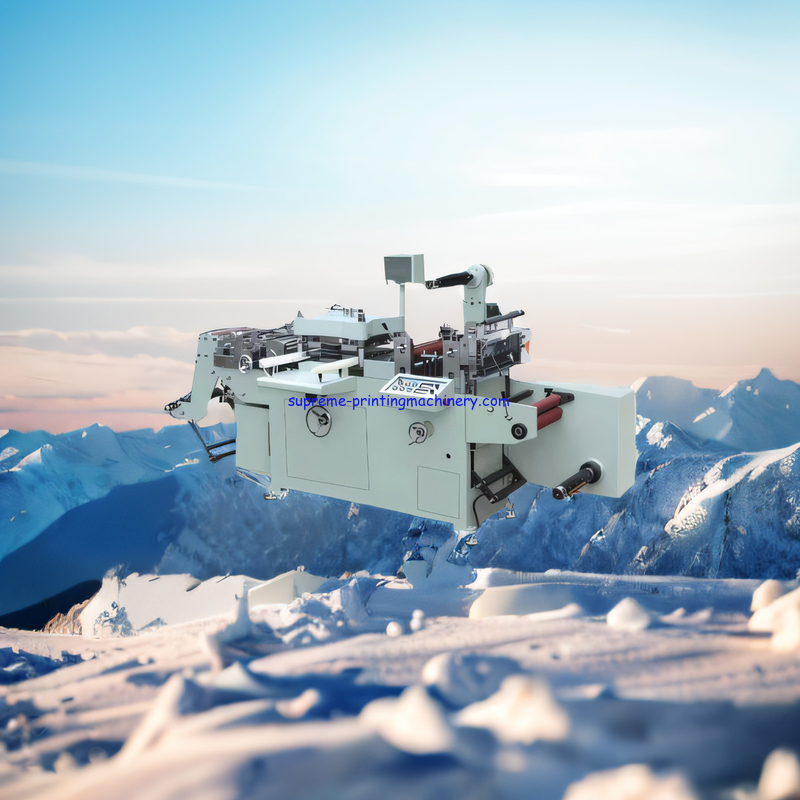

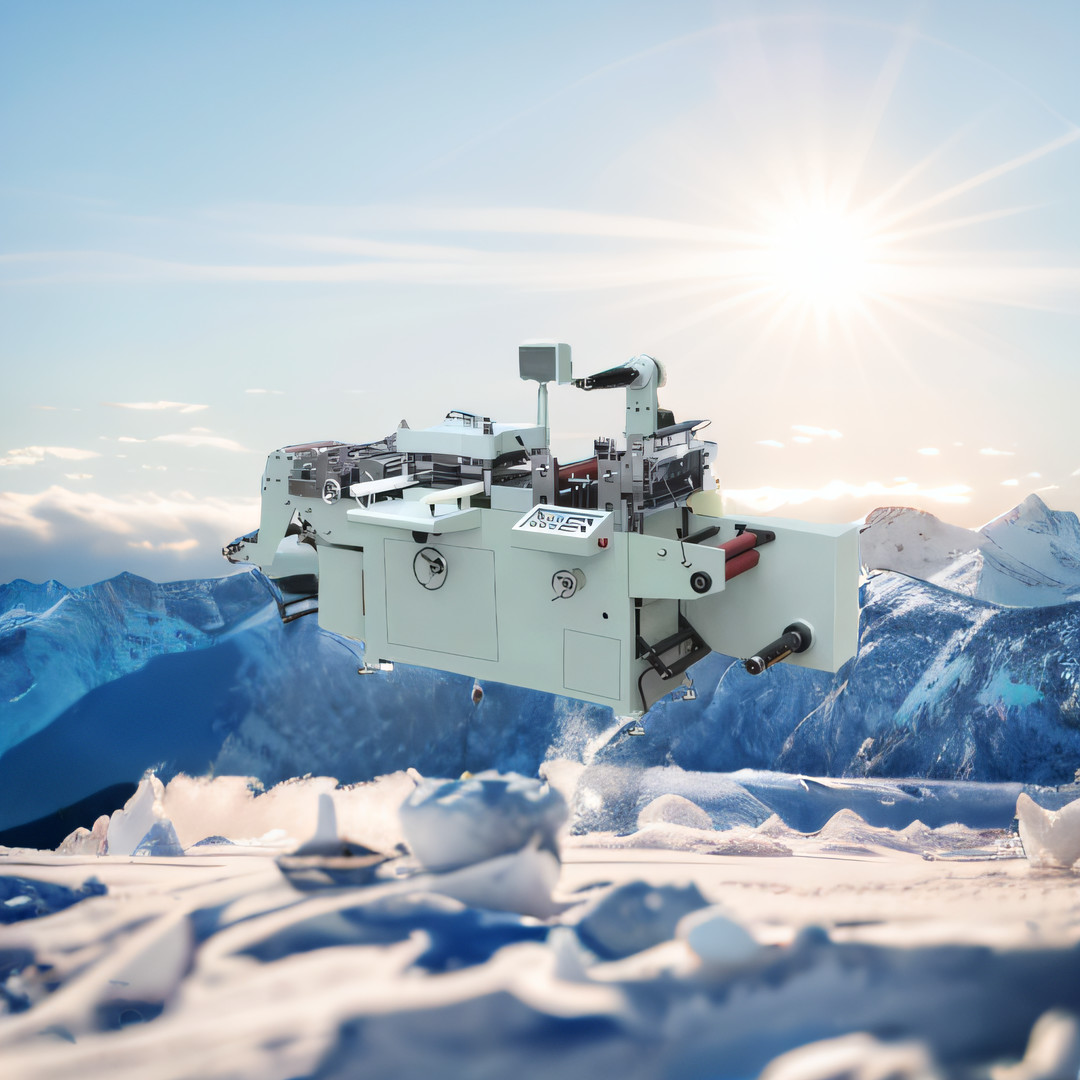

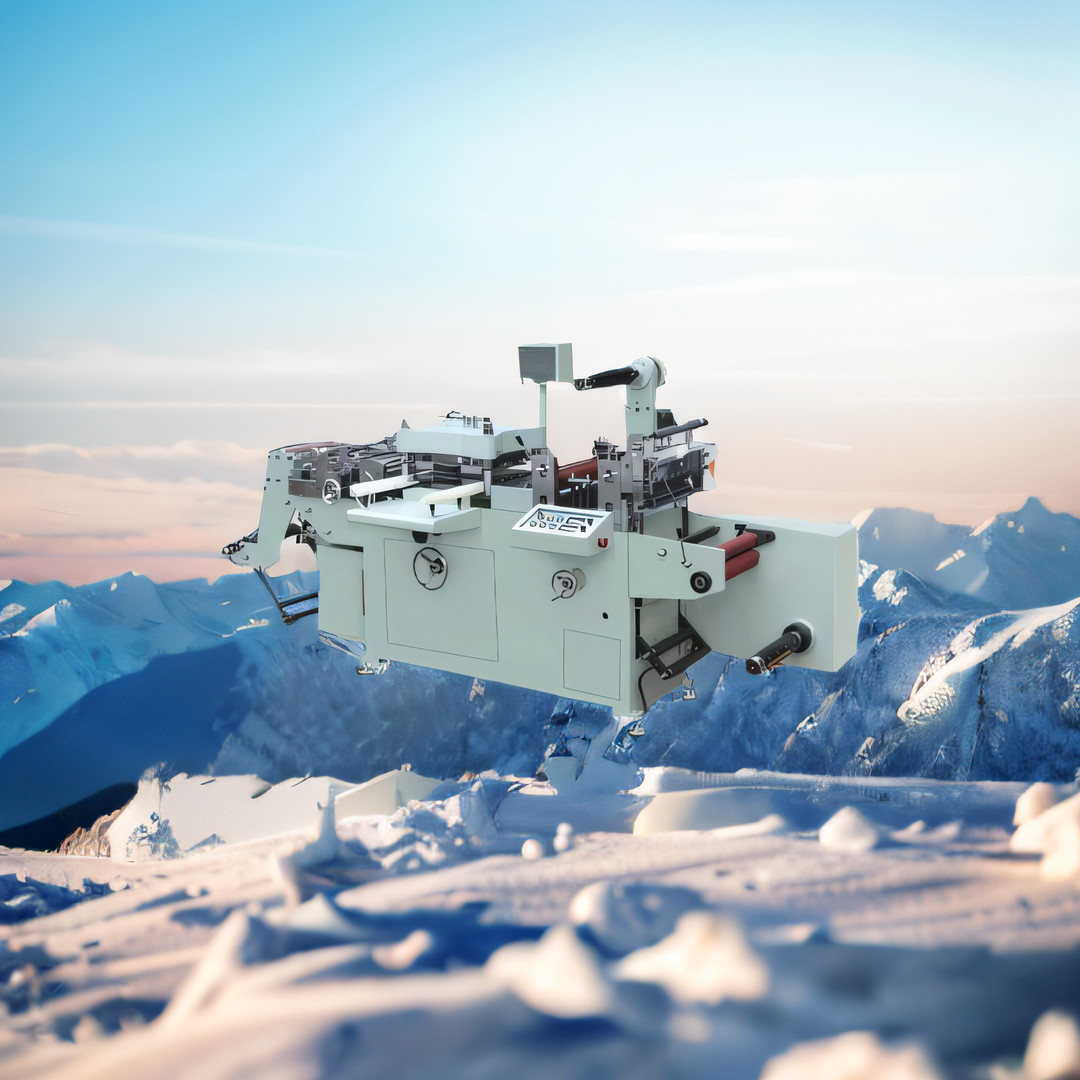

UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350Z
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Max Material Feeding Width: 350mm Die Cutting Precision: +-0.1mm
Die Cutting Size: 340mm*340mm Voltage: 380V
Max Speed: 300time/min Max Material Pulling Length: 45m/min
MOQ: 1 Set Unwinding Max Diameter: 650mm
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING

Product Description:

MQ-Z: A Revolution in Flatbed Die Cutting Technology
A Revolutionary Upgrade MQ-Z is a revolutionary upgrade to the MQ-A middle high speed flatbed die cutting machine. With enhanced economy and precision, this cutting-edge machine is a game changer in the industry.
The Power of Servo Motors One of the key features of MQ-Z is the use of servo motors from Schneider France to control material feed. This not only improves stability, but also allows for more precise control with a margin of +-0.1mm. The result? Enhanced accuracy and a superior cutting experience.
Unmatched Precision and Versatility No matter the material, MQ-Z guarantees unmatched precision and versatility. With two web guides for each side, the machine ensures ultra-accurate cuts for both printed and unprinted materials. This is accomplished through the use of photoelectric eyes from Leuze, a leading brand in the industry.
More Than Just Die Cutting Not just limited to die cutting, MQ-Z offers a range of additional functions such as laminating, hot stamping, and hole punching. With the ability to perform all of these processes in a single, controlled sequence - web guiding, color tracking, die cutting, laminating, hot stamping, hole punching, waste rewinding, and material sheeting or rewinding - MQ-Z is the ultimate solution for post-press processing of labels.
Maximizing Efficiency With a touch screen and PLC automatic tension controller, MQ-Z puts efficiency first. By automating the entire process, this machine can produce up to 150-160 pieces per minute on a standard machine and up to 220-300 pieces per minute with servo motors. The A model can produce 200 pieces per minute, while the Z model can reach an impressive 300 pieces per minute.
Adaptable to Any Product Line MQ-Z is not limited to a single type of product line. It is perfectly matched with various printing and slitting machines such as roll paper printing machines, flexo printing machines, screen printing machines, and gravure printing machines. Its versatility makes it a reliable addition to any electronic or adhesive product line.
Experience the Advantage MQ-Z goes above and beyond with its advantages. The waste and roll rewinders have separate motors and magnetic tension controllers for enhanced stability, and the photoelectric eyes are sourced from Germany's top brand, Leuze. With high-quality imported parts and an automatic oil lubrication system, MQ-Z operates with unmatched stability and efficiency. Additionally, the use of servo motors from Schneider France for material feeding adds to the machine's reliability and accuracy. With MQ-Z, experience the future of flatbed die cutting technology.

Applications:

The process includes various steps such as:

  • Unwinding the material
  • Die cutting the material
  • Discharging the waste
  • Cutting the material into smaller pieces
  • Rewinding the material


The material that can be processed by this machine includes:

  • Paper adhesive labels
  • Nylon membrane trademarks
  • Radium anti-fake trademarks


This machine is compatible with various printing and slitting machines, such as:

  • Roll paper printing machines
  • Flexo printing machines
  • Screen printing machines
  • Gravure printing machines


It is commonly utilized in industries like:

  • Electronics
  • Adhesive production


Customization:

Supreme MQ-350Z UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING

Brand Name: Supreme

Model Number: MQ-350Z

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: fumigation wooden box

Delivery Time: 30-60 working days

Payment Terms: TT;LC

Supply Ability: 20sets/month

Max Material Feeding width: 350mm

Max Material Pulling Length: 45m/min

Unwinding Max Diameter: 650mm

Voltage: 380V

Model: MQ-350Z



Precision Die-Cutting | Materials Converting



Customize your UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING with Supreme's MQ-350Z model. Our advanced machine is designed to provide high precision die-cutting and efficient materials converting.

With a maximum material feeding width of 350mm and pulling length of 45m/min, our MQ-350Z can handle a wide range of materials and provide fast production rates.

Our machine also boasts an unwinding max diameter of 650mm, making it suitable for large-scale production. The voltage requirement of 380V ensures stable and reliable performance.

At Supreme, we understand the importance of customization to meet your specific needs. Our MQ-350Z model can be tailored to your requirements, ensuring maximum efficiency and cost-effectiveness.



What is the cost of flat bed die cutting machine? Contact us now for a personalized quote and take your production to the next level with Supreme's MQ-350Z UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING.



Support and Services:

Technical Support

Our technical support team is dedicated to ensuring the smooth operation and maintenance of your UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING.

We provide comprehensive technical support services, including:

  • Installation and setup assistance
  • Training and guidance on machine operation and maintenance
  • Troubleshooting and problem-solving
  • Repairs and replacement of parts
  • Software updates and upgrades

We understand the importance of keeping your production processes running efficiently and will work closely with you to resolve any technical issues as quickly as possible.

Service

In addition to technical support, we also offer a range of services to ensure the optimal performance of your UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING.

Our services include:

  • Regular maintenance and inspections
  • On-site repairs and servicing
  • Emergency support and repairs
  • Customized solutions for your specific needs

We are committed to providing prompt and reliable service to minimize any disruptions to your production processes. Our experienced technicians are trained to handle any issues that may arise, ensuring that your machinery operates at its best at all times.

Thank you for choosing our UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING. We are here to support you every step of the way.



Packing and Shipping:



Packaging and Shipping

UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING is packaged in a sturdy wooden box to ensure safe delivery to the customer. The machine is also wrapped in protective materials to prevent any damage during transportation.

For shipping, we use reliable and efficient carriers to ensure timely delivery.

Once the machine arrives at its destination, it should be inspected for any signs of damage during transit. If any damage is found, please contact our customer service team for further assistance.

We strive to provide the best packaging and shipping services to ensure our customers receive their UNWINDING MAX DIAMETER 650MM DIE CUTTING SIZE 340MM*340MM ADHESIVE LABEL PAPER PROCESS MACHINERY FLATBED DIE CUTTING in perfect condition.



Standard with the machine:
1. One Flatbed Die Cutting Station+sheet cutting function with collection.
2. With 1pc 3’’ Unwinding Air Shaft, 1pc 3” Rewinding Air Shaft
3. With Meter/Number counter.
4. With 2 Photoelectric Eyes---Web Guide System



5. With 1 piece Color Track Photocell Sensor

6. PLC, Touch Screen...Controller

7: with safety protection case



Specification:

Machine Model MQ-350Z MQ-450Z MQ-550A
Max Die Cutting Speed 300 times/min 300 times/min 120 times/min
Max. Web Width 350mm 450mm 550mm
Max. Unwinding Diameter 700mm 650mm 650mm
Max. Rewinding Diameter 700mm 600mm 600mm
Max. Die Cutting Area 340*340mm 440*440mm 530*530mm
Precision of next die cut ±0.1mm ±0.1mm ±0.1mm
Total Power: 6 kw 10 kw 10kw
Voltage 380V 380V 380V
Dimensions 2900x1300x1400mm 2900x1450x1400mm 2900x1550x1400mm
Machine weight 2000 kgs 2500 kgs 3200 kgs



About us:

Professionally research and development in label flexographic printing machine, label die cutting machine, label slitting machine and Some other auxiliary equipment, We focus on talents and technological innovation, Adhere to the development strategy of "technical innovation, national brand", making the company a leader in the production line of label machinery.

Honesty, high quality, and service are our business tenet. Forge ahead, pragmatic and efficient are our corporate spirit. We research and manufacture various types of label machines, and welcome all new and old customers and friends to visit!





Because of upgraded and development, above datasheet just for reference, for the newest machinery, please enquiry our company. The finally interpretation is owned by our company
