PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350Z
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Die Cutting Precision: +-0.1mm Max Material Feeding Width: 350mm
MOQ: 1 Set Voltage: 380V
Max Rewinding Diameter: 600mm Die Cutting Size: 340mm*340mm
Warranty: 1 Year Model: MQ-350Z
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

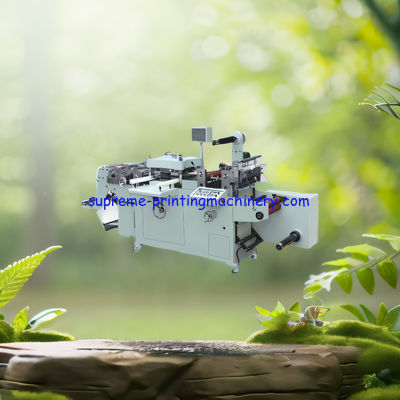

Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING

Product Description:

MQ-Z is an upgraded version of the MQ-A middle high speed flatbed die cutting machine. This machine is known for its economy and high precision capabilities. The servo motor, provided by Schneider France, ensures stability and control over the material being used. Two web guides on the right and left sides also contribute to the precision of the cuts which can reach up to +-0.1mm. The photoelectric eyes from Germany's Leuze can track colors for both printed and unprinted materials, making it suitable for a variety of products such as label paper, nylon membrane, and radium trademark security trademark for electronic and adhesive products.

This machine is equipped with various functions including material feeding, web guiding, color tracking, die cutting, laminating, hot stamping, hole punching, waste rewinding, and material sheeting or rewinding, all controlled by a touch screen and PLC automatic tension controller. It is the best solution for post-press processes of labels.

Some additional features of this machine include the options for laminating, hot stamping, and hole punching, as well as a standard cutting speed of 150-160pces/min, with the capability to increase to 220-300 sheets/min with the servo motor. The A model can achieve 200 times/minute while the Z model can achieve 300 times/minute. The 300 times capability is achieved through the use of a waste rewinder and roll rewinder, marked in red.

In operation, the material is unwound, die cut, waste is discharged, then the material is cut into pieces and rewound. This machine can be used in conjunction with other printing and slitting machines such as roll paper printing machine, flexo printing machine, screen printing machine, and gravure printing machine.

This machine is highly versatile, suitable for use in electronic and adhesive production lines.

Advantages:
1. Separate motors and magnetic tension controllers for both the waste rewinder and roll rewinder
2. Photoelectric eyes from Leuze, Germany
3. Use of high quality and exported brand parts, with an automatic oil lubrication system for improved machine quality
5. Servo motor control system from Schneider, France for improved precision and stability
6. Two web guides for enhanced precision at +/-0.1mm



Applications:

The process of producing paper adhesive labels, nylon membrane trademarks, and radium anti-fake trademarks involves various stages, starting from unwinding the materials to cutting them into desired pieces. This process is commonly known as unwinding-die cutting-waste discharging-cutting into pieces-rewinding.

This machinery is designed to work in conjunction with different types of printing and slitting machines, such as roll paper printing machines, flexo printing machines, screen printing machines, and gravure printing machines.

The versatility of this machine makes it highly useful in industries like the electronic and adhesive product lines, where precise cutting and rewinding of materials are crucial for efficient production.



Customization:

Customization Service for Supreme MQ-350Z PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING

Brand Name: Supreme

Model Number: MQ-350Z

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: Negotiation

Packaging Details: Fumigation Wooden Box

Delivery Time: 30-60 Working Days

Payment Terms: TT;LC

Supply Ability: 20 Sets/Month

Max Rewinding Diameter: 600mm

Voltage: 380V

Max Material Pulling Length: 45m/min

MOQ: 1 Set

Die Cutting Size: 340mm*340mm

Experience the ultimate precision and efficiency with our die cutting press machine - the Supreme MQ-350Z. As the leading manufacturer in China, we offer top-of-the-line PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING with customizable features to meet your specific needs.

Our flatbed die-cutters are designed for high-speed production, delivering accurate and clean cuts every time. With a maximum rewinding diameter of 600mm, you can easily handle large batches of label paper without any hassle. The 380V voltage ensures stable and reliable performance, while the maximum material pulling length of 45m/min guarantees fast production speed.

As a CE-certified product, the Supreme MQ-350Z meets international standards of quality and safety. We also offer a flexible minimum order quantity of 1 set, allowing you to tailor your purchase according to your budget and production needs.

Our die cutting press machine is equipped with a 340mm*340mm die cutting size, making it suitable for a wide range of label paper sizes and shapes. With a maximum pressure of 350 tons, it can effortlessly cut through various materials, including adhesive label paper, cardboard, and foam.

Experience top-notch performance and efficiency with our high-speed die cutting press - the Supreme MQ-350Z. Contact us now to discuss your customization options and get a quote for your customized machinery.

Support and Services:

PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING Technical Support and Services
Technical Support

Our PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING is designed and manufactured with the latest technology and highest quality standards to ensure smooth and efficient operation. However, in case of any technical issues, we offer comprehensive technical support to our customers.

  • 24/7 technical support hotline for immediate assistance
  • Remote troubleshooting and diagnostics
  • On-site technical support if required
  • Expert technicians with extensive knowledge and experience
  • Regular maintenance checks and updates
Services

We understand that every customer has unique requirements and we strive to provide customized services to meet those needs. Our team of professionals is committed to delivering exceptional services to ensure the smooth operation of your PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING.

  • Installation and commissioning of machinery
  • Ongoing training and support for operators
  • Regular maintenance and repair services
  • Supply of spare parts and consumables
  • Upgrades and retrofits to enhance performance
  • Consultancy services for process optimization

With our strong technical support and comprehensive services, we are dedicated to providing a seamless experience for our customers and ensuring the longevity of your PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING. Contact us today for more information.



Packing and Shipping:



PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING Packaging and Shipping

Our PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING is carefully packaged to ensure safe delivery to our customers. Each machine is individually wrapped in protective materials and placed in a sturdy wooden box.

We offer various shipping options to meet our customers' needs. We can ship by air, sea, or land depending on the location and urgency of the order. Our team will work with you to determine the most efficient and cost-effective shipping method for your specific order.

Once your order is shipped, we will provide you with a tracking number so you can monitor the delivery status of PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING. Our dedicated customer service team is also available to assist with any questions or concerns you may have regarding your shipment.

At PRECISION DIE-CUTTING MATERIALS CONVERTING - MQ-350Z - AND PERFORMANCE - MOQ 1 SET MIDDLE HIGH SPEED FLATBED DIE CUTTING, we prioritize the safe and timely delivery of our products to our customers. With our careful packaging and reliable shipping methods, you can trust that your machinery will arrive in perfect condition and ready for use.



Standard with the machine:
1. One Flatbed Die Cutting Station+sheet cutting function with collection.
2. With 1pc 3’’ Unwinding Air Shaft, 1pc 3” Rewinding Air Shaft
3. With Meter/Number counter.
4. With 2 Photoelectric Eyes---Web Guide System



5. With 1 piece Color Track Photocell Sensor

6. PLC, Touch Screen...Controller

7: with safety protection case



Specification:

Machine Model MQ-350Z MQ-450Z MQ-550A
Max Die Cutting Speed 300 times/min 300 times/min 120 times/min
Max. Web Width 350mm 450mm 550mm
Max. Unwinding Diameter 700mm 650mm 650mm
Max. Rewinding Diameter 700mm 600mm 600mm
Max. Die Cutting Area 340*340mm 440*440mm 530*530mm
Precision of next die cut ±0.1mm ±0.1mm ±0.1mm
Total Power: 6 kw 10 kw 10kw
Voltage 380V 380V 380V
Dimensions 2900x1300x1400mm 2900x1450x1400mm 2900x1550x1400mm
Machine weight 2000 kgs 2500 kgs 3200 kgs
