DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350YII
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Slitting Speed: 120m/min Max Rewinding Diameter: 650mm
Warranty: 1 Year Die Cutting Length: 200mm-450mm (intermittent) 250mm-550mm (full Rotary)
Power: 12kw MOQ: 1 Set
Voltage: 380V Max Speed: 60m/min (intermittent) 120m/min (full-rotary)
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING

Product Description:

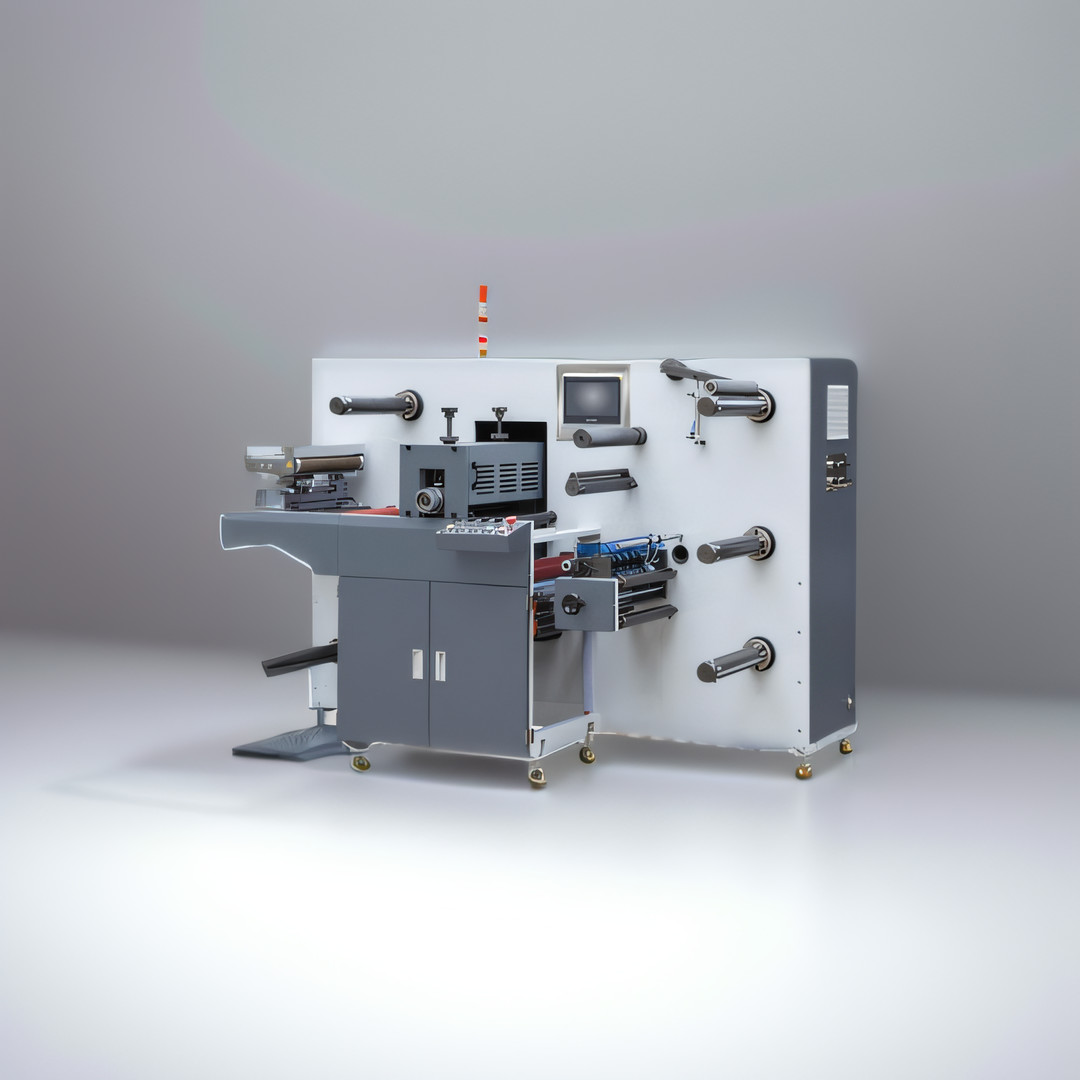

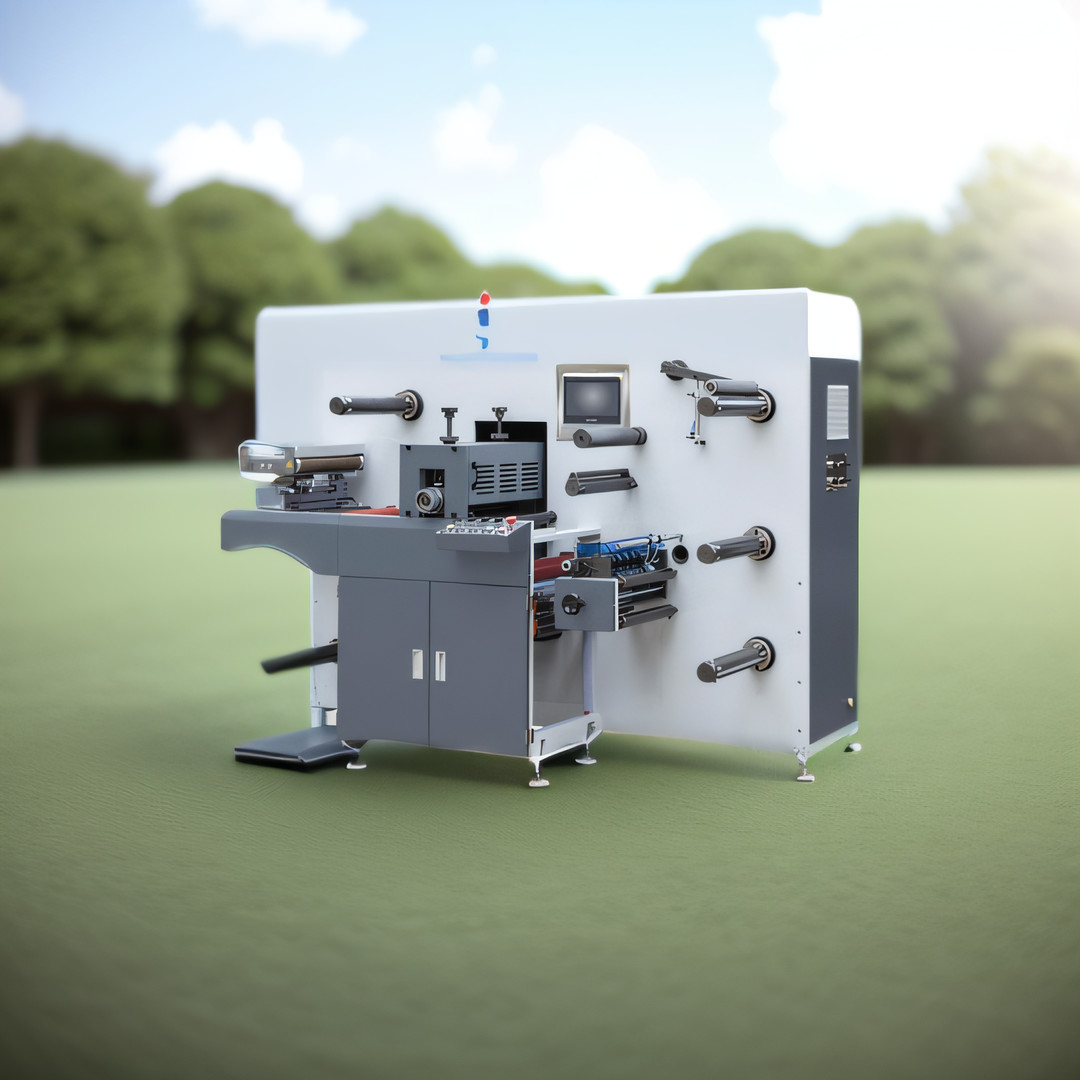

MQ-350YII Semi-rotary Die Cutting with Slitting Machine

The MQ-350YII Semi-rotary Die Cutting with Slitting Machine is an innovative product that features a motion control system and a register sensor to ensure precise rotary die-cutting. Designed for pre-printed labels, this machine offers a one-step process for unwinding, rotary die-cutting, slitting, and rewinding. It can operate in both semi-rotary and full rotary modes.

With its semi-rotary capabilities, this machine eliminates the need to change different magnetic cylinders for different labels, as it can move backward. Only a flexible die needs to be changed. Additionally, the machine is equipped with a web guide to ensure smooth material feeding. Its compact structure, high speed, efficiency, and ease of use make it a reliable choice for accurate slitting and steady operation.



Applications:

Label Pre-Printing Machine

This versatile machine is designed specifically for pre-printed labels. It is equipped with an unwinder, rotary die-cutting, slitting, and rewinding function, allowing for an efficient one-step process. It is capable of running in both semi-rotary and full rotary modes, giving you flexibility in production.

In semi-rotary mode, the machine eliminates the need for frequent changes of magnetic cylinders for different labels. It is able to go backwards, saving time and effort. The only component that needs to be changed is the flexible die, making the process even more efficient.



Customization:

Customized Service for DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING

Brand Name: Supreme

Model Number: MQ-350YII

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: fumigation wooden box

Delivery Time: 30-60 working days

Payment Terms: TT;LC

Supply Ability: 20sets/month

Power: 12kw

Max Rewinding Diameter: 650mm

Max Speed: 60m/min (intermittent) 120m/min (full-rotary)

Slitting Speed: 120m/min

Die Cutting Length: 200mm-450mm (intermittent) 250mm-550mm (full rotary)

Introducing Supreme MQ-350YII DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING

Are you looking for a high speed die cutting machine for your adhesive label paper process needs? Look no further than Supreme's MQ-350YII model. Designed and manufactured in China, this machine boasts a CE certification and offers customizable features to meet your specific requirements.

Key Features:
  • Semi-rotary die cutter for digital label finishing
  • Semi rotary label and slitting die cutting machine
  • 12kw power
  • Max rewinding diameter of 650mm
  • Max speed of 60m/min (intermittent) or 120m/min (full-rotary)
  • Slitting speed of 120m/min
  • Die cutting length of 200mm-450mm (intermittent) or 250mm-550mm (full rotary)
Customization Options:

At Supreme, we understand that every business has unique needs. That's why we offer customization options for our MQ-350YII DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING. You can choose your preferred power, speed, and die cutting length to suit your production requirements. Our team will work closely with you to ensure that the final product meets your specifications and exceeds your expectations.

Ordering and Delivery:

To place an order for our MQ-350YII machine, the minimum quantity required is 1 unit. Our price is negotiable and we accept payment through TT or LC. The packaging for this product is a fumigation wooden box to ensure safe delivery. Our delivery time is 30-60 working days, and we have a supply ability of 20 sets per month.

Don't hesitate to contact us for more information or to request a quote for our Supreme MQ-350YII DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING. Let us help you streamline your label production process and increase efficiency with our high-quality and customizable machine. Trust Supreme for all your label finishing needs.



Support and Services:

2. Main Technical Parameters:



Slitting speed 120m/min
Die-cutting speed 60m/min (intermittent)
120m/min (full-rotary)
Max web width 320mm
Max unwinding diameter 650 mm
Max rewinding diameter 650 mm
Die cutting length 200mm-450mm (intermittent)
250mm-550mm (full rotary)
Overall diameter 2300* 1300* 1500mm
Machine weight 1000kgs
Voltage 380V, 3P
Power 12KW



3. Standard configuration:

  • One rotary die cutting station with waste rewinder shaft
  • One Lamination station with waste rewind for over-lamination film with liner
  • With 1pc 3’’ unwinding shaft with tension controller.
  • With 2pcs 3'' air shaft for rewind
  • With meter/number counter.
  • With one register sensor
  • With 8 pcs rotary knife.
  • Machine has blower fan to blow away the trimmed sides.
  • With auto web guiding

DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING 0DIE CUTTING LENGTH 200MM-450MM INTERMITTENT ADHESIVE LABEL PAPER PROCESS MACHINERY SEMI-ROTARY DIE CUTTING WITH SLITTING 1
