UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-350YII
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Max Material Feeding Width: 320mm Die Cutting Length: 200mm-450mm (intermittent) 250mm-550mm (full Rotary)
Unwinding Max Diameter: 650mm Warranty: 1 Year
Max Speed: 60m/min (intermittent) 120m/min (full-rotary) Power: 12kw
MOQ: 1 Set Model: MQ-350YII
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT

Product Description:

MQ-350YII Semi-Rotary Die Cutting with Slitting Machine

The MQ-350YII Semi-rotary die cutting with slitting machine is a cutting-edge product that is equipped with a motion control system and register sensor, ensuring highly precise rotary die-cutting. This machine is primarily used for pre-printed labels. It includes an unwinding module, a rotary die-cutting system, a slitting unit, and a rewinding mechanism - all in a single process. Furthermore, it can run in both semi-rotary and full rotary modes. In semi-rotary mode, the machine can run in reverse, eliminating the need for different magnetic cylinders for different labels. This reduces downtime and only requires the change of a flexible die. The machine also features a web guide to ensure a smooth material feeding process. Its compact structure, high speed, exceptional efficiency, user-friendly operation, accurate slitting, and stable performance make it an ideal choice for the label industry.



Applications:

This device is suitable for pre-printed labels. It has the capability to perform unwinding, rotary die-cutting, slitting, and rewinding in one seamless process. It is capable of operating in both semi-rotary and full rotary modes. In semi-rotary mode, the machine does not require the use of multiple magnetic cylinders for different labels as it has the ability to reverse direction. Only the flexible die needs to be changed for different labels.



Customization:

UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT Customization Service
Product Attributes:
  • Brand Name: Supreme
  • Model Number: MQ-350YII
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 30-60 working days
  • Payment Terms: TT;LC
  • Supply Ability: 20sets/month
  • Model: MQ-350YII
  • Voltage: 380V
  • Warranty: 1 Year
  • Max Material Feeding width: 320mm
  • Slitting speed: 120m/min
Customization Services:

Supreme offers a variety of customization services for our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT to meet your unique needs and requirements. Our team of experts will work closely with you to tailor our machinery to your specific production needs, ensuring optimal performance and efficiency.

Semi-Rotary Die Cutter:

Our Advanced Semi Rotary Die Cutting Machine offers precision and versatility in label cutting. We can customize the die cutting process to your desired shape and size, providing a perfect finish every time.

Varnishing:

Supreme's Semi Rotary Die Cutting Machine also offers the option for varnishing, giving your labels a glossy or matte finish for added appeal and durability. Our team can customize the varnishing process to meet your specific design and production requirements.

Digital Label Converting and Finishing:

Our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT is equipped with the latest digital technology, allowing for efficient and high-quality label converting and finishing. We can customize the process to meet your desired label design, size, and production speed.

With our customization services, you can be assured of a seamless and efficient production process, resulting in high-quality and professional labels. Contact us now to discuss your customization needs and receive a quote for our Advanced Semi Rotary Die Cutting Machine!



Support and Services:

UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT

Our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT is designed to provide efficient and high-quality label paper processing for your production needs. With advanced technology and reliable performance, our machinery is the perfect solution for your labeling requirements.

Technical Support

Our team of experienced technicians and engineers are always available to provide technical support and assistance with any issues or questions you may have regarding our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT. We offer remote support, on-site assistance, and training services to ensure that you are able to operate our machinery effectively and efficiently.

Service and Maintenance

We understand the importance of keeping your production line running smoothly and minimizing downtime. That's why we offer comprehensive service and maintenance packages for our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT. Our skilled technicians will regularly inspect and maintain your machinery to ensure optimal performance and longevity.

Spare Parts and Accessories

In the event that your UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT requires replacement parts or accessories, we have a wide range of high-quality spare parts and accessories available for purchase. Our team can also assist with identifying the specific parts you need and providing recommendations for the best options for your machinery.

Customization and Upgrades

We understand that every production line has unique requirements and our Adhesive Label Paper Process Machinery can be customized to meet your specific needs. We also offer upgrades for older machinery to improve performance and efficiency, extending the life of your equipment and reducing the need for replacement.

Training and Education

We believe in equipping our customers with the knowledge and skills to operate our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT effectively. That's why we offer training and education programs for your employees, providing them with the necessary skills and knowledge to maximize the potential of our machinery.

24/7 Support

We understand that production lines can run 24/7 and unexpected issues may arise at any time. That's why we offer 24/7 support for our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT. Our team is always available to provide assistance and resolve any issues to minimize downtime and ensure continuous production.

Trust in our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT for efficient and reliable labeling solutions. Contact us today for more information and to discuss your specific needs.



Packing and Shipping:

Packaging and Shipping of UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT

Our UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT is carefully packaged and shipped to ensure safe arrival and easy installation for our customers.

The machinery is first wrapped in protective materials and placed in a sturdy wooden crate to prevent any damage during transportation.

Each crate is then labeled with the necessary handling and shipping instructions, including the product name, model number, and weight.

We work with reliable shipping companies to deliver our machinery to customers worldwide. The shipping method and carrier can be customized according to the customer's preferences and requirements.

For international shipments, we provide all necessary export documentation and ensure compliance with any applicable regulations.

Upon arrival, our customers can expect to receive their UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT in excellent condition, ready to be unpacked and installed.

We take great care in packaging and shipping our machinery to ensure complete customer satisfaction and a smooth installation process.



FAQ:

.

2. Main Technical Parameters:



Slitting speed 120m/min
Die-cutting speed 60m/min (intermittent)
120m/min (full-rotary)
Max web width 320mm
Max unwinding diameter 650 mm
Max rewinding diameter 650 mm
Die cutting length 200mm-450mm (intermittent)
250mm-550mm (full rotary)
Overall diameter 2300* 1300* 1500mm
Machine weight 1000kgs
Voltage 380V, 3P
Power 12KW



3. Standard configuration:

  • One rotary die cutting station with waste rewinder shaft
  • One Lamination station with waste rewind for over-lamination film with liner
  • With 1pc 3’’ unwinding shaft with tension controller.
  • With 2pcs 3'' air shaft for rewind
  • With meter/number counter.
  • With one register sensor
  • With 8 pcs rotary knife.
  • Machine has blower fan to blow away the trimmed sides.
  • With auto web guiding

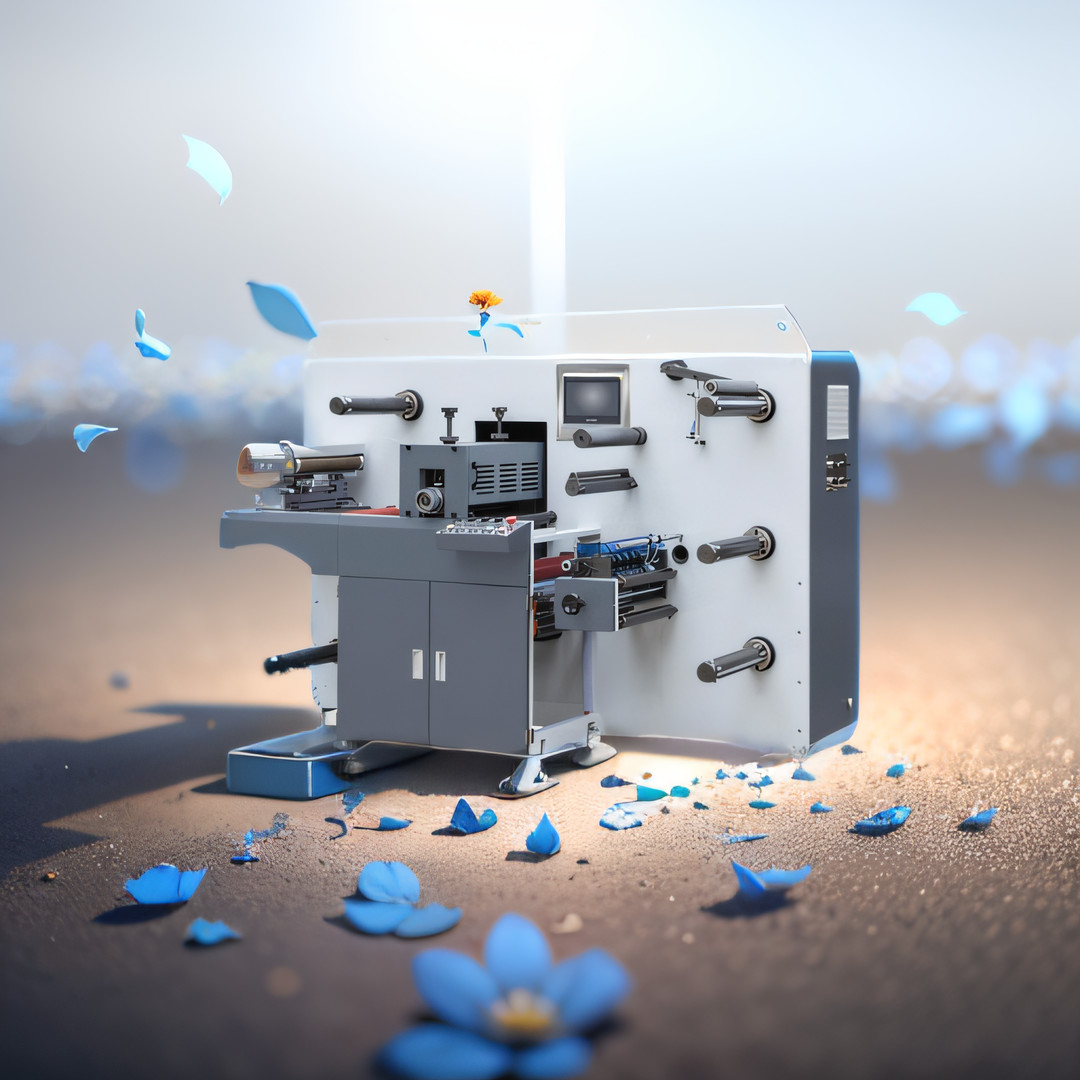

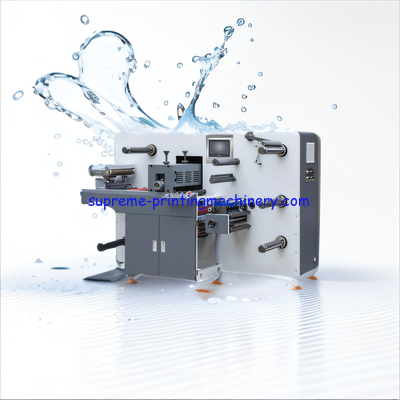

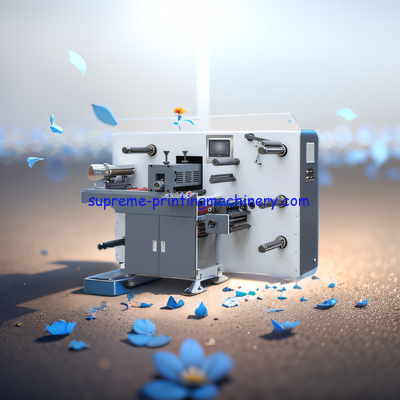

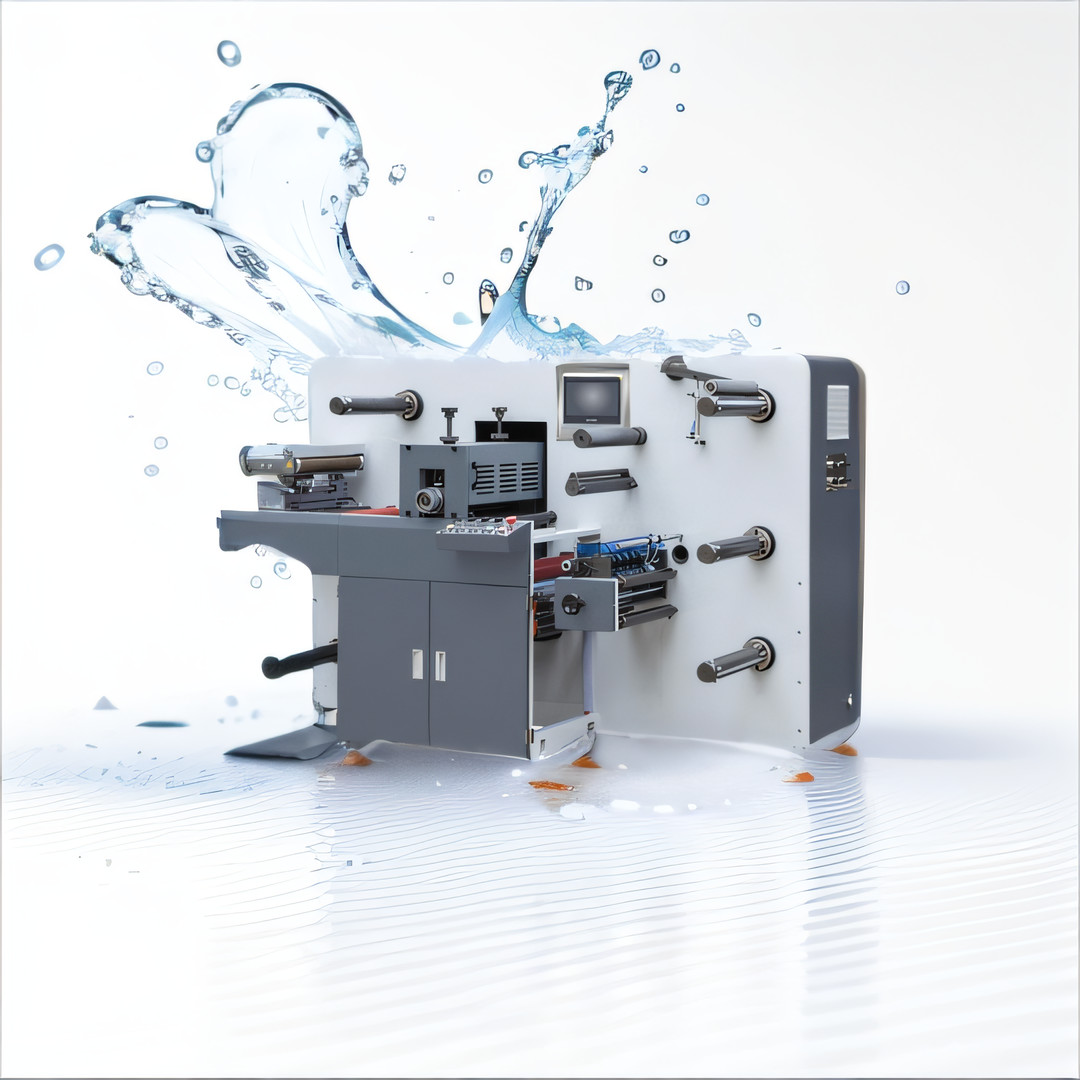

UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT 0UNWINDING MAX DIAMETER UP TO 650MM - AUTOMATED FINISHING SYSTEMS EQUIPMENT AVAILABLE SEMI-ROTARY DIE CUTTING TURRET SLIT 1
