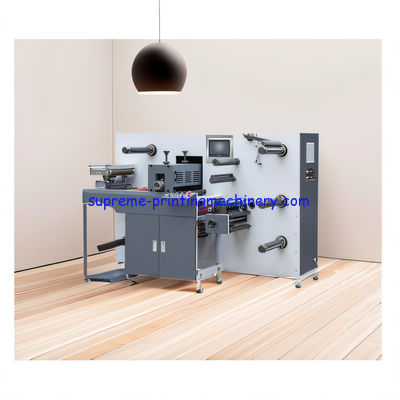

15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-YIIE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
Voltage: 380V Max Material Feeding Width: 350mm
Max Rewinding Diameter: 600mm Die Cutting Length: 480mm (intermittent) 570mm (full Rotary)
Warranty: 1 Year Slitting Speed: 120m/min
Max Speed: 50m/min (intermittent) 120m/min (full-rotary) Power: 15kw
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: 15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND

Product Description:

Intermittent Semi Rotary Die-Cutting: A Revolutionary Machining Process

Intermittent semi rotary die-cutting is a cutting-edge machining process that uses a sophisticated servo motor motion control system and color register sensors to achieve impeccable precision in rotary die-cutting. This new processing concept is a standout feature of the machine, eliminating the need to replace different sizes of magnetic cylinders. Only the mold needs to be replaced, significantly saving time and the expense of creating multiple cutting tools.

The machine is specifically designed for pre-printed labels, offering a seamless process that incorporates unwinding, rotary die-cutting, slitting, and rewinding in one swift operation. It effortlessly switches between semi rotary and full rotary modes, catering to a diverse range of production needs. With its compact structure, rapid speed, exceptional efficiency, user-friendly operation, and flawless cutting accuracy, this machine is a game-changer in the labeling industry.



Applications:

This machine is ideal for printing labels before the final printing process. It can handle tasks such as unwinding, rotary die-cutting, slitting, and rewinding all in one seamless process. It offers the flexibility to work in either semi rotary mode or full rotary mode.



Customization:

15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND - Customization Service

Brand Name: Supreme

Model Number: MQ-YIIE

Place of Origin: China

Certification: CE

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: fumigation wooden box

Delivery Time: 30-60 working days

Payment Terms: TT;LC

Supply Ability: 20sets/month

Warranty: 1 Year



Key Features:



  • Model: MQ-YIIE
  • Slitting Speed: 120m/min
  • Max Rewinding Diameter: 600mm
  • Max Material Feeding Width: 350mm



Rotary Die Cutting Machines - Plain Label Production



Our 15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND is equipped with rotary die cutting technology, making it perfect for plain label production. With its high-speed slitting and rewinding capabilities, it is able to efficiently produce a large volume of plain labels in a short period of time.



How do I choose a die cutting machine?



Choosing the right die cutting machine can be a daunting task, but with our expertise and dedication to customer satisfaction, we can help you make the best decision. Our team will work closely with you to understand your specific needs and recommend the perfect die cutting machine that will meet your production requirements and budget.



Hot Sale Intermittent Rotary Die Cutting Machine



Our MQ-YIIE model is a hot sale intermittent rotary die cutting machine that has been highly praised by our customers. Its advanced technology and high precision cutting make it a top choice for many businesses in the label production industry. With its versatility and efficiency, it is a valuable asset to any production line.

Support and Services:

.

Packing and Shipping:

15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND Packaging and Shipping

Our 15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND is carefully packaged and shipped to ensure safe delivery to our customers.

Packaging:

The machinery is first wrapped in protective materials to prevent any damage during transit. It is then placed in a sturdy, custom-made wooden crate to provide extra protection. The crate is sealed and labeled with the necessary shipping information.

Shipping:

We offer both domestic and international shipping options for our customers. For domestic shipments, we use reliable and trusted carriers such as truck. For international shipments, we work with freight forwarders to ensure smooth and efficient delivery.

Upon shipment, customers will receive a tracking number to track their package and can expect their machinery to arrive within the estimated delivery time.

We take great care in packaging and shipping our 15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND to ensure that it arrives in perfect condition for our customers.



FAQ:



.

2. Main Technical Parameters:



Slitting speed 120m/min
Die-cutting speed 50m/min (intermittent)
120m/min (full-rotary)
Max web width 350mm
Max unwinding diameter 600 mm
Max rewinding diameter 600 mm
Die cutting length 480mm (intermittent)
570mm (full rotary)
Machine size 2200* 1300* 1500mm
Machine weight 1600kgs
Voltage 380V, 3P
Power 15KW
Standard magnetic cylinder 150T(480mm)
Slitting width 12-350mm
Die cutting precision +-0.15mm



Machine details:

1:web guide

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

2:Servo motor:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

3:slitting part:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

4:touch screen:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

5:die cutting station:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

6:samples:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

15KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND 615KW INTERMITTENT ROTARY DIE CUTTING MACHINE AT 120M/MIN SLITTING SPEED MAX REWINDING DIAMETER 600MM WITH TURRET REWIND 7
