HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-YIIE
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 30-60 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20sets/month
Detail Information
MOQ: 1 Set Model: MQ-YIIE
Power: 15kw Warranty: 1 Year
Slitting Speed: 120m/min Max Speed: 50m/min (intermittent) 120m/min (full-rotary)
Unwinding Max Diameter: 600mm Die Cutting Length: 480mm (intermittent) 570mm (full Rotary)
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

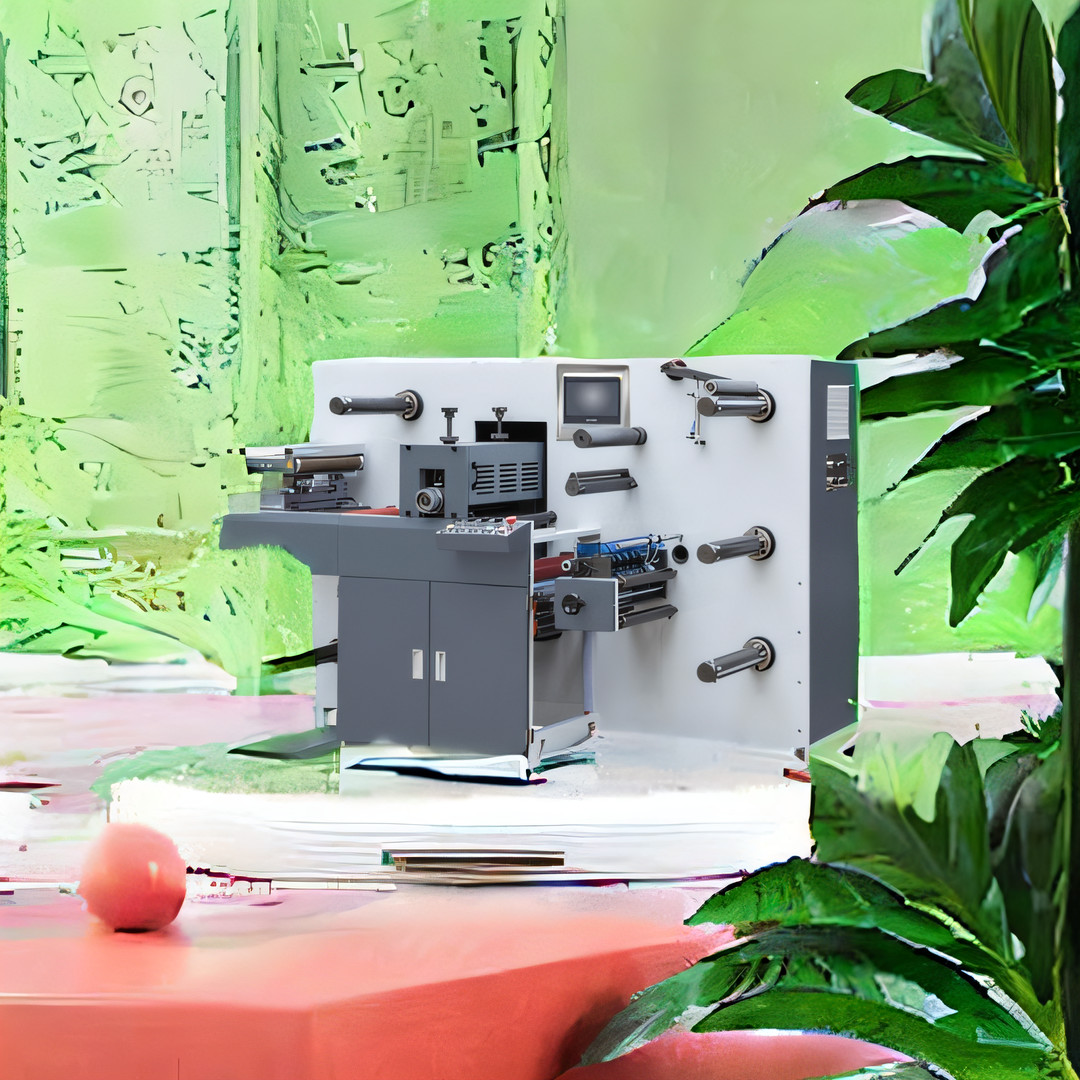

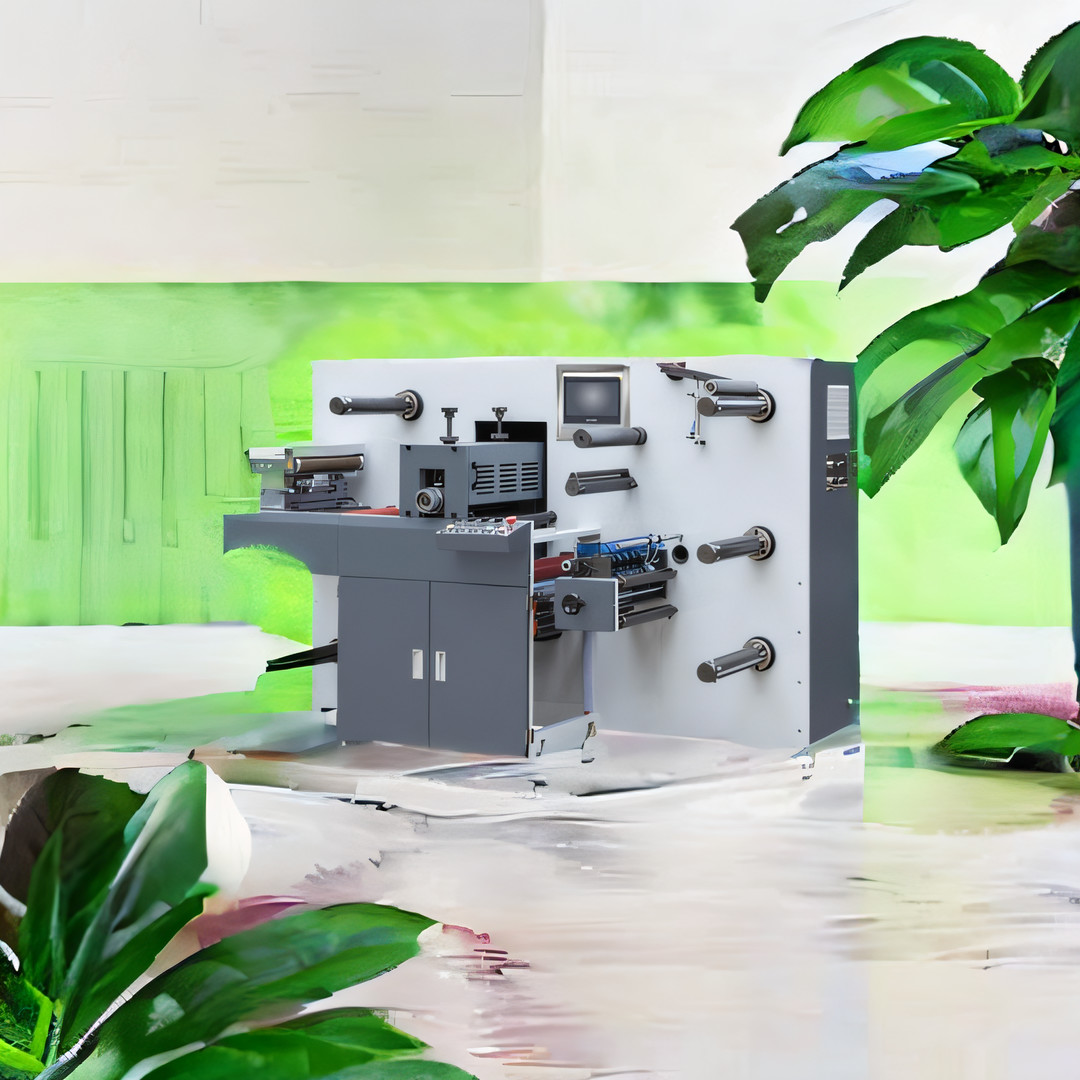

HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT

Product Description:

Intermittent semi rotary die-cutting is a new machining process equipped with a servo motor motion control system and color register sensors to arrange high-precision rotary die-cutting systems. The distinct feature of this machine is its new processing concept without the need to replace different specifications of magnetic cylinders; only the mold needs to be replaced. This saves both time and cost in making cutting tools, and the machine is suitable for pre-printing labels. Unwinding, rotary die-cutting, slitting and rewinding are all accomplished in one process, and it is also capable of operating both semi rotary mode and full rotary mode.

The machine has many attractive qualities, such as compact structure, fast speed, high efficiency, convenient operation, accurate cutting, and smoother operation.



Applications:

The machine we choose is suitable for pre-printing labels. It is quite different from the traditional methods, as it can complete unwinding, rotary die-cutting, slicing and rewinding all in one process.

Moreover, it provides the flexibility that allows users to choose to work in both semi-rotary mode and full-rotary mode, according to the label features they required.



Customization:

Supreme's HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT provides customised service to meet your manufacturing needs. Our Full Servo Intermittent Rotary Die Cutting Machine – Model MQ-YIIE – is certified with CE, and comes with a variety of features, including:

  • Brand Name: Supreme
  • Model Number: MQ-YIIE
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Fumigation Wooden Box
  • Delivery Time: 30-60 Working Days
  • Payment Terms: TT;LC
  • Supply Ability: 20Sets/Month
  • Slitting Speed: 120m/min
  • Max Speed: 50m/min (Intermittent) 120m/min (Full-Rotary)
  • Die Cutting Length: 480mm (Intermittent) 570mm (Full Rotary)
  • Max Rewinding Diameter: 600mm

With our Intermittent Rotary Label Die Cutting Machine, you can easily cut through paper, film, and other materials. Our Flatbed Die Cutting Vs Rotary Die Cutting technology allows for superior precision and accuracy.



Support and Services:

HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT Technical Support and Services

Our technical support and services team is dedicated to helping customers get the most out of their HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT. We offer a range of services, from on-site installation and maintenance to remote technical support and troubleshooting.

Our technical support team is available 24/7 to provide assistance with setup, operation, and maintenance. We also offer remote monitoring services to ensure your equipment is running optimally and to identify and address any issues that arise.

Our maintenance services include preventative maintenance to keep your HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT running smoothly and reduce downtime. We also offer on-site repair services for any problems that may arise.

For more information about our technical support and services, please contact us today.



Packing and Shipping:

Packaging and Shipping for HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT

HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT will be safely packaged in strong and durable boxes, ensuring the safety of the products during transport. All products will be shipped and delivered using reliable courier service providers or other transportation methods.

We guarantee that all orders will be shipped within 7 working days of confirmation after balance payment. Delivery time will depend on the delivery service provider and the distance between the shipping address and our warehouse.

For international orders, we will use reliable international courier service providers. The buyer will be responsible for any customs duties or taxes that may arise.



FAQ:

HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT
Q1: What is the Brand Name?
A1: The Brand Name is Supreme.
Q2: What is the Model Number?
A2: The Model Number is MQ-YIIE.
Q3: Where is the Place of Origin?
A3: The Place of Origin is China.
Q4: Is the product certified?
A4: Yes, it is certified with CE.
Q5: What's the Minimum Order Quantity?
A5: The Minimum Order Quantity is 1.


2. Main Technical Parameters:



Slitting speed 120m/min
Die-cutting speed 50m/min (intermittent)
120m/min (full-rotary)
Max web width 350mm
Max unwinding diameter 600 mm
Max rewinding diameter 600 mm
Die cutting length 480mm (intermittent)
570mm (full rotary)
Machine size 2200* 1300* 1500mm
Machine weight 1600kgs
Voltage 380V, 3P
Power 15KW
Standard magnetic cylinder 150T(480mm)
Slitting width 12-350mm
Die cutting precision +-0.15mm



Machine details:

1:web guide

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

2:Servo motor:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

3:slitting part:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

4:touch screen:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

5:die cutting station:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

6:samples:

SEMI ROTRAY INTERMITTENT DIE CUTTING SNOWBALL TYPE WASTE REWINDING DEVICE WITH SLITTING STATION TURRET REWINDING OPTION

HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT 6HIGH CAPACITY 15KW ADHESIVE LABEL PAPER PROCESS MACHINERY UNWINDING MAX DIAMETER 600MM INTERMITTENT SEMI ROTARY DIE-CUT 7
