LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION

Basic Information
Place of Origin: China
Brand Name: Supreme
Certification: CE
Model Number: MQ-320-Y
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: fumigation wooden box
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, T/T, Western Union, MoneyGram
Supply Ability: 40sets/month
Detail Information
Model: MQ-320-Y Slitting Speed: 120m/min
Die Cutting Speed: 120m/min Warranty: 1 Year
Voltage: 380V/220V Unwinding Max Diameter: 500mm
Max Material Feeding Width: 320mm Max Rewinding Diameter: 500mm
Video: For Video Sent Please Wechat/wa Me:+8618072118971 Language: Can Customized Into Client Regular Language For Easy Operations
Product Name: LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION Note: Because Of Upgraded And Development, Above Datasheet Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company
Note: Because Of Upgraded And Development, Machine Image Just For Reference, For The Newest Machinery, Please Enquiry Our Company. The Finally Interpretation Is Owned By Our Company

Product Description

LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION

Product Description:

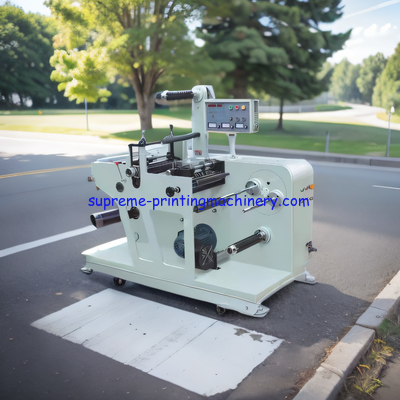

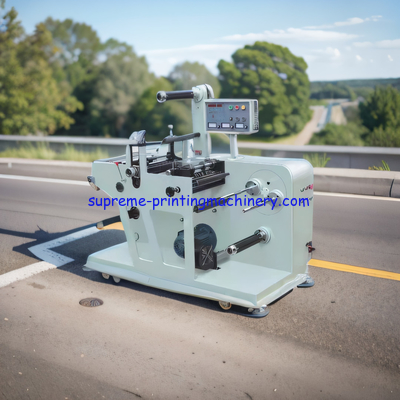

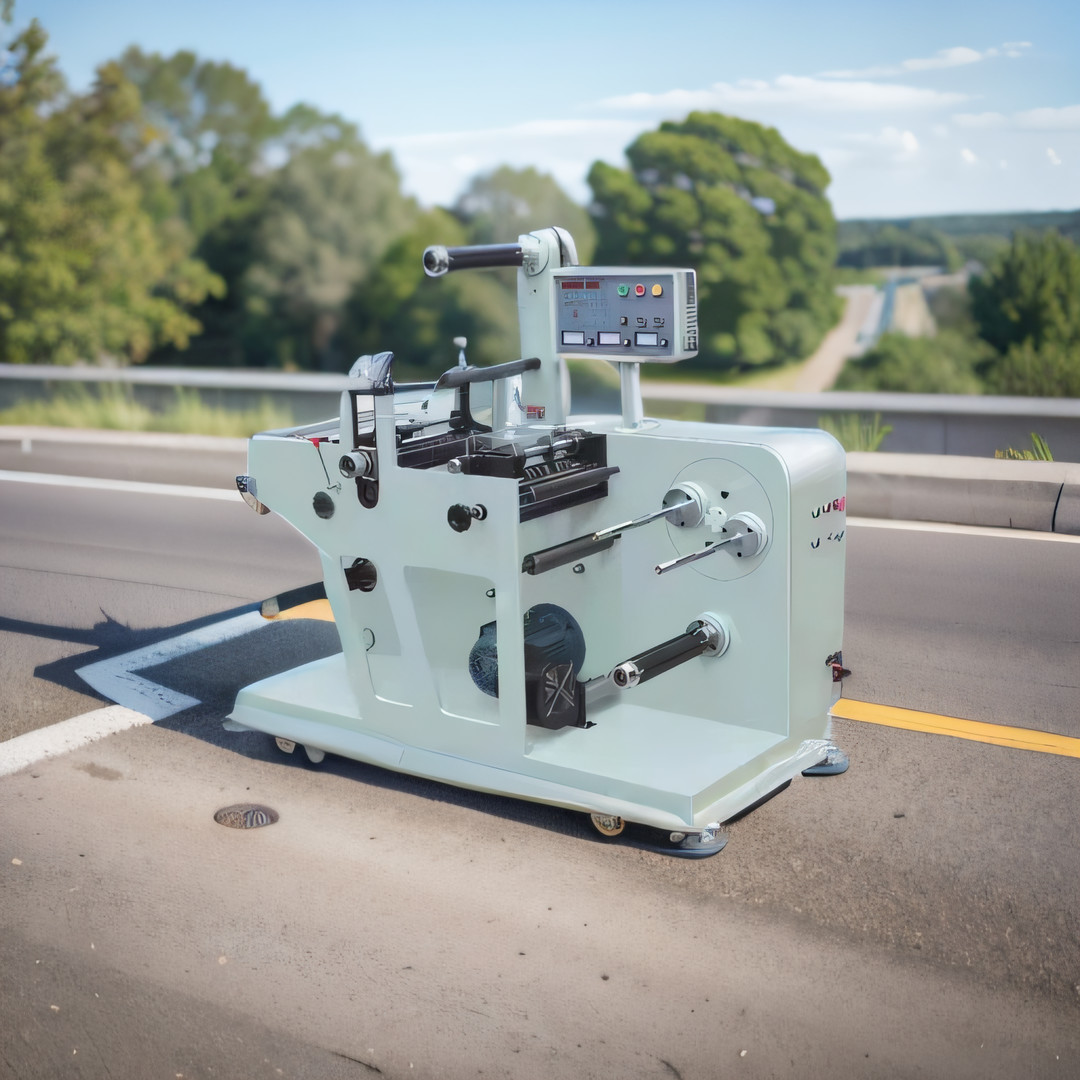

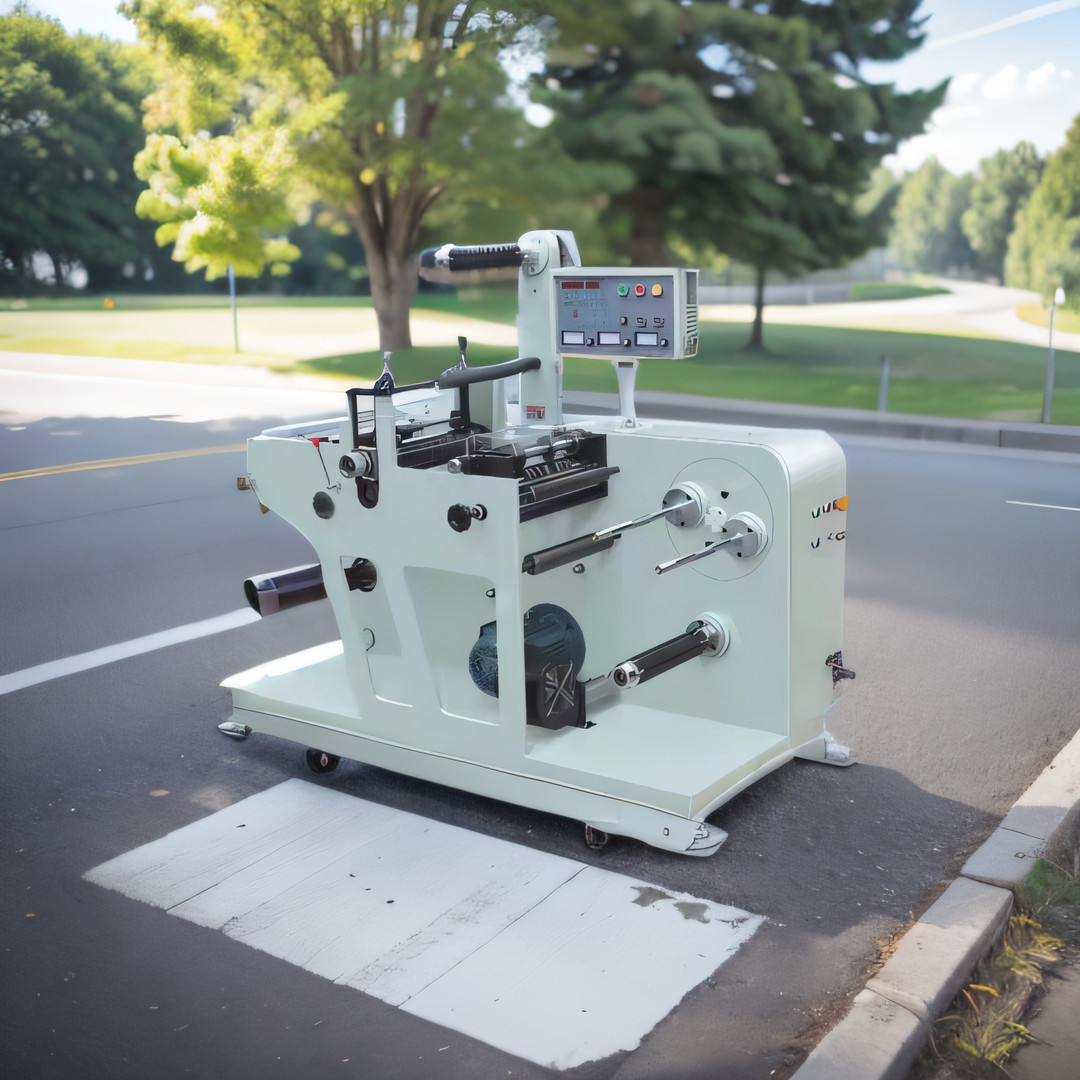

The MQ320-Y Rotary Blank Label Die Cuting Machine With Slitter is a piece of machinery that was designed for customers who have some single product structure. It features a high precision rotary die cutting station, a slitting station, and the option to turret rewind into 2 inch, 1.5 inch, or even 1 inch air shafts. It is even capable of blank label laminating.

Not only that, but this machine also has a number of impressive features. This includes the automatic meter/number counting and auto stopping, as well as the web guiding system using an internal photo-electric eye. Plus, the MQ320-Y has a number of advantageous characteristics, such as the compact structure, fast speed, high efficiency, easy operation, accurate slitting, and stable operation.



Applications:

It is necessary to write on the blank label since the label needs some content.

In this case, it is necessary to do the work for the blank label, because it does not come with any printed words.



Customization:

LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION
  • Brand Name: Supreme
  • Model Number: MQ-320-Y
  • Place of Origin: China
  • Certification: CE
  • Minimum Order Quantity: 1
  • Price: negotiation
  • Packaging Details: fumigation wooden box
  • Delivery Time: 20-30 working days
  • Payment Terms: TT;LC
  • Supply Ability: 40sets/month
  • Max Rewinding Diameter: 500mm
  • Max Material Feeding width: 320mm
  • Unwinding Max Diameter: 500mm
  • Model: MQ-320-Y
  • Mini Slit Width: 16mm

Supreme offers custom-made LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION , manufactured by one of the leading Rotary Die Cutting Companies in the world. Our rotary die cutting machine is CE certified and comes with a minimum order quantity of 1. We offer competitive prices and fast delivery, with a delivery time of 20-30 working days. Payment terms are TT;LC and our supply ability is 40sets/month. Our machine features a max rewinding diameter of 500mm, max material feeding width of 320mm, unwinding max diameter of 500mm, mini slit width of 16mm and model of MQ-320-Y. If you are looking for a digital label converting and finishing intermittent and full rotary cutting machine, contact Supreme now!



Support and Services:

LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION  provides high quality technical support and services to ensure that each customer's product is operational and meets performance requirements.

We provide comprehensive technical support and service solutions, which include:

  • Onsite installation and training
  • Maintenance and repairs
  • Technical consultation and troubleshooting
  • Periodic system upgrades and enhancements
  • Spare parts supply

Our experienced and knowledgeable technicians are committed to providing superior customer service and support.



Packing and Shipping:

Packaging and Shipping
LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION

LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION will be shipped in secure packaging to ensure it is delivered in perfect condition.

Prior to shipping, the machinery will be carefully inspected and tested to ensure that it is in full working order. The machinery will be securely attached to the packaging to prevent any movement during transit. The packaging will also include detailed instructions for unpacking and installing the machinery.

The machinery will be shipped via a reliable carrier with tracking information provided. We can also arrange shipping to any global destination.



FAQ:

The Brand Name of the LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION is Supreme.

The Model Number of the LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION  is MQ-320-Y.

The LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION is manufactured in China.

The Certification of the LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION  is CE.

The Minimum Order Quantity of the LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION  is 1.


Standard:

1:Rotary die cutting station

2:Slitting station with 8 sets round knife

3:1 pcs 3 inch unwinding air shaft+1 pcs rewinding air shaft+2 pcs 1.5/1/2inch air shaft. (Automatic inflation)

4:meter/number counter.

5:web guide 2 pcs right and left for material

6:1 magnetic brake, 3 pcs magnetic clutch

7:Fan blower for blowing away the waste

8:Main motor

9:Inverter

10: Synchronous motor for waste rewinding controlled



Specification:

Machine Model MQ320-Y MQ420-Y
Slitting Speed 120m/min 120m/min
Die Cutting Speed 120m/min 120m/min
Max. Web Width 320mm 420mm
Max. Unwinding Diameter 500mm 500mm
Max. Rewinding diameter for big roll 500mm 500mm
Max. Rewinding diameter for small roll 300mm 300mm
Length of Die Cutting 190-476 mm 190-476mm
Dimensions 1700*1000*1600mm 1800*1300*1700mm
Main motor 1.5 KW 2.2KW
Voltage 220V/380V 220V/380V
Min. Slitting width 16mm 16mm
Machine weight 600 kgs 800 kgs





LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION 0LENGTH OF DIE CUTTING 190-476 MM FULL ROTARY DIE CUTTING MACHINE WITH SLITTING STATION AND TURRET REWINDING STATION 1
